Storage And Preparation Together

Two Storage Zones With A Working Bay

The combined refrigeration cabinet brings upper chilled storage and lower frozen storage together with an open middle preparation counter. Restaurant plating, bakery finishing and hotel service preparation use the same work bay. The side care scene shows access for wiping the steel cabinet panel.

  • Restaurant Plating - Cold Dish Assembly In One Bay
  • Bakery Finishing - Pastry Finishing At The Counter
  • Hotel Service Prep - Organized Cold Service Workflow
  • Daily Cabinet Care - Clear Side Access For Daily Care

Product Advantages

Lower three-door stainless base on heavy casters—roll free with a flat worktop.

Glass Display + Open Shelf Combo

Glass top, open mid shelf, cold base doors—digital temp and easy casters.

Specifications & Structural Decomposition

Product Structure Diagram

Product Structure Diagram
  1. Upper Left Glass Door

    The upper left glass door has a steel frame and a curved handle fitted along its right edge.

  2. Upper Middle Glass Door

    The upper middle glass door has its handle on the left edge, beside the left door handle.

  3. Upper Right Glass Door

    The upper right glass door closes the right storage opening and carries a handle on its left.

  4. Lower Left Solid Door

    The lower left steel door covers its storage opening and has a recessed grip near the top.

  5. Lower Middle Solid Door

    The lower middle steel door provides front access to storage beneath the preparation bay.

  6. Lower Right Solid Door

    The lower right steel door closes the right lower opening and uses a recessed upper grip.

  7. Upper Storage Shelf Set

    Three separate metal rod shelves sit in the upper storage area and support food containers.

General information

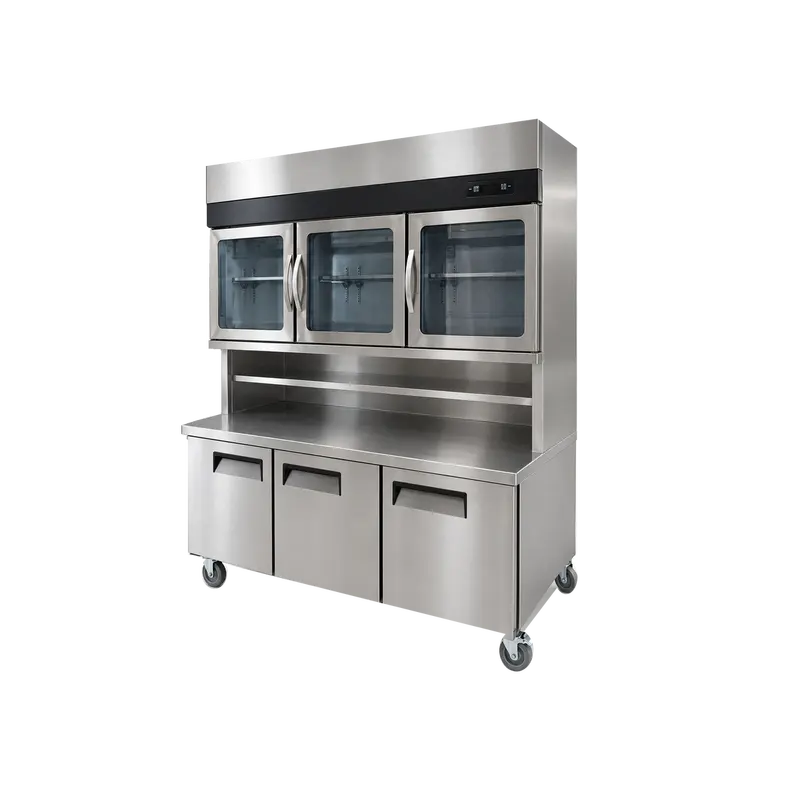

Combined Refrigerator And Freezer Cabinet With Preparation Bay
Product Name
Combined Refrigerator And Freezer Cabinet With Preparation Bay
Product Model
HXER-CRF-1800
Refrigeration method
Direct Cooling
Temperature control method
Electronic Digital Temperature Control
Internal volume
Total 840 L / Refrigerated 280 L / Frozen 560 L
Number of shelves
3
Shelf material
Stainless Steel Square Tubing

General instructions

Simplified explanation

Product Video

00:33

Glass Display + Open Shelf Combo

Glass top, open mid shelf, cold base doors—digital temp and easy casters.

Real Factory Footage

Real on-site records from our factory, offering a practical view of our production capability and delivery readiness.

01

Smooth Refrigerator Manufacturing Flow

0:00 / 0:00

Product Review

Product Inspection

We centrally purchase equipment, test the data and the machine, then publish the models that clear our review. You get a shorter path from "could work" to a quote your team can act on.

0:00 / 0:00

Core Component Details

Cabinet Drain Plug

Curved Glass Door Handles

Digital Temperature Panel

Glass Door And Handle

Glass Door Frames

Glass Door Handle Profile

Glass Door Lower Corner

Glass Door Lower Gasket

Glass Door Top Hinge

Glass Door Upper Gasket

Lower Cabinet Interior

Lower Door Grip

We're here to help

Our team is ready to advise you on the best product configuration and procurement plan.

400 158 5899

Frequently Asked Questions (FAQ)

What storage zones are used?

The cabinet combines an upper chilled storage zone behind glass doors with a lower frozen storage zone behind solid doors.

What is the total capacity?

The total storage capacity is 840 L, comprising 280 L for chilled storage and 560 L for frozen storage within the combined cabinet.

What are the storage ranges?

The upper chilled zone operates at 1–10°C. The lower frozen storage zone is specified at −15°C or below for its frozen storage function.

How are the doors arranged?

The cabinet has three glass doors across the upper section and three solid doors across the lower section, with separate front handles.

Is there a preparation bay?

Yes. The open middle bay has a flat preparation counter and a rear horizontal ledge, providing a working area between the two storage sections.
