The upper light box forms the cabinet header and enhances product presentation with a prominent display area.
Seating Area Refreshments
Clear Refrigerated Beverage Display
Cold Drinks Organized in Compact Spaces

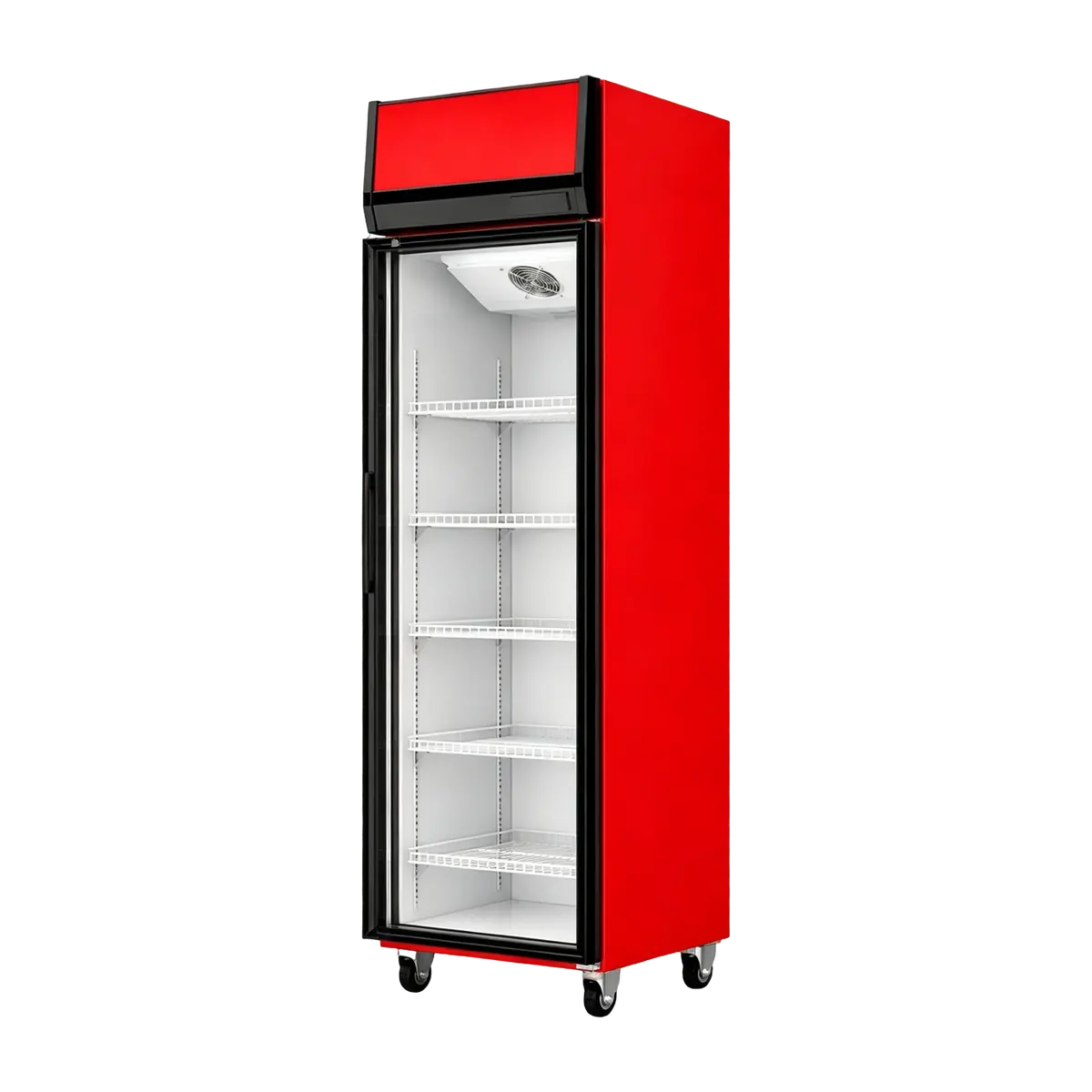

The single-door glass cabinet is suited to convenience stores, checkout areas, dining spaces and reception counters. Its 2–8°C refrigeration range, illuminated interior and adjustable shelves keep bottled and canned drinks visible and organized, while the upright 600 mm wide body fits along walls and beside service areas.
- Drinks beside the Front Desk
- Beverages near Dining Areas
- Cold Drinks near Seating Areas
- Bottled Drinks near Checkout
Front Desk Beverage Display
Dining Area DrinksSeating Area Refreshments
Checkout Drink DisplayFront Desk Beverage DisplayDining Area DrinksSpecifications & Structural Decomposition
Product Structure Diagram
- Top Light Box Assembly
- Upper Cooling Module
The evaporator and fan assembly distribute cold air evenly to maintain stable refrigeration performance inside the cabinet.
- Tempered Glass Door Assembly
The full-height glass door provides clear product visibility while helping reduce cold-air loss during daily use.
- Adjustable Shelf System
The multi-level wire shelves offer flexible storage space and allow products of different heights to be arranged neatly.
- Main Inner Cabinet Body
The insulated inner cabinet forms the primary refrigerated chamber and supports the internal shelf rail structure.
- Side Outer Panel Assembly
The exterior side panel completes the cabinet enclosure and helps protect the insulated body and internal components.
- Refrigeration System Module
The compressor, condenser, fan, copper piping, and electrical components work together to deliver reliable cooling performance.
General information
- Product Name
- Single-door glass beverage display cabinet
- Product Model
- Beverage cabinet
- Product Type
- Upright beverage refrigerated display case
- Number of doors
- 1 course
- Door opening method
- Glass door
- Crew position
- Top-mounted unit
- Cooling function
- Refrigeration
General instructions
Simplified explanationCore Component Details
We're here to help
Our team is ready to advise you on the best product configuration and procurement plan.
info@eascoutia.com400 158 5899Frequently Asked Questions (FAQ)
What refrigeration range is listed?
The supplied information lists a 2–8°C refrigeration range for bottled water, canned drinks and suitable packaged beverages.
What are the shown cabinet dimensions?
The shown red single-door top-unit cabinet measures 600 × 550 × 1920 mm; allow ventilation, door-opening and movement clearance.
Can the shelf positions be adjusted?
Yes. The shown cabinet has five adjustable wire shelves that can be repositioned for different bottle and package heights.
Are lighting and temperature display included?
The shown configuration includes internal LED lighting and a digital temperature controller for display and routine adjustment.
Are other doors, colors or cooling setups available?
The series information lists one-, two- and three-door versions, top or bottom units, direct or fan cooling, and red, black or white finishes; confirm availability before ordering.
