Replacement brake service scenes

Vehicle brake service

The images show the brake disc at a wheel hub during workshop and wheel-off service. The exposed hub, nearby brake hardware and lifted vehicle context show how the component relates to replacement, alignment and access.

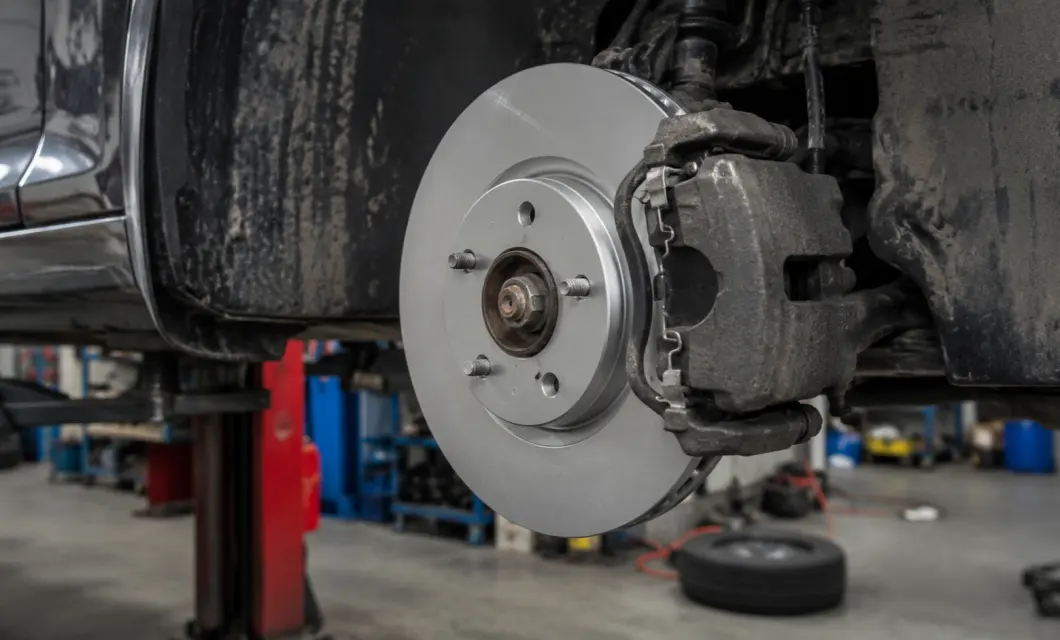

  • Lift Service Bay - Disc aligned on exposed wheel hub

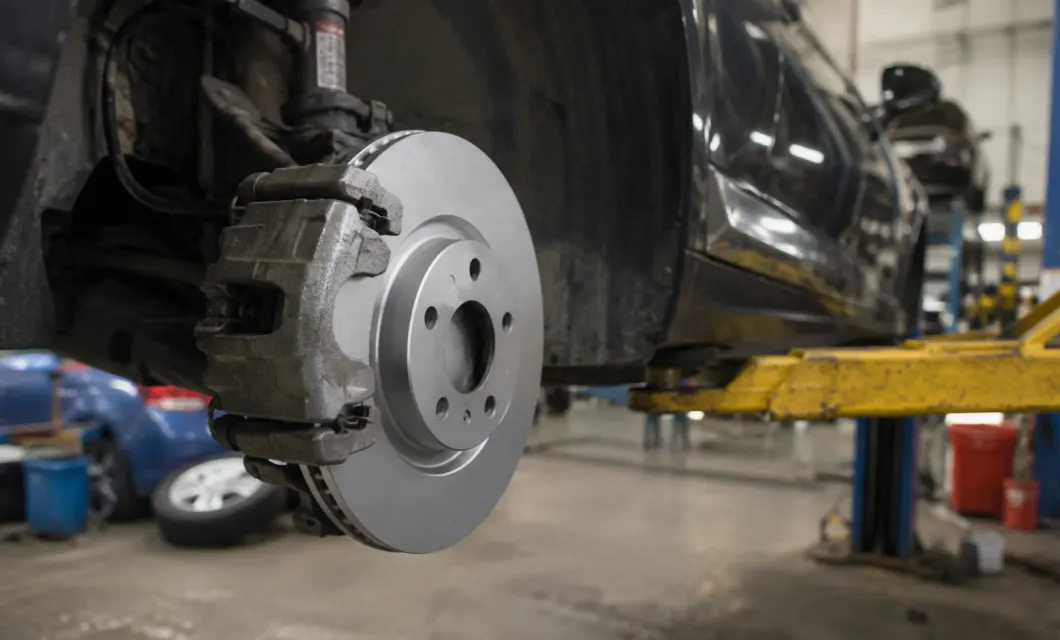

  • Hub Fitment Area - Mounting face kept clear for fit

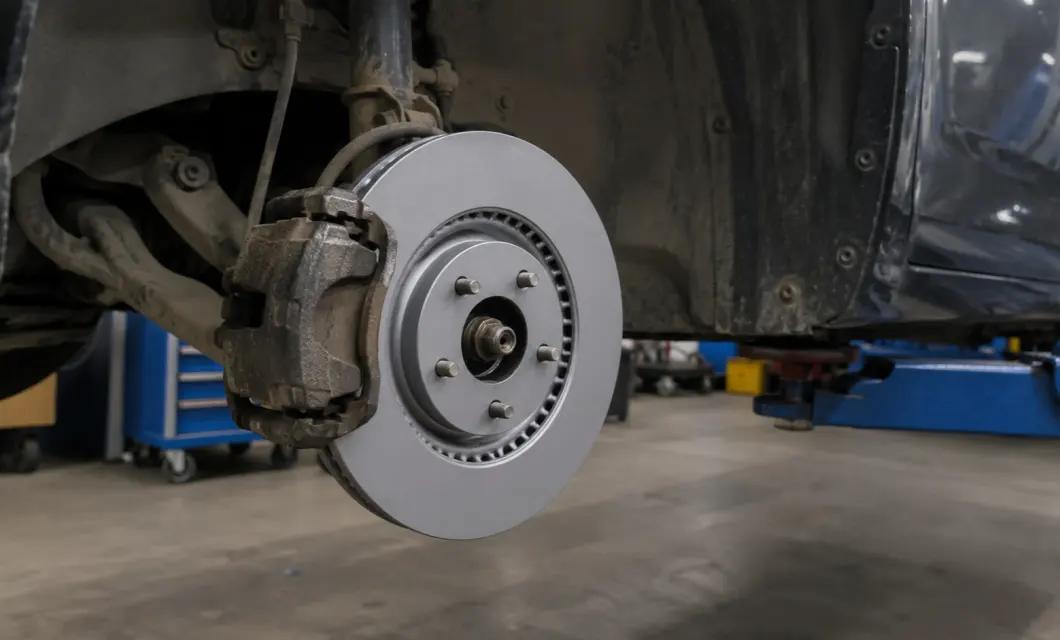

  • Caliper Side View - Brake hardware visible beside disc

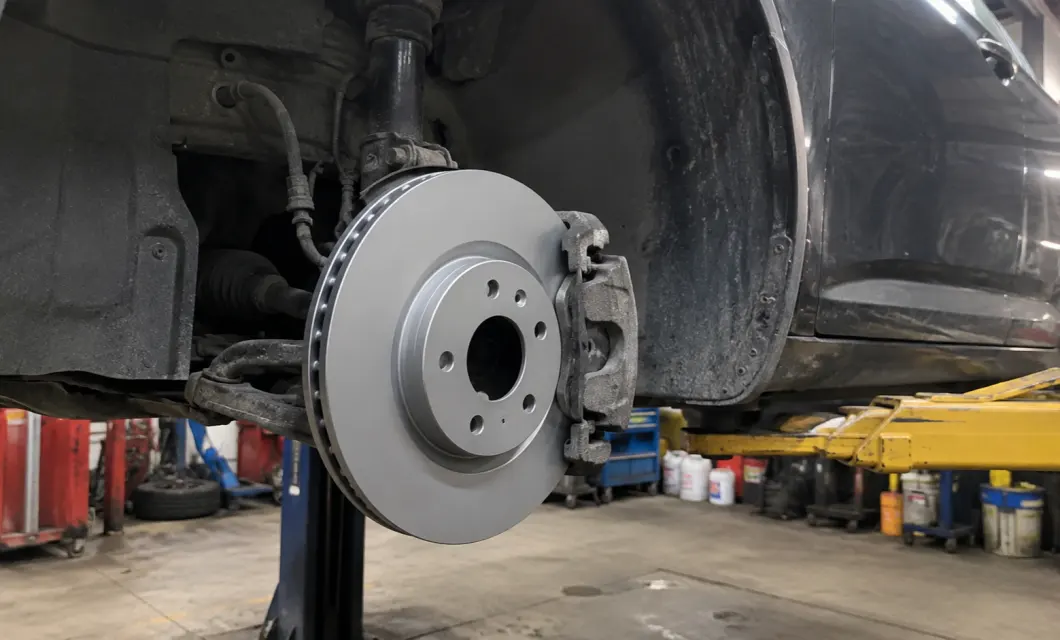

  • Wheel-Off Service - Wheel removed for disc access

Product Advantages

Rig caliper clamps a spinning rotor with heavy smoke—heat and brake stability under extreme load.

Specifications & Structural Decomposition

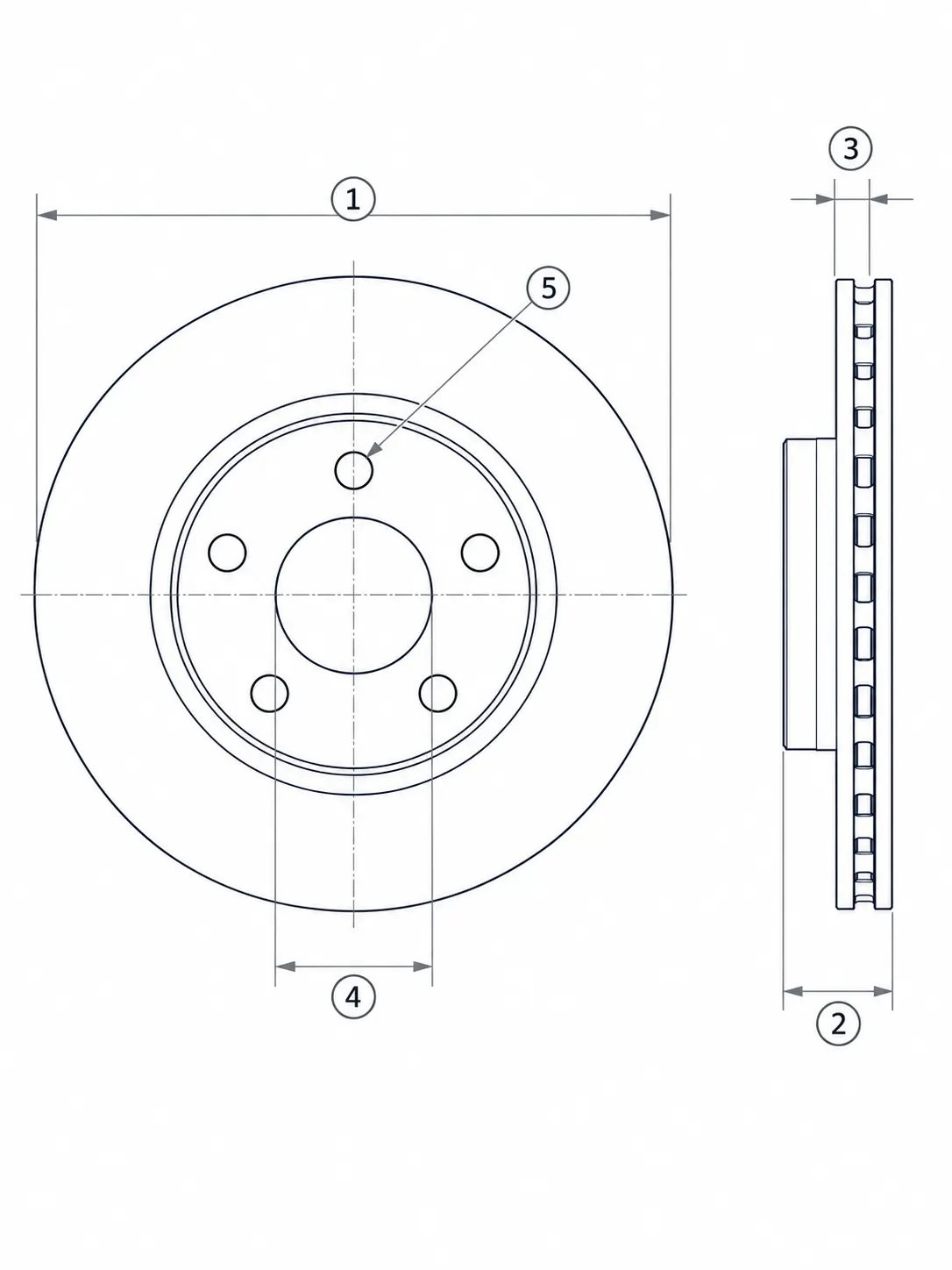

Dimensional Diagram

Dimensional Diagram
  1. Overall Outer Diameter — 280

    Measured across the full outside edge, 280 defines the rotor’s maximum overall disc diameter.

  2. Total Height — 44

    Measured through the axial profile, 44 indicates the rotor’s total installed height and offset.

  3. Brake Disc Thickness — 24

    Measured across the friction ring, 24 shows the brake disc’s working section thickness.

  4. Center Bore Diameter — 68

    Measured across the hub opening, 68 defines the center bore size for proper hub alignment.

  5. Mounting Hole Count — 5

    Specifies 5 mounting holes around the center, indicating the fastening pattern used for hub fitment.

General information

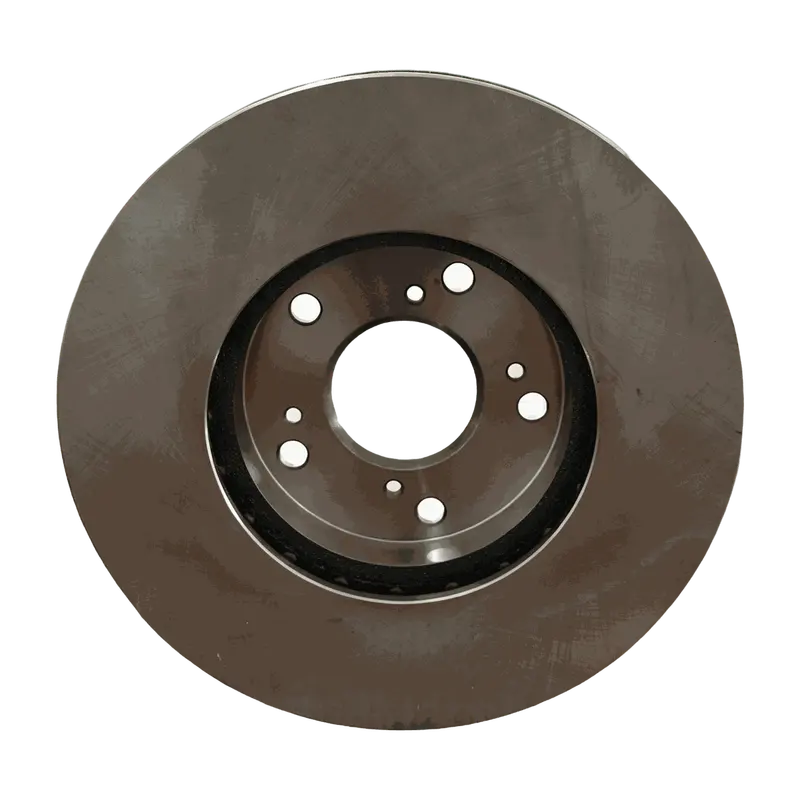

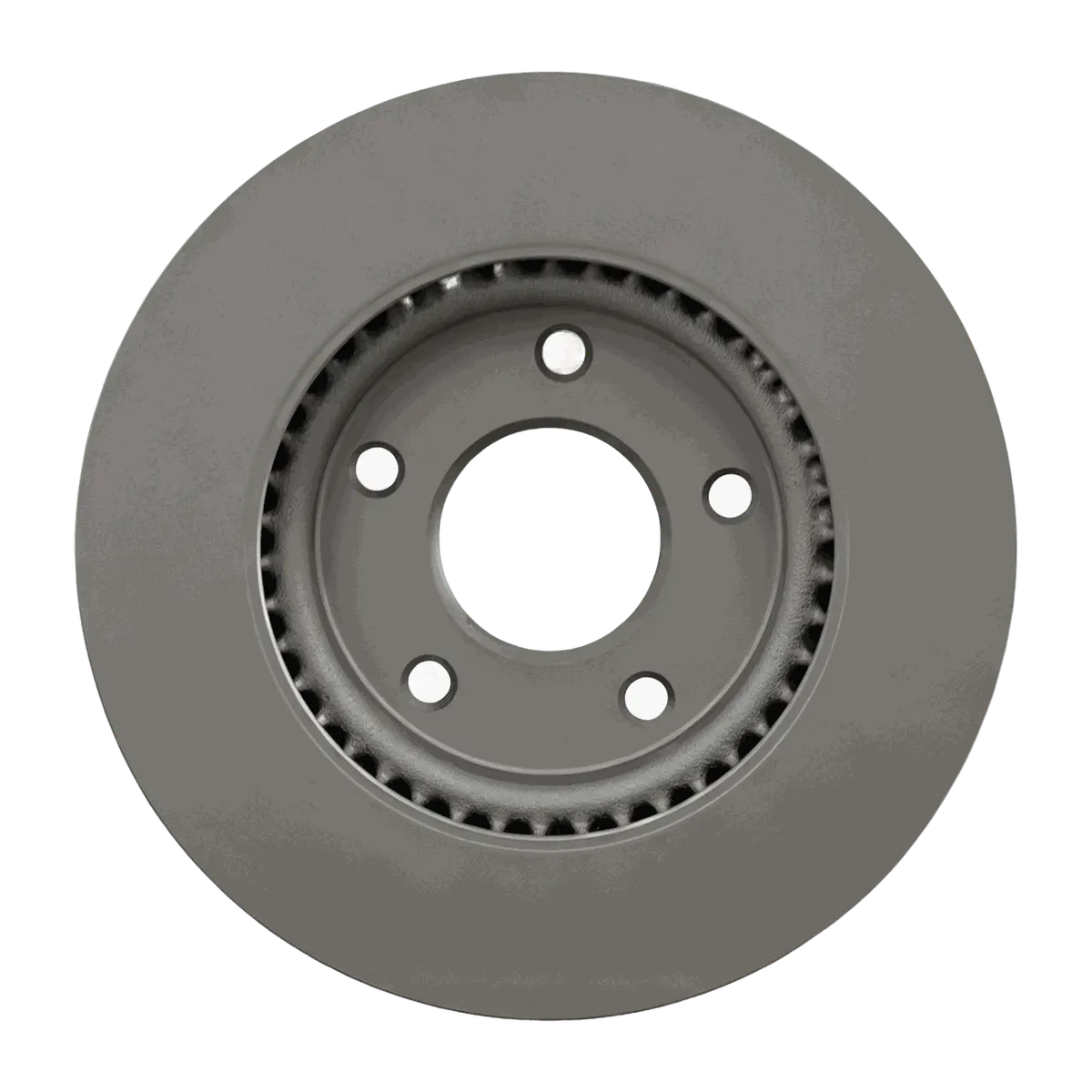

Brake Disc
Large Outer Diameter
280
Total Height
44
Brake Thickness
24
Center Hole
68
Hole Quantity
5

General instructions

Simplified explanation

Product Video

00:40

Vented Disc RB03240

RB03240 vented disc—OE 402063DA0A, fine machining rings and a clean 5-lug hub for sure fitment.

Vented Disc RB03240

00:40RB03240 vented disc—OE 402063DA0A, fine machining rings and a clean 5-lug hub for sure fitment.

Lab Triple QC Cut

00:54Lab cut covering raw materials, friction, and hardness—meter readouts and rig conditions together.

Secure Carton Shipping Pack

00:23Thick corrugated cartons with desiccant and manuals, film-sealed then palletized for steadier outbound protection.

Real Factory Footage

Real on-site records from our factory, offering a practical view of our production capability and delivery readiness.

01

Factory real scene

0:00 / 0:00

Product Review

Product Inspection

We centrally purchase equipment, test the data and the machine, then publish the models that clear our review. You get a shorter path from "could work" to a quote your team can act on.

0:00 / 0:00

Core Component Details

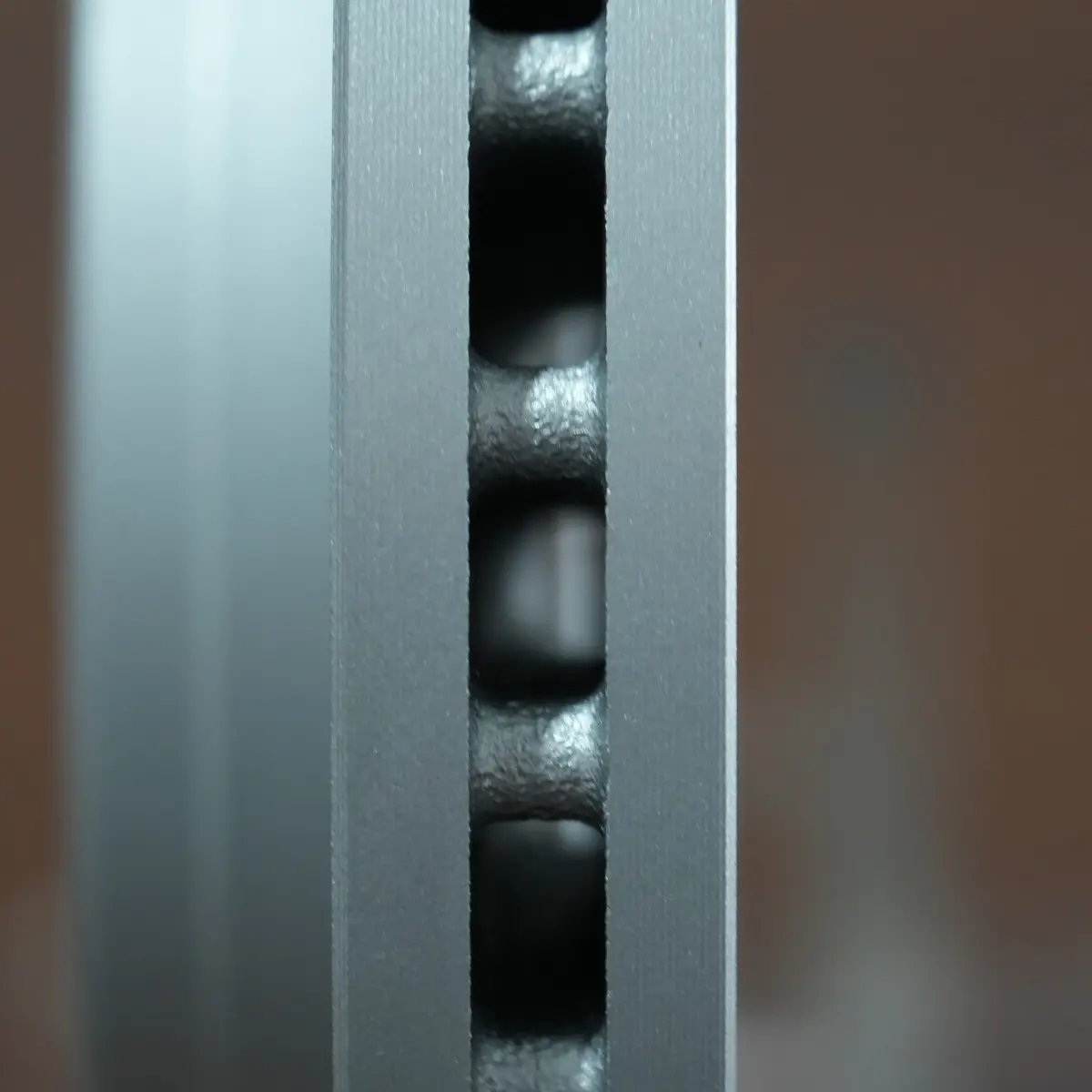

Cooling Vent Cross Section

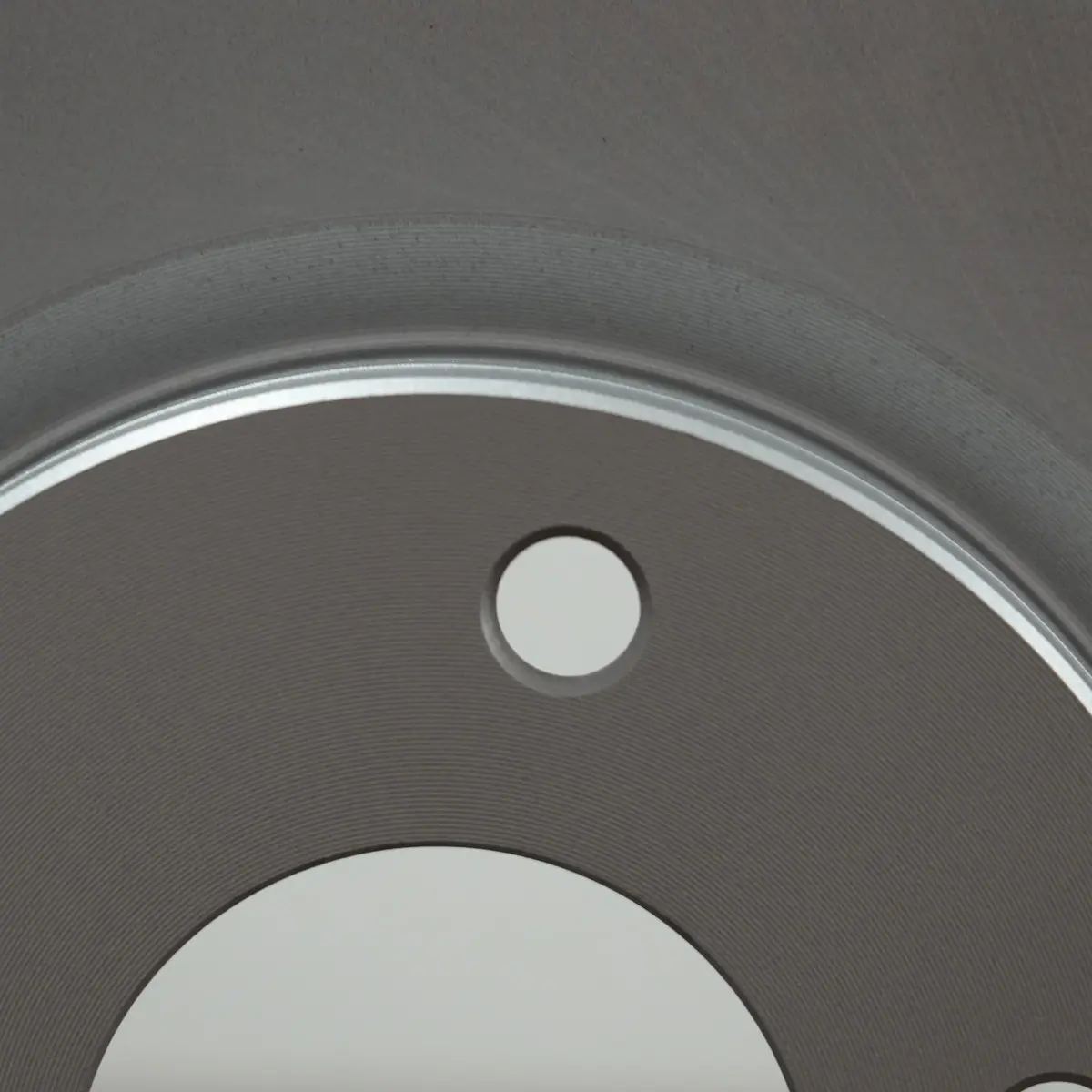

Hub Face And Bolt Hole

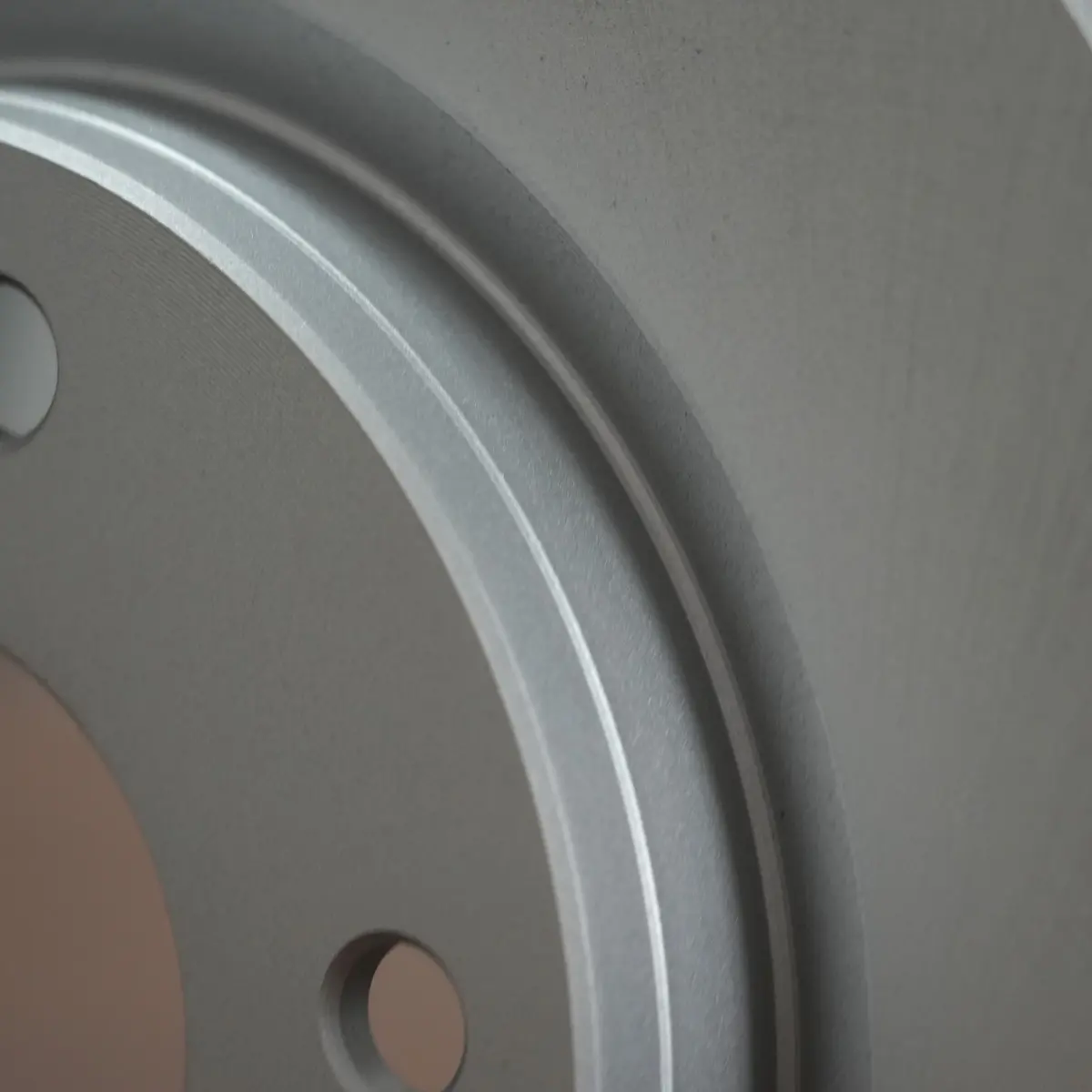

Hub Step And Bolt Hole

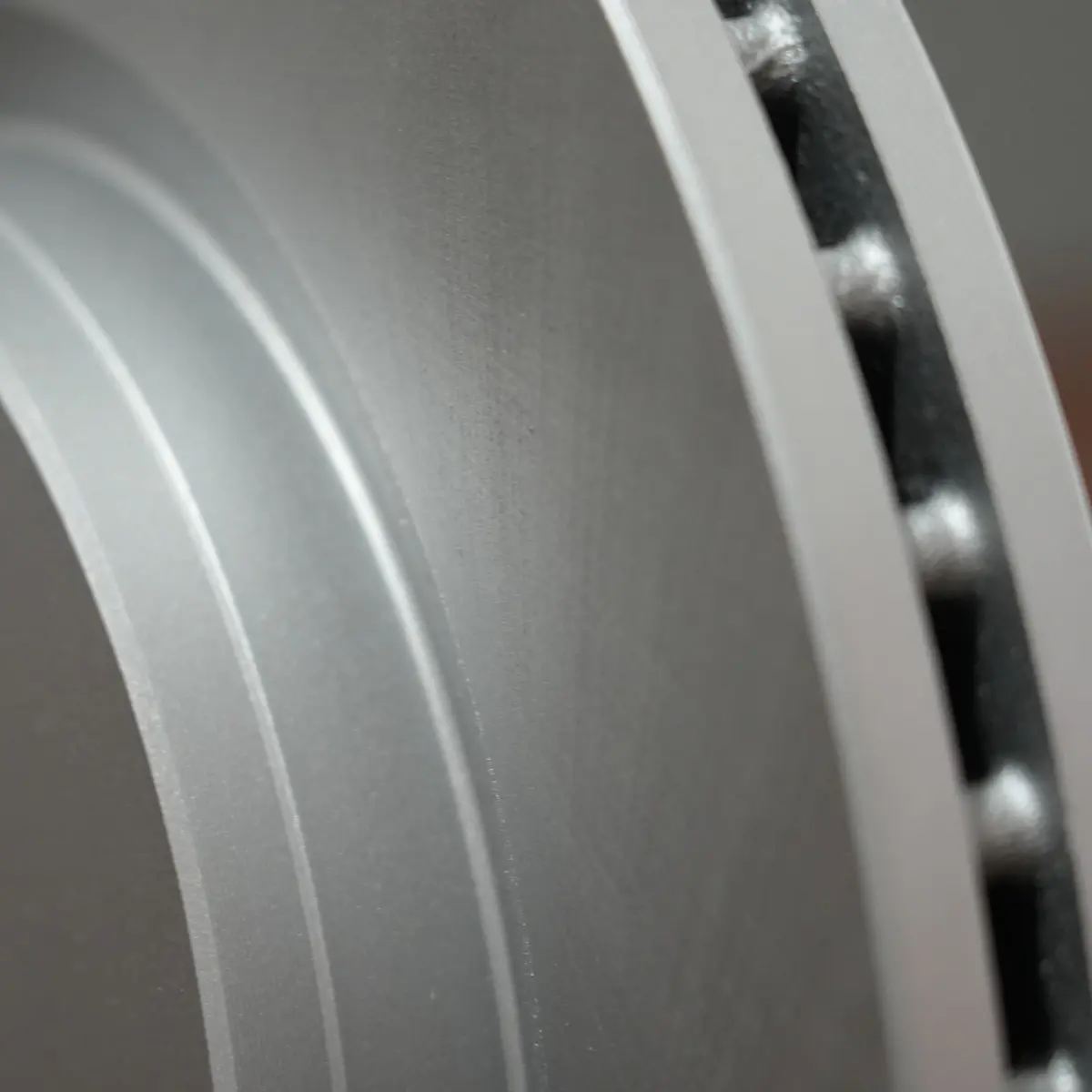

Hub Step And Vent Edge

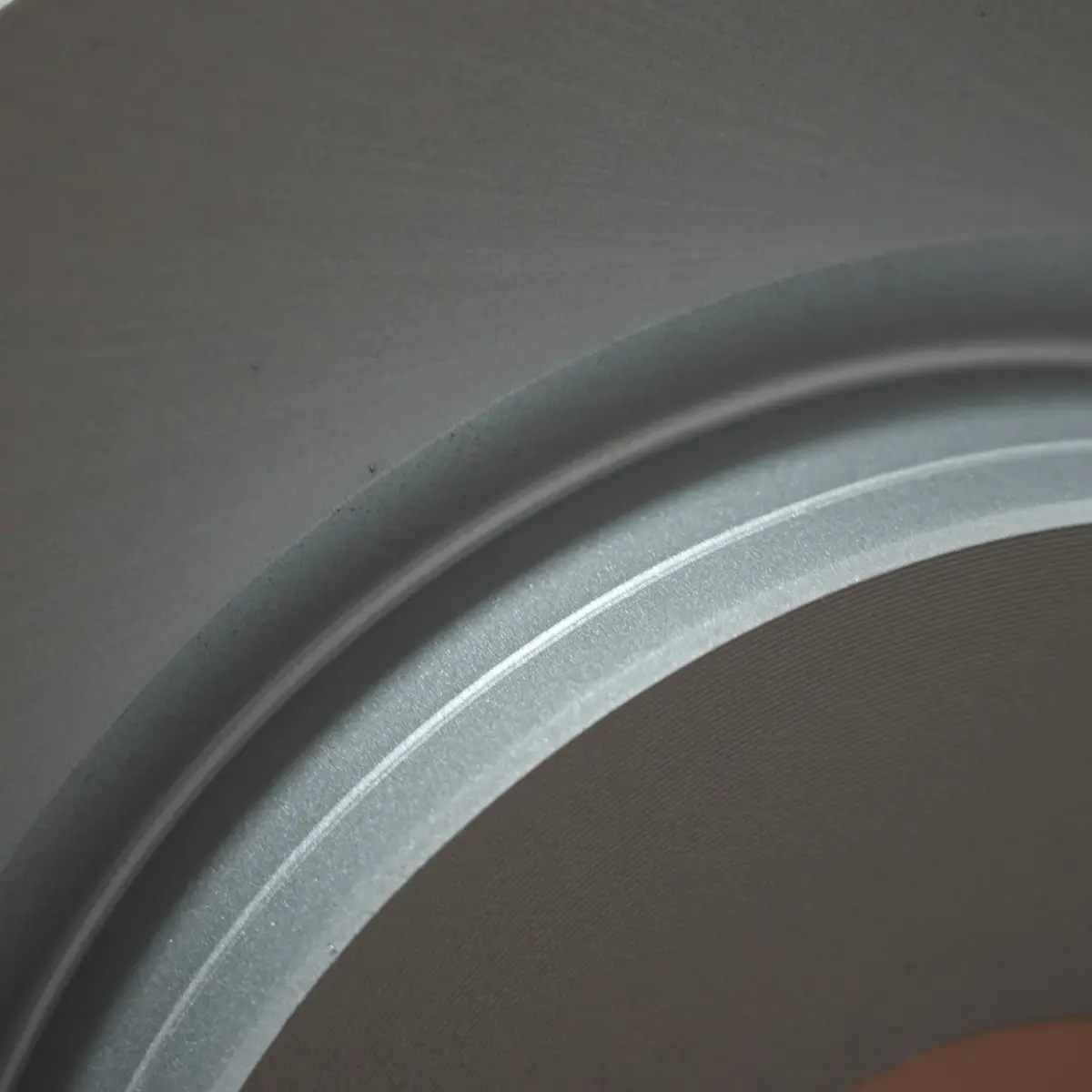

Inner Chamfer Detail

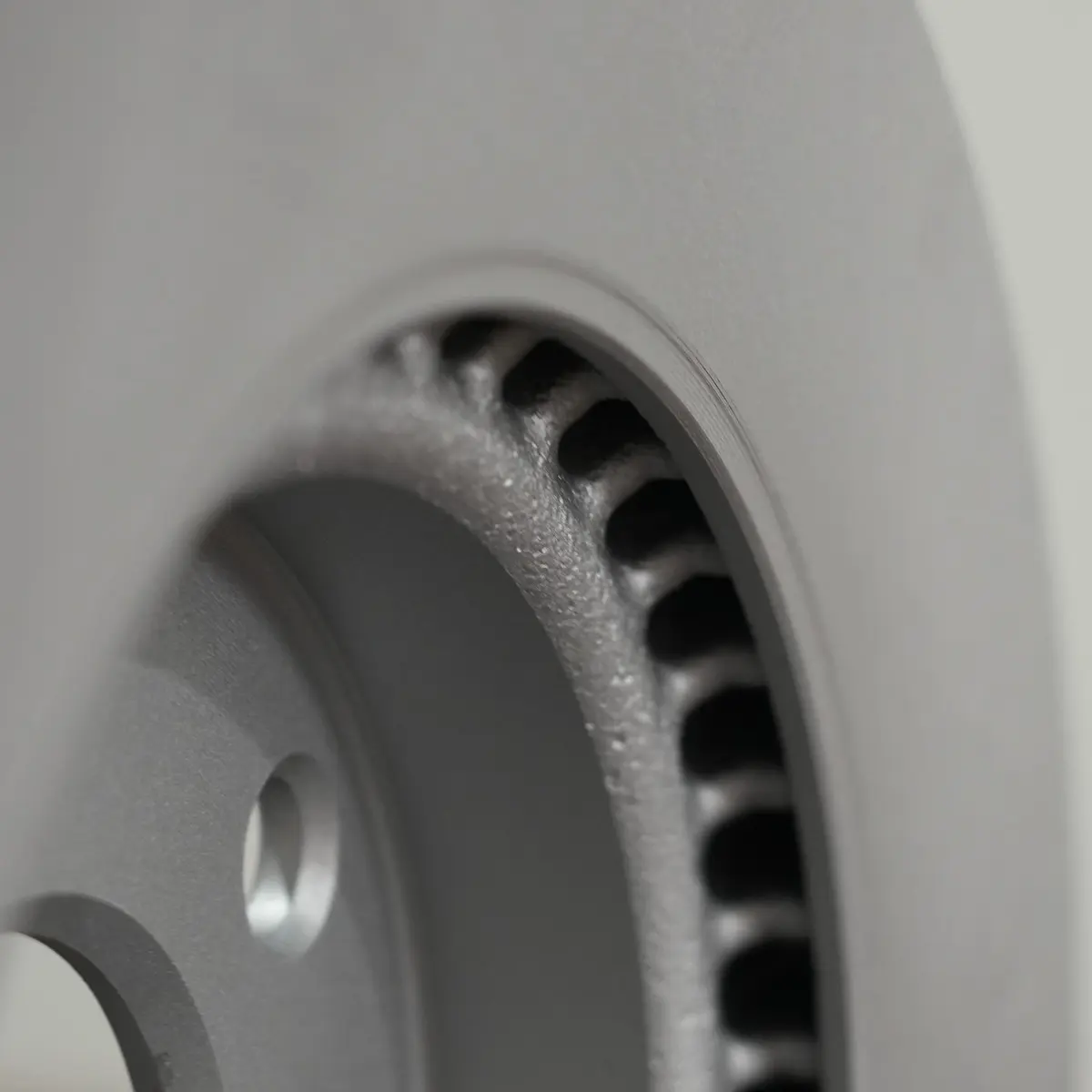

Inner Vent And Bolt Hole

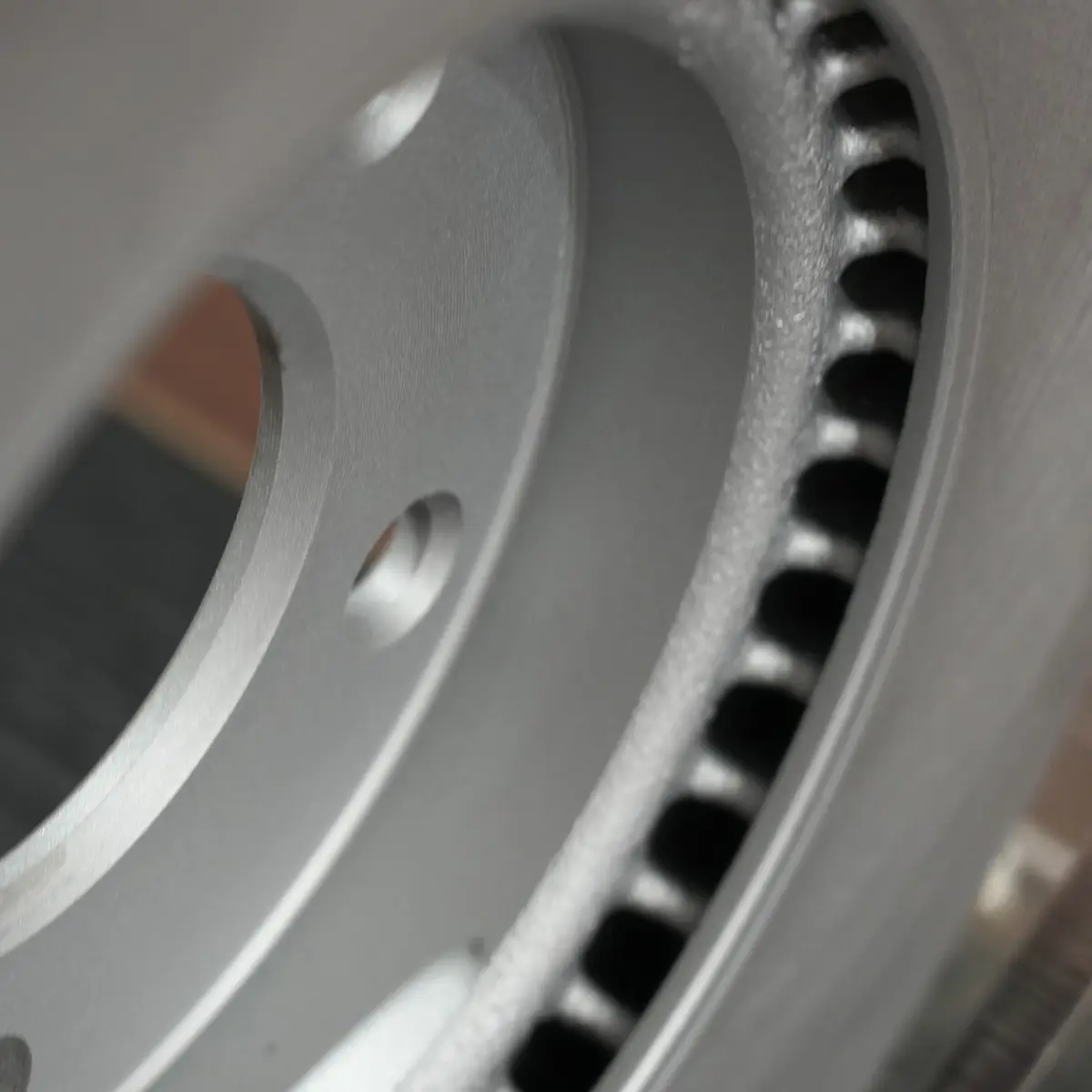

Inner Vent Ring Detail

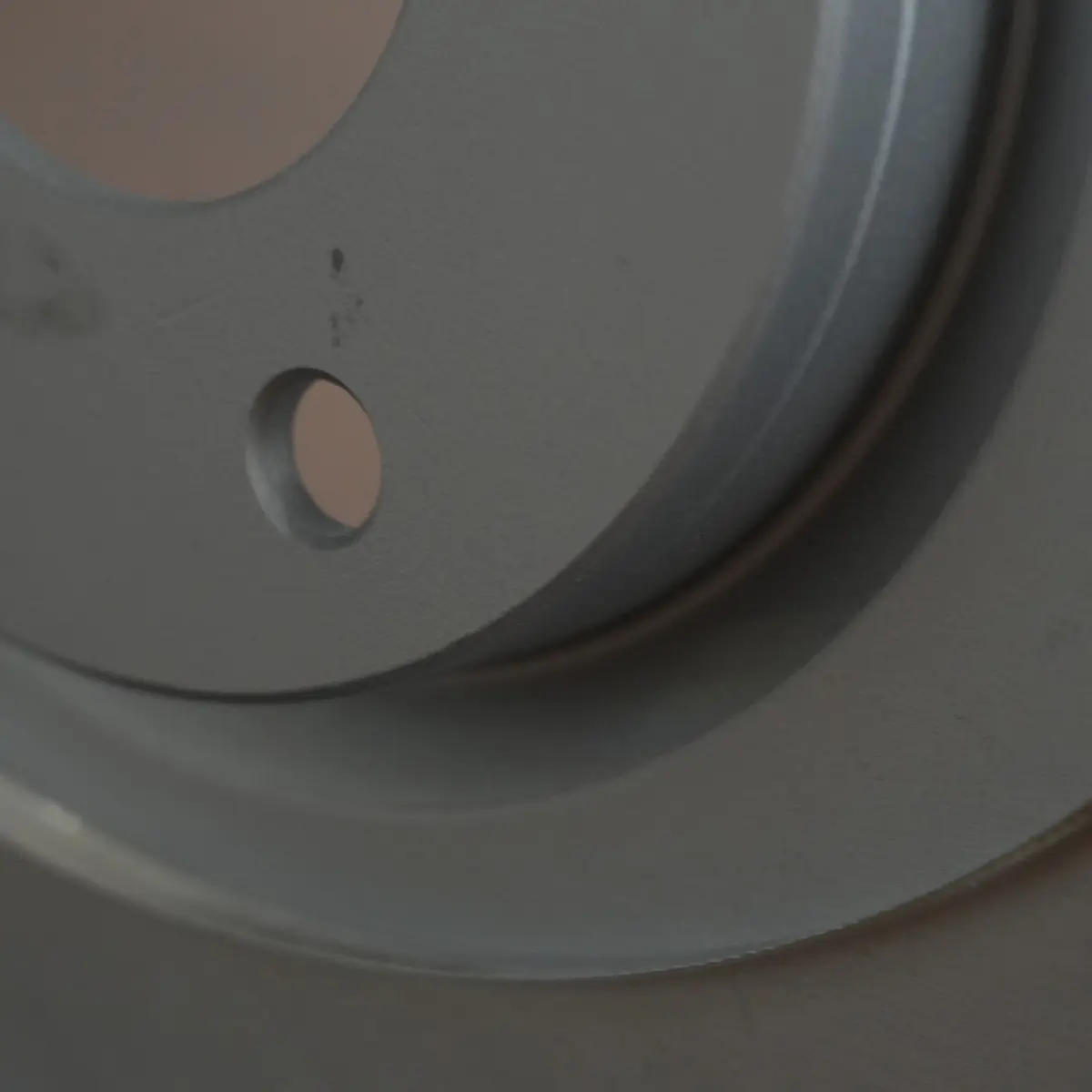

Mounting Face Close Up

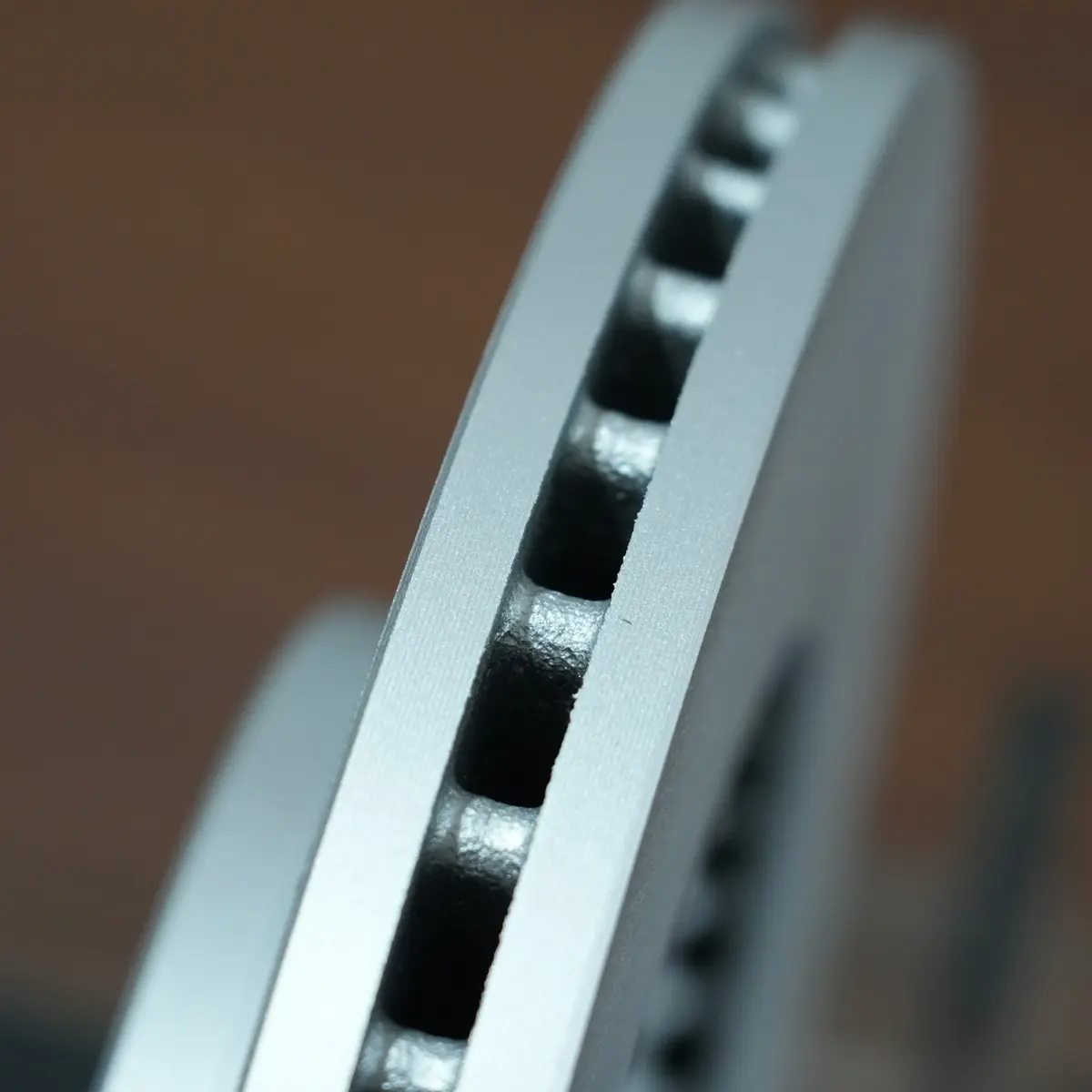

Outer Cooling Vent Detail

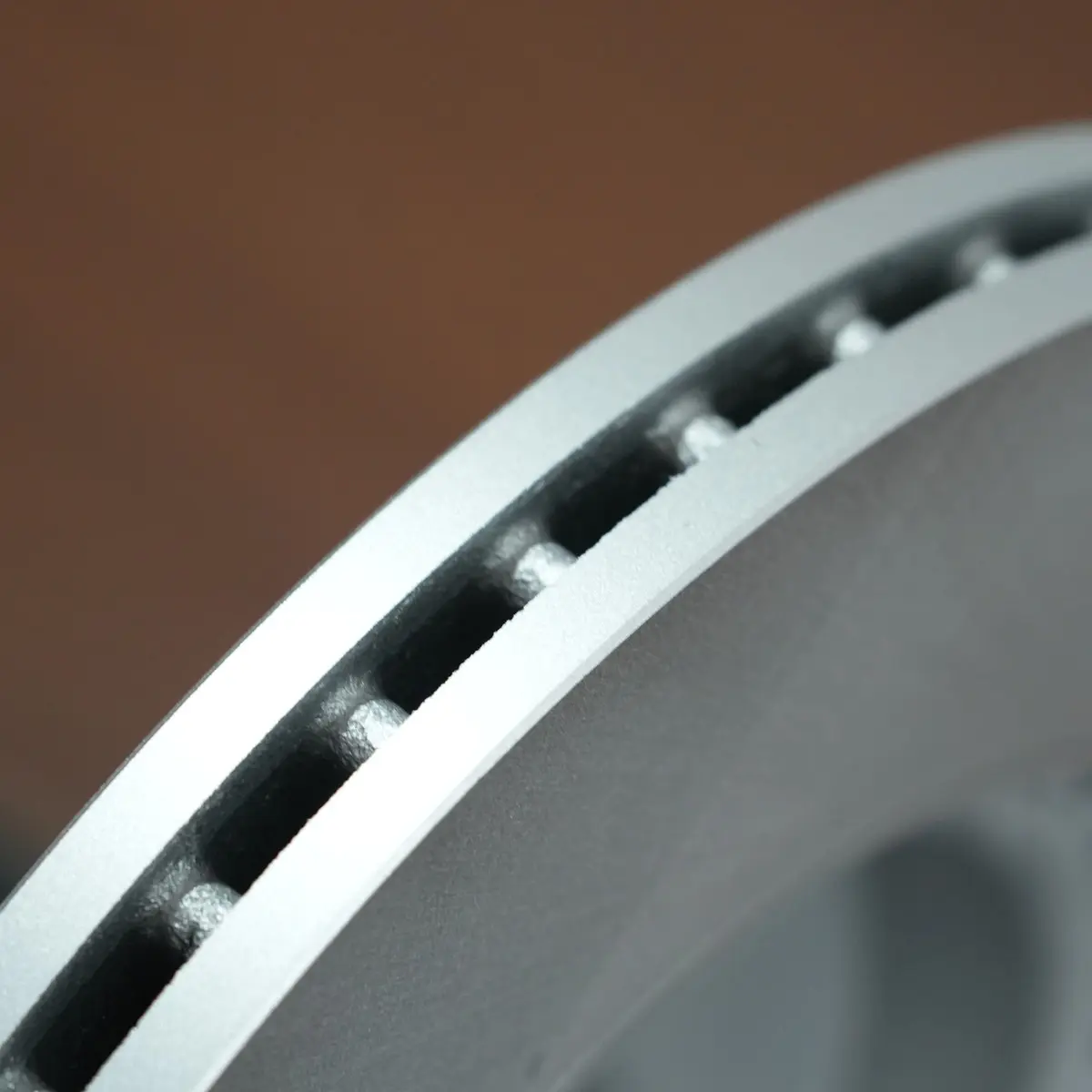

Outer Vent Edge Detail

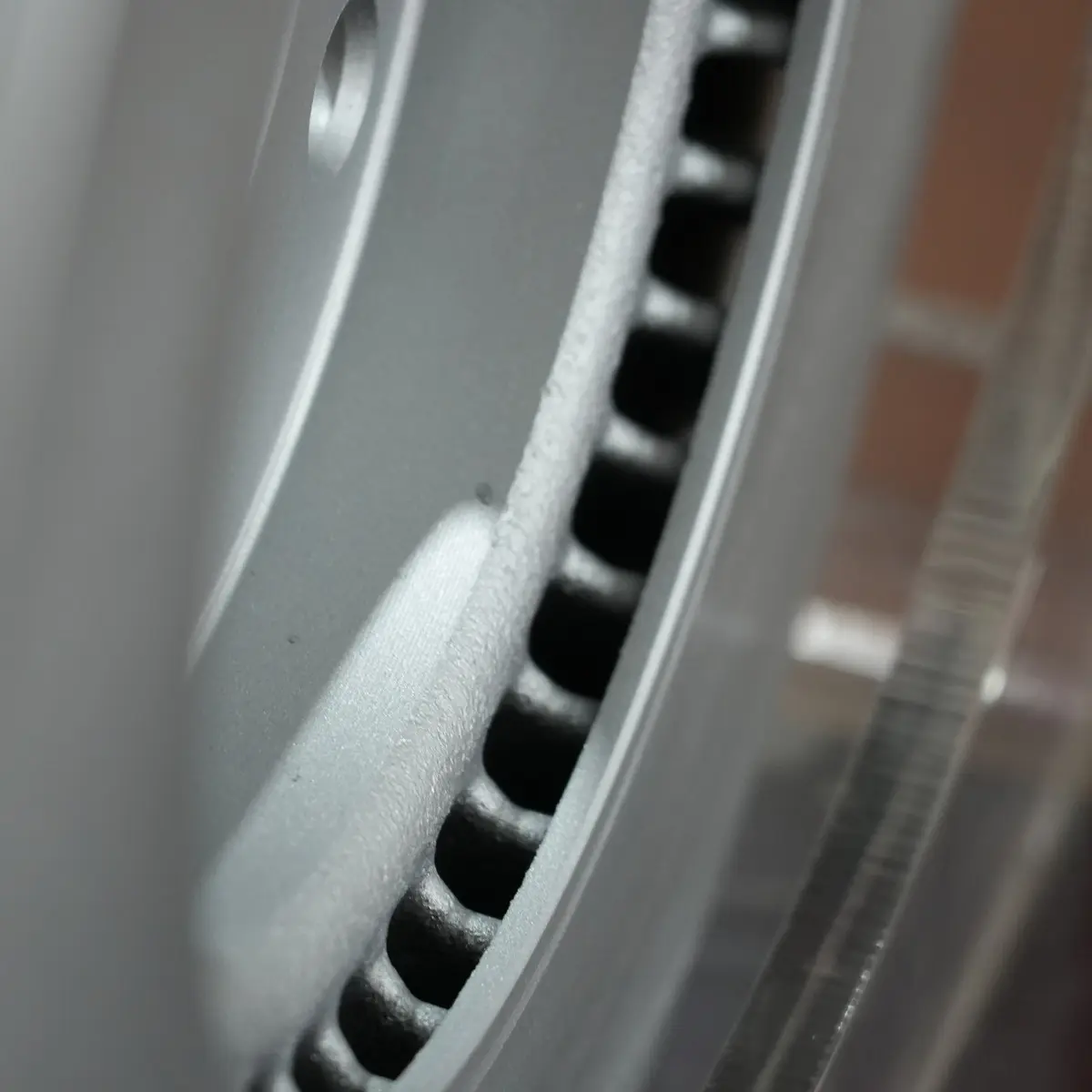

Vent Channel Detail

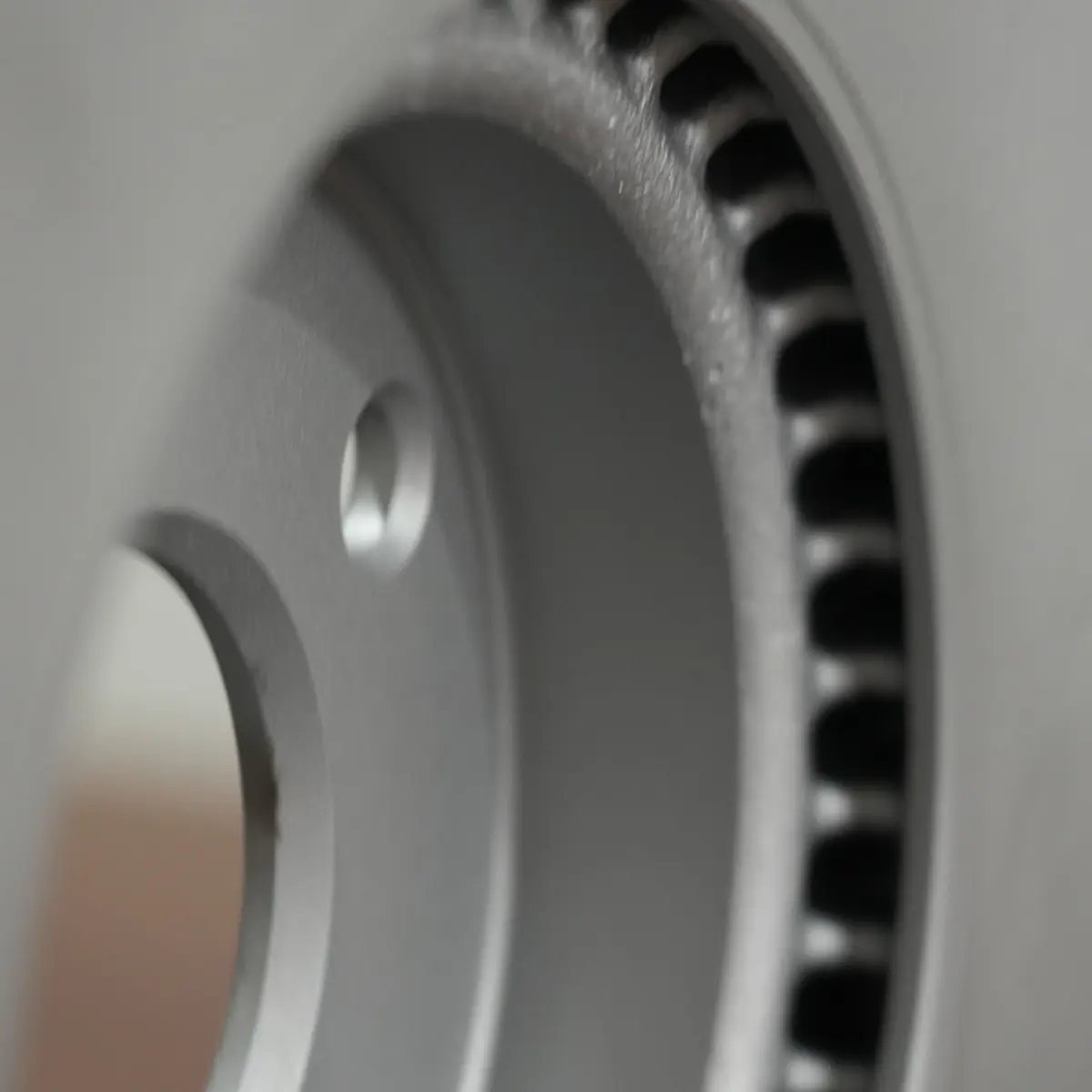

Vent Ring And Hub Edge

We're here to help

Our team is ready to advise you on the best product configuration and procurement plan.

400 158 5899

Frequently Asked Questions (FAQ)

How should this disc be matched?

Use the dedicated model field together with the confirmed outer diameter, profile height, thickness, center bore and five-hole layout.

Which key data is supplied?

The supplied data covers outer diameter, overall height, disc thickness, center bore and mounting-hole quantity.

Is the finish specified?

No independent finish option is stated, so the purchase plan keeps the color requirement as designated color.

What scene images are included?

Four service-scene images show the component at an exposed wheel hub with nearby brake hardware and wheel-off access.

Are accessories specified?

No separate accessory or core configuration material is specified for this item in the confirmed product information.
