Receives prepared fruit and directs it into the first pulping stage for steady feeding.
Simplified explanationDual Drums — Pro Processing Look
Dual-drum frame looks professional with clear footprint—strong industrial pitch on platform.

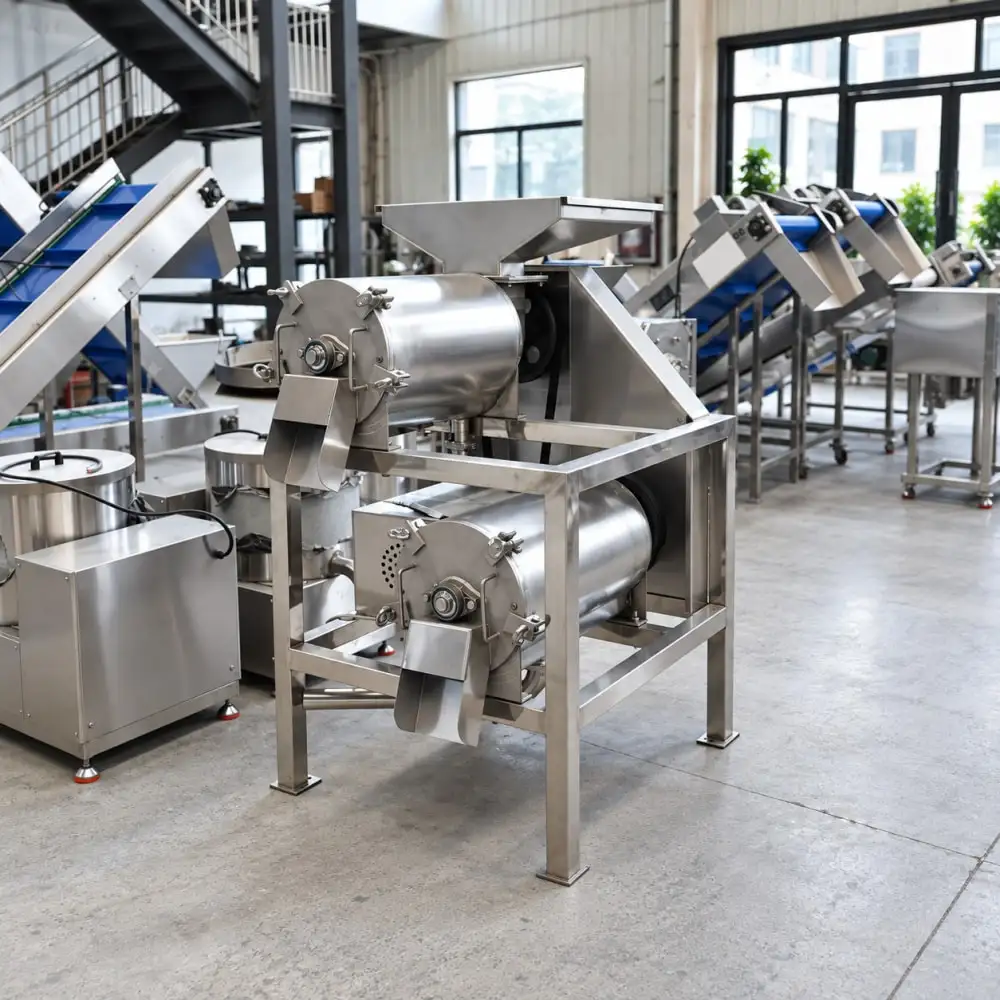

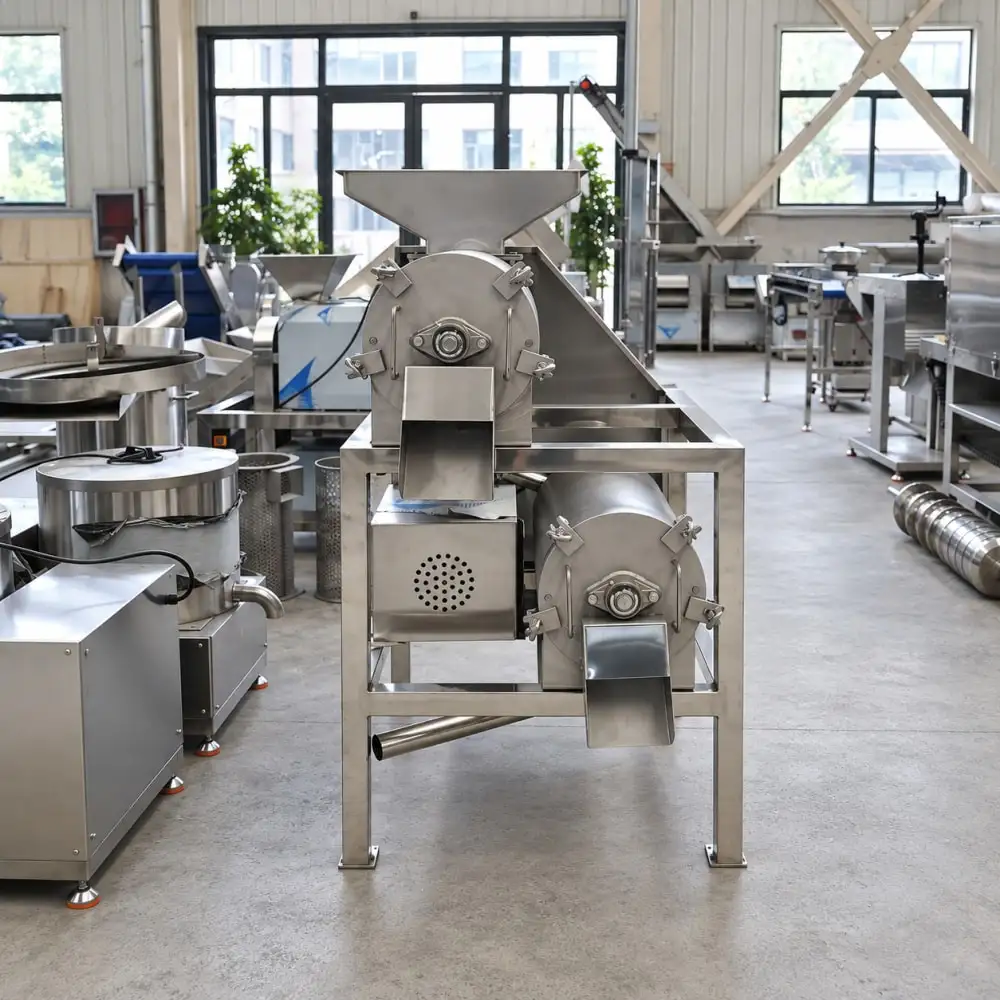

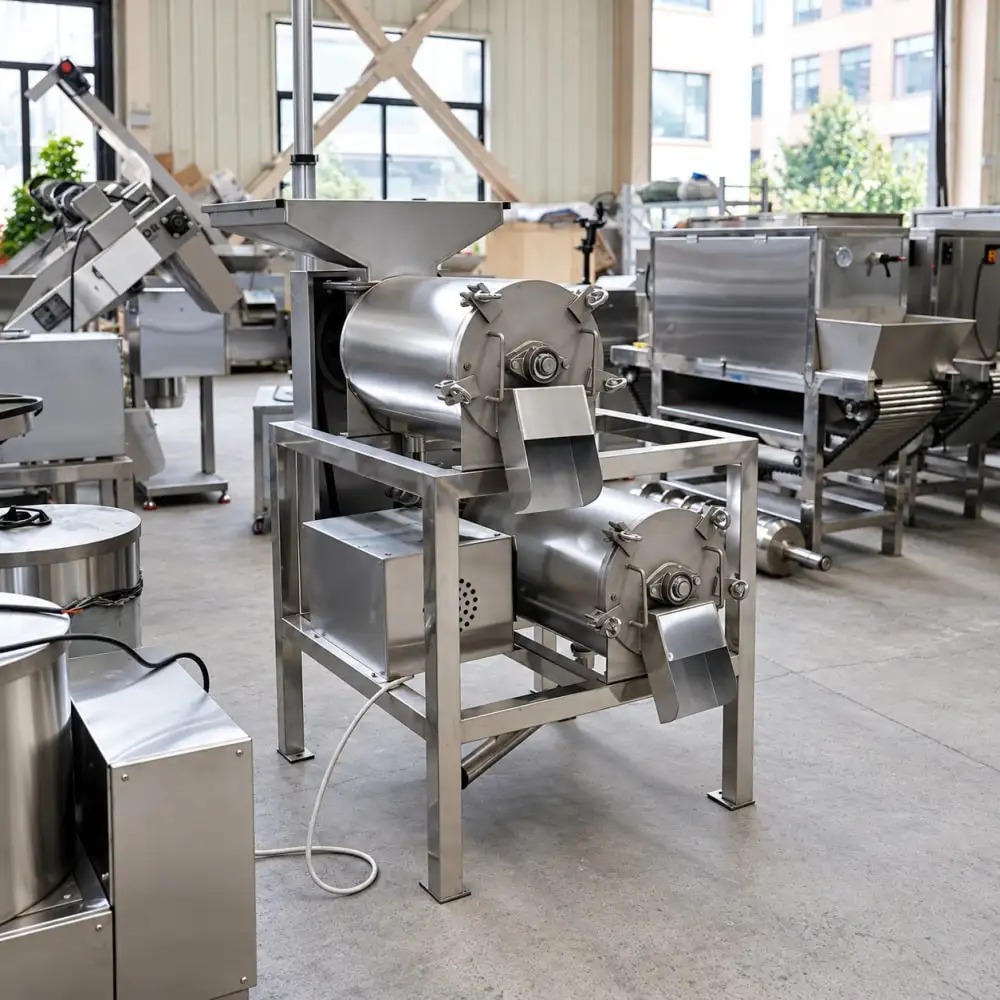

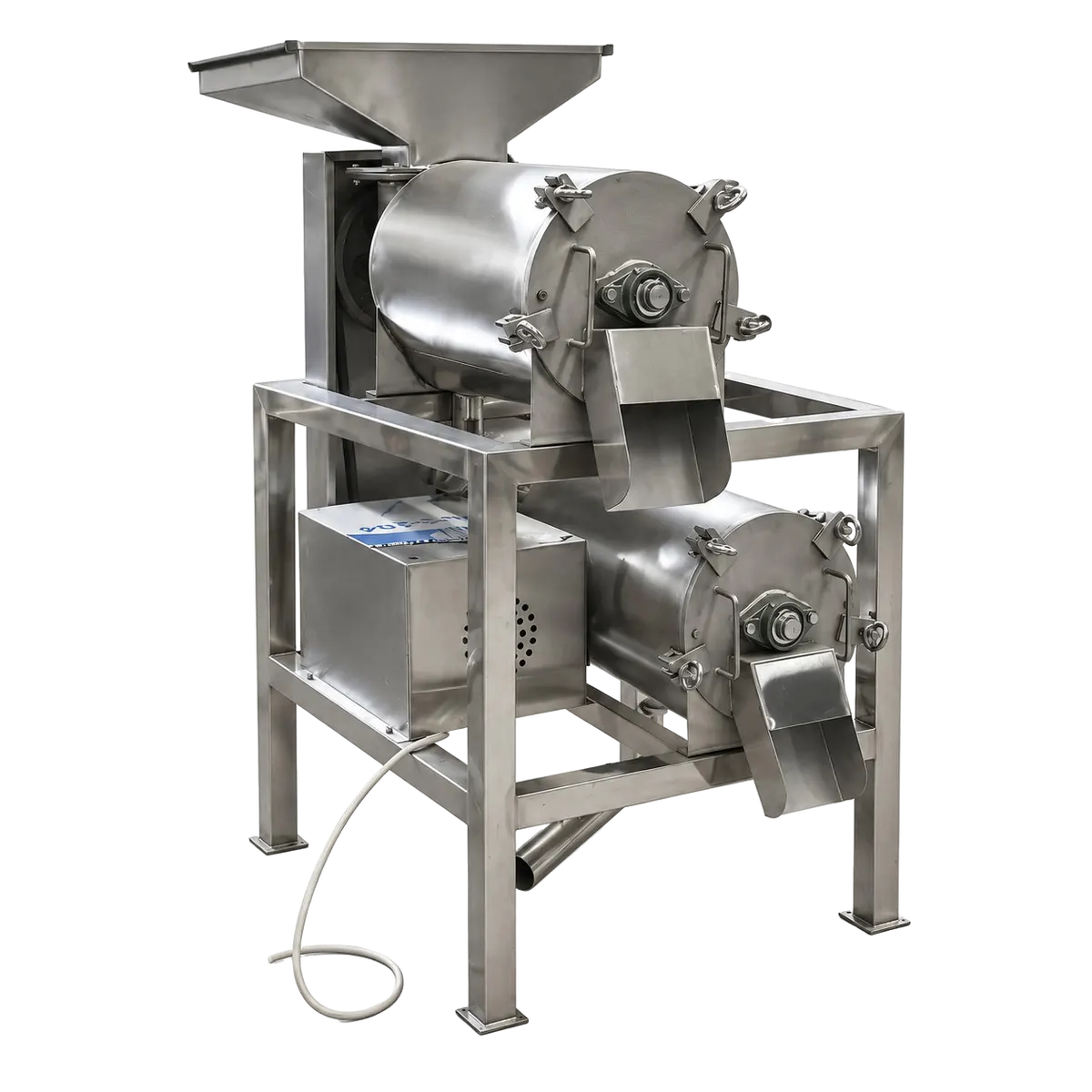

Double-stage De-pitting Pulping Machine
Fruit Juicing and Pulping for Daily Production
The machine receives prepared fruit, carries out two-stage de-pitting and pulping, and directs pulp and residue toward separate collection points. The layout suits practical fruit-processing tasks where clear feeding, visible discharge and straightforward cleanup matter.
- Application Scenarios
Product Advantages
Fine passion-fruit puree from dual refining—premium juice and jam appeal.
Specifications & Structural Decomposition

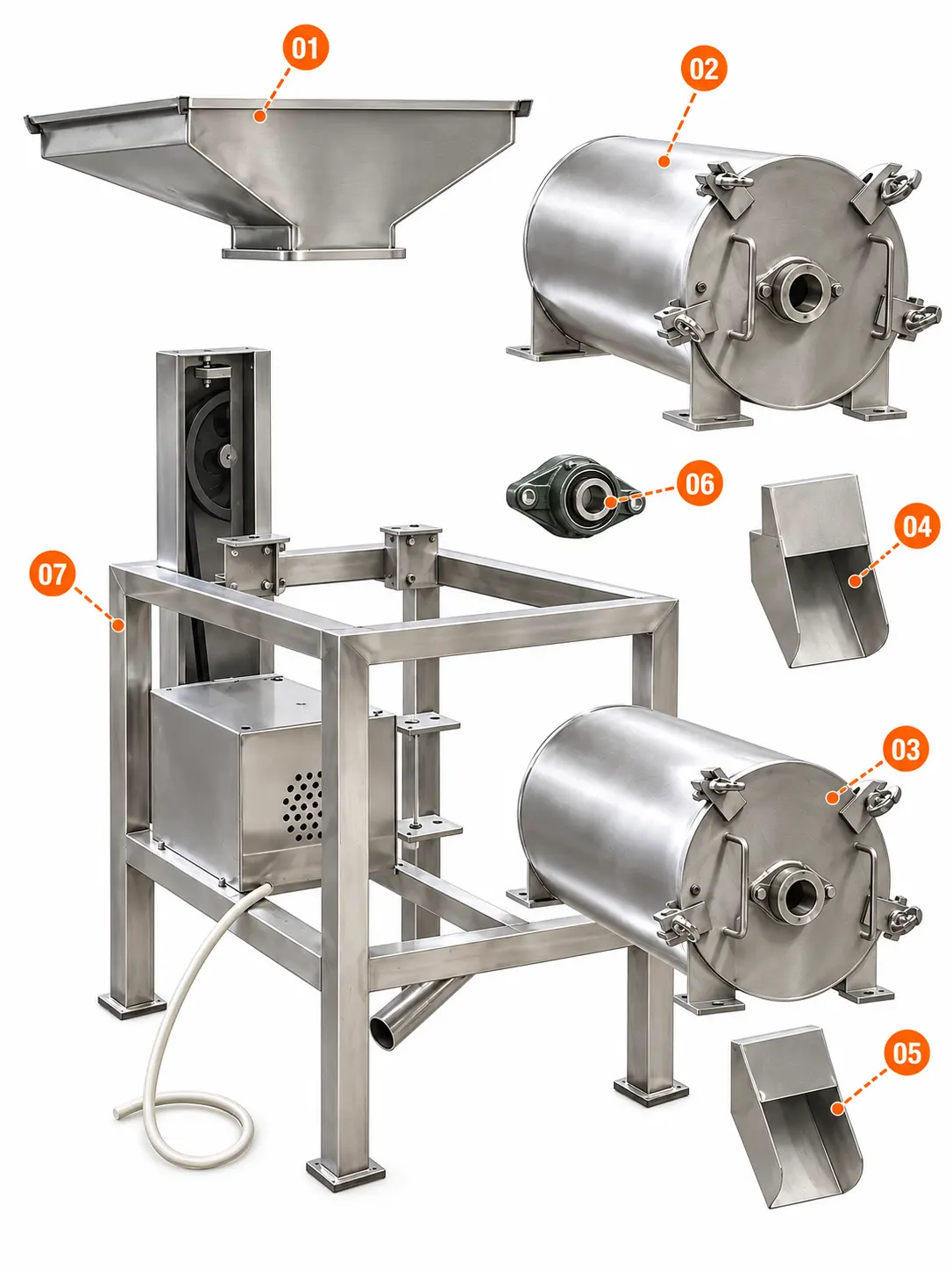

Product Structure Diagram

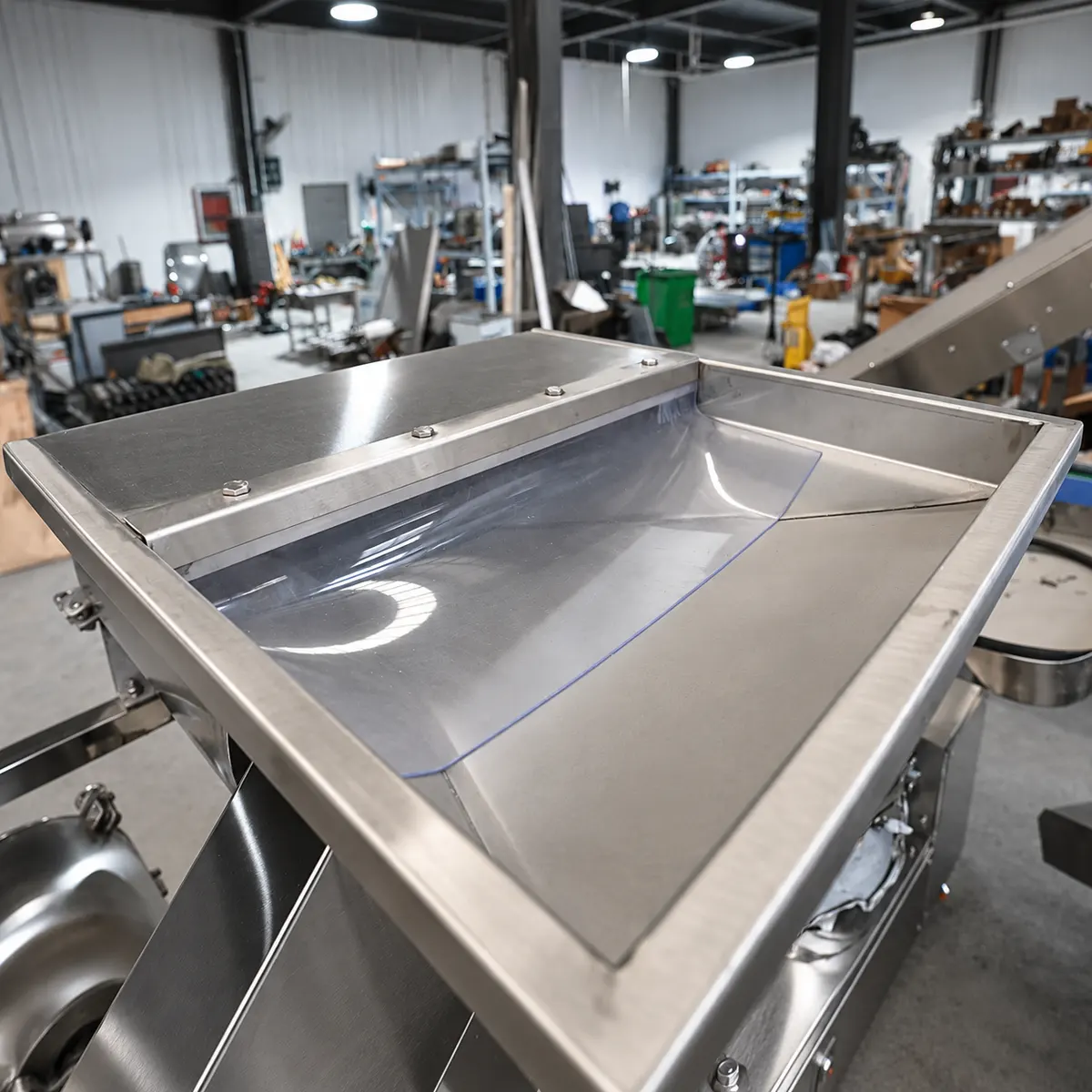

- Feed Hopper
- Upper Pulping Drum
The upper drum performs the first separation stage and guides processed material downward.
- Lower Pulping Drum
The lower drum continues pulping and separates the remaining edible material from residue.
- Upper Discharge Chute
Guides output from the upper stage toward a suitable collection container for clean handling.

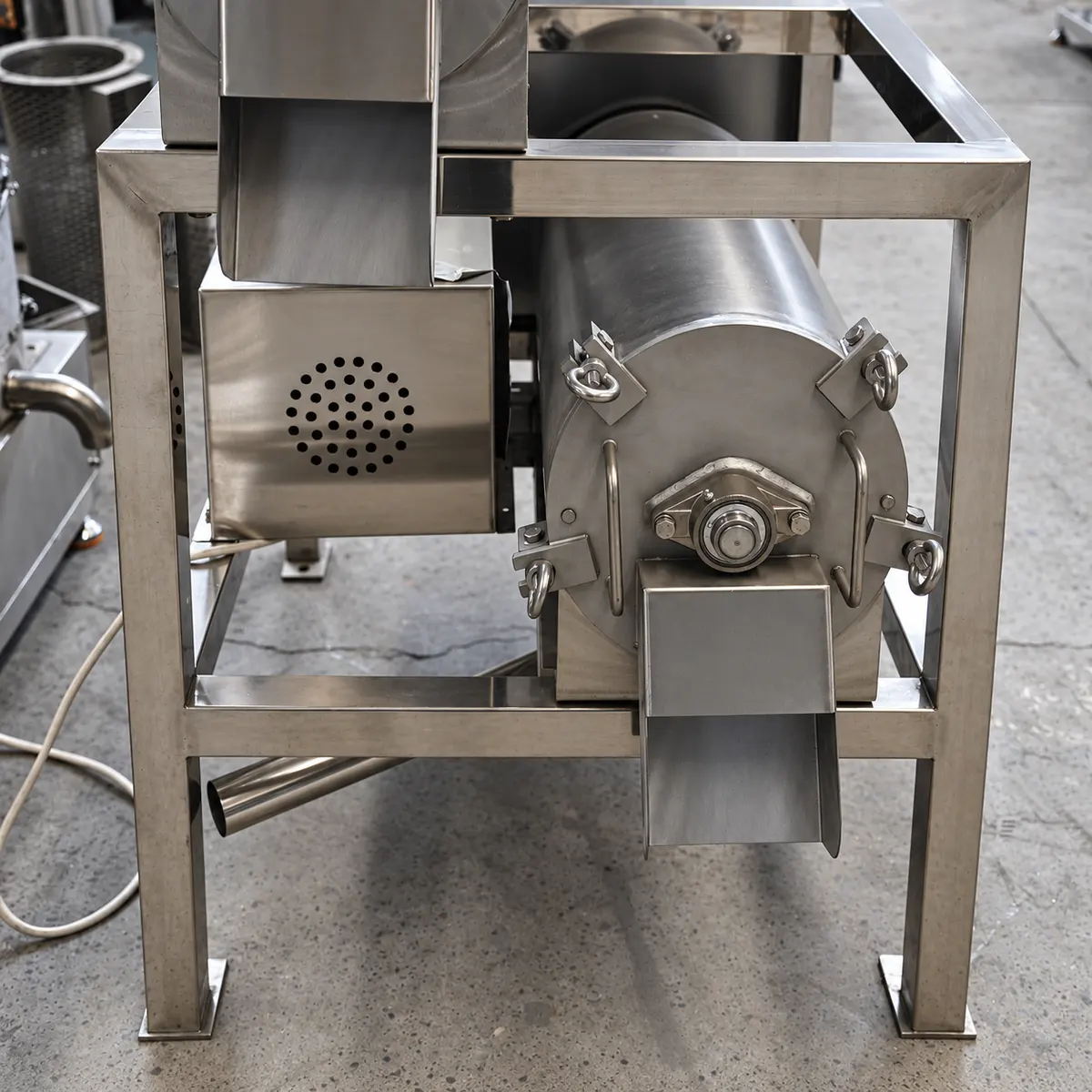

- Lower Discharge Chute
Directs the second-stage output away from the machine for organized collection.

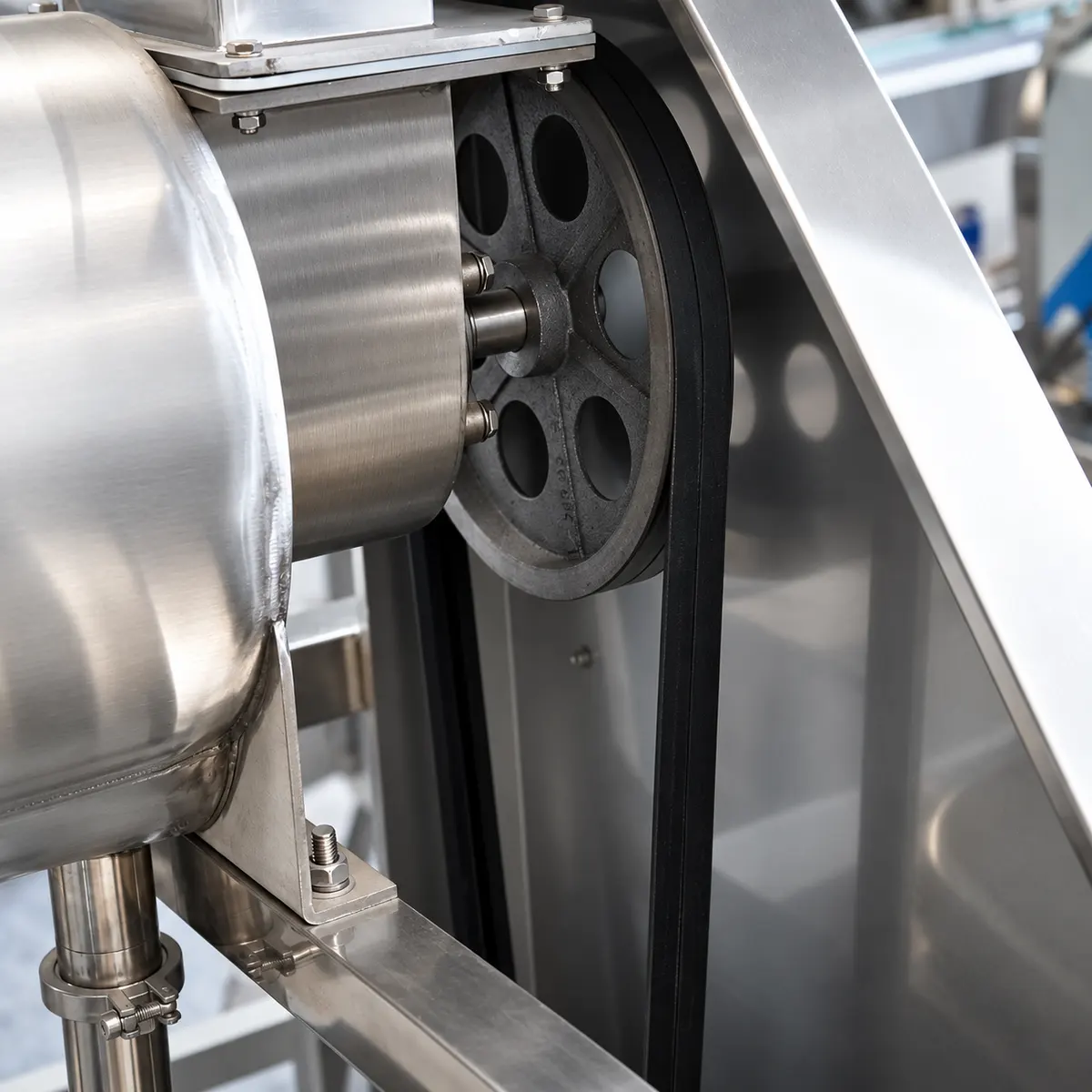

- Drive Coupling
Transfers rotary drive to the pulping drum while maintaining alignment during operation.
- Stainless Support Frame
Supports the two-stage assembly and keeps the machine stable with working clearance.
General information
- 500-Weight
- 130kg
- 500-Size
- 1000*800*1200mm
- 500-Output
- 500kg/h
- 500-Voltage
- 380V
- 500-Power
- 1.5kw
- 1000-Weight
- 230kg
- 1000-Size
- 1200*800*1500mm
General instructions
Product Video
Dual Drums — Pro Processing Look
00:26Dual-drum frame looks professional with clear footprint—strong industrial pitch on platform.
Dual Stainless Pulping — Capacity Upgrade
00:32Use video sells dual continuous pulping plus stainless hygiene—capacity upgrade pick.
Product Review
Pre-delivery Inspection
Each unit is checked before delivery against the following inspection items.
0:00 / 0:00
Core Component Details
We're here to help
Our team is ready to advise you on the best product configuration and procurement plan.
info@eascoutia.com400 158 5899Frequently Asked Questions
What product forms can this machine process?
Use the machine with prepared fruit materials that match the visible feeding and processing layout. Confirm the intended material and process with your purchasing team before ordering.
How are pulp and residue discharged?
The design provides separate paths for pulp and residue output. Place suitable collection containers at the corresponding outlets and keep the discharge area clear.
What should operators prepare before use?
Prepare clean fruit, a stable floor, suitable collection containers and the required operating personnel. Check that the feeding and discharge areas are unobstructed before starting.
How can the working parts be cleaned?
Follow the site hygiene procedure and clean accessible food-contact areas after processing. Disconnect power and allow moving parts to stop before routine cleaning.
Which configuration fits my process?
Selection depends on the material, desired output form and workflow. Share your fruit type, process steps and installation conditions so the correct configuration can be discussed.
