CNC Slotting and Drilling Machine

Name: CNC Slotting and Drilling Machine
SKU: p1_0iC_9g6wvrOSYtw
Availability: InStock

A CNC woodworking machine combining a wide support table, pneumatic drilling stations and guided pressure assemblies for prepared slotting work.

SKC-3800S

Core parameters

Full specifications

Spindle motor: Tianya Air-Cooled Spindle
Spindle speed: 18000/300HZ
Drive: Tonghang

QuantityUnit: Units

Get a Tailored Procurement Plan

Product Model: 3800S
Product Color: Designated color
Response Time: 24 hours
Special Requirements: Communicate based on actual needs

CNC Touch Interface

The front-mounted touch panel groups visible operating controls in one area for direct access during machine preparation.

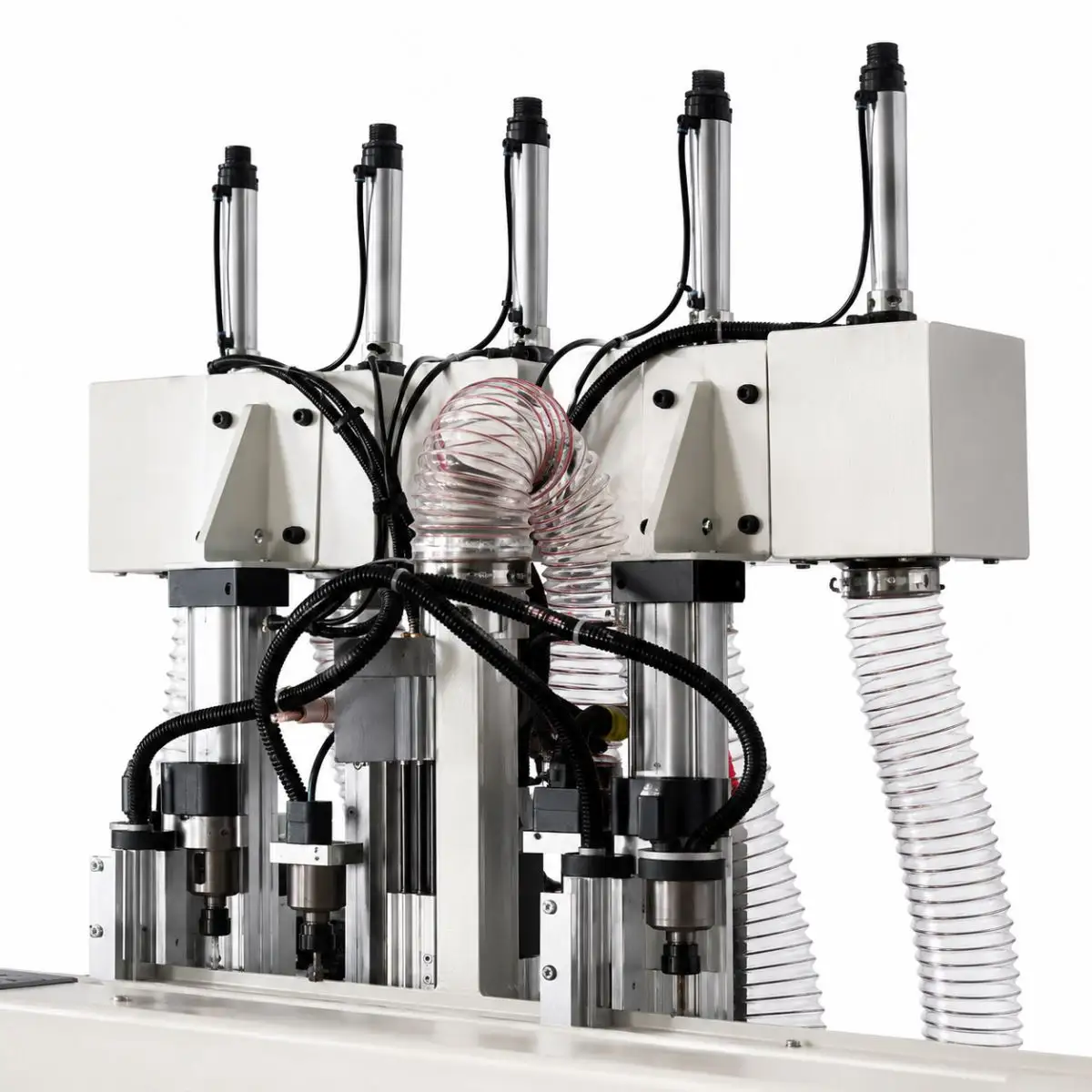

Pneumatic Drill Group

Multiple vertical pneumatic units are grouped at the working end, providing a clearly organized drilling station layout.

Wide Support Surface

Large anti-slip table sections extend across the front and side, giving workpieces a broad visible positioning surface.

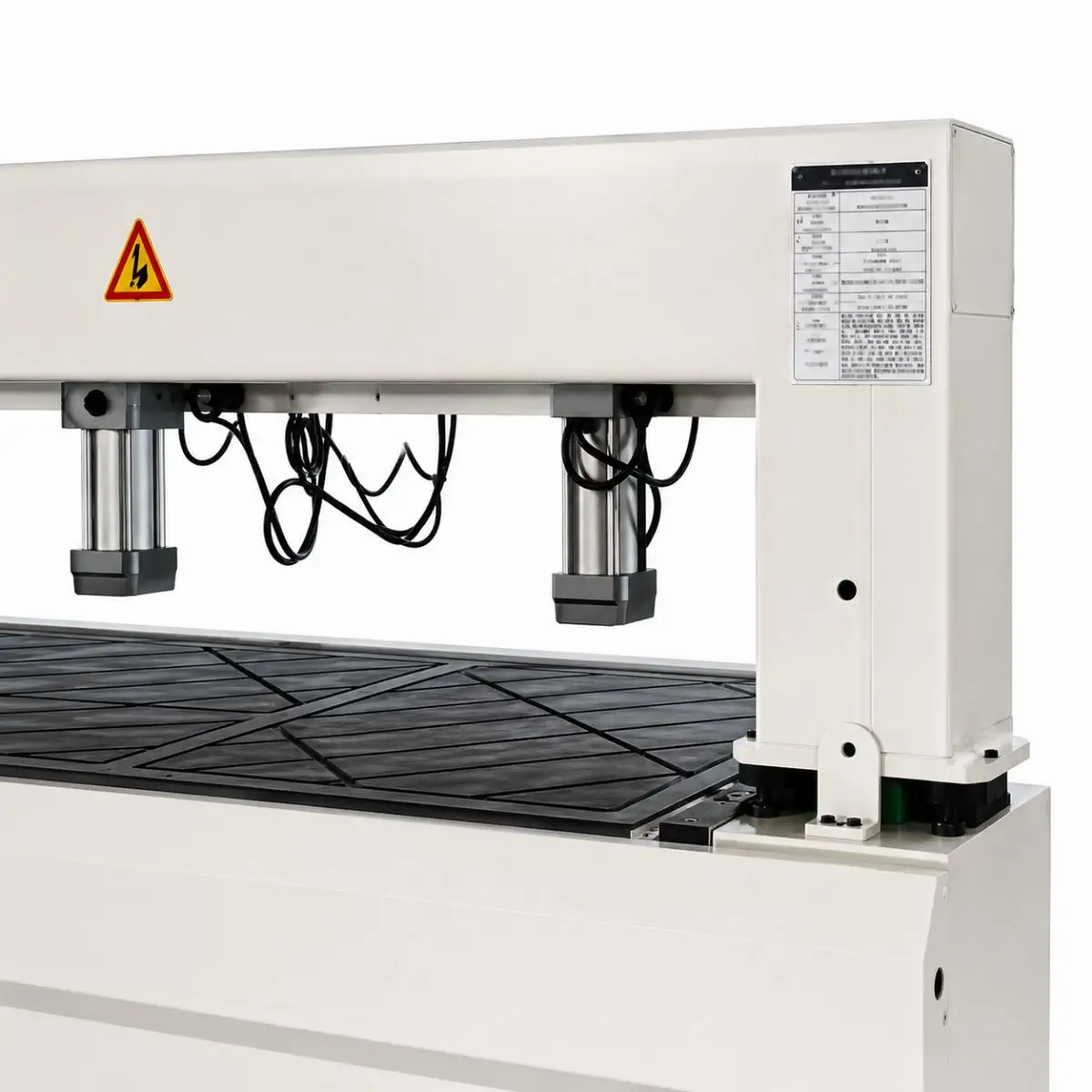

Gantry Pressure System

Pressure assemblies are distributed beneath the gantry beam to support the material path across the main working area.

CNC Workshop and Door Production

Integrated Slotting and Drilling Layout

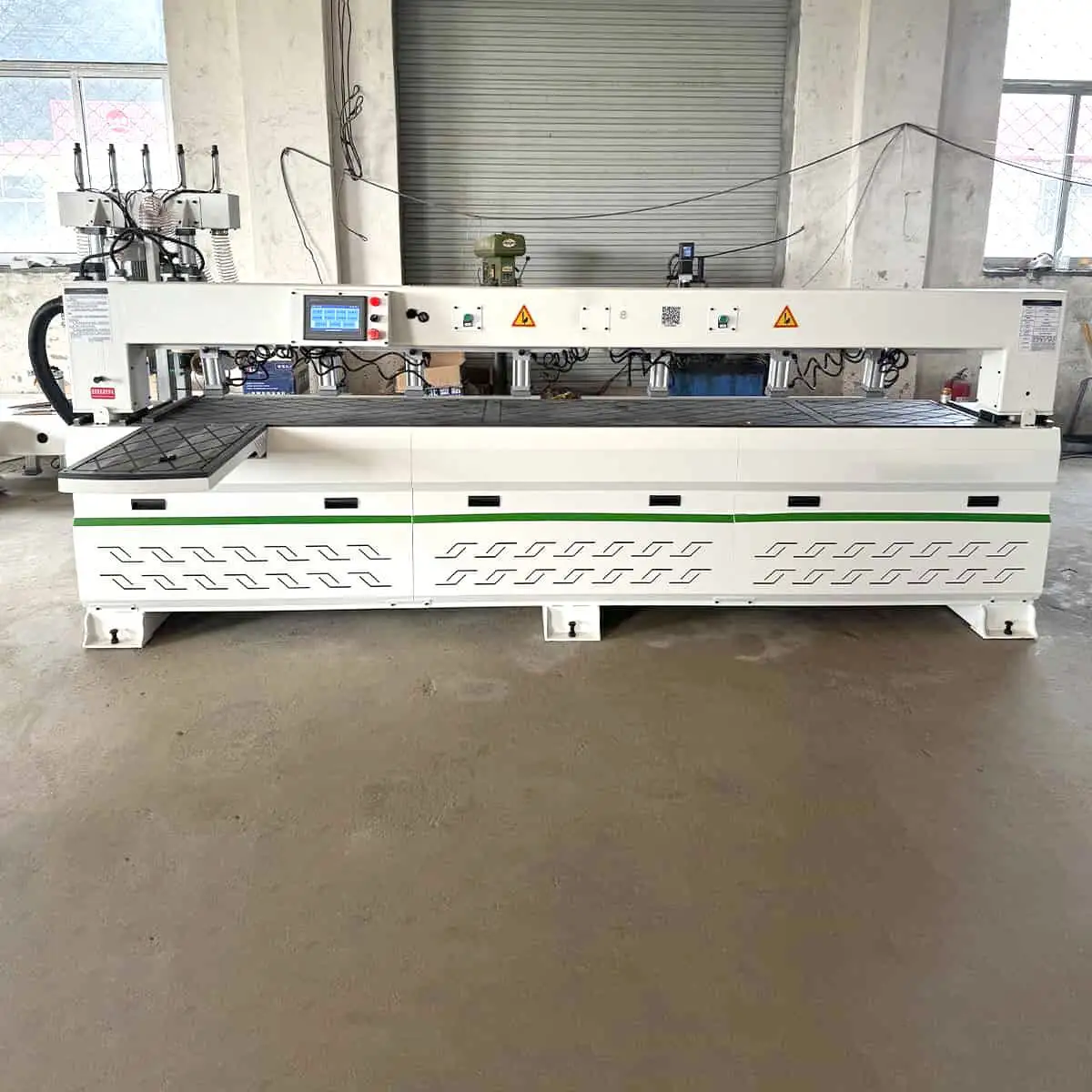

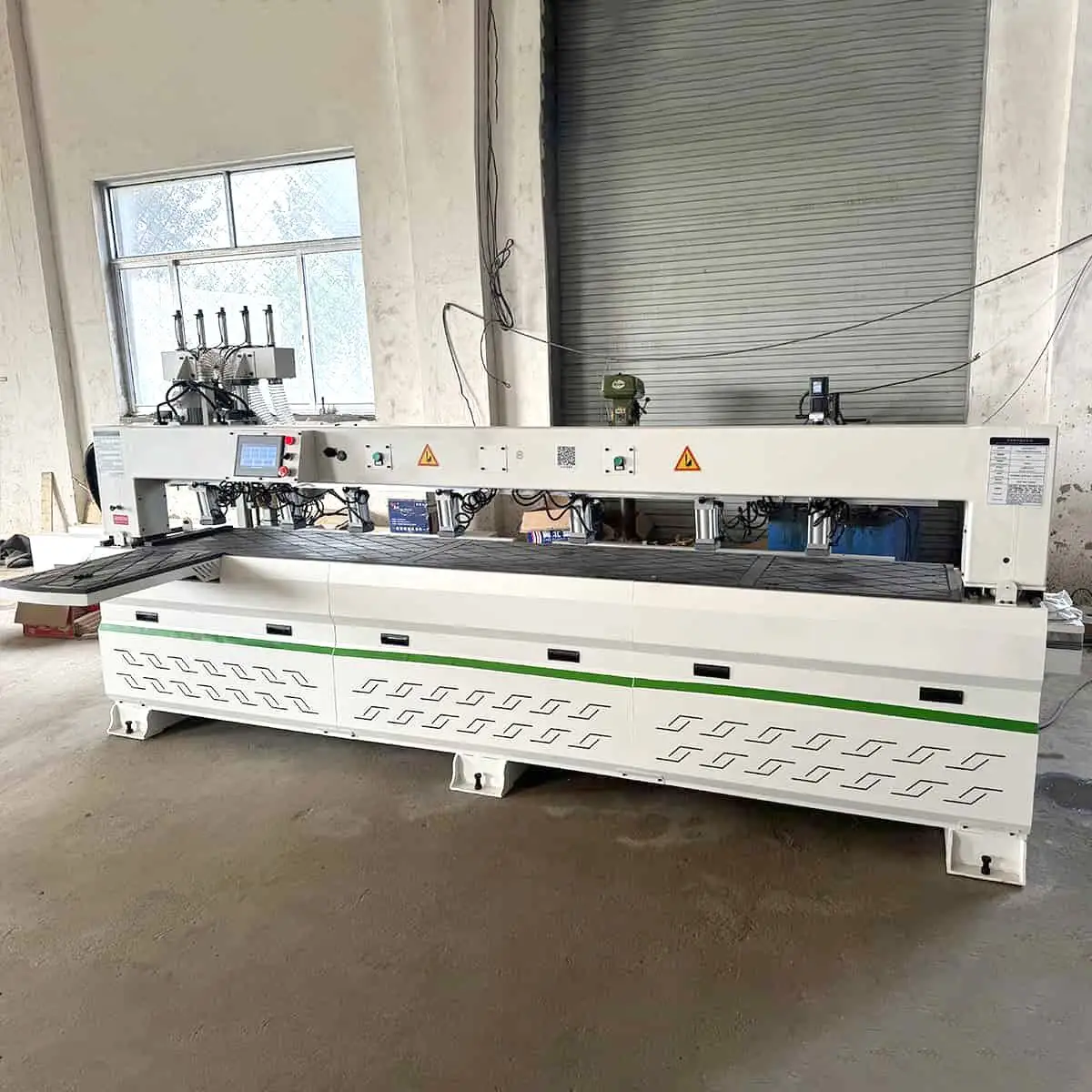

Workshop and door-production scenes show the machine with clear access to its wide support table, CNC control panel and grouped pneumatic drilling units. Front and angled views present the gantry pressure layout, side feed surface and stable cabinet base so the complete working arrangement can be reviewed before placement.

CNC Workshop Setup
Door Drilling Area
Stable Floor Layout
Guarded Service Side

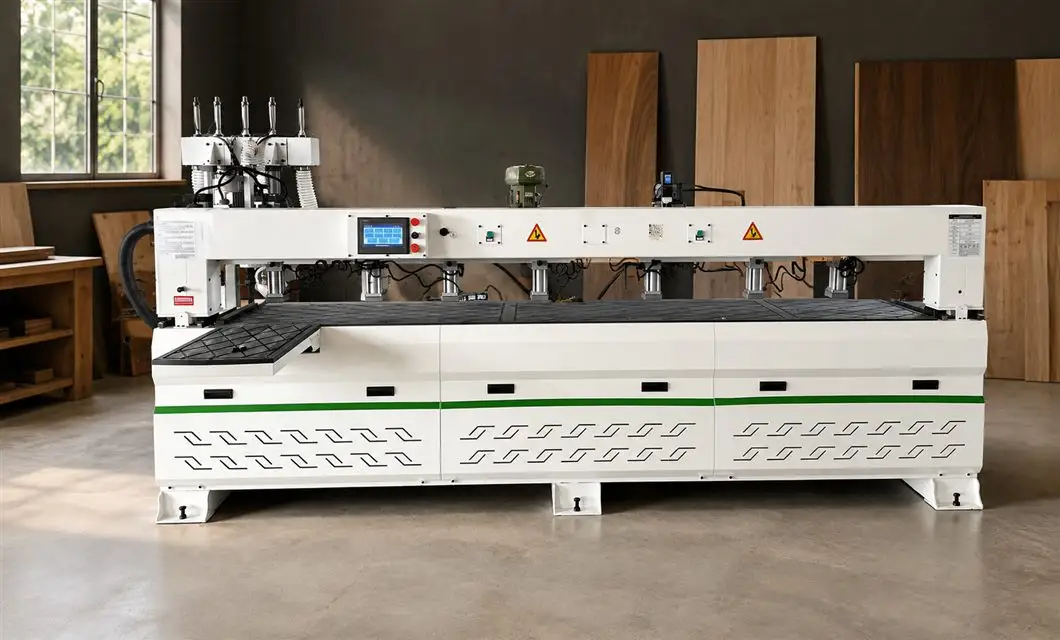

Stable Support on Warehouse Floor

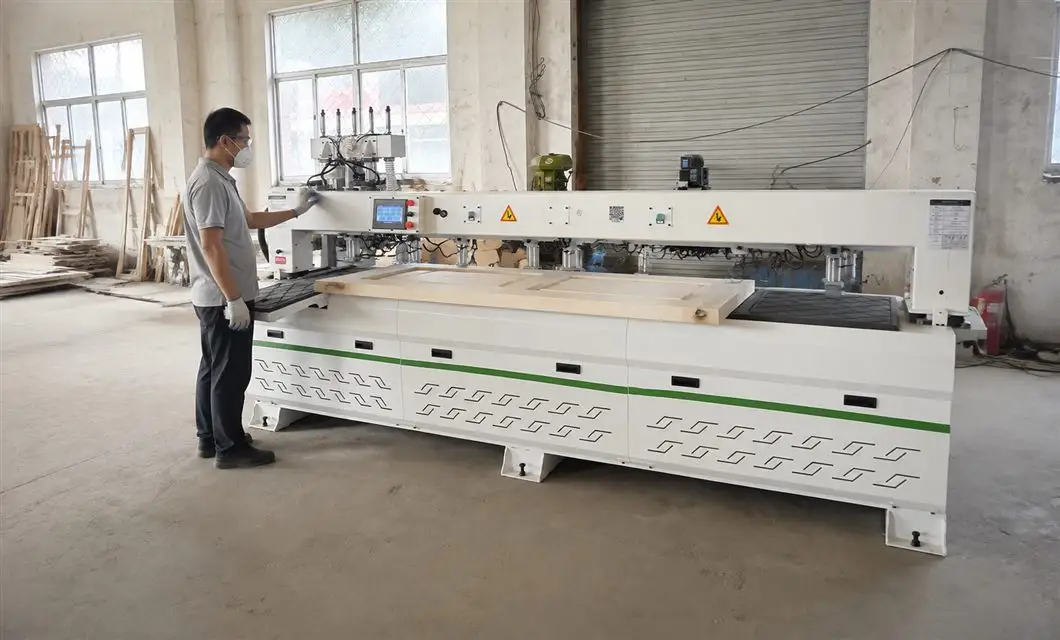

Guarded Drive Access in Studio

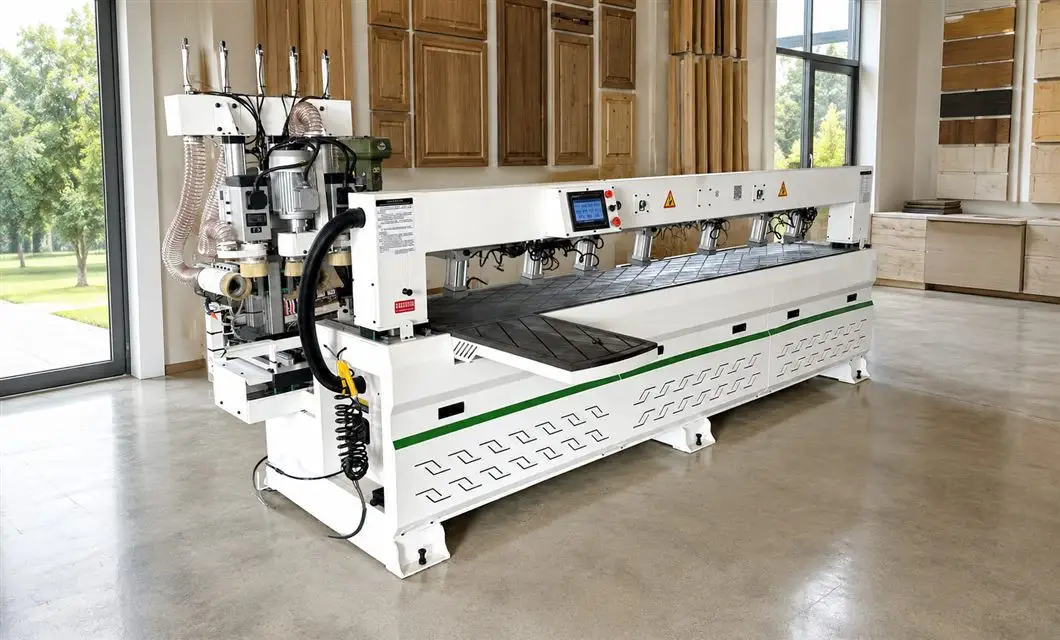

Guided Table Visibility in Workshop

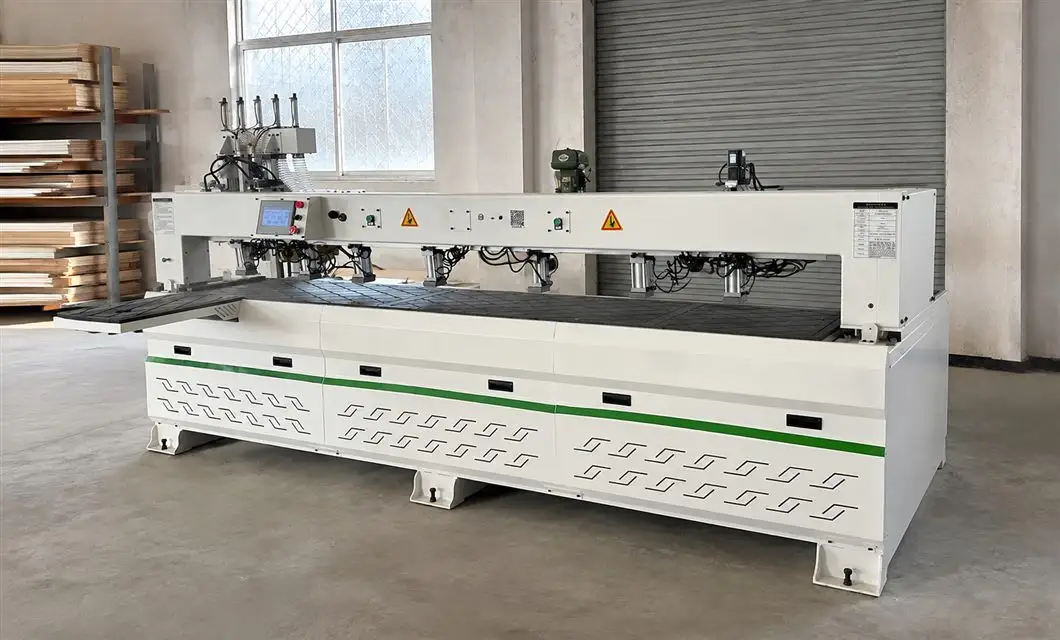

Multi Station Layout in Door Showroom

Stable Support on Warehouse Floor

Guarded Drive Access in Studio

Guided Table Visibility in Workshop

Multi Station Layout in Door Showroom

Product Advantages

Component shots reveal neat, sturdy construction built to last.

Specifications & Structural Decomposition

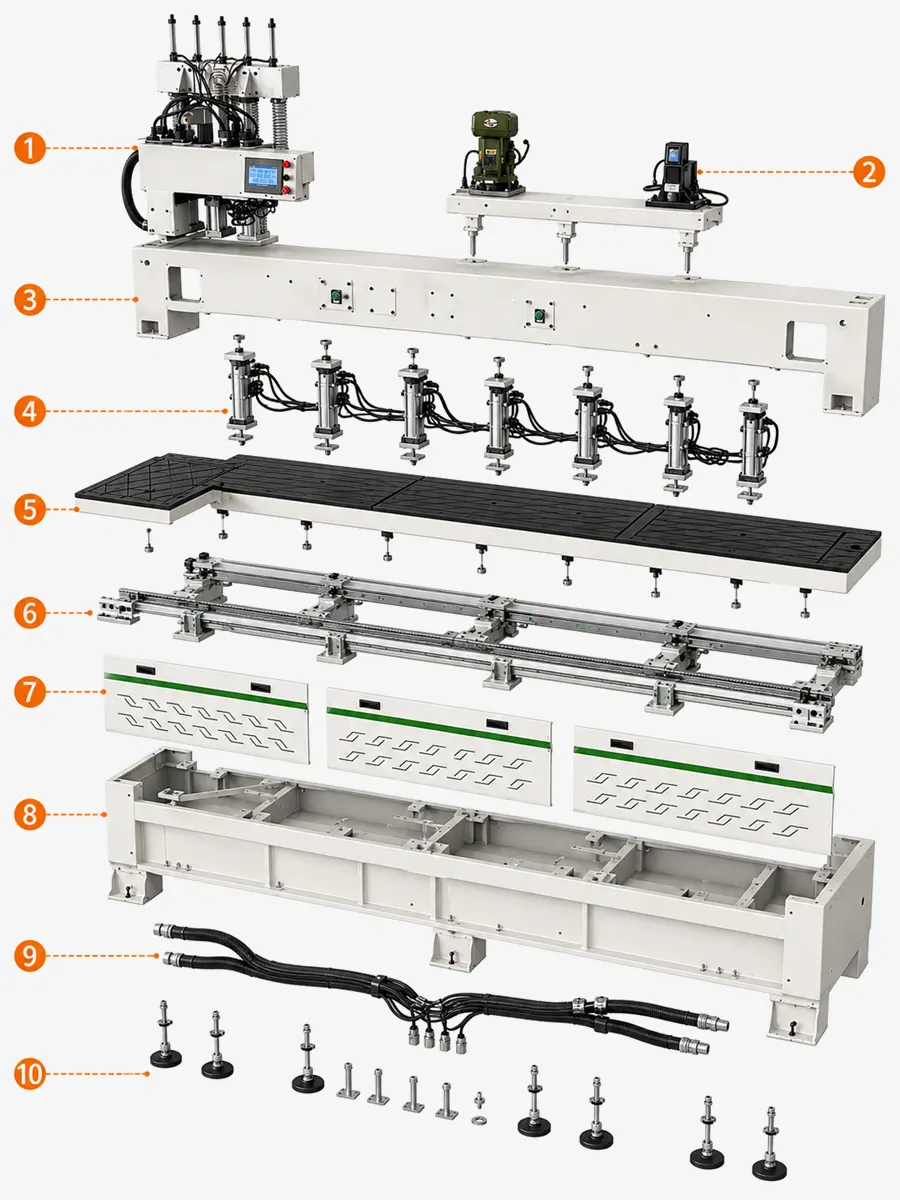

Product Structure Diagram

CNC Drilling Head
The main head combines the touch interface with grouped vertical drilling units.

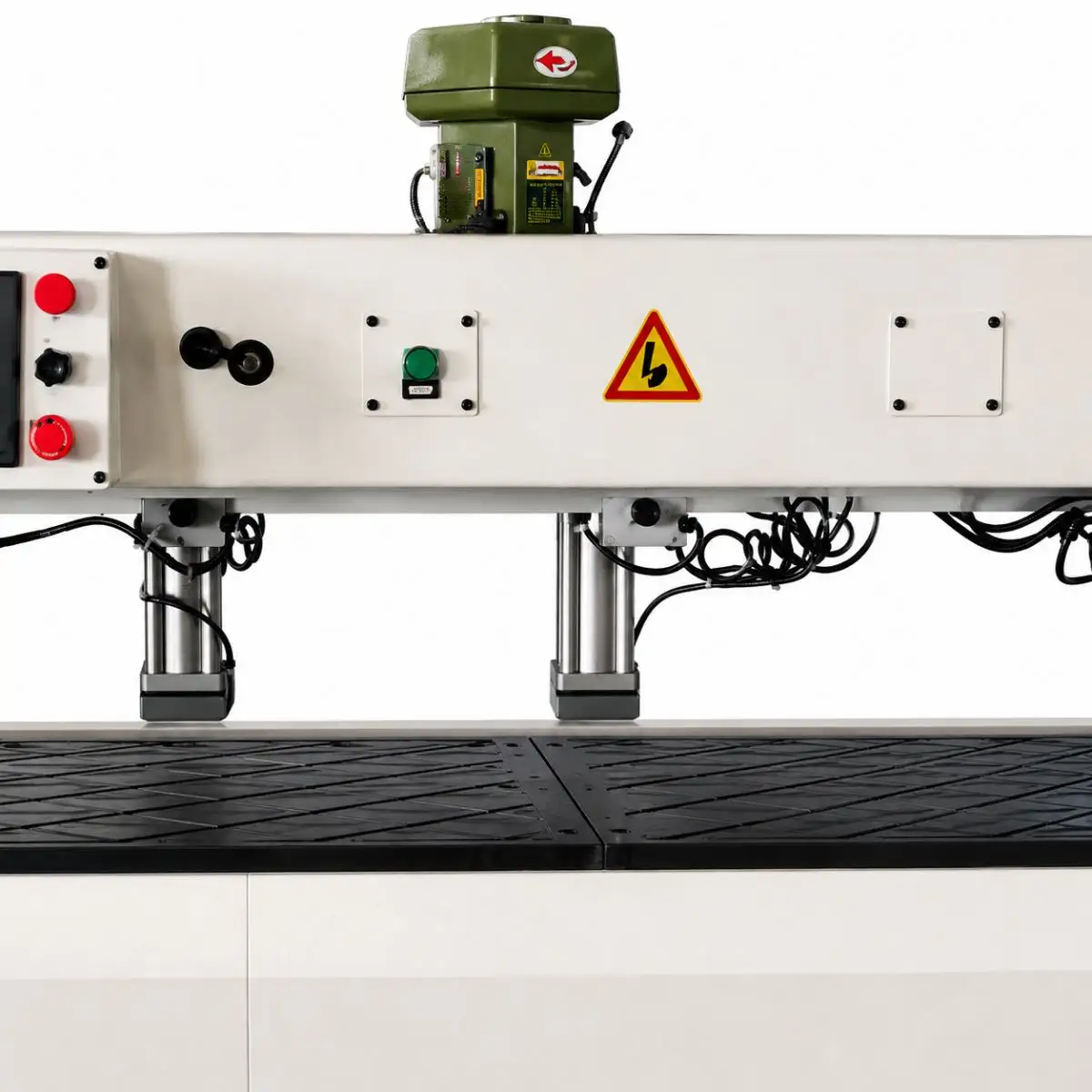

Auxiliary Drilling Units
The upper beam carries separate drill units for additional positioned operations.
Gantry Support Beam
The long bridge structure supports the working heads above the full table area.
Pressure Cylinder Bank
Multiple cylinders apply distributed support along the workpiece processing path.

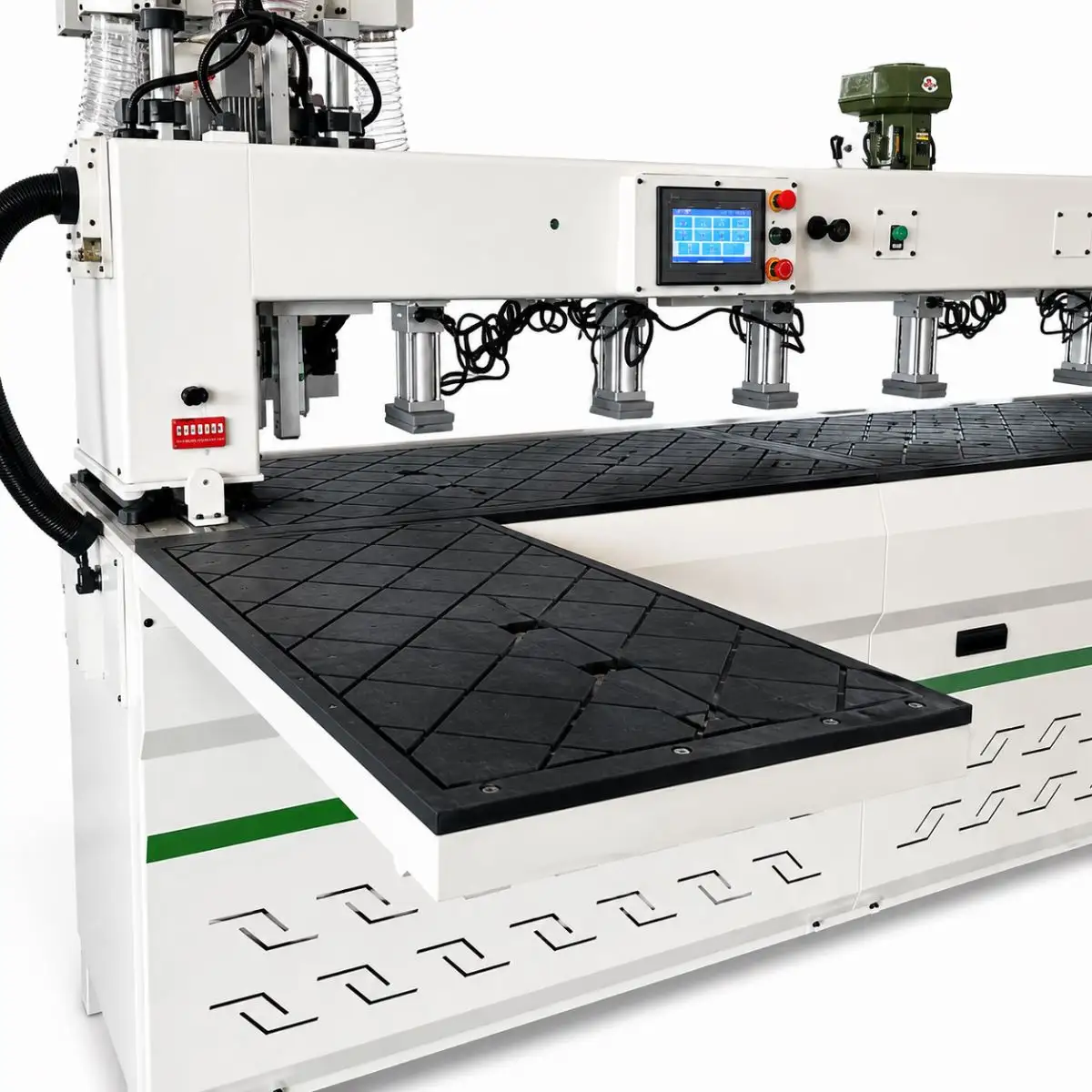

Anti-Slip Worktable
The broad textured table provides a stable surface for material positioning.
Linear Guide Carriage
The exposed rail and carriage assembly guides movement beneath the worktable.

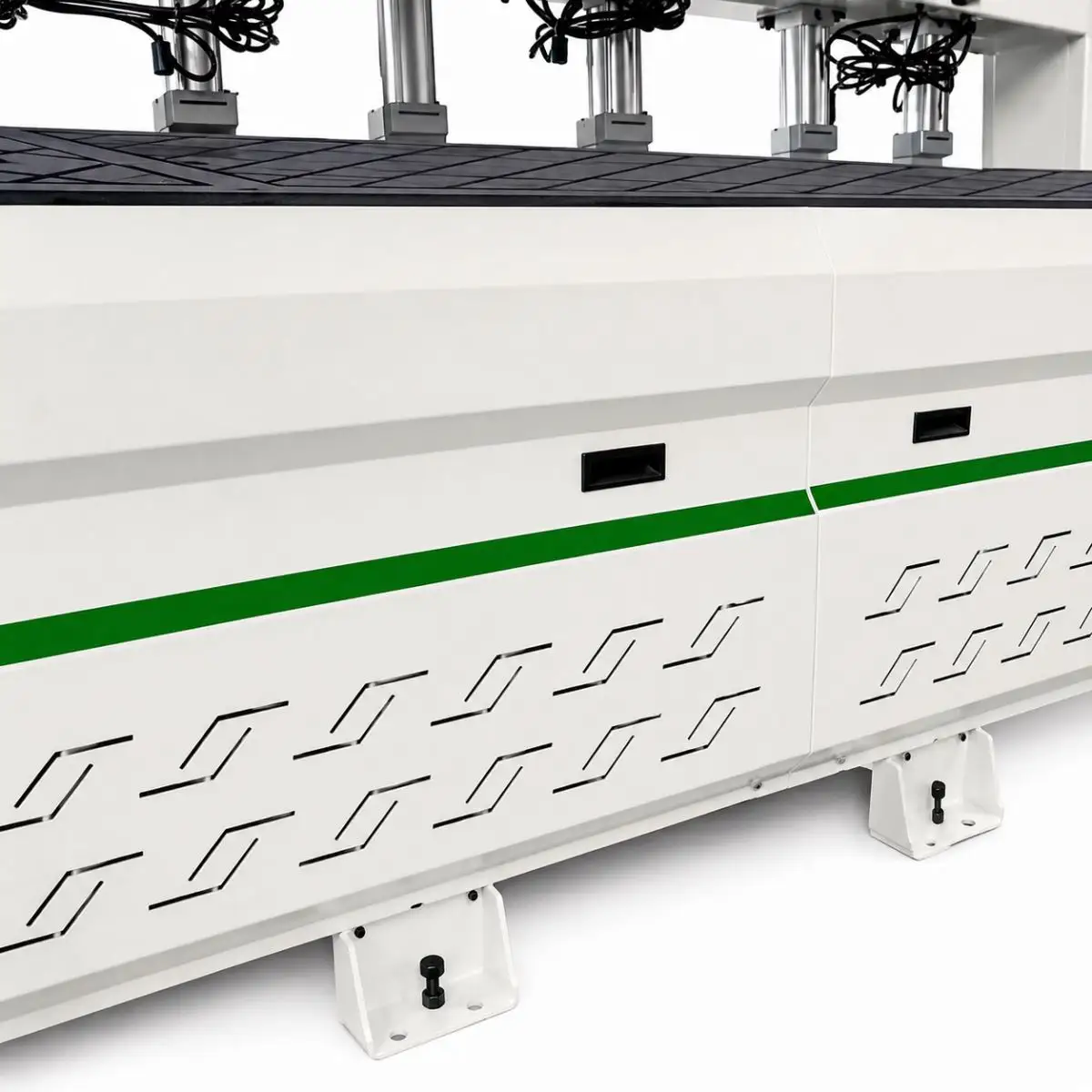

Front Access Panels
Separate cabinet panels cover the lower mechanisms while retaining service access.

General information

Weight: 850KG
Size: 3800*1350*1450mm
Work itinerary: 2900mm
Spindle motor: Tianya Air-Cooled Spindle
Spindle speed: 18000/300HZ
Drive: Tonghang
Servo motor: Weide

General instructions

Simplified explanation

Product Video

01:24

SKC-3800S Integrated Door-Wall-Cabinet Processing Center

01:24

Operation demonstration of SKC-3800S

00:16

Product packaging

00:323800S machine export packaging, reinforced shockproof, moisture & impact resistant for overseas shipment

Product loading in the cabinet

00:153800S machine container loading and securing, neat placement, keep intact in long-distance transport

Real Factory Footage

Real on-site records from our factory, offering a practical view of our production capability and delivery readiness.

Factory Site View 1

0:00 / 0:00

Product Review

Product Inspection

We centrally purchase equipment, test the data and the machine, then publish the models that clear our review. You get a shorter path from "could work" to a quote your team can act on.
