Continuous-Feed Slotting Machine
  • Continuous roller feed
  • Grouped slotting motors
  • Handwheel adjustment
  • Enclosed cabinet base

Continuous-Feed Workshop Placement

Organized Roller and Motor Work Line

The machine is presented in workshop, showroom and warehouse-style spaces where its continuous roller line and grouped motor stations remain clearly visible. Different viewpoints highlight the side guide drive, handwheel adjusters, electrical panel and enclosed cabinet base while showing the floor clearance needed around the feed path.

  • Roller Feed Setup
  • Motor Station Layout
  • Stable Cabinet Base
  • Adjustment Access

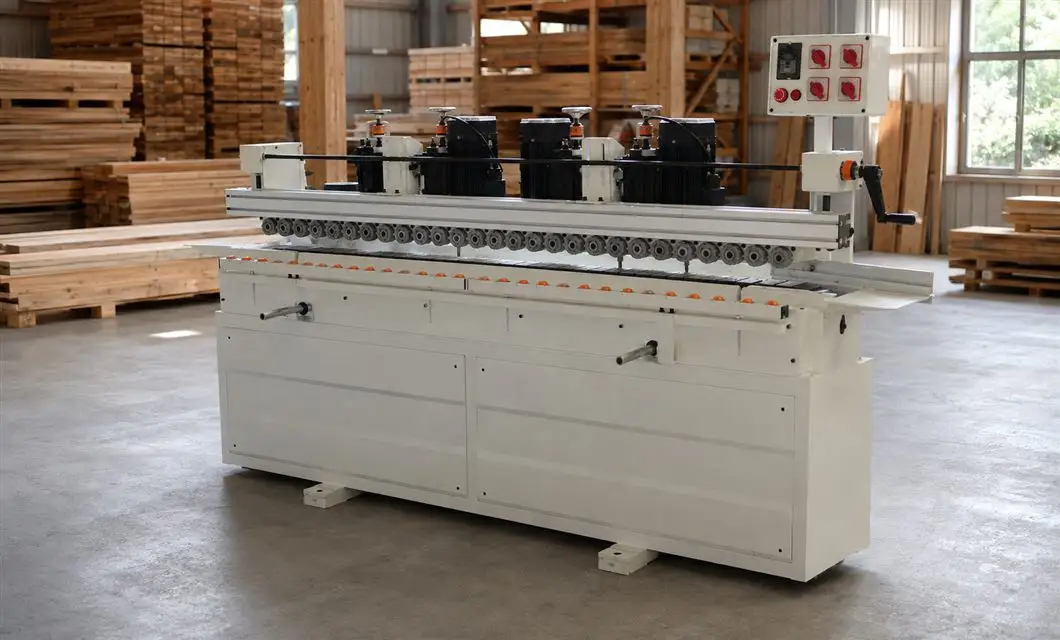

Stable Support on Warehouse FloorStable Support on Warehouse Floor
Guarded Drive Access in StudioGuarded Drive Access in Studio
Guided Table Visibility in WorkshopGuided Table Visibility in Workshop
Multi Station Layout in Door ShowroomMulti Station Layout in Door Showroom
Stable Support on Warehouse FloorStable Support on Warehouse Floor
Guarded Drive Access in StudioGuarded Drive Access in Studio
Guided Table Visibility in WorkshopGuided Table Visibility in Workshop
Multi Station Layout in Door ShowroomMulti Station Layout in Door Showroom

Specifications & Structural Decomposition

Product Structure Diagram

Product Structure Diagram
  1. Control Panel Stand

    The raised enclosure positions the operating controls beside the processing line.

  2. Slotting Motor Group

    Multiple motorized working units form the main processing assembly above the feed path.

  3. Cross-Shaft Guide Assembly

    The horizontal shaft and supports coordinate guided movement across the upper frame.

  4. Upper Support Pedestals

    Four separated columns hold the working assembly at its installed operating height.

  5. Side Drive Gearmotor

    The end-mounted geared motor supplies drive to the connected conveyor mechanism.

  6. Conveyor Bed Assembly

    The long bed supports the roller path and locates the material feed components.

  7. Chain and Shaft Drive

    The exposed chain, sprockets and shafts transmit motion along the conveyor line.

General information

Continuous-Feed Slotting Machine
Weight
466KG
Size
2650*1320*600mm
Work itinerary
Unlimited panel length
Spindle motor
Tianya Air-Cooled Spindle 2.2KW*2 Mingjun 4KW*2
Spindle speed
24000/2960
Cable
Yanggu
Guide rail
Integrated Aluminum Profile

General instructions

Simplified explanation

Real Factory Footage

Real on-site records from our factory, offering a practical view of our production capability and delivery readiness.

01

Factory Site View 1

0:00 / 0:00

Core Component Details

Central Electrical Panel

Continuous Pressure Rollers

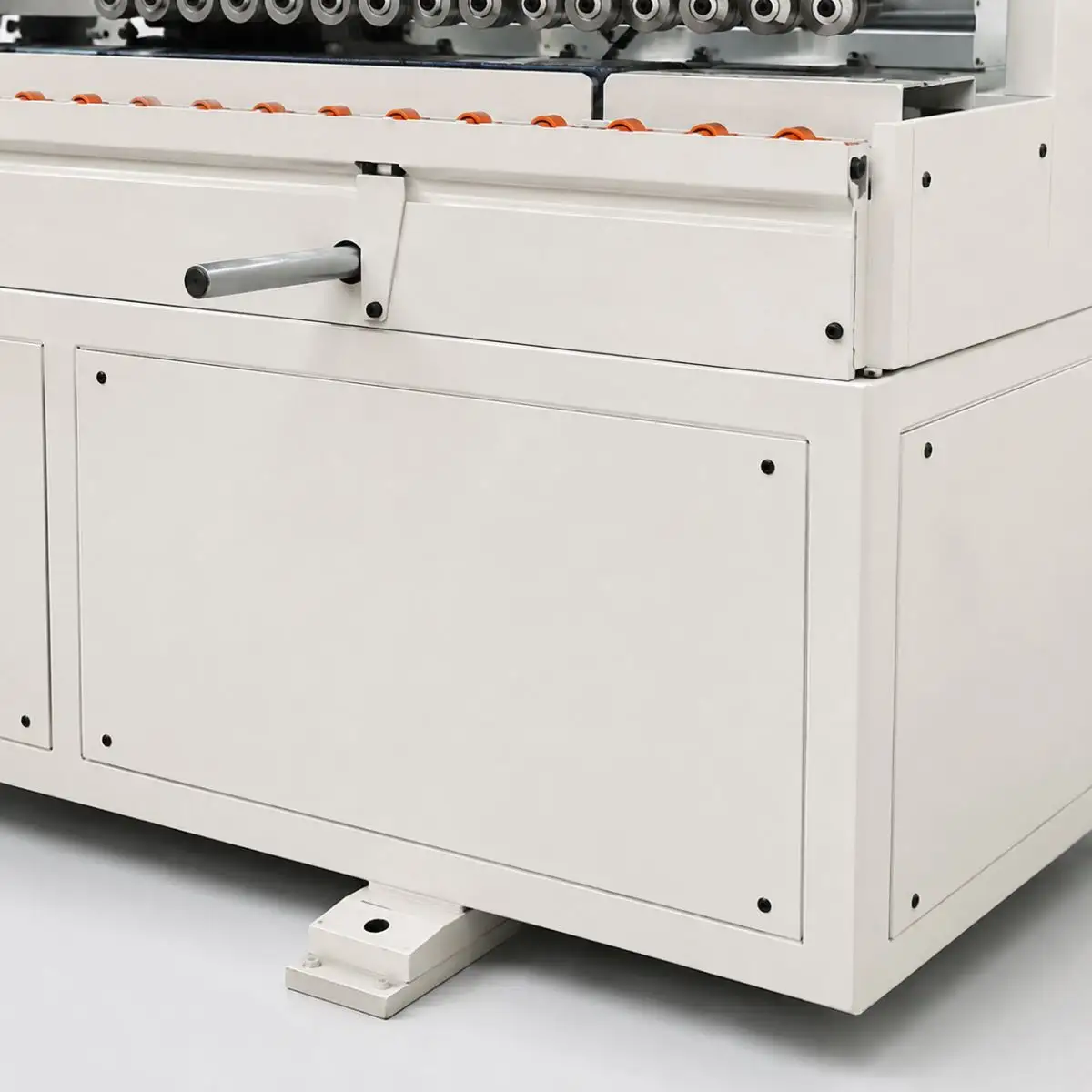

Enclosed Safety Cabinet

End Handwheel Adjuster

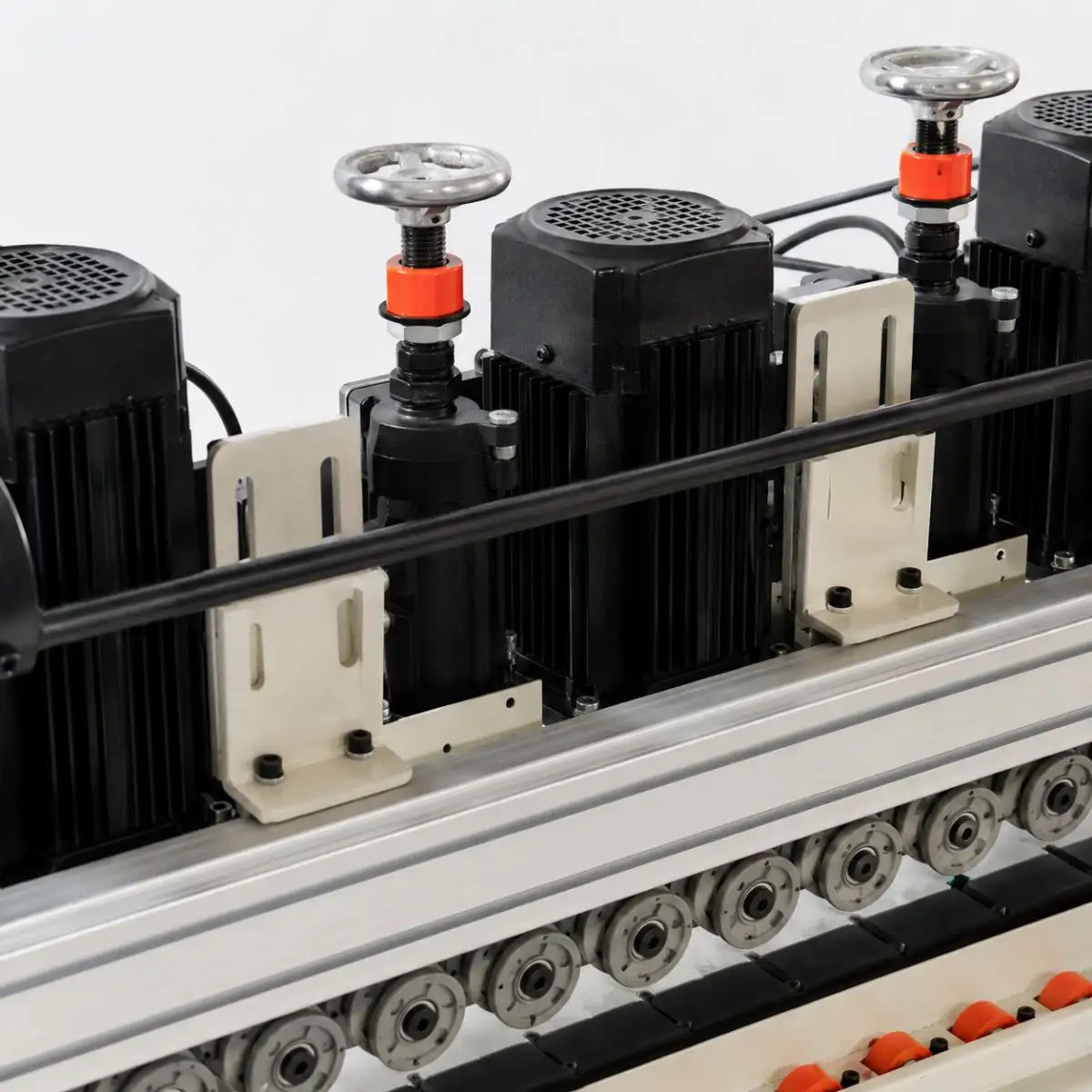

Handwheel Height Adjuster

Side Guide Drive Assembly

Slotting Motor Group

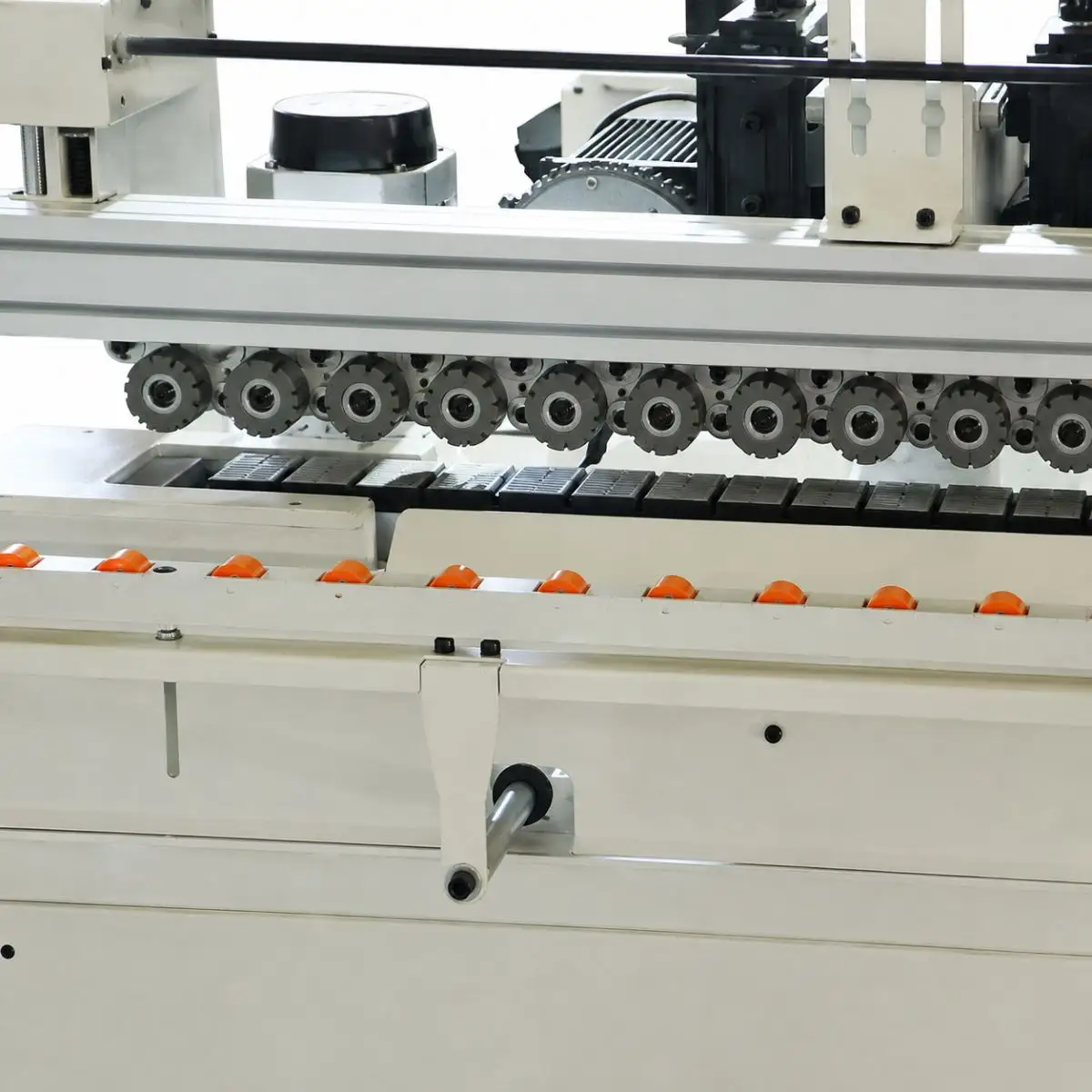

Workpiece Conveyor Rollers

We're here to help

Our team is ready to advise you on the best product configuration and procurement plan.

400 158 5899

Frequently Asked Questions (FAQ)

How is material conveyed?

Closely spaced conveyor rollers and the upper pressure line create a continuous visible route across the machine.

How are motors arranged?

The slotting motors are separated into multiple stations along the upper frame above the workpiece conveyor path.

Which adjustments are visible?

Handwheel mechanisms are visible across the upper assemblies and at the machine end for direct mechanical adjustment.

Where is the control panel?

The electrical control panel is raised at one end of the machine, clear of the continuous roller working line.

What clearance should remain?

Retain clear access along the feed path, around the end handwheel and beside the control panel when positioning the machine.
