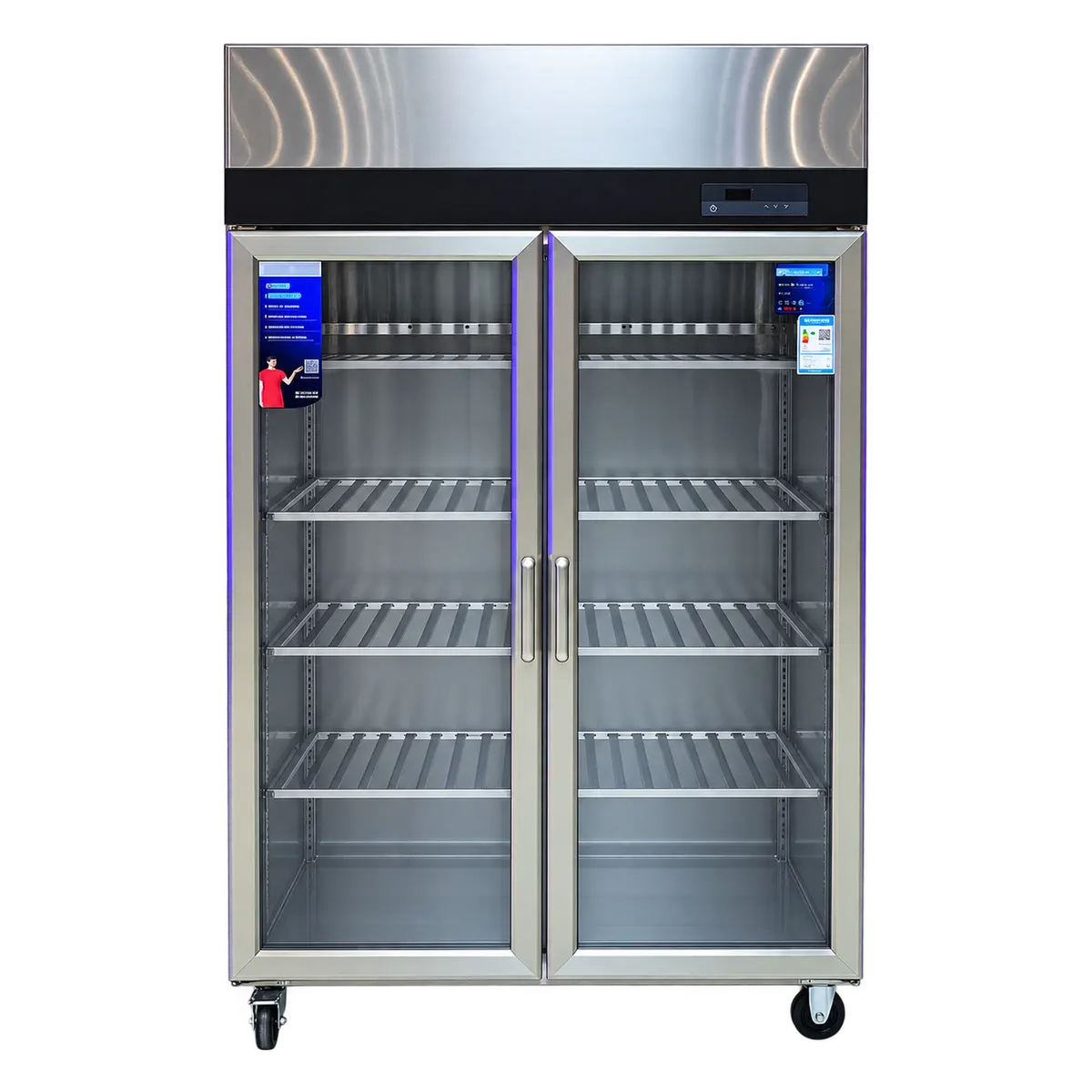

Standard Large Double-Door Refrigerated Display Cabinet

Name: Standard Large Double-Door Refrigerated Display Cabinet
SKU: p1_0Cqz6QrN3tqaZNoney-K1M7CsNA
Availability: InStock

Large-Capacity Refrigerated Storage: Features a total volume of 930 L and an effective refrigerated capacity of 910 L, with external dimensions of 1200 x 700 x 1970 mm. The spacious refrigerated compartment provides room for organizing beverages and other products requiring chilled storage. Digital Temperature Control and Direct Cooling: Operates within a specified refrigerated temperature range of 1-10°C and features electronic digital temperature control. The direct cooling system uses R290 refrigerant, providing a defined refrigeration configuration for commercial display applications. Glass-Door Display with LED Lighting: Equipped with double glass doors and interior LED tube lighting, allowing customers to view refrigerated merchandise. The cabinet also features automatic door return, supporting convenient access during product selection and restocking. Organized Shelving and Mobile Structure: Includes four steel-wire shelves with a specified shelf size of 1080 x 530 mm, providing designated areas for merchandise arrangement. Four casters, including left-side braking casters, allow the cabinet to be repositioned when required.

HXER-DDC-1200

Core parameters

Full specifications

External dimensions (mm): 1200 x 700 x 1970 mm
Internal dimensions (mm): Refrigerated 1100 x 600 x 1420 mm
Internal volume (L): Total 930 L / Refrigerated 910 L

QuantityUnit: Units

Get a Tailored Procurement Plan

Product Model: Not specified
Product Color: Designated color
Response Time: 24 hours
Special Requirements: Communicate based on actual needs

Large-Capacity Refrigerated Storage

Features a total volume of 930 L and an effective refrigerated capacity of 910 L, with external dimensions of 1200 × 700 × 1970 mm. The spacious refrigerated compartment provides room for organizing beverages and other products requiring chilled storage.

Digital Temperature Control and Direct Cooling

Operates within a specified refrigerated temperature range of 1–10°C and features electronic digital temperature control. The direct cooling system uses R290 refrigerant, providing a defined refrigeration configuration for commercial display applications.

Glass-Door Display with LED Lighting

Equipped with double glass doors and interior LED tube lighting, allowing customers to view refrigerated merchandise. The cabinet also features automatic door return, supporting convenient access during product selection and restocking.

Organized Shelving and Mobile Structure

Includes four steel-wire shelves with a specified shelf size of 1080 × 530 mm, providing designated areas for merchandise arrangement. Four casters, including left-side braking casters, allow the cabinet to be repositioned when required.

Double-Door Refrigerated Display for Convenience Stores, Supermarkets, Hotels, and Bakeries

Commercial Refrigeration for Beverage and Merchandise Display

Designed for refrigerated product display in convenience stores, supermarkets, hotel breakfast areas, and bakery cafés. The double-door glass cabinet displays bottled and canned beverages in customer-facing spaces, while staff arrange and restock products and customers view merchandise through the illuminated doors.

Application Scenes – Highlights of Application Scenes

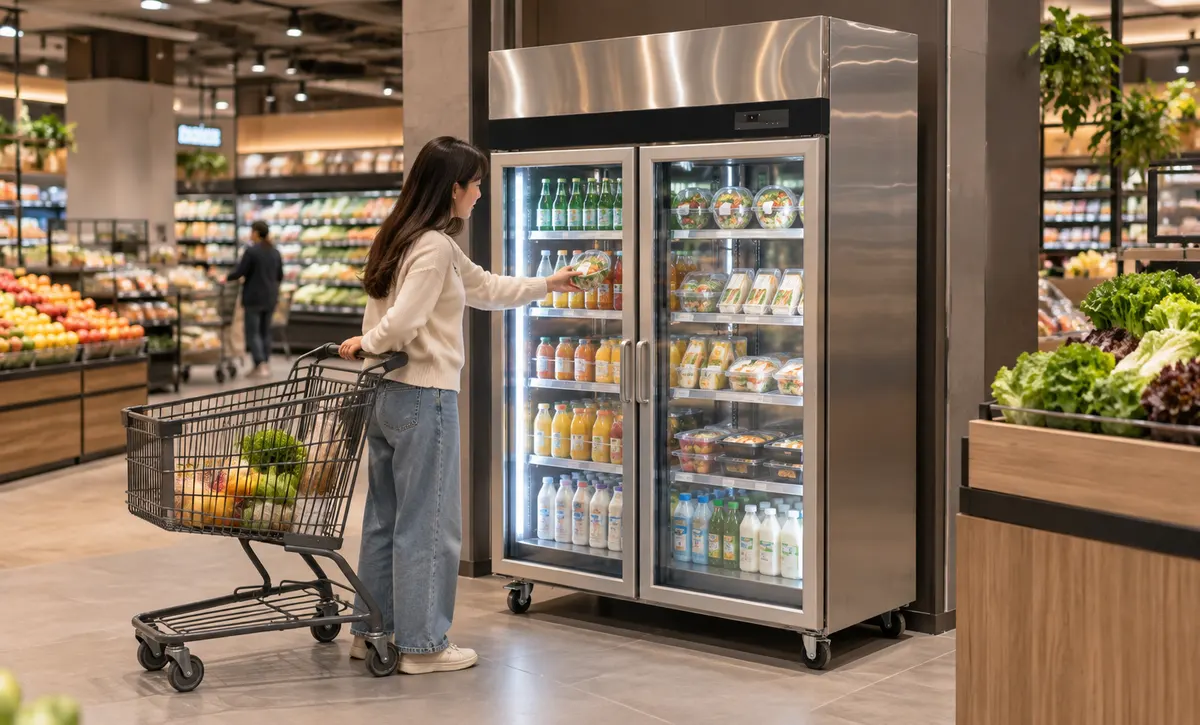

Supermarket Double Door Refrigerated Display

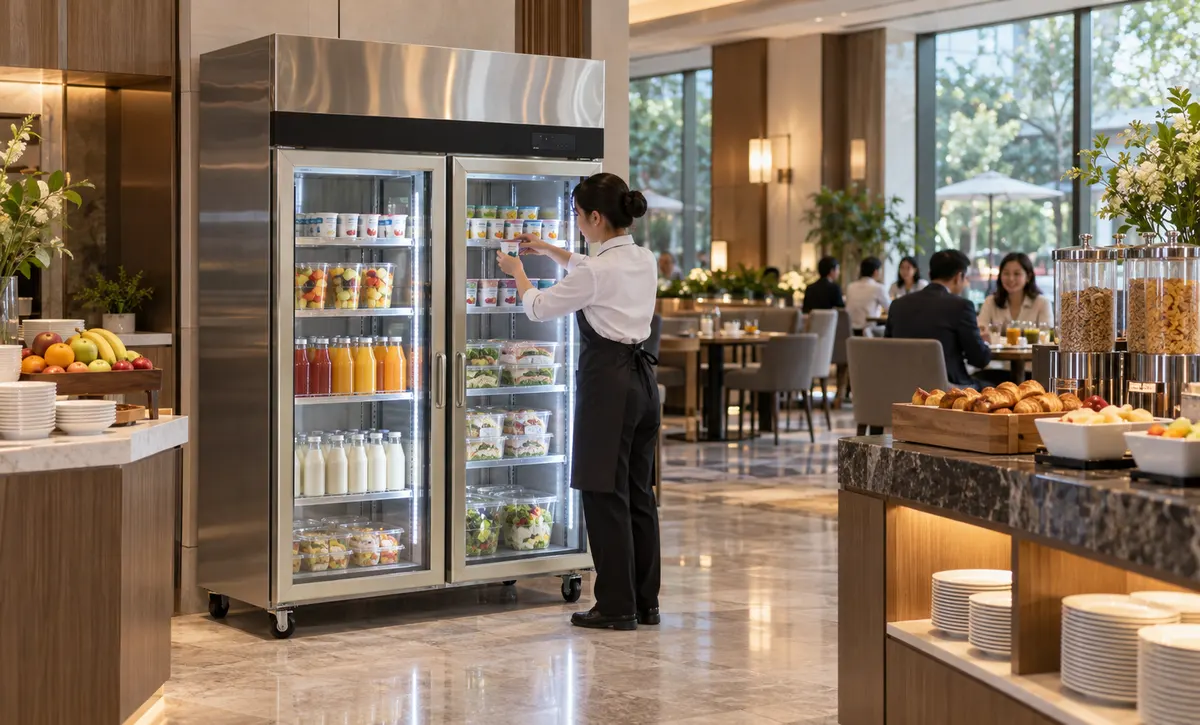

Hotel Breakfast Buffet Refrigerator
Bakery Café Refrigerated Display Cabinet

Hotel Breakfast Buffet Refrigerator

Supermarket Double Door Refrigerated Display

Bakery Café Refrigerated Display Cabinet

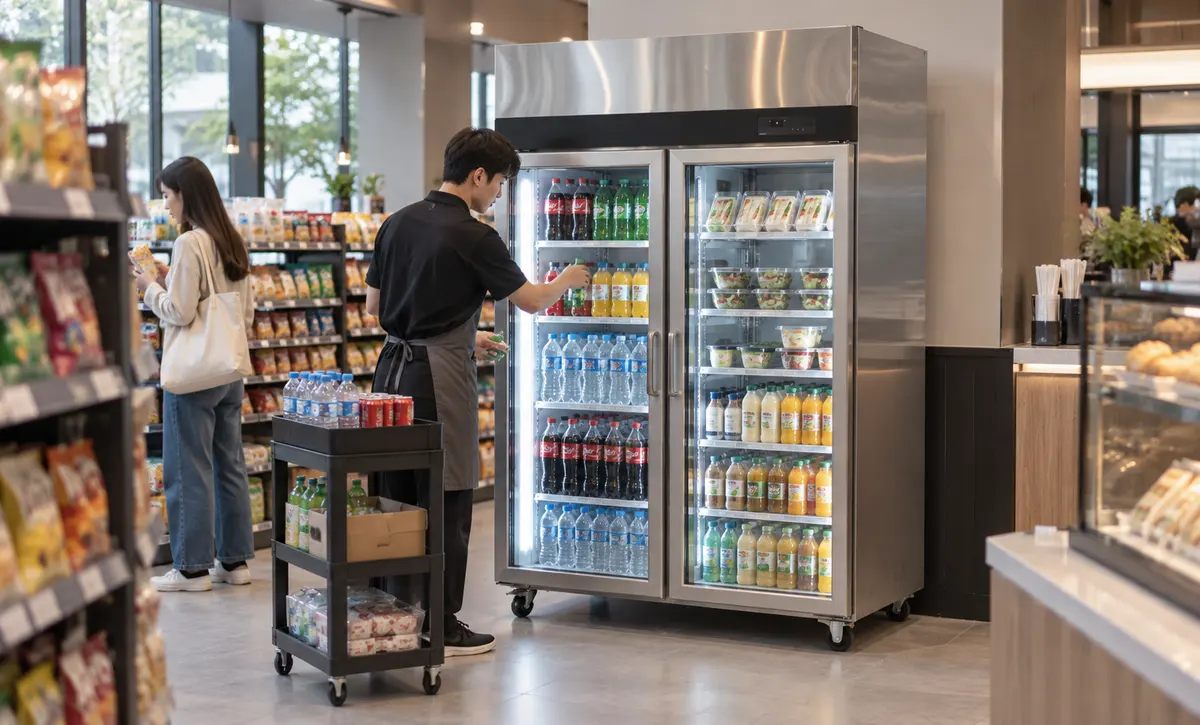

Convenience Store Beverage Refrigerator Restocking

Hotel Breakfast Buffet Refrigerator

Supermarket Double Door Refrigerated Display

Bakery Café Refrigerated Display Cabinet

Convenience Store Beverage Refrigerator Restocking

Product Advantages

Stainless frames with tempered glass and brushed finish for premium commercial display.

Specifications & Structural Decomposition

Product Structure Diagram

Upper Canopy
A wide brushed-metal top cover sits above the twin-door display cabinet.
Cooling Fan Assembly
Three visible fans and copper tubing form the upper cooling unit.
Glass Door Assembly
Two transparent framed doors feature long vertical metal handles.
Left Side Panel
A tall rectangular metal cover is shown beside the cabinet's left wall.
Rear Equipment Panel
A vertical metal panel holds visible tubing and mounted components.
Front Vent Grille
A long perforated black grille fits across the cabinet's lower front.
Control Module
A compact rectangular control unit sits near the bottom ventilation grille.

General information

External dimensions (mm): 1200 x 700 x 1970 mm
Internal dimensions (mm): Refrigerated 1100 x 600 x 1420 mm
Internal volume (L): Total 930 L / Refrigerated 910 L
Number of shelves: 4
Light configuration: LED Tube Light
Product Name: Standard Large Double-Door Refrigerated Display Cabinet
Temperature range (°C): Refrigerated 1-10°C

General instructions

Simplified explanation

Product Video

00:37

Stainless Glass-Door Display Fridge

Stainless body, tempered glass doors, digital temp, adjustable shelves, casters.

Real Factory Footage

Real on-site records from our factory, offering a practical view of our production capability and delivery readiness.

Smooth Refrigerator Manufacturing Flow

0:00 / 0:00

Core Component Details

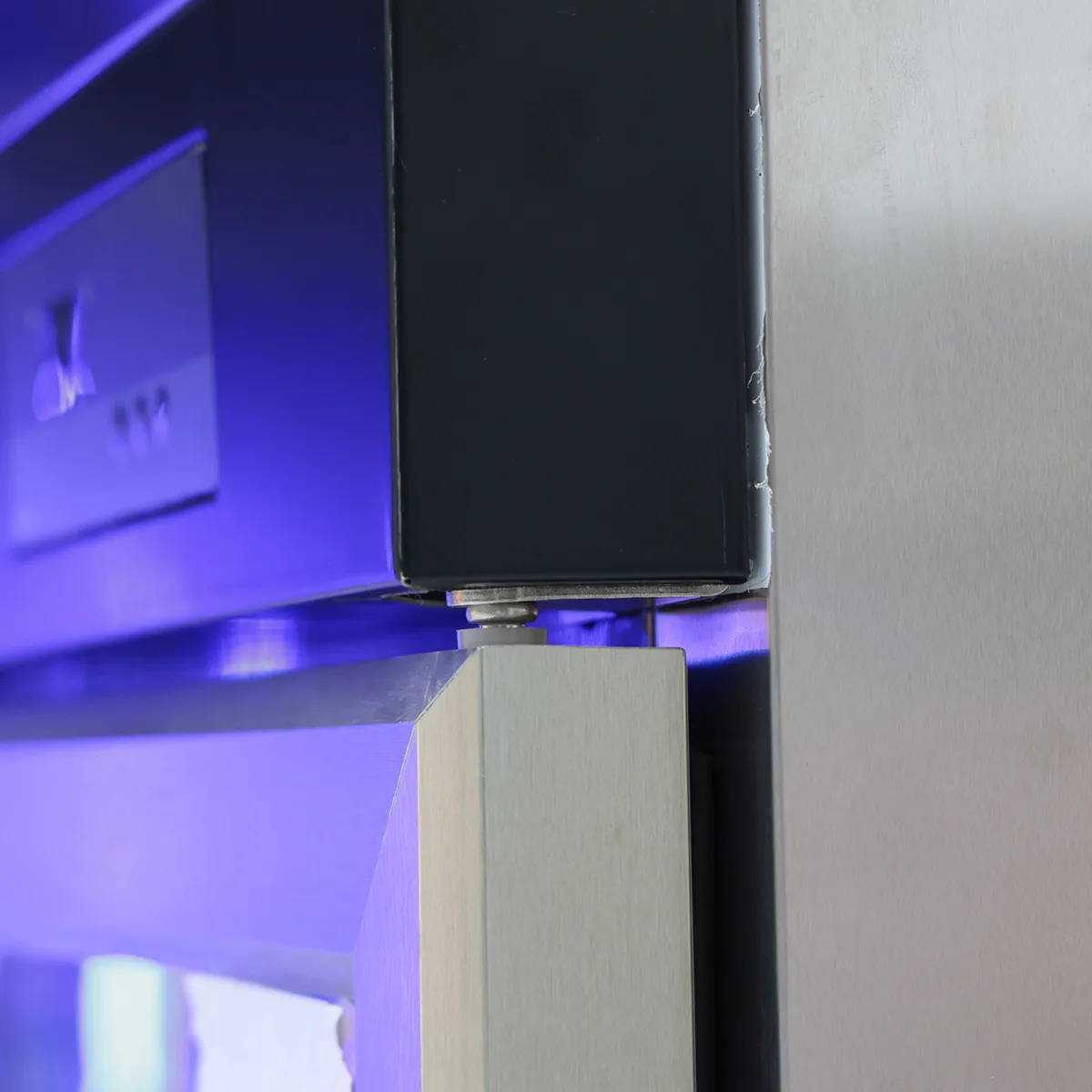

Cabinet Door Frame Corner Joint

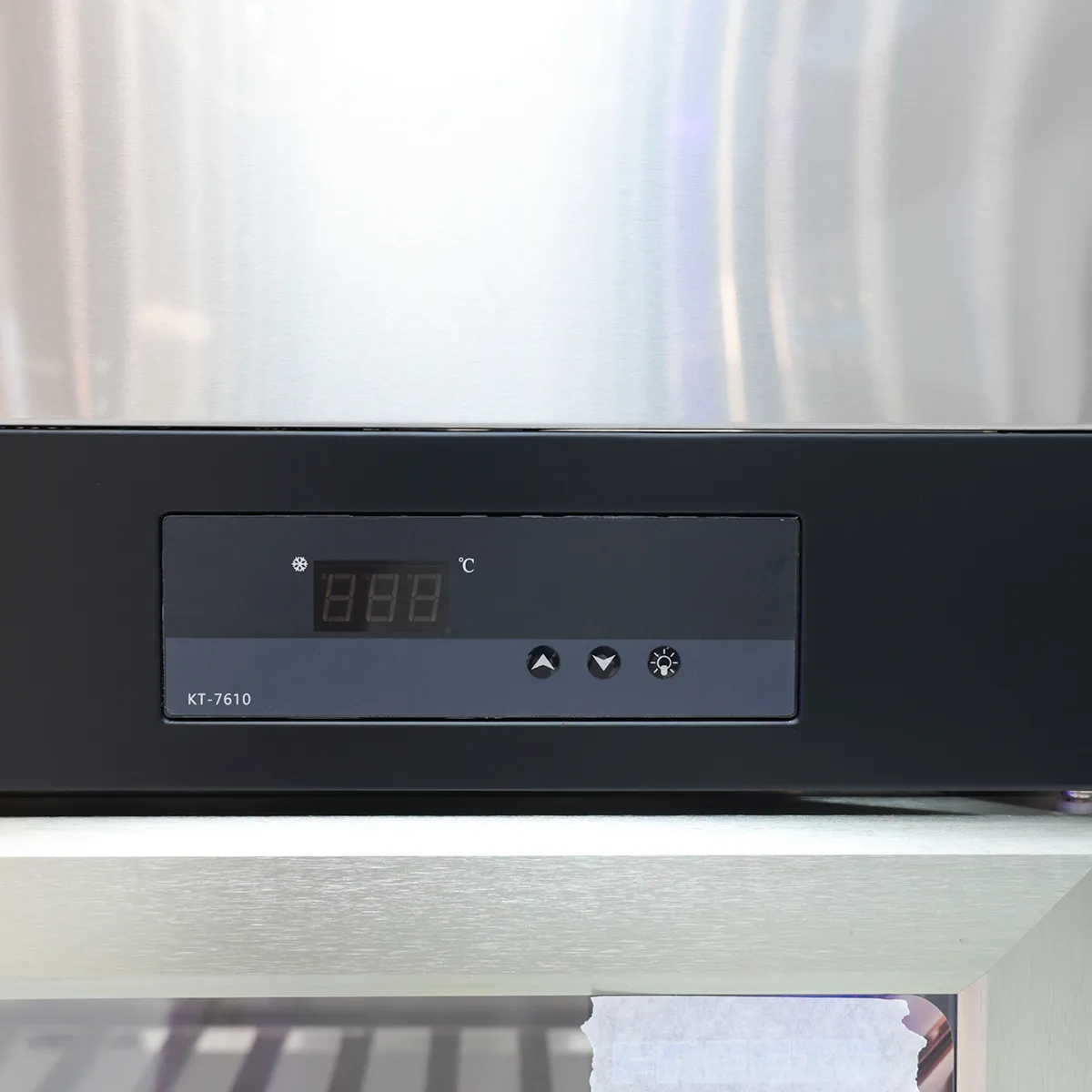

Digital Temperature Control Panel

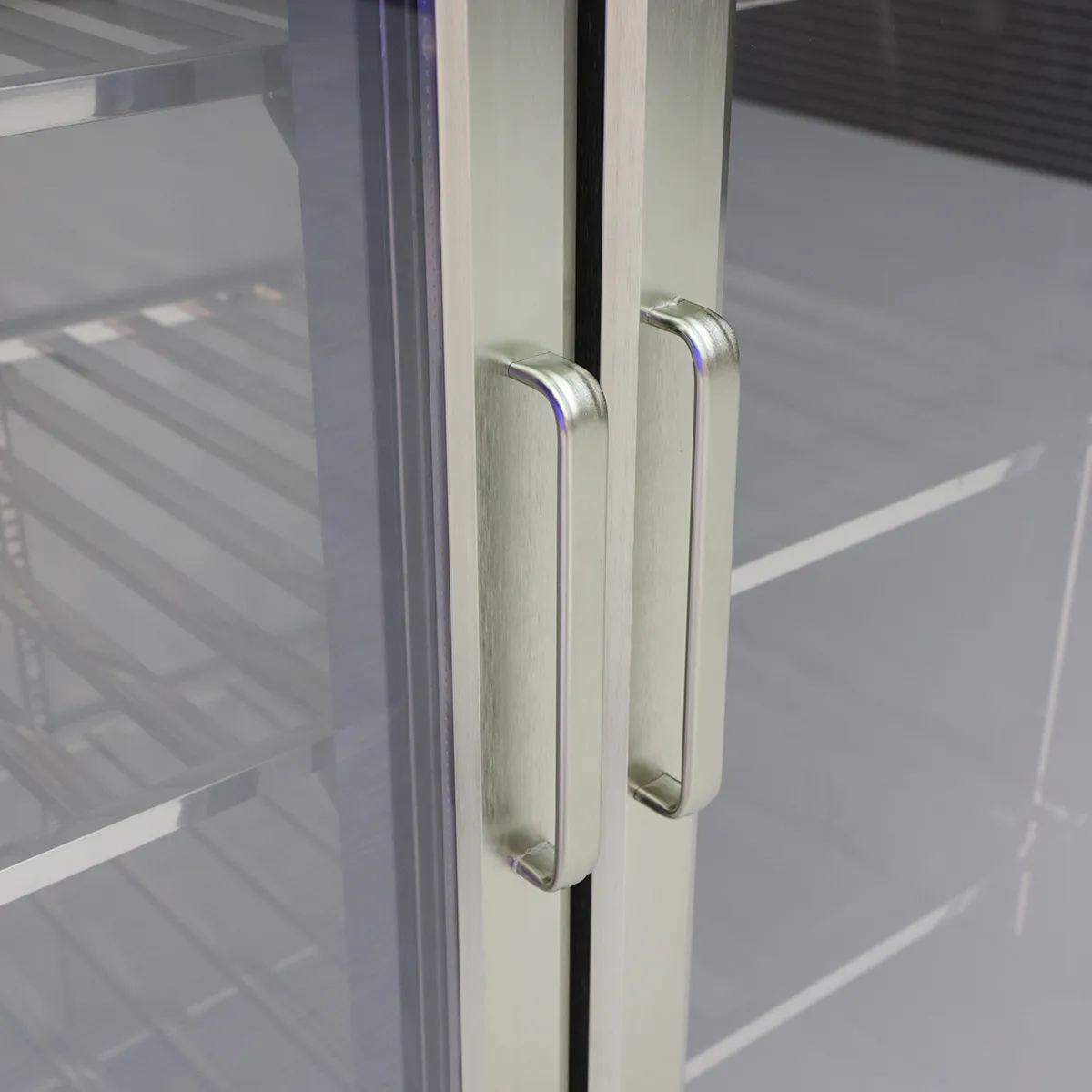

Double Glass Door Handles

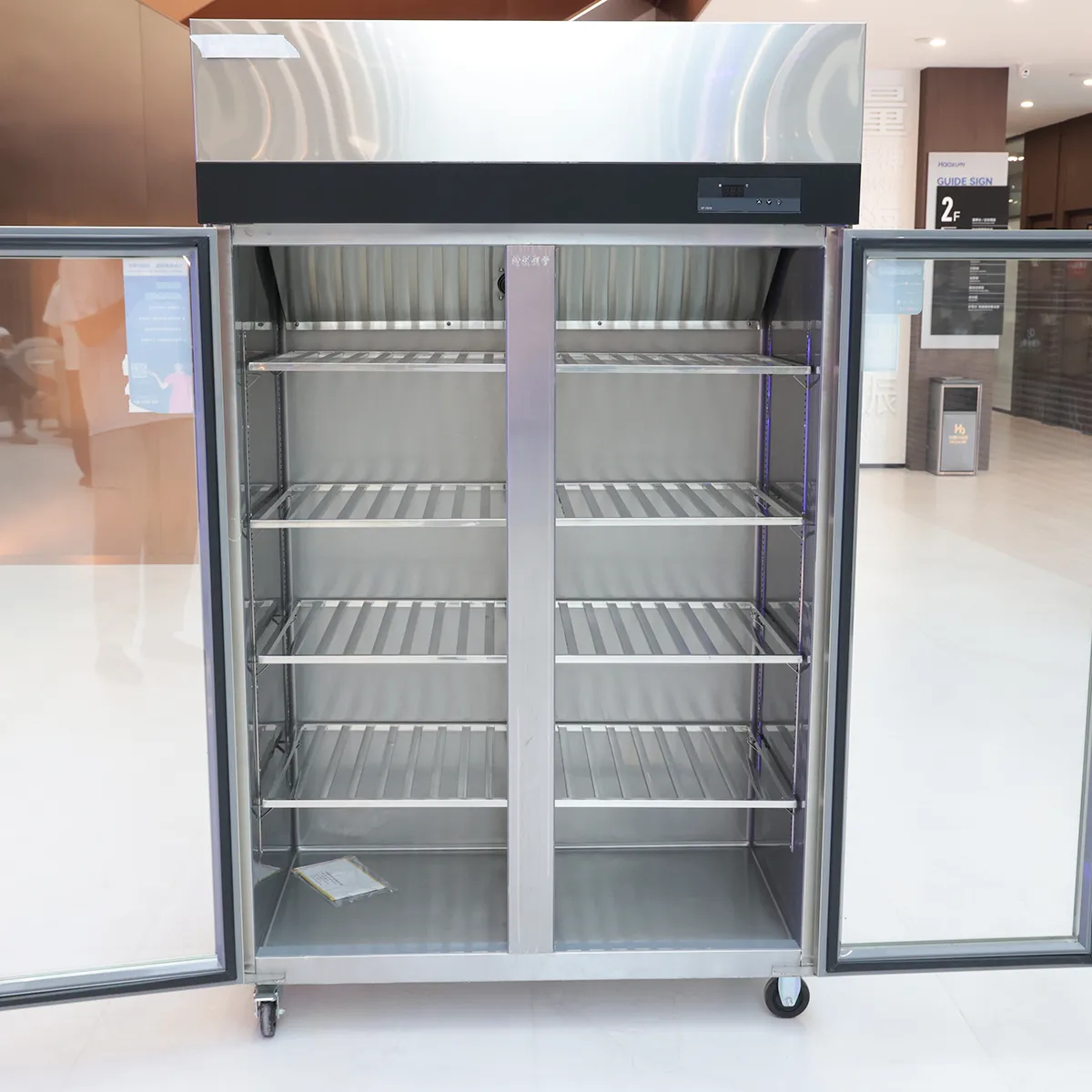

Double Glass Doors and Interior Shelving

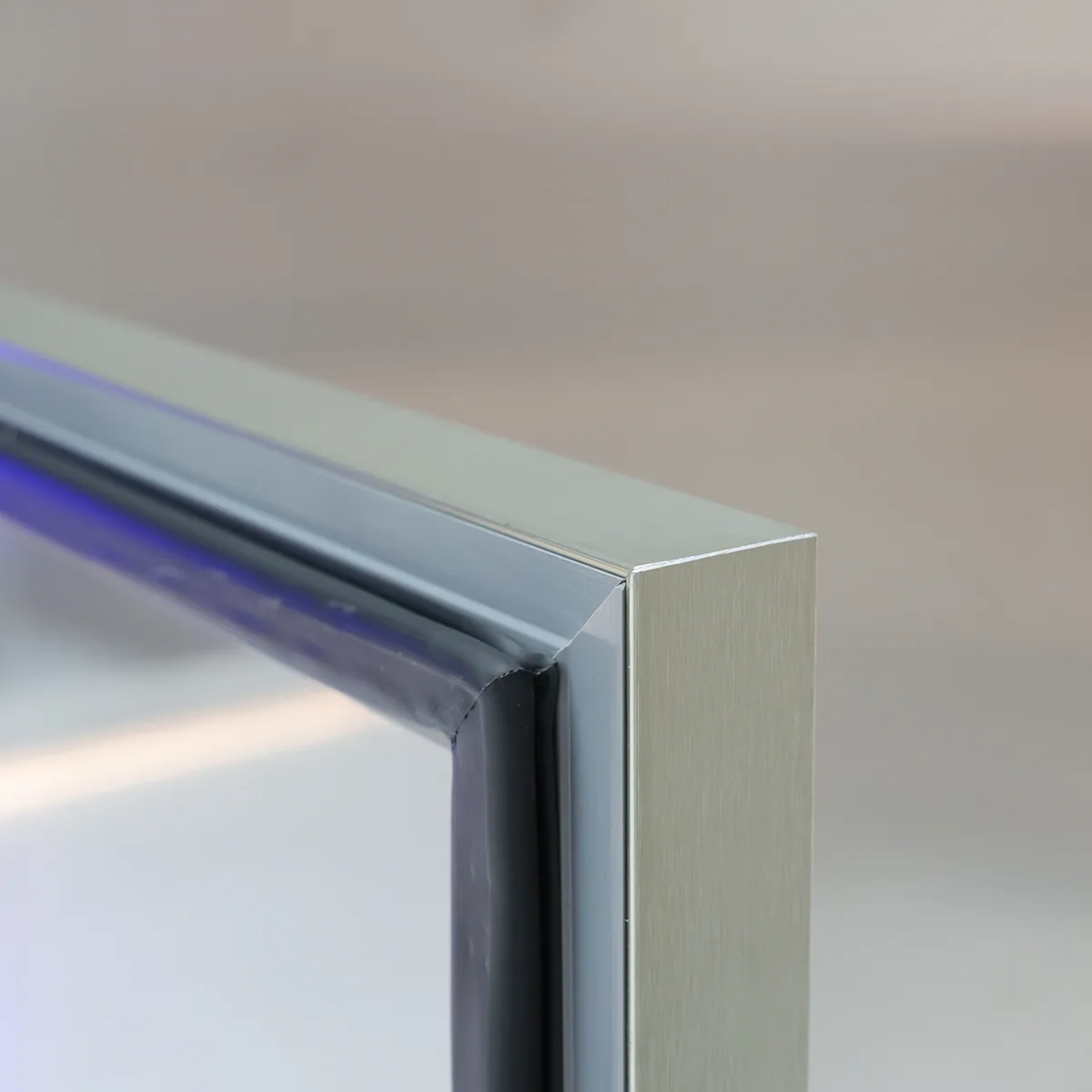

Glass Door Frame Corner Detail

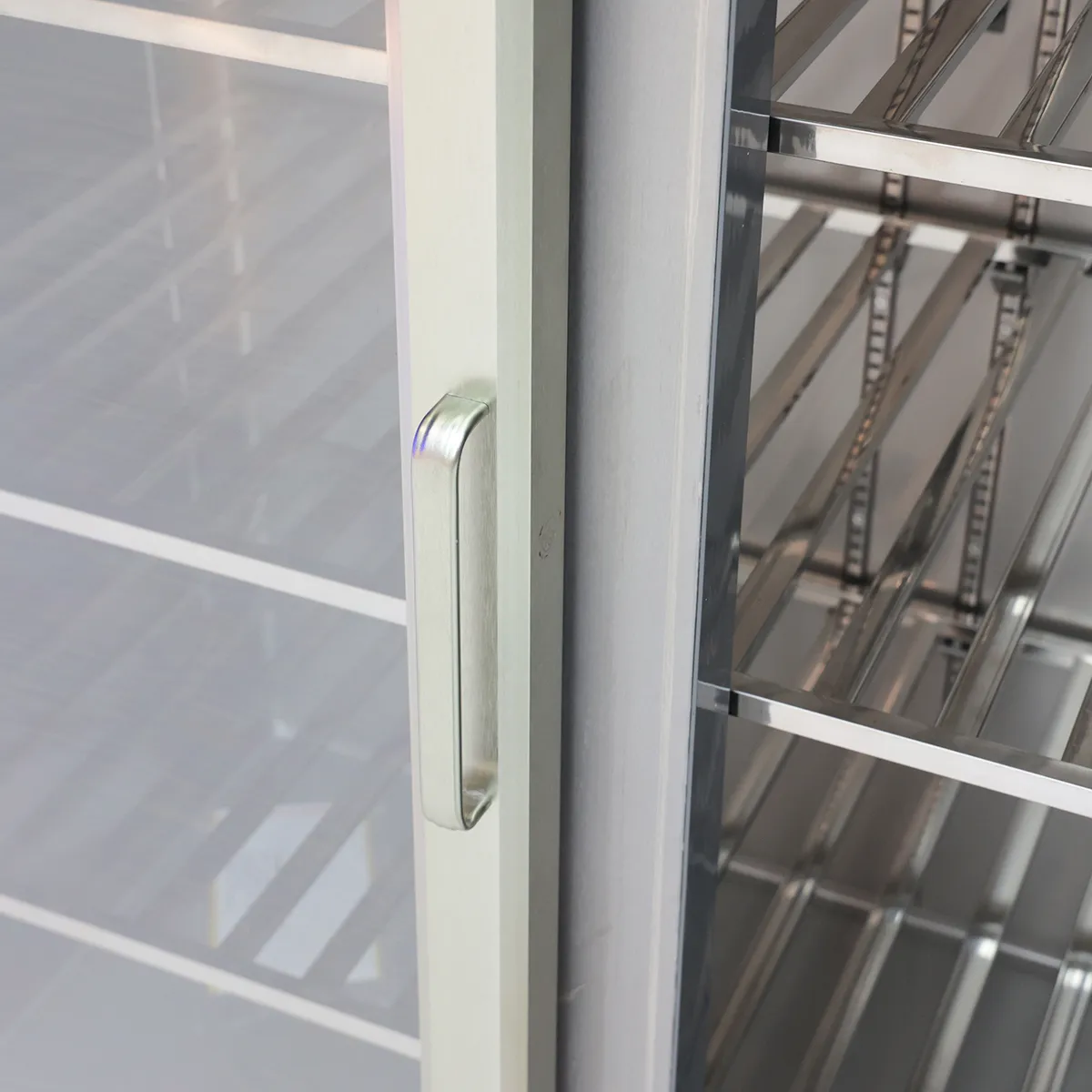

Glass Door Handle and Interior Shelving

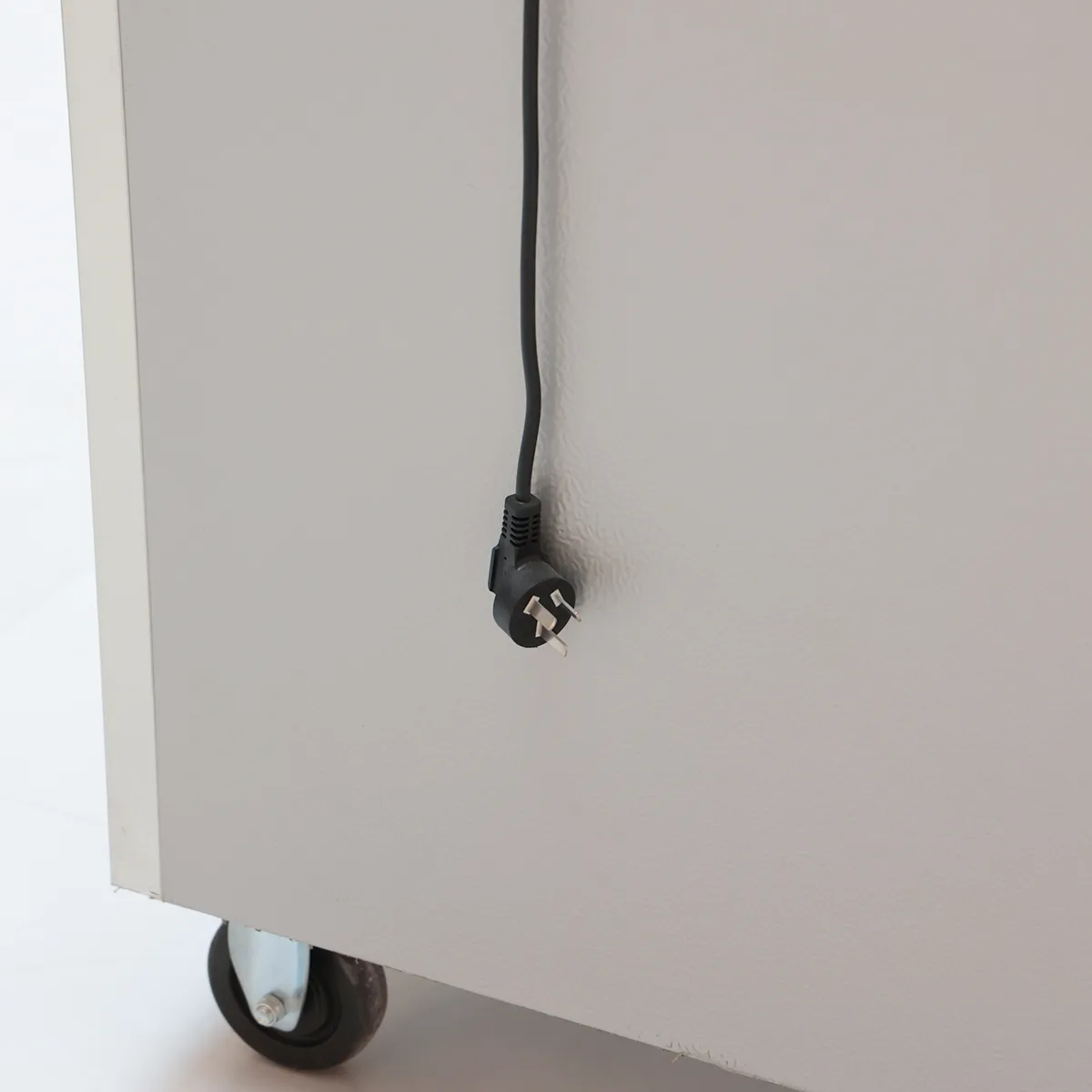

Power Cord and Plug

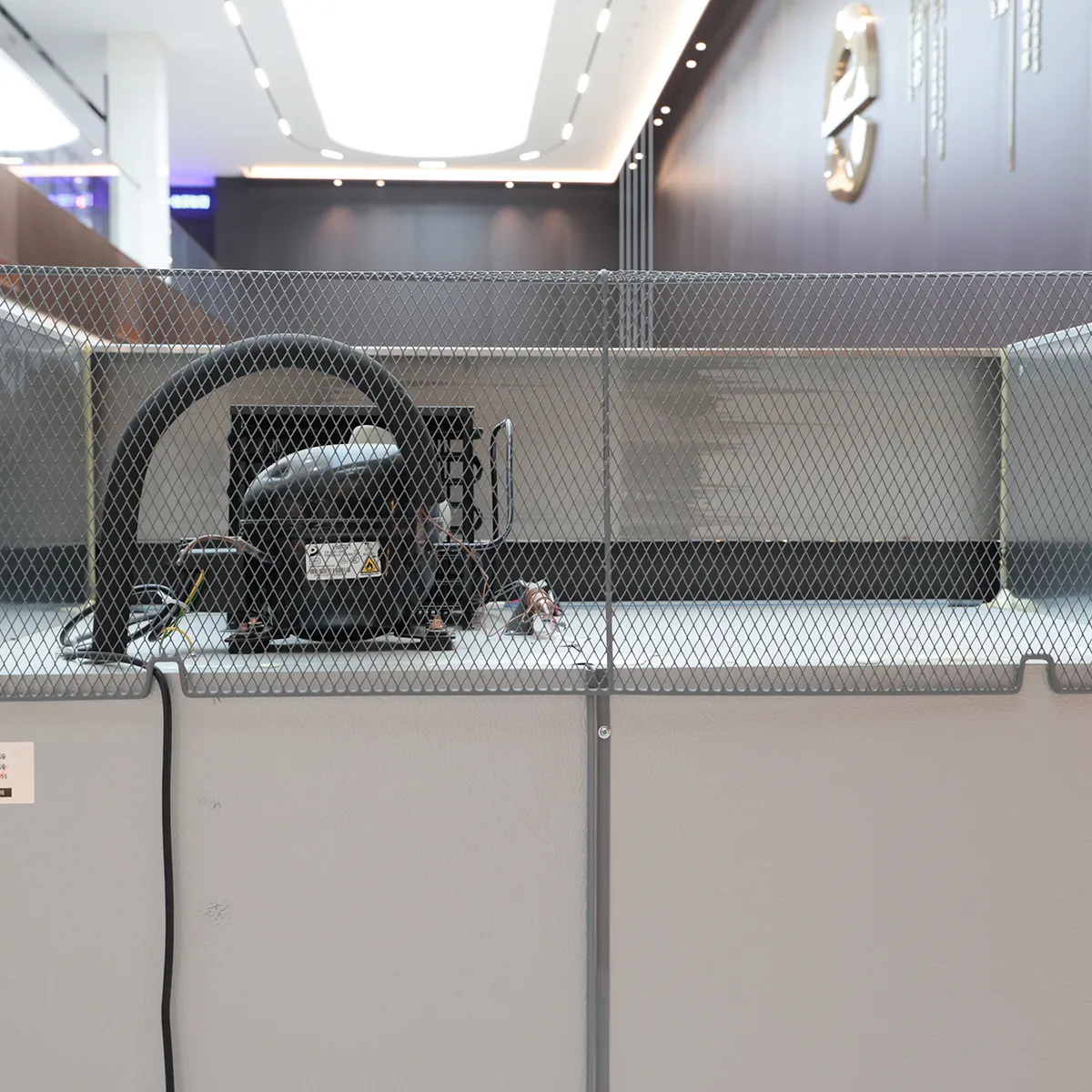

Rear Compressor and Cooling Assembly

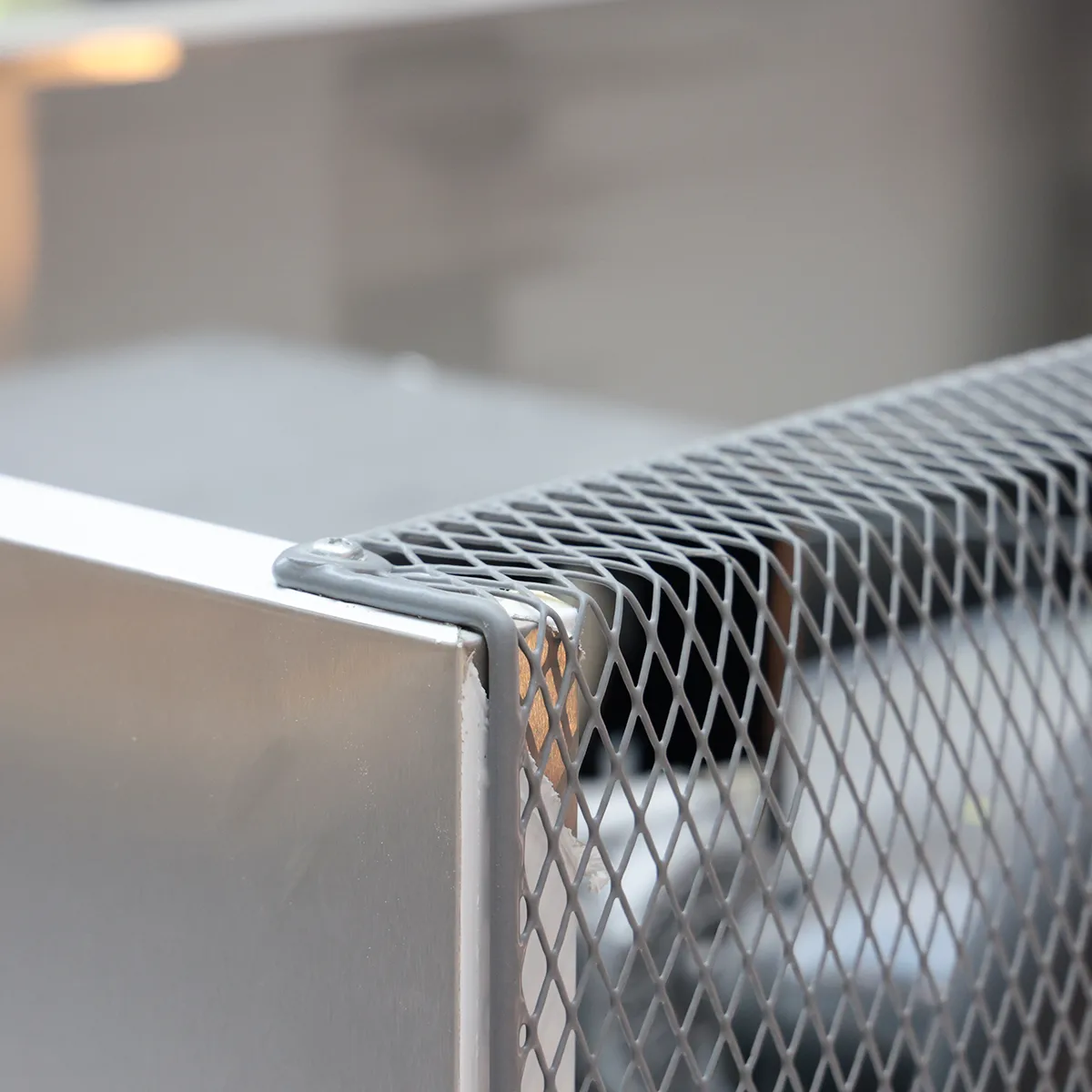

Rear Protective Mesh Guard

Rear Ventilation Mesh Panel

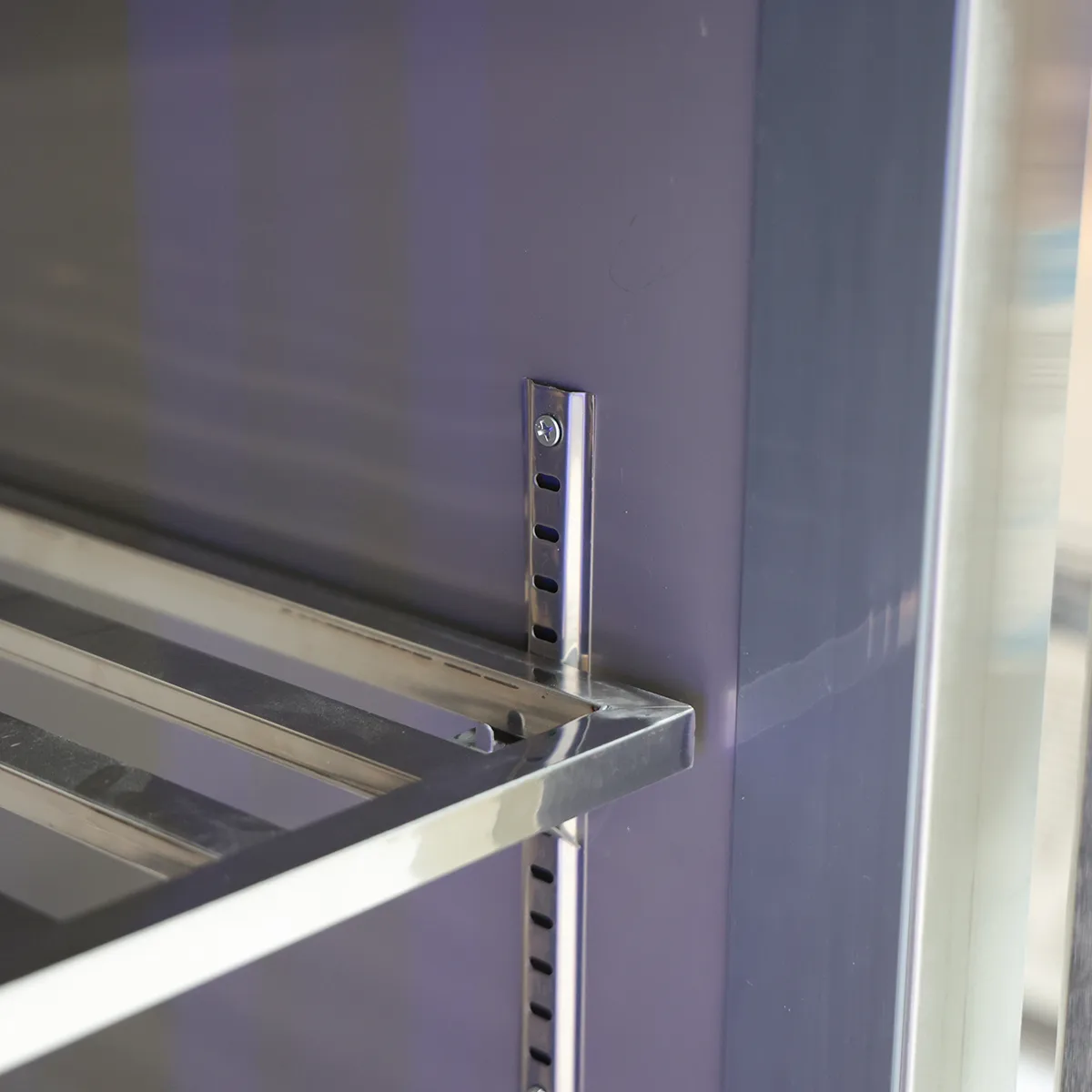

Adjustable Shelf Support Rail

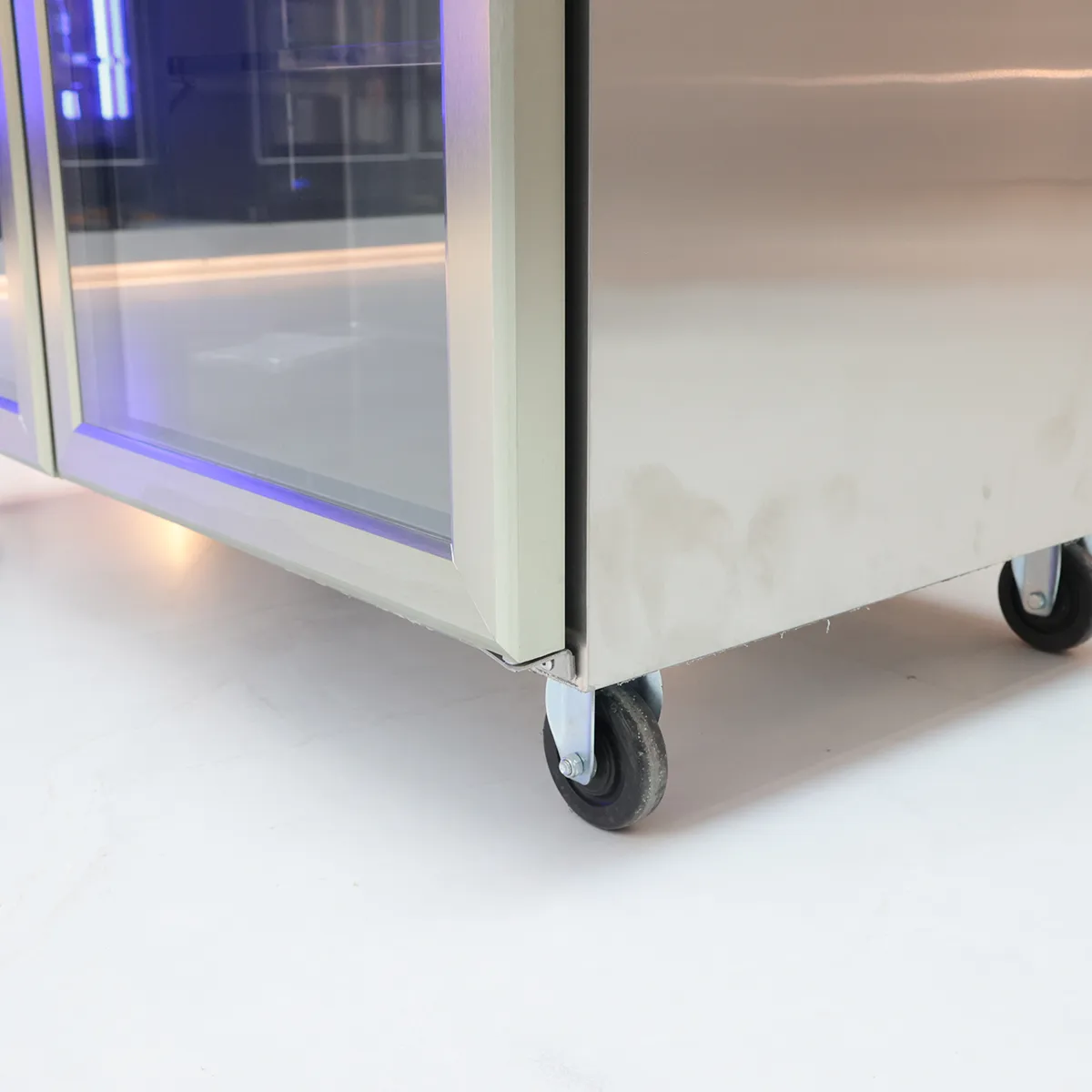

Bottom Caster Wheel Assembly

Frequently Asked Questions (FAQ)

What is the storage capacity and size of this double-door refrigerated display cabinet?

The cabinet has a total specified volume of 930 L and an effective refrigerated capacity of 910 L. Its external dimensions are 1200 × 700 × 1970 mm, while the specified usable refrigerated compartment dimensions are 1100 × 550 × 1420 mm. These measurements can be used to evaluate available space and

What temperature range does the refrigerator support, and how is the temperature controlled?

The specified refrigerated temperature range is 1–10°C. The cabinet features electronic digital temperature control with a digital display, allowing users to monitor and adjust the temperature according to the supported control settings. Products should be stored according to their individual temper

What refrigeration method and refrigerant does the cabinet use?

The cabinet uses a direct cooling refrigeration system with R290 refrigerant. It is equipped with an L68CU1 compressor and has a specified Grade 2 energy efficiency classification. The applicable energy efficiency rating standard should be confirmed when evaluating regional requirements.

What display lighting, door features, and shelving arrangements are included?

The cabinet features double glass doors and interior LED tube lighting for displaying refrigerated merchandise. It includes four steel-wire shelves, each measuring 1080 × 530 mm, with a gray coated finish. The glass doors feature an automatic return mechanism and black PVC magnetic door seals.

Can the cabinet be repositioned, and what are its specified weights and packaged dimensions?

The cabinet is equipped with four casters, including left-side braking casters and right-side directional casters, allowing repositioning when required. Its specified net weight is 105 kg, and its gross weight is 125 kg. The packaged dimensions are 1260 × 750 × 2020 mm, which should be considered wh
