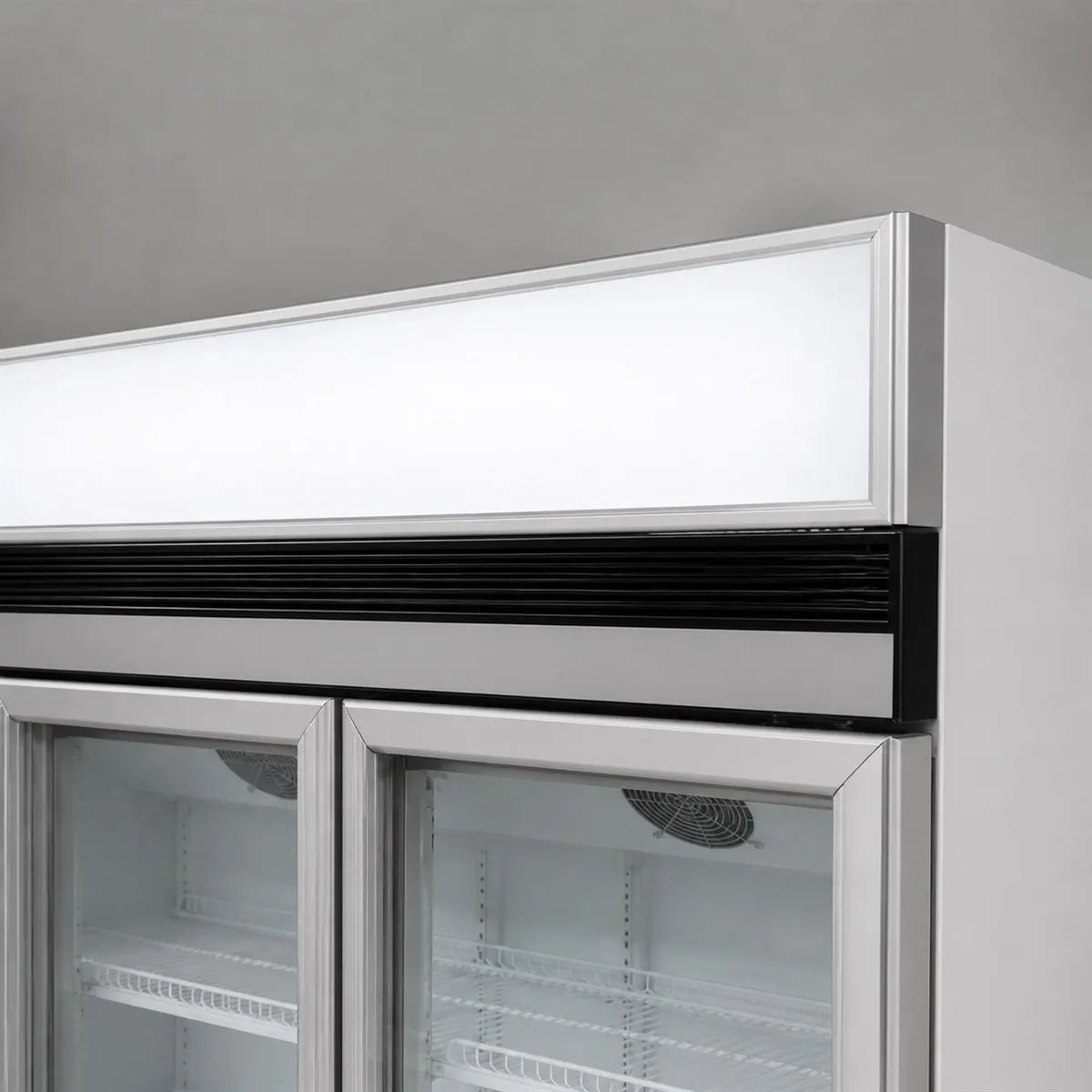

The upper exterior section protects the refrigeration and circulation components.

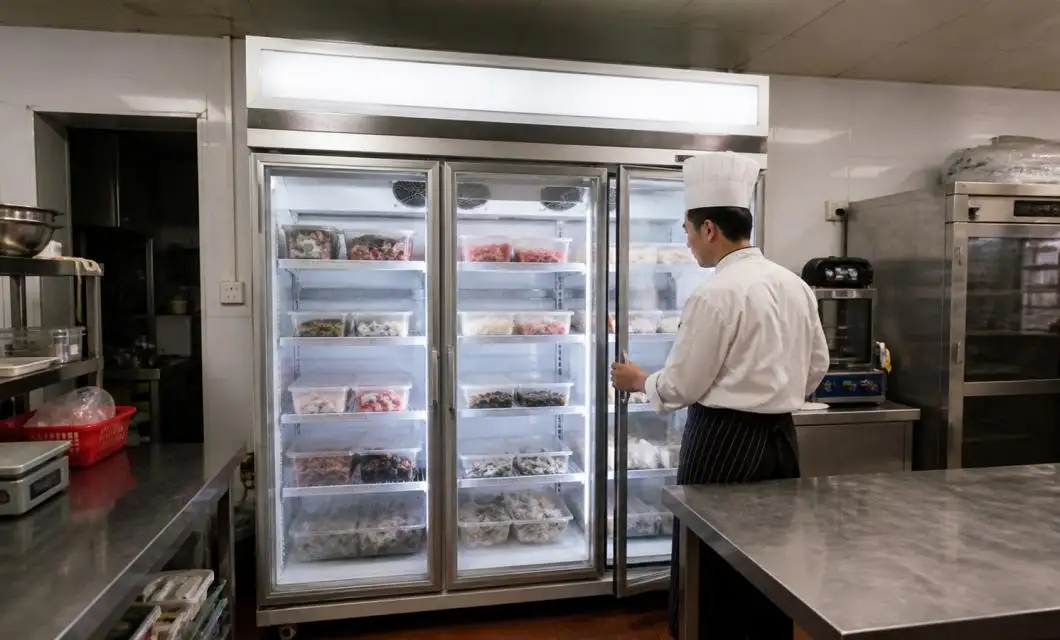

Restaurant Preparation Area
Cold Storage in Clear View
Visible Food Storage for Retail and Preparation
Supermarkets display packaged food for selection, while convenience outlets organize frozen products on adjustable shelves. Restaurant kitchens keep ingredients near preparation work. Bakery and dessert counters store chilled or frozen desserts beside the service area.
- Packaged Food for Selection
- Packaged Products on Shelves
- Ingredients near Preparation
- Desserts beside the Counter

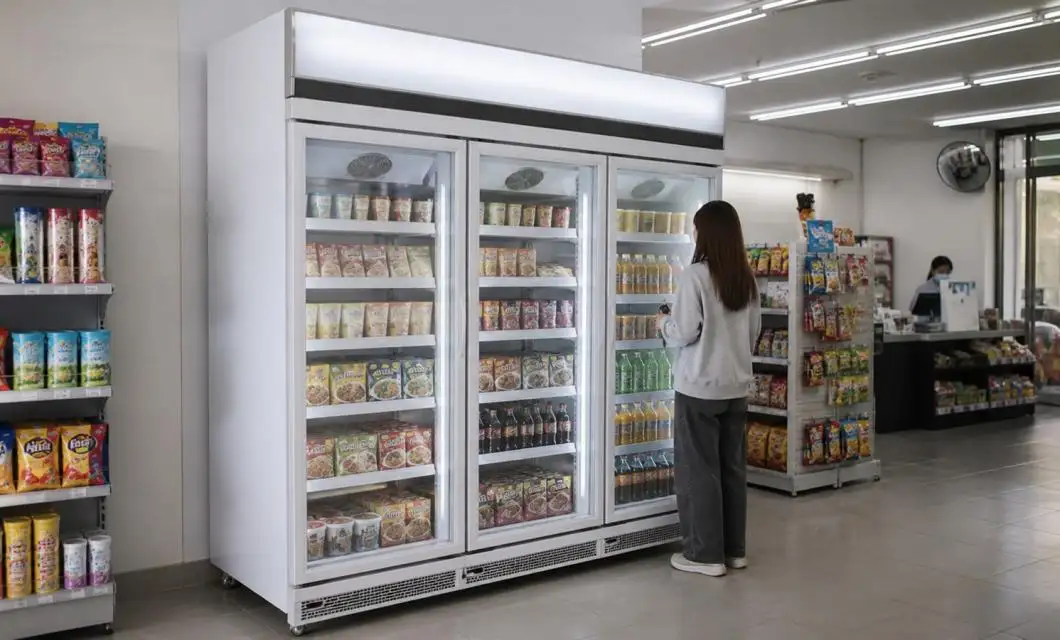

Supermarket Food Section

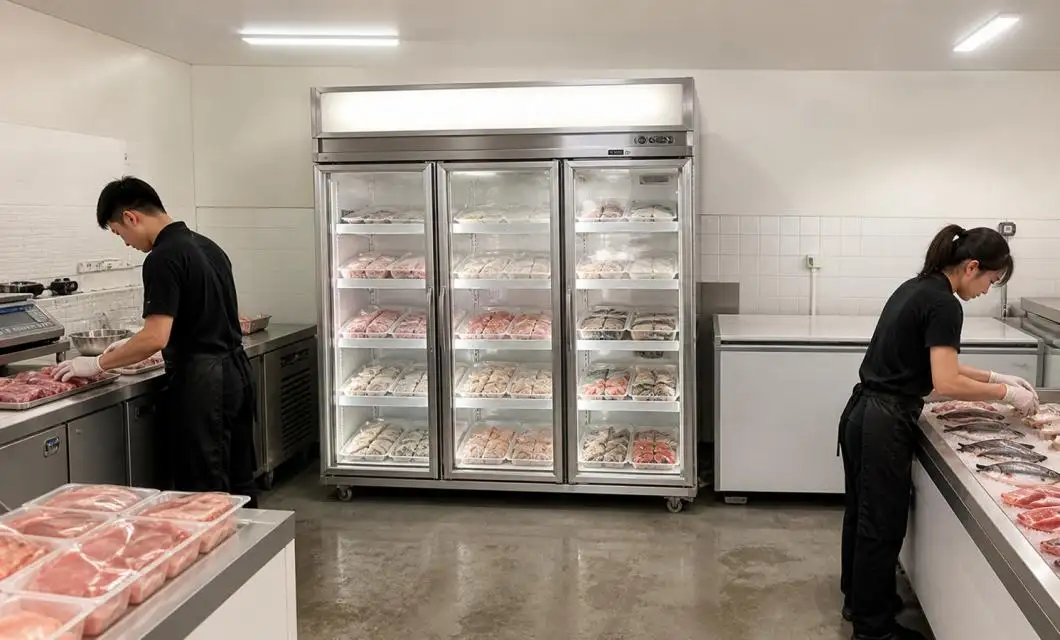

Convenience Frozen-food AreaRestaurant Preparation Area

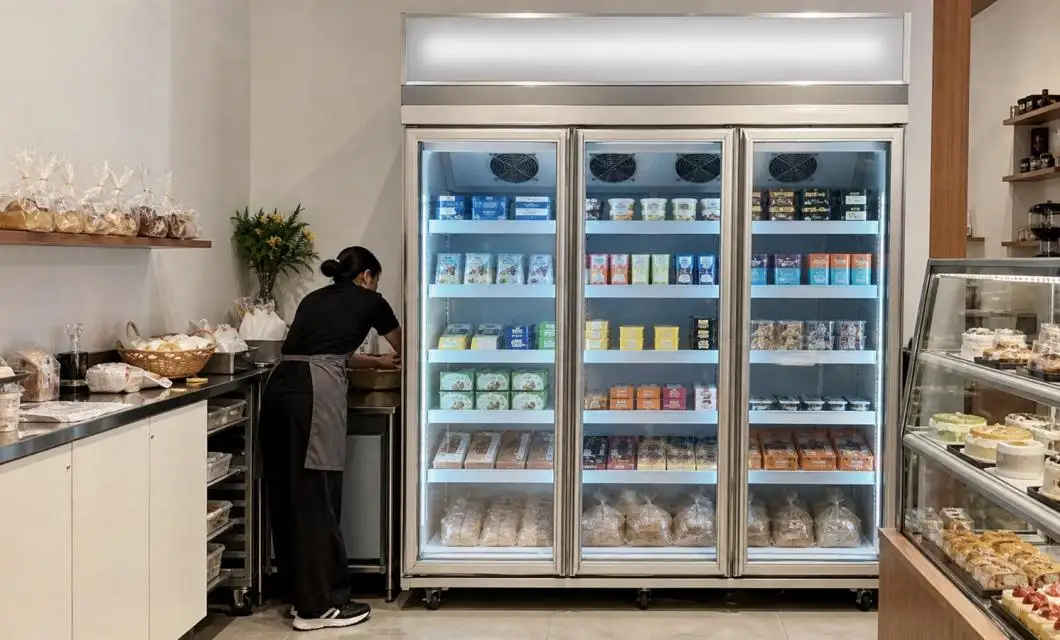

Bakery and Dessert CounterSupermarket Food SectionConvenience Frozen-food AreaSpecifications & Structural Decomposition

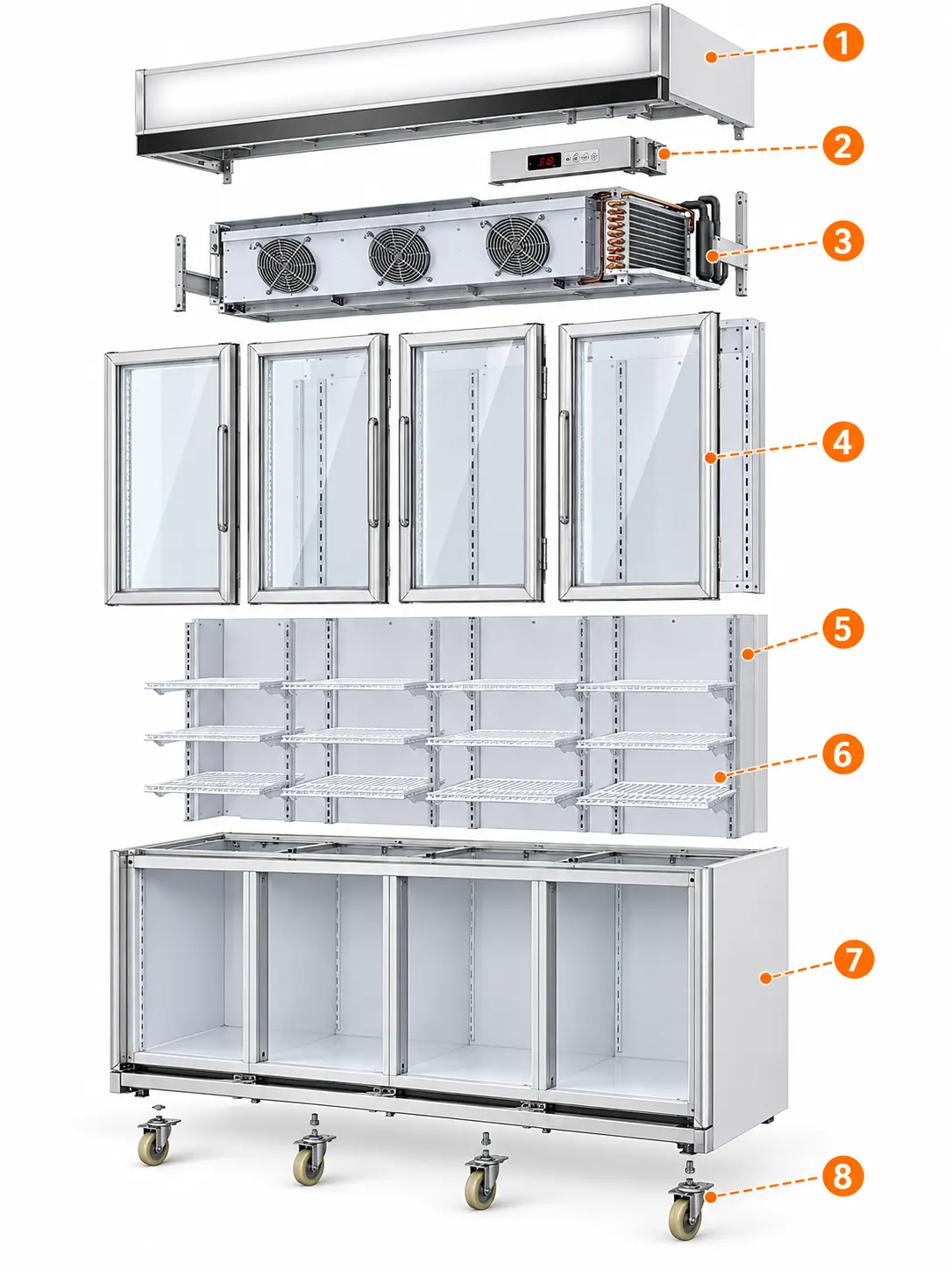

Product Structure Diagram

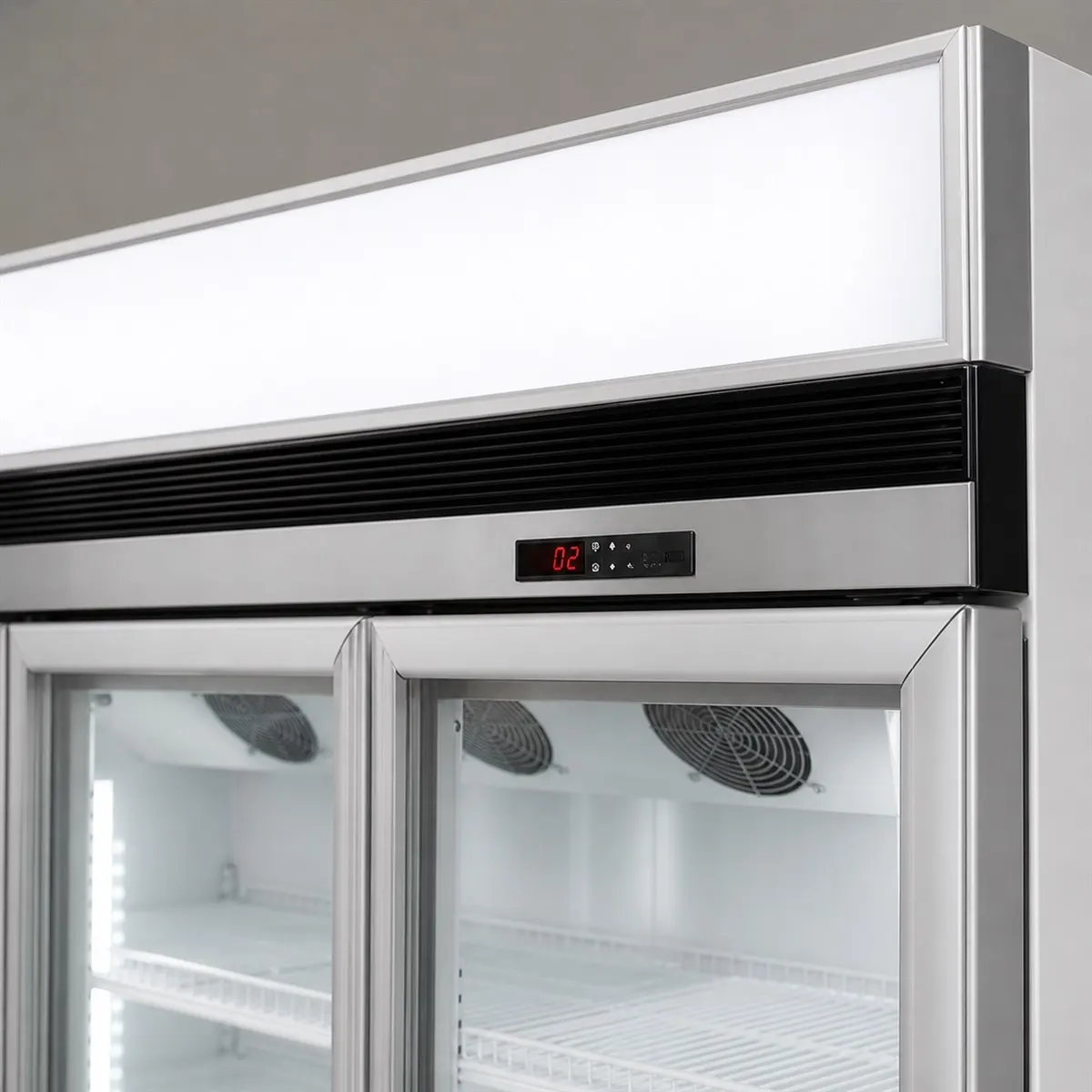

- Top Canopy Housing
- Digital Control Panel
The front panel supports temperature adjustment and operating-status monitoring.

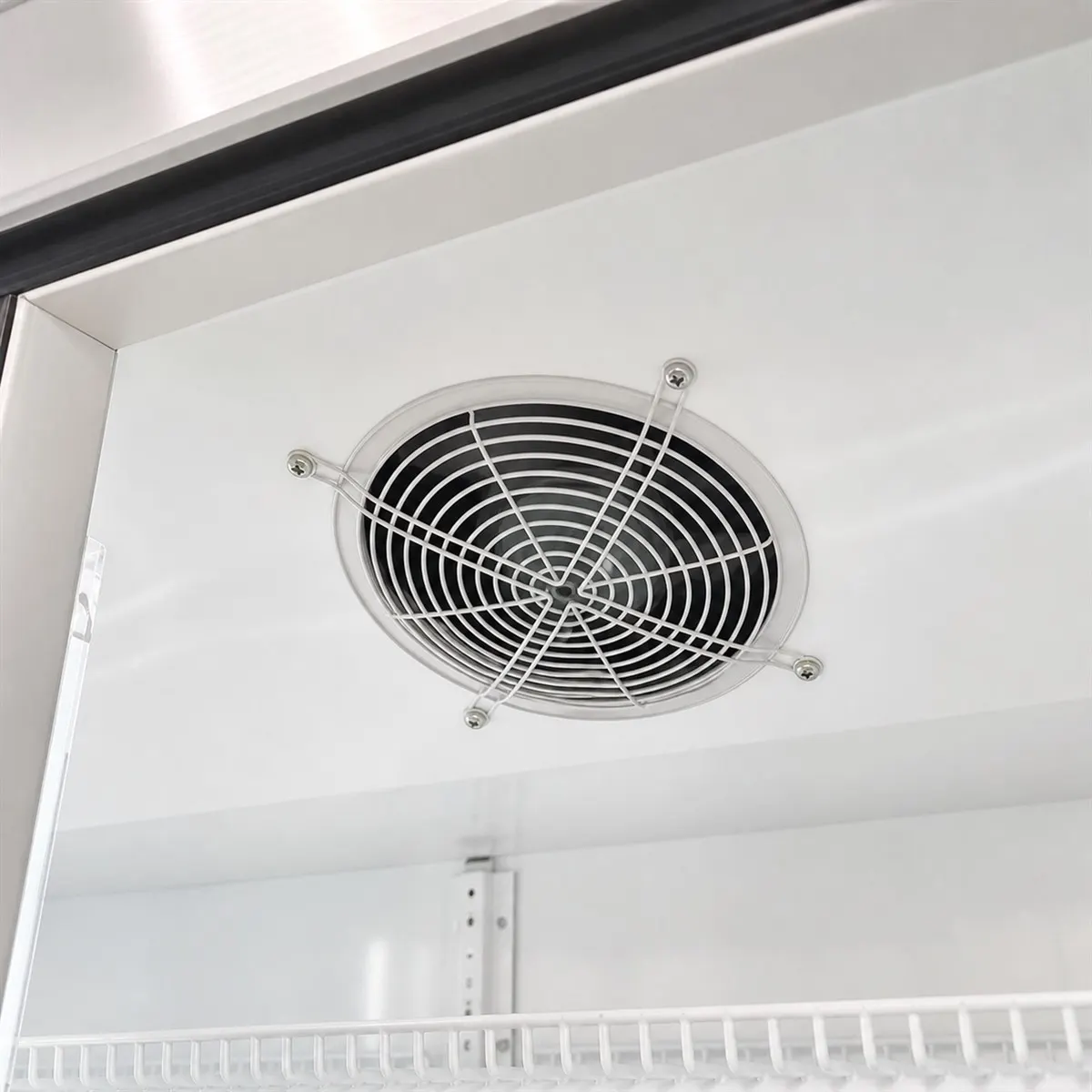

- Refrigeration and Air Circulation Unit
Cooling coils, fans and piping support low-temperature operation and air distribution.

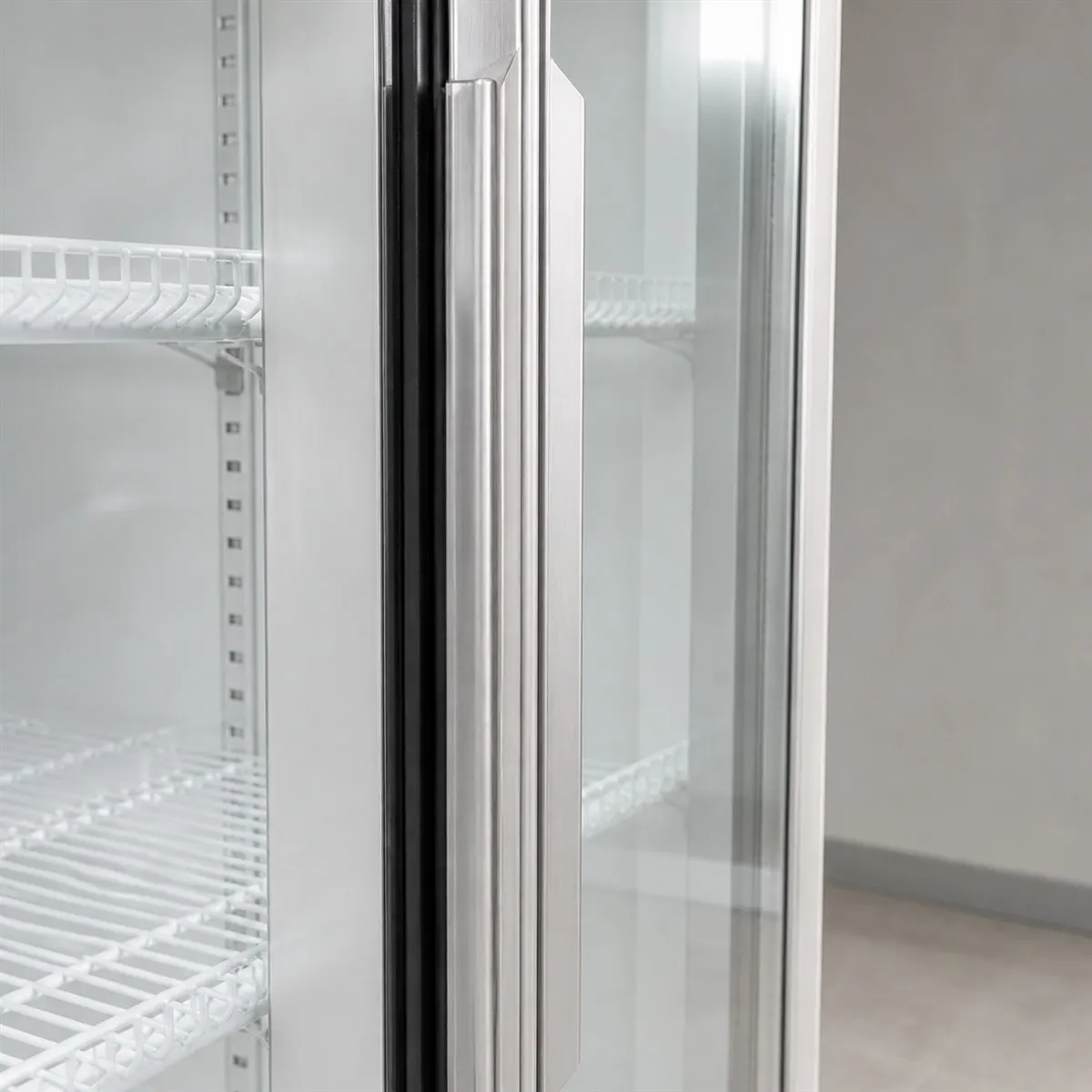

- Three Glass Door Assembly
Three transparent framed doors provide visibility while limiting cold-air loss during access.
- Interior Back Panel and Support Rails
The rear panel supports the cabinet interior and mounting positions for adjustable shelves.

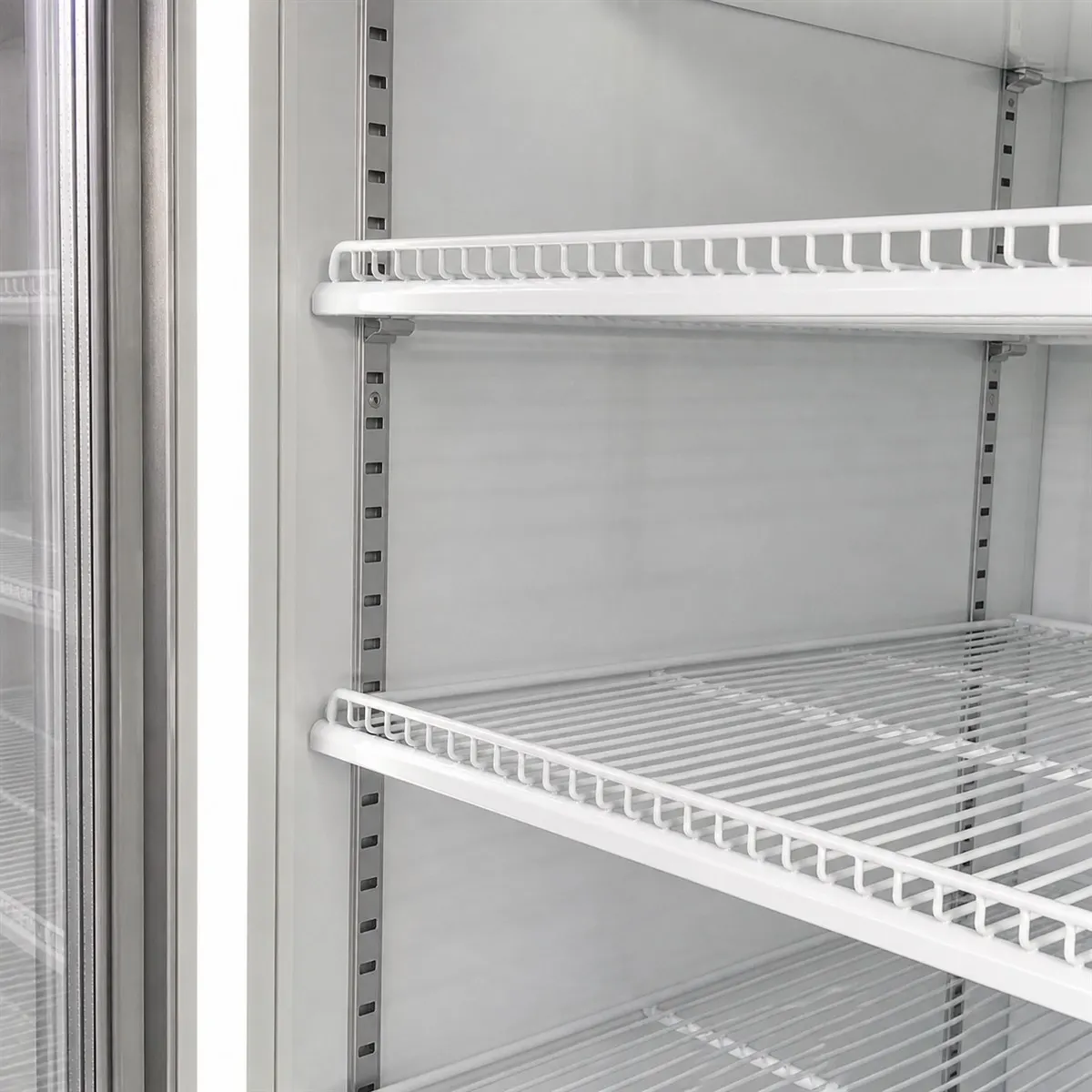

- Adjustable Shelf System
Multi-level wire shelves can be repositioned for products of different sizes.
- Main Insulated Cabinet Body
The insulated shell forms the primary refrigerated or frozen storage chamber.
General information
- Light configuration

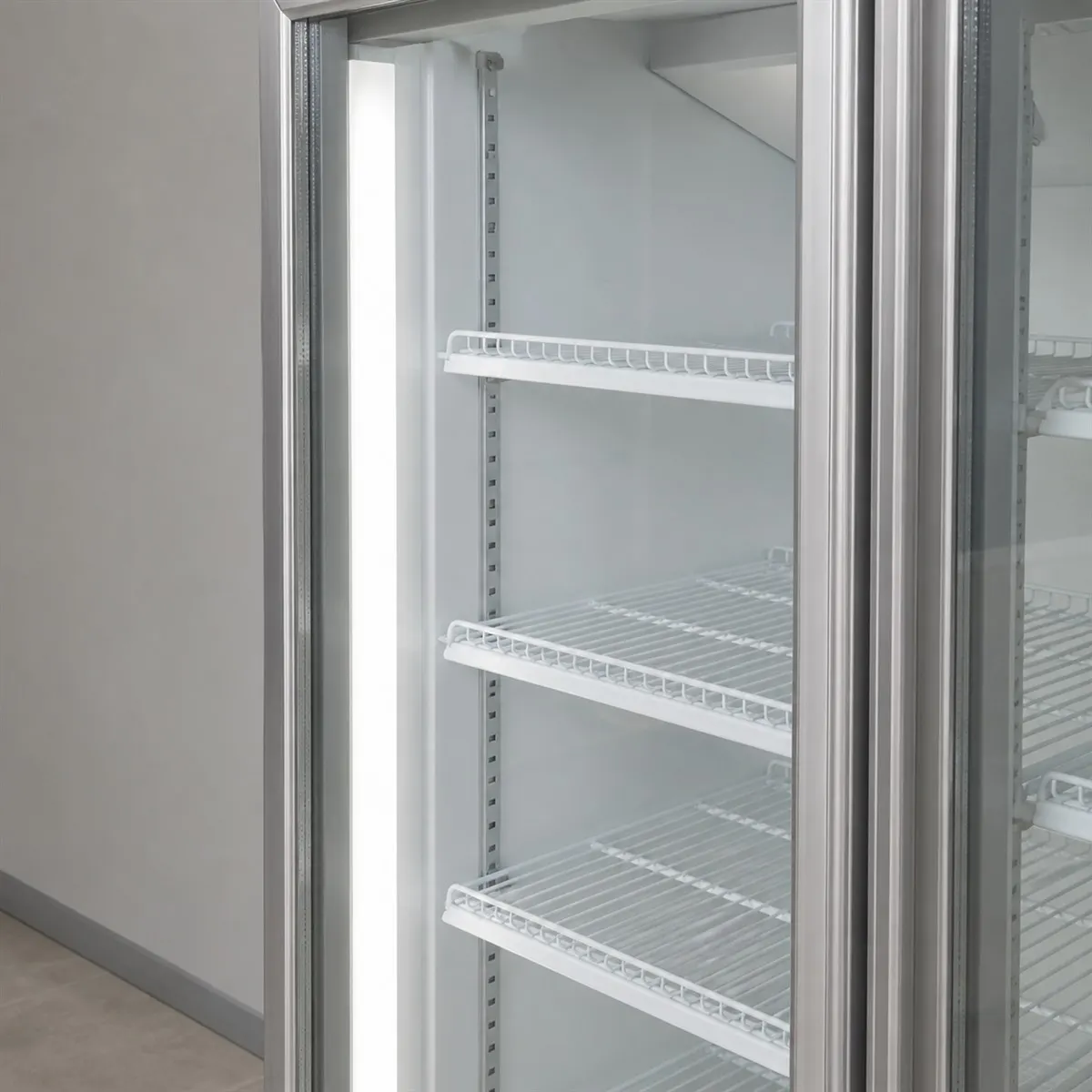

- Vertical LED lighting inside the cabinet
- Product Name

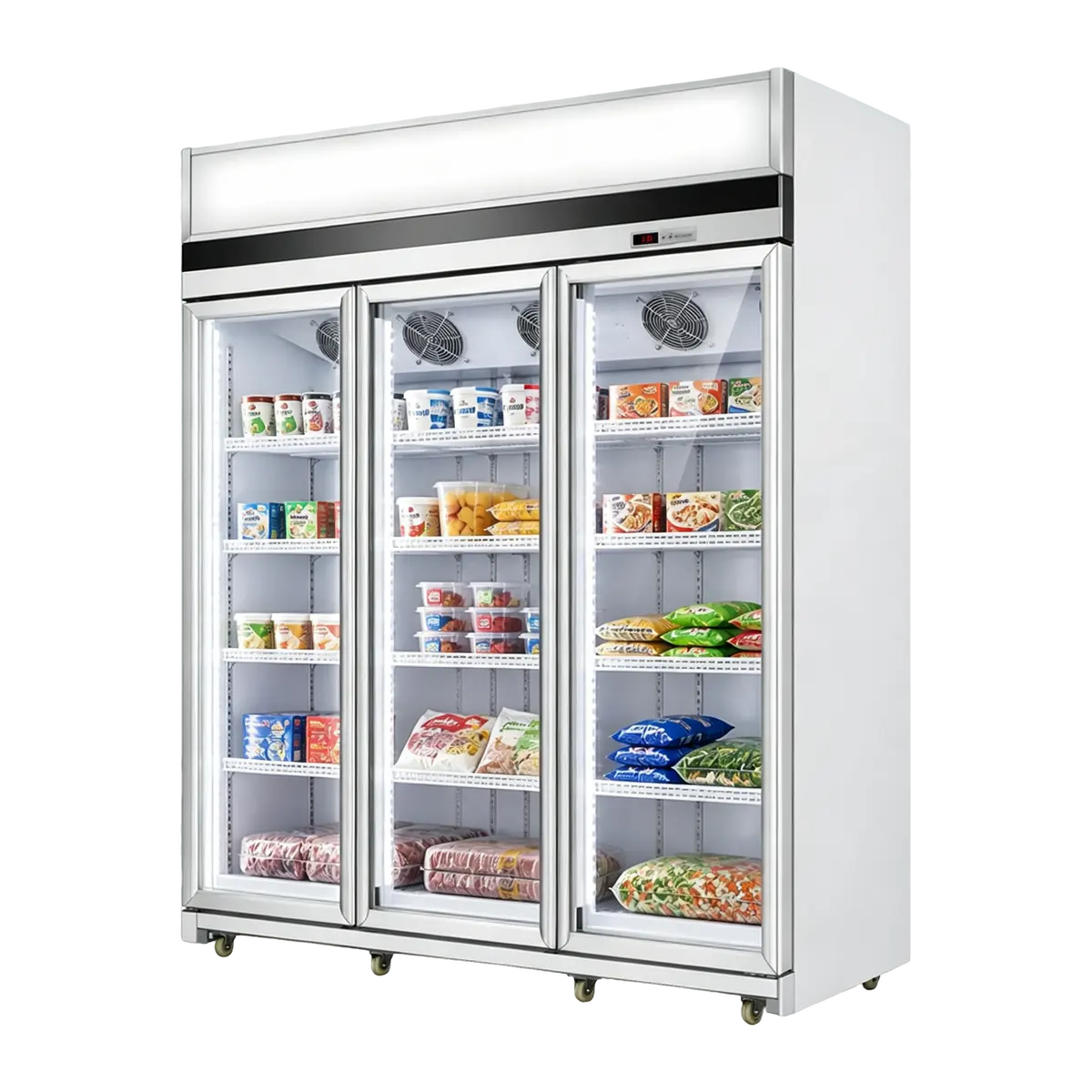

- Three-door upright refrigerated and frozen display cabinet
- Product color
- Jazz White
- Refrigeration temperature (°C)
- 0-10℃ setting
- Freezing temperature (°C)
- Approximately -20°C configuration
- Number of display layers
- Multi-layer adjustable grid structure
- Cooling mode
- Frozen, refrigerated, or low-temperature preparation as confirmed by the order.
General instructions
Simplified explanationCore Component Details
We're here to help
Our team is ready to advise you on the best product configuration and procurement plan.
info@eascoutia.com400 158 5899Frequently Asked Questions (FAQ)
Which temperature configurations are available?
The source package describes refrigerated, frozen and lower-temperature configurations; confirm the exact delivered range before ordering.
How many doors does this model have?
The current model has three full-height transparent glass doors for separate access and stock viewing.
Can the shelves be adjusted?
Yes. Wire shelves mount on vertical support rails and can be repositioned for different package heights.
Are lighting and temperature display included?
The shown cabinet includes vertical interior lighting and a digital controller for viewing operating status.
What else should be confirmed before ordering?
Confirm temperature configuration, cabinet color, shelf arrangement, electrical requirements and installation conditions.
