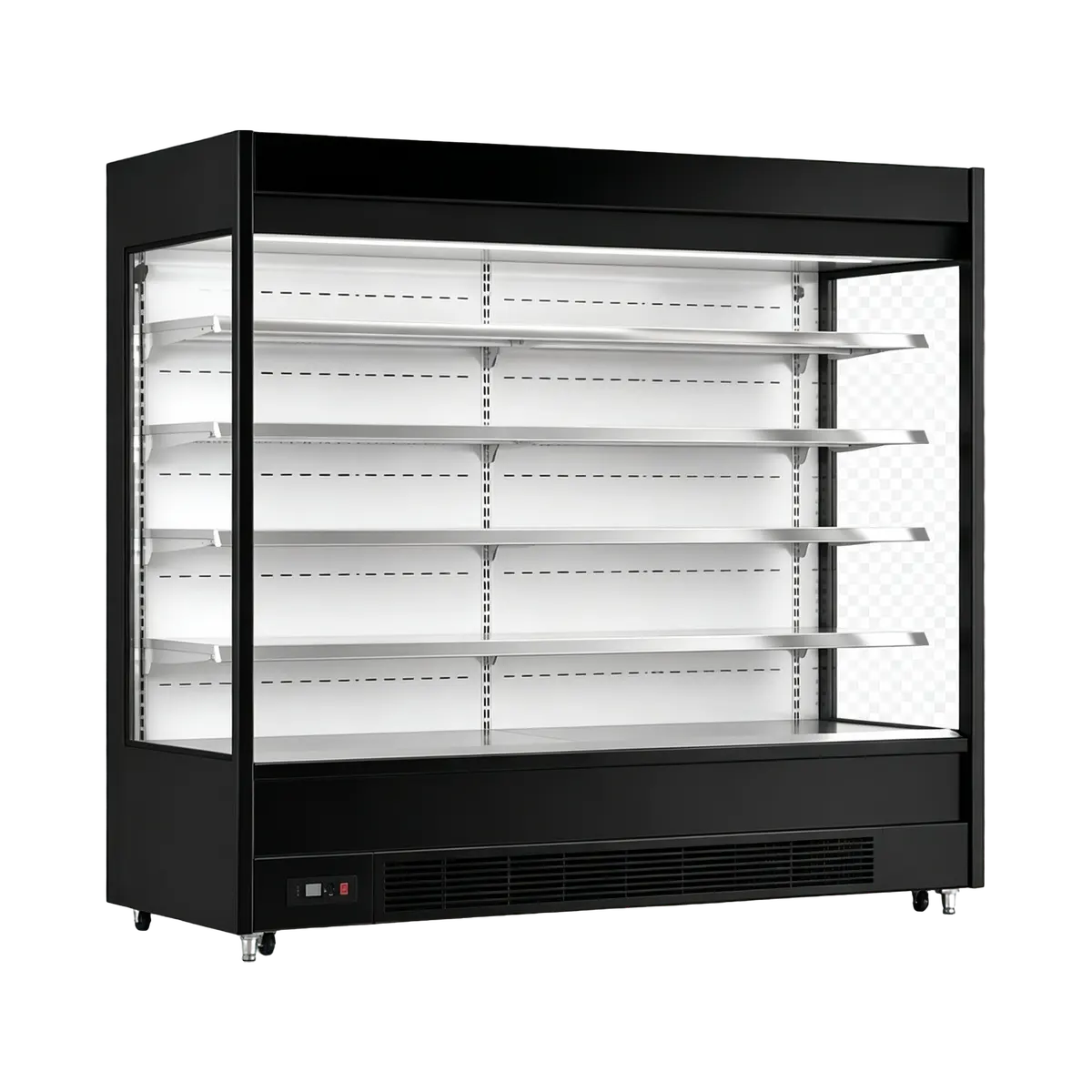

Open-style multi-tier air curtain refrigerator
  • Open Front Access
  • Multi-tier Display
  • Air Curtain Cooling
  • Adjustable Shelves

Chilled Products within Easy Reach

Open Refrigerated Display for Retail Service

Supermarkets organize bottled drinks across the open shelves. Convenience stores present ready meals for quick selection, while fruit shops display packaged fruit in clear view. Bakery and cafe counters keep chilled drinks, desserts and snacks beside customer service.

  • Drinks across Open Shelves
  • Ready Meals for Quick Selection
  • Packaged Fruit for Selection
  • Drinks and Snacks beside Service
Fresh-cut Fruit ShopFresh-cut Fruit Shop
Bakery and Cafe CounterBakery and Cafe Counter
Supermarket Drink SectionSupermarket Drink Section
Convenience Ready-meal AreaConvenience Ready-meal Area
Fresh-cut Fruit ShopFresh-cut Fruit Shop
Bakery and Cafe CounterBakery and Cafe Counter
Supermarket Drink SectionSupermarket Drink Section
Convenience Ready-meal AreaConvenience Ready-meal Area

Specifications & Structural Decomposition

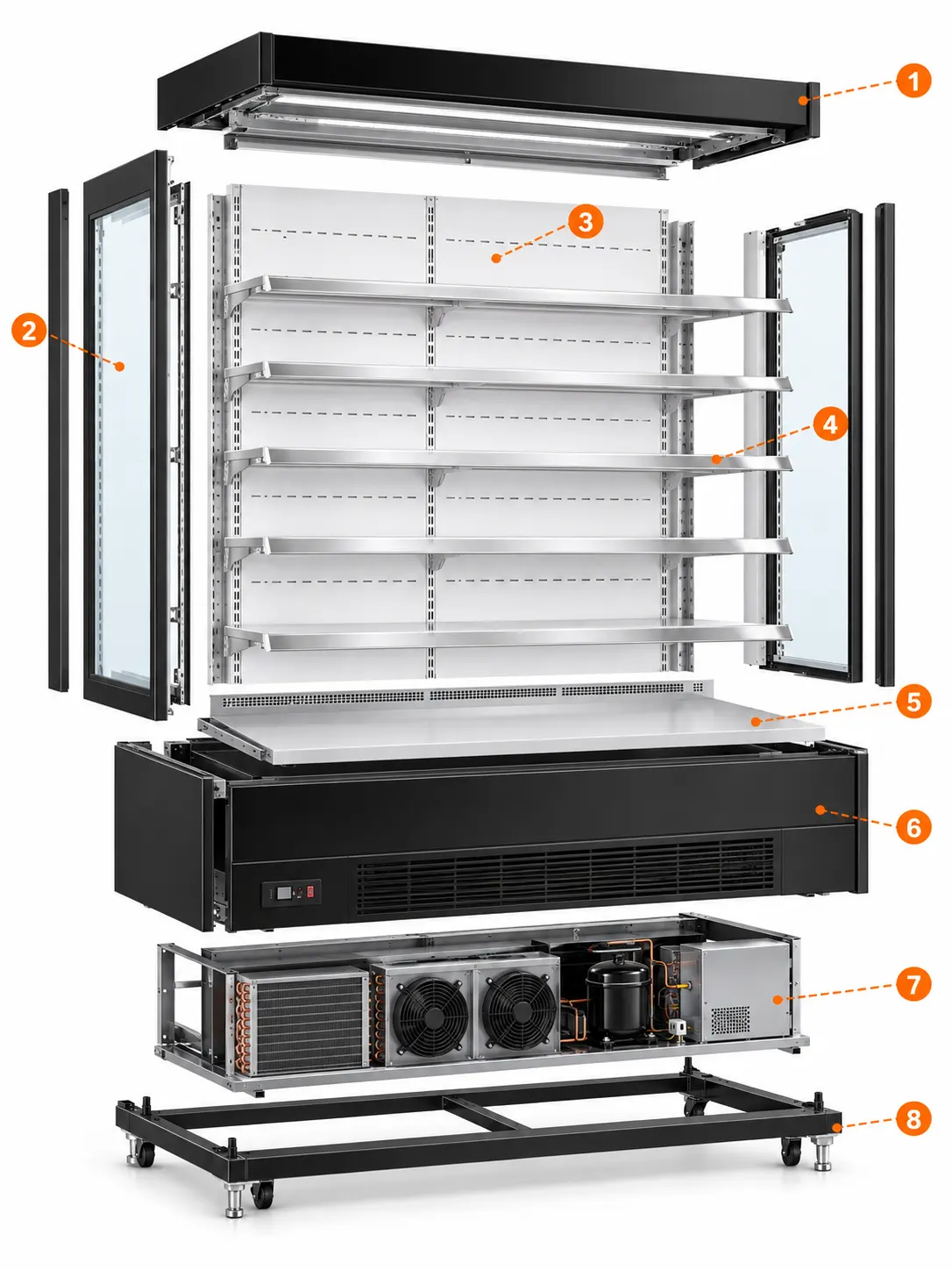

Product Structure Diagram

Product Structure Diagram
  1. Top Canopy and Lighting Assembly

    The upper canopy integrates the lighting structure and helps form the top airflow and display section.

  2. Side Glass Panel Assembly

    Transparent side glass panels improve product visibility while helping maintain the cabinet side structure.

  3. Rear Interior Panel

    The rear panel supports the shelf system and includes ventilation openings for internal air circulation.

  4. Adjustable Display Shelves

    Multi-level metal shelves provide organized product display space for different merchandising layouts.

  5. Bottom Display Deck

    The lower display deck supports products on the lowest display level.

  6. Main Cabinet Housing

    The lower cabinet body integrates the front ventilation grille, controls and structural supports.

  7. Refrigeration System Module

    The condenser, fans, compressor, piping and electrical components work together to provide cooling.

General information

Open-style multi-tier air curtain refrigerator
Light configuration
Built-in LED lighting
Product Name
Open-style multi-tier air curtain refrigerator
Temperature range (°C)
2–8℃
Product color
Black
Unit form
The current display is a whole machine, the series supports a whole machine or split machine.
Refrigeration temperature (°C)
2–8℃
Number of display layers
Multi-layer adjustable

General instructions

Simplified explanation

Core Component Details

Digital Temperature Controller

Glass Side Panel

Lower Ventilation Grille

Perforated Rear Panel

Refrigeration Assembly

Shelf and Price Label Rail

Top Interior Light

Upper Air Outlet

We're here to help

Our team is ready to advise you on the best product configuration and procurement plan.

400 158 5899

Frequently Asked Questions (FAQ)

What is the usual refrigerated temperature range?

The available source indicates a usual refrigerated operating range of 2–8°C; actual conditions depend on environment, loading and use.

How does the open front retain cool air?

Top outlets form a downward air curtain while the perforated rear panel supports internal air circulation.

Can the shelves be adjusted?

Yes. The multi-level shelves use support rails and brackets so their spacing can match product heights.

What products can be displayed?

The cabinet is intended for suitable chilled drinks, dairy products, packaged fruit, desserts and ready meals.

What should be confirmed before ordering?

Confirm cabinet size, color, shelf arrangement, refrigeration-unit format and site installation conditions before ordering.
