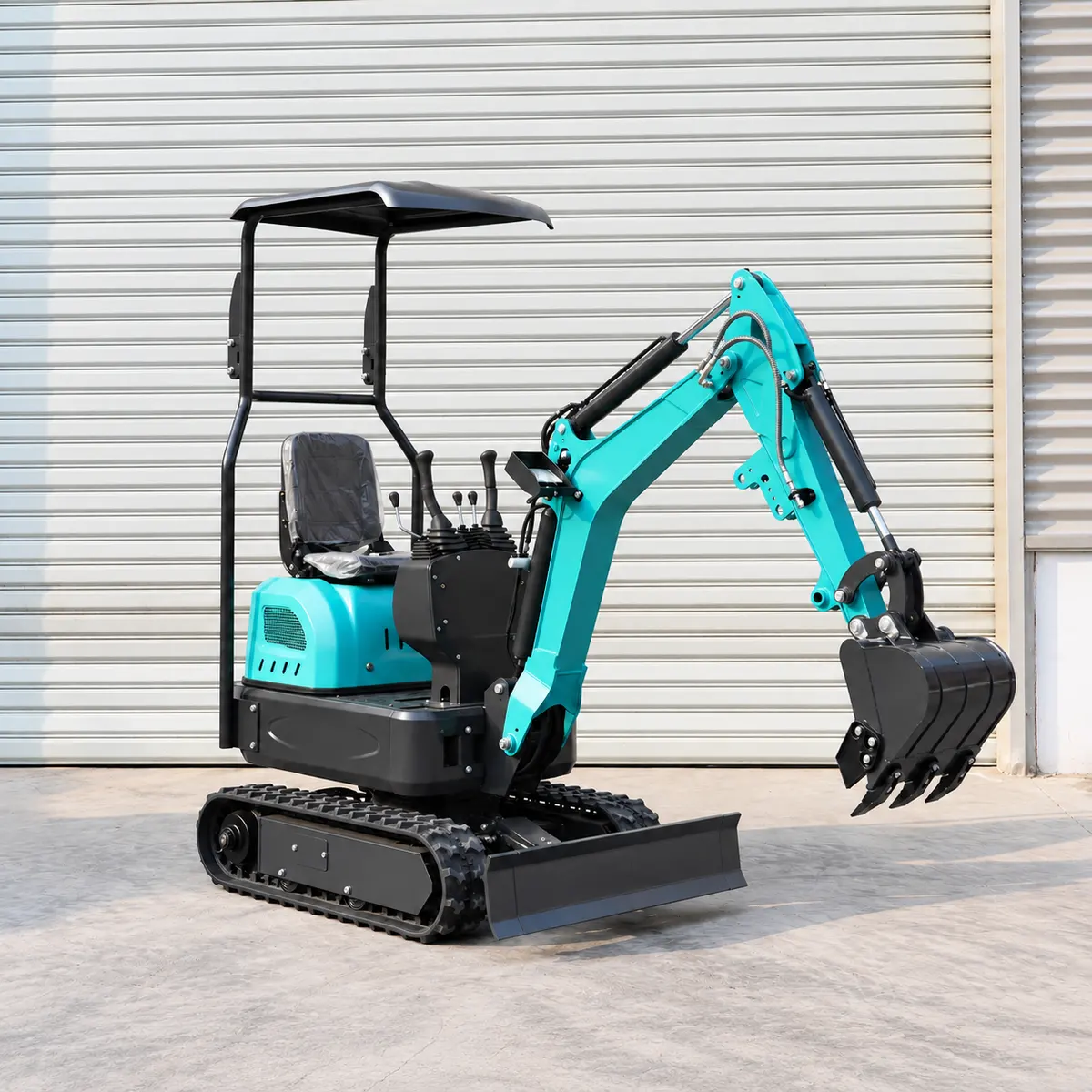

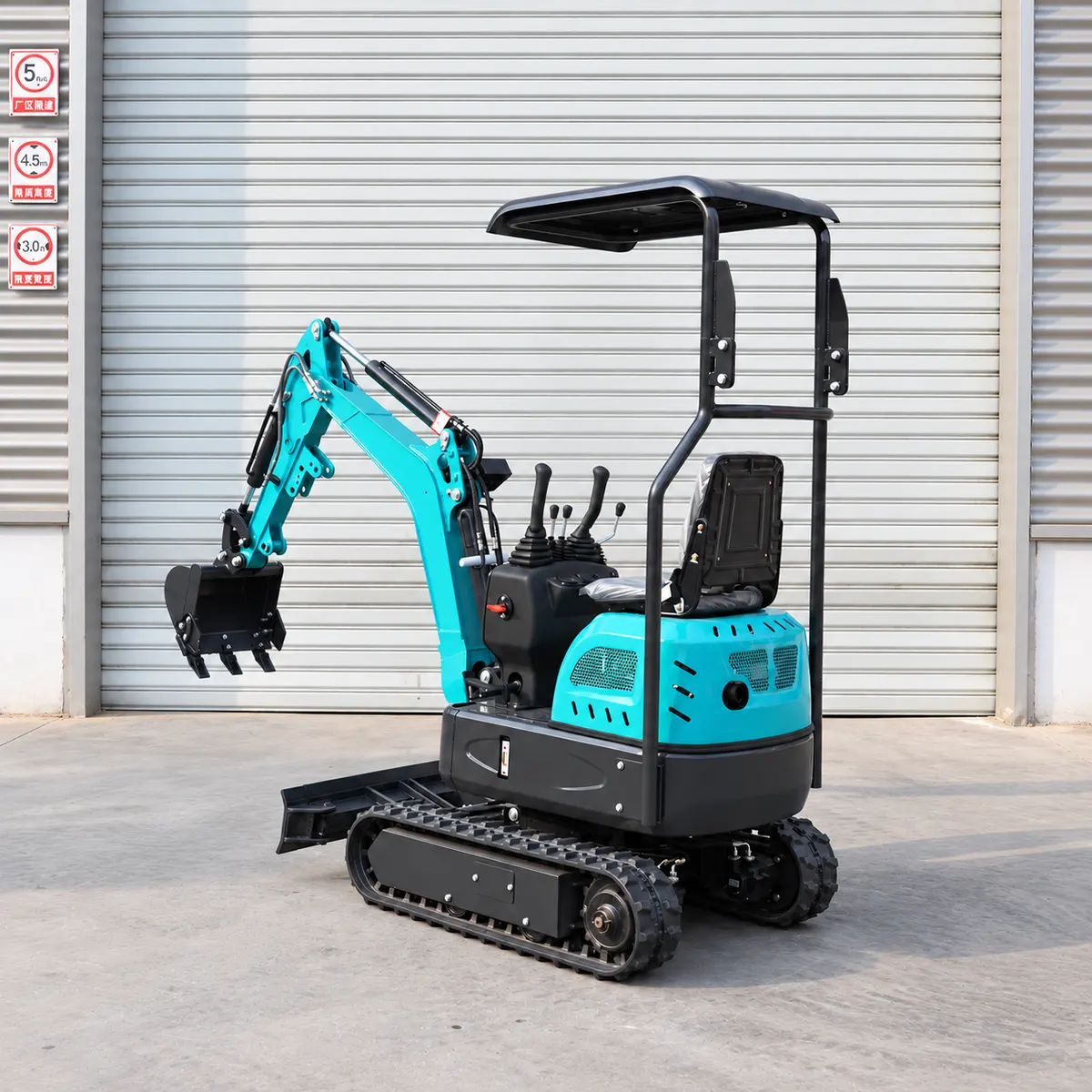

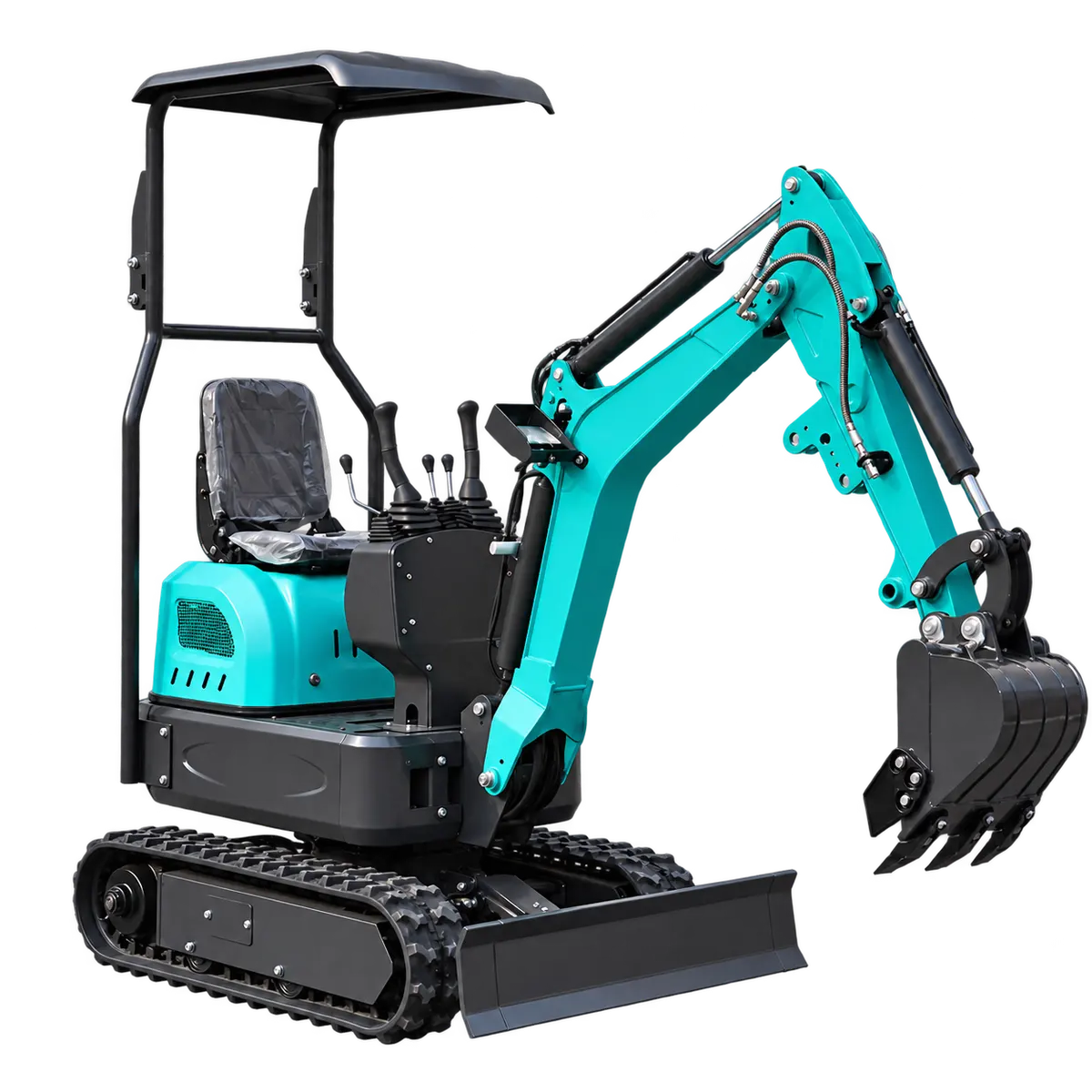

Mini Excavator

Name: Mini Excavator
SKU: p1_0Cqz6QrN3tuUZN0seCqG087Bt90
Availability: InStock

This 950kg compact mini digger adopts mechanical control system, equipped with Kopu KP192 single-cylinder air-cooled diesel engine. It features stable performance, simple operation and easy maintenance. Optional retractable chassis can work in narrow spaces. It can be fitted with multiple attachments: hydraulic breaker, grapple, ripper, rake etc. Widely used in garden landscaping, farm renovation, small trenching and indoor demolition.

EXC006-10

Core parameters

Full specifications

Operating weight(kg): 950
Bucket capacity(m³): 0.016
Travel speed Low/High(Km/h): 2

QuantityUnit: Units

Get a Tailored Procurement Plan

Product Model: Not specified
Product Color: Designated color
Response Time: 24 hours
Special Requirements: Communicate based on actual needs

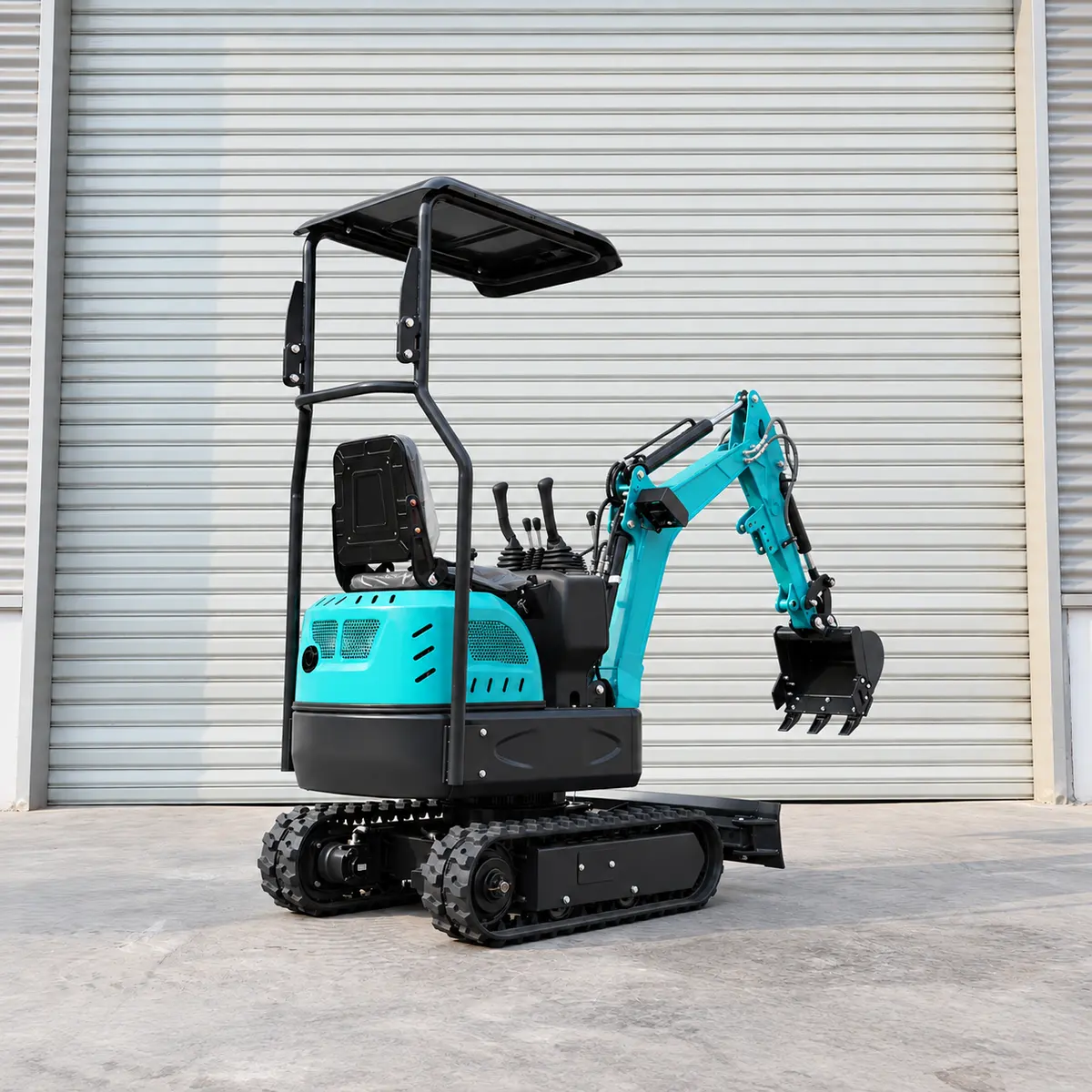

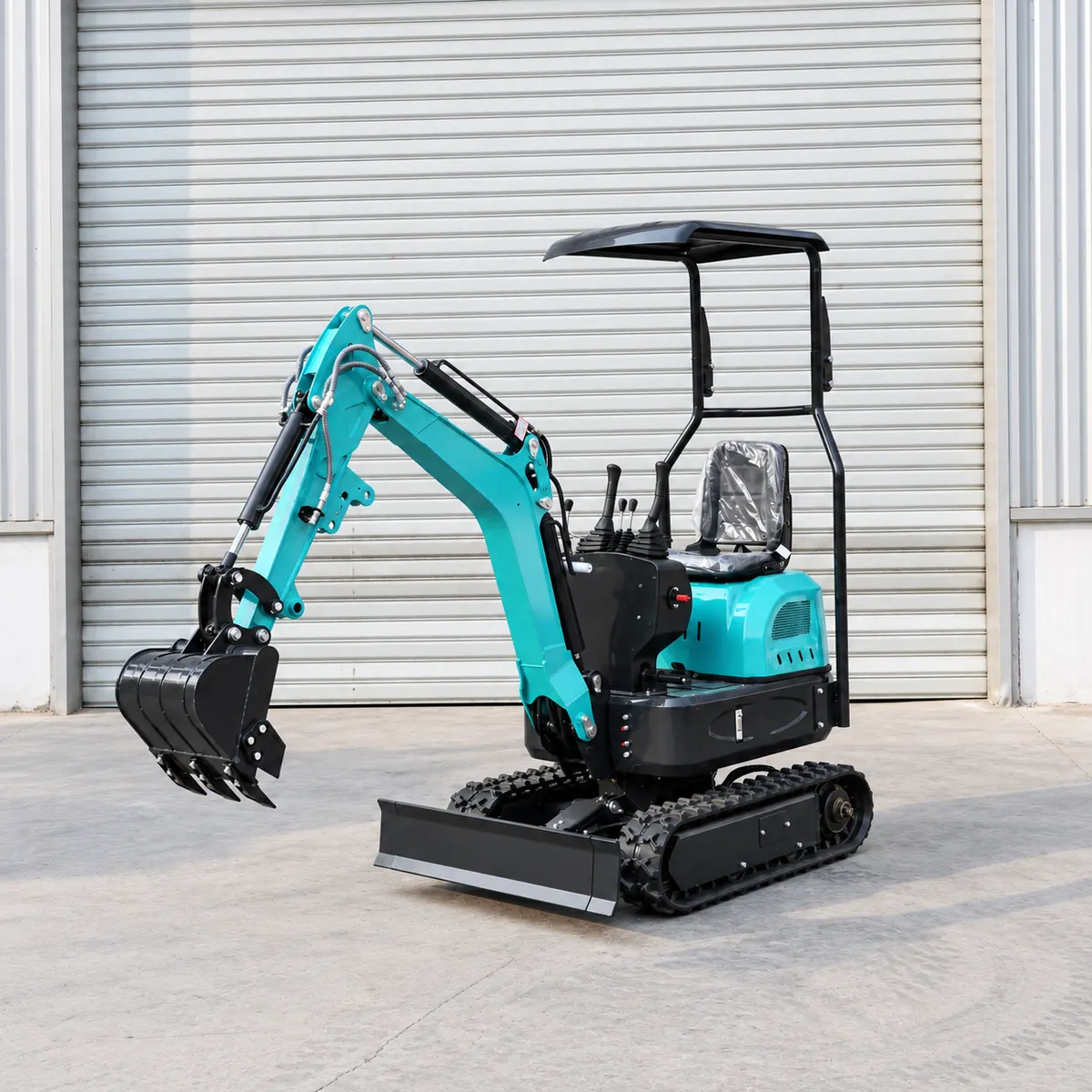

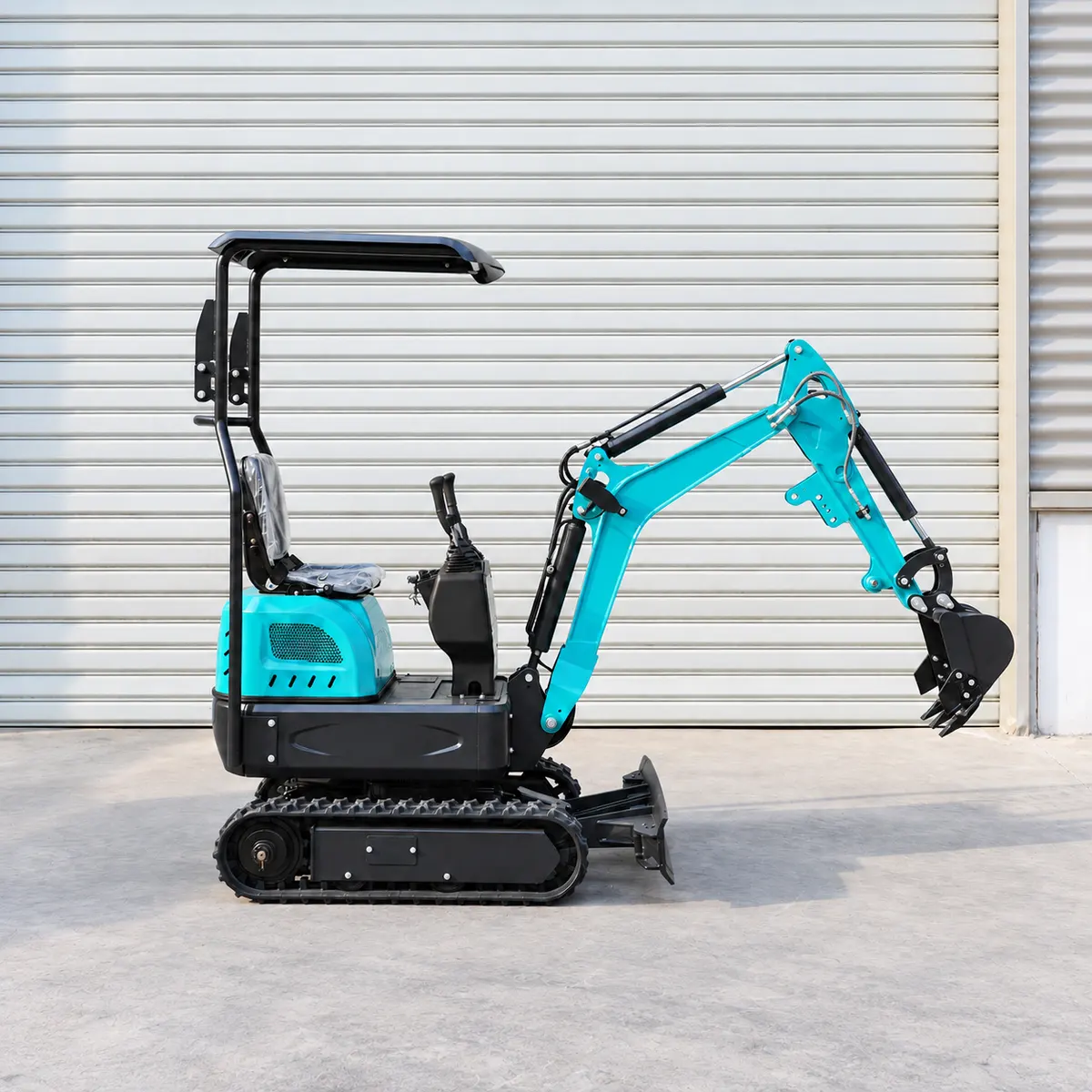

Compact Machine Layout

The excavator has a compact body and narrow working footprint, making it suitable for the residential gardens, sidewalks, orchards, and park areas shown in the application images.

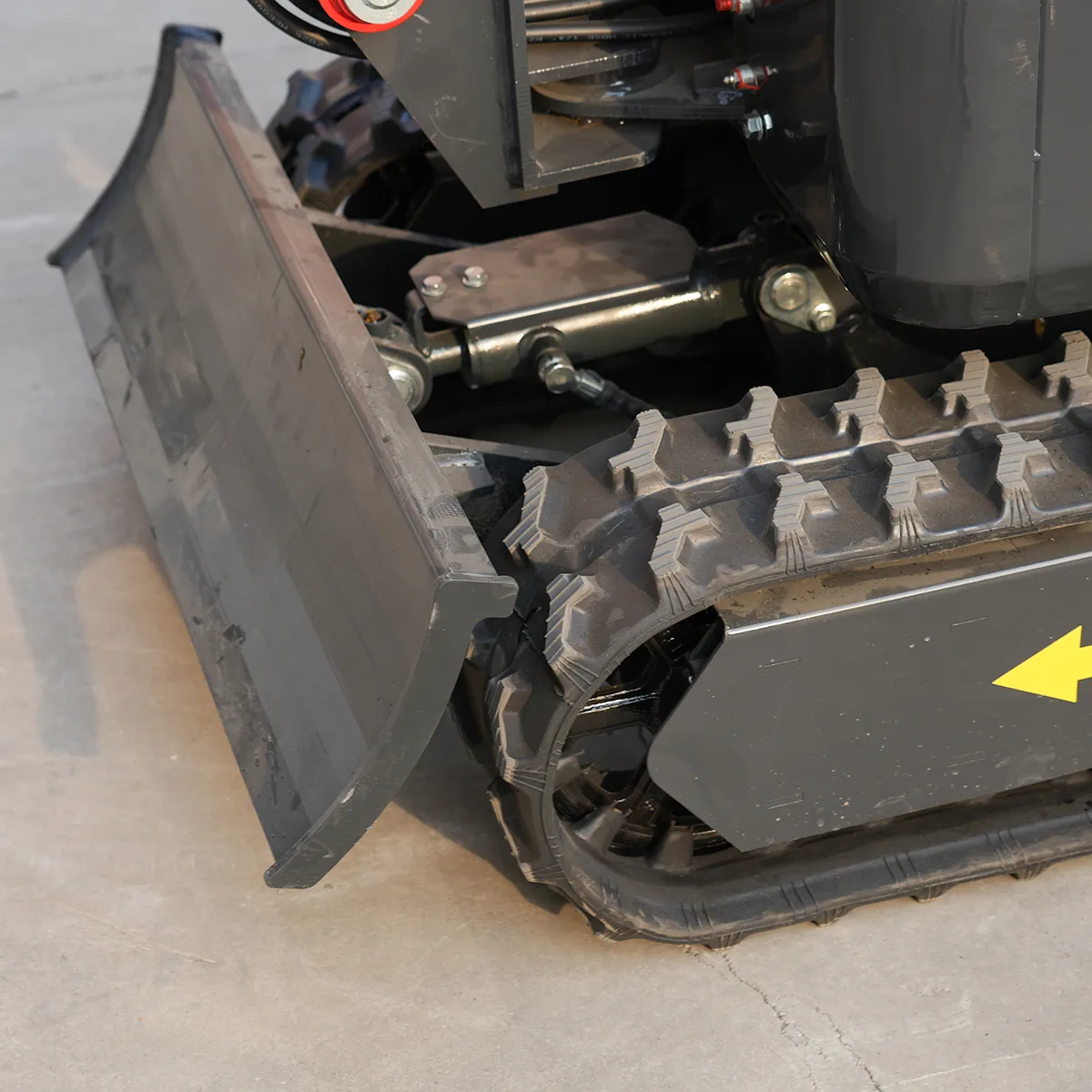

Crawler Undercarriage

The visible crawler tracks provide a stable ground-contact structure for excavation work on soil and prepared outdoor surfaces.

Excavating Boom and Bucket

The machine is equipped with an articulated boom, arm, and digging bucket, allowing it to perform the excavation and trenching tasks shown in the provided scenes.

Suitable for Confined Work Areas

The compact excavator is shown operating close to buildings, paved areas, trees, and pathways, supporting work where available operating space is limited.

Compact Excavation for Landscaping and Utility Work

Mini Excavator for Gardens, Trenches, Drainage, and Pathway Construction

A compact tracked excavator for backyard landscaping, utility trenching, orchard drainage, and park pathway construction in restricted outdoor areas.

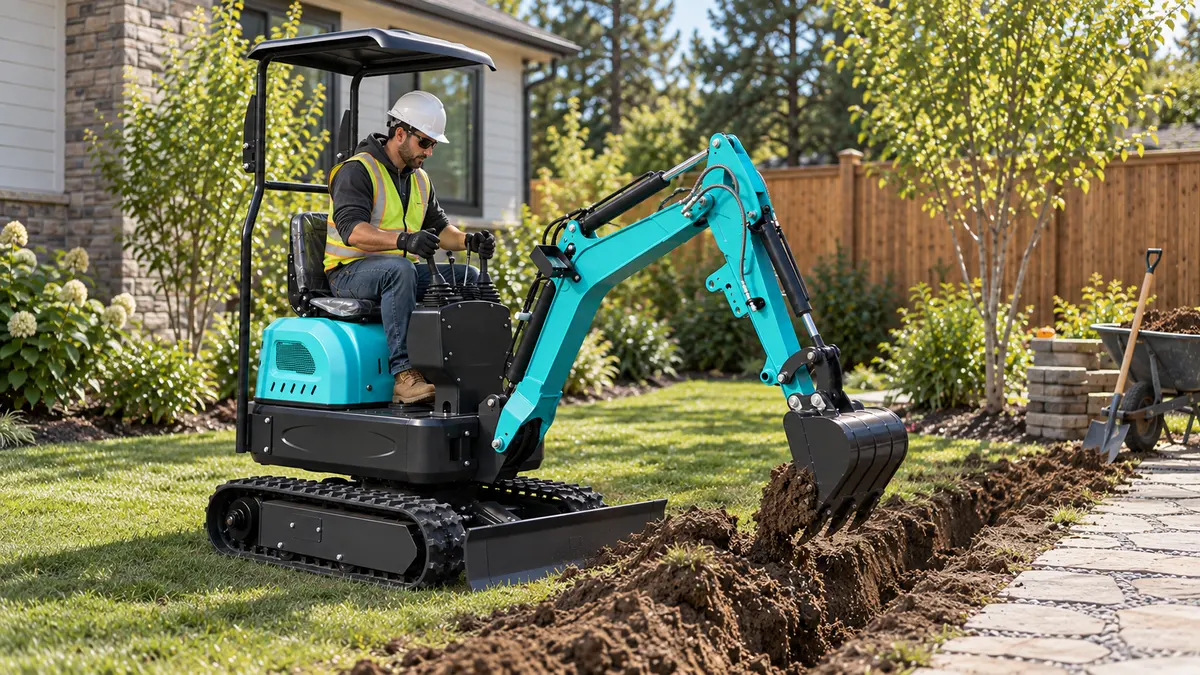

Backyard Landscaping Excavation

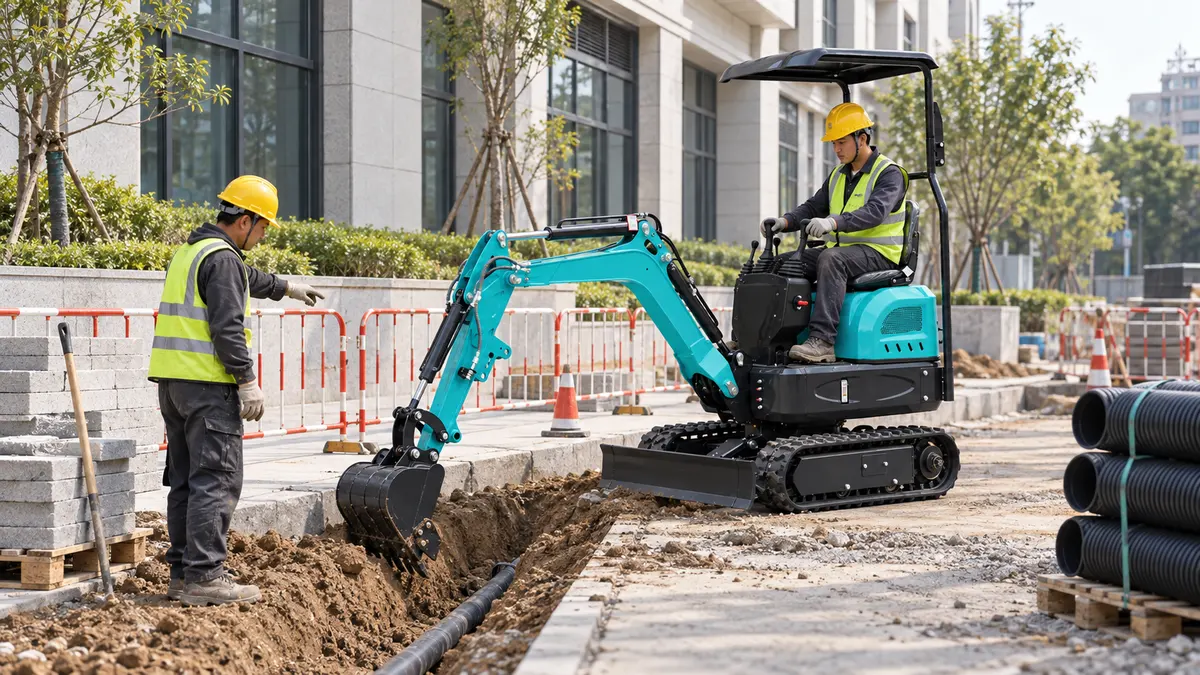

Urban Utility Trenching

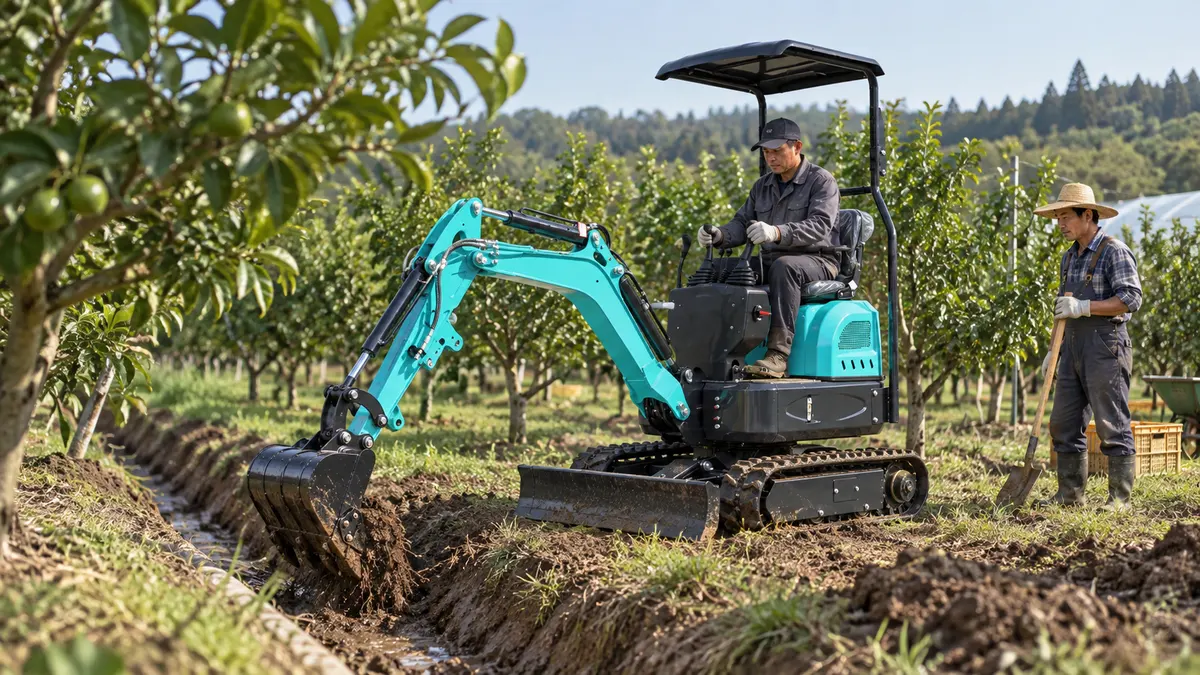

Orchard Drainage Excavation

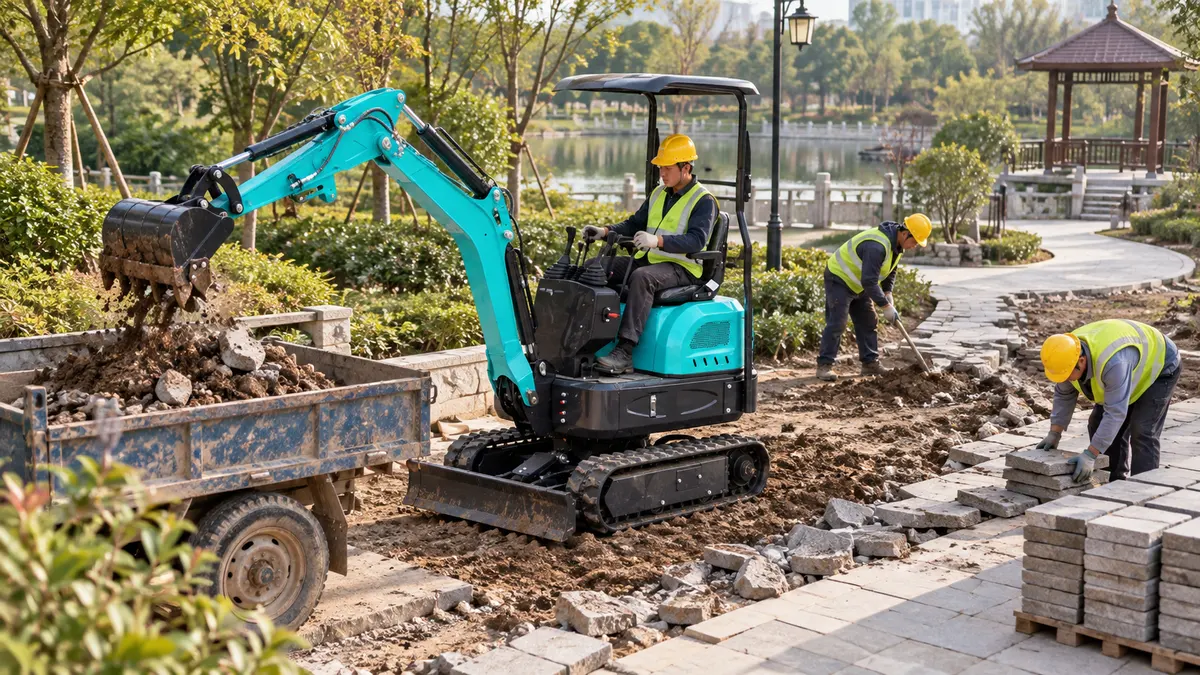

Park Pathway Construction

Park Pathway Construction

Backyard Landscaping Excavation

Urban Utility Trenching

Orchard Drainage Excavation

Park Pathway Construction

Backyard Landscaping Excavation

Urban Utility Trenching

Orchard Drainage Excavation

Product Advantages

Large bucket capacity digs full loads for visibly faster work

Specifications & Structural Decomposition

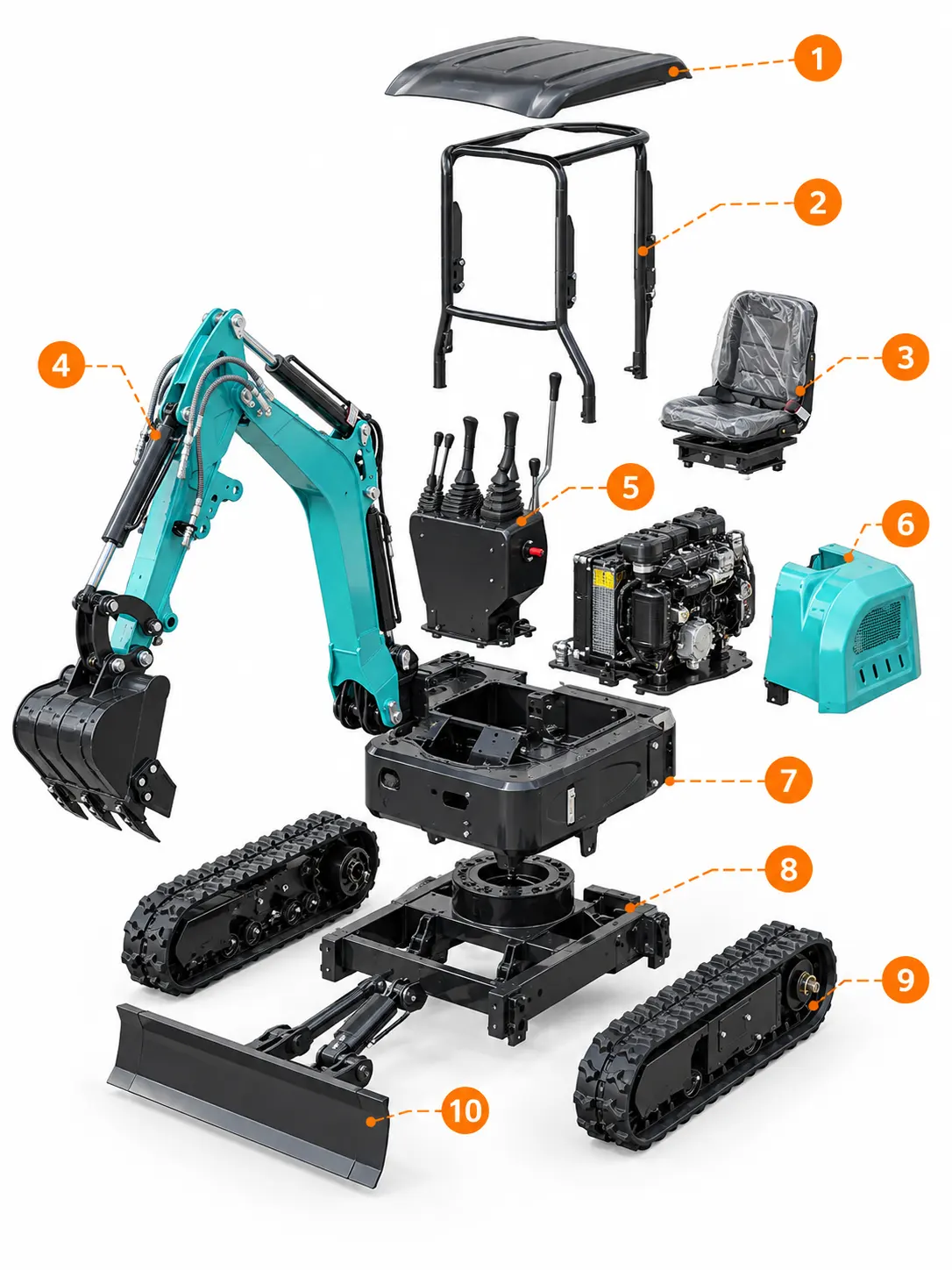

Exploded View

Canopy Roof Assembly
Rigid overhead cover providing shade and protection above the operator station.
ROPS Frame Assembly
Tubular protective frame supporting the canopy above the operator position.

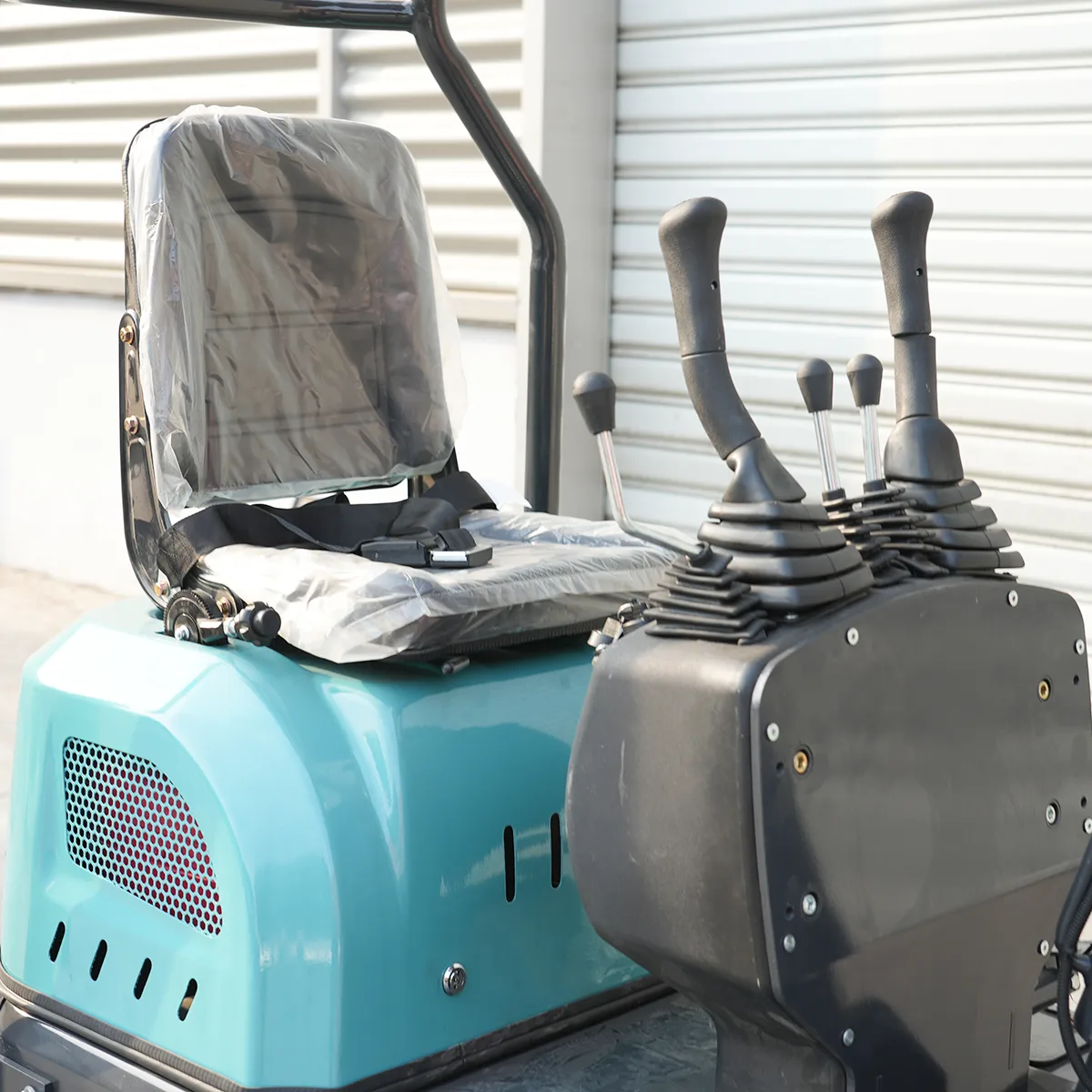

Operator Seat Assembly
Padded seat module mounted on the upper structure for operator positioning.

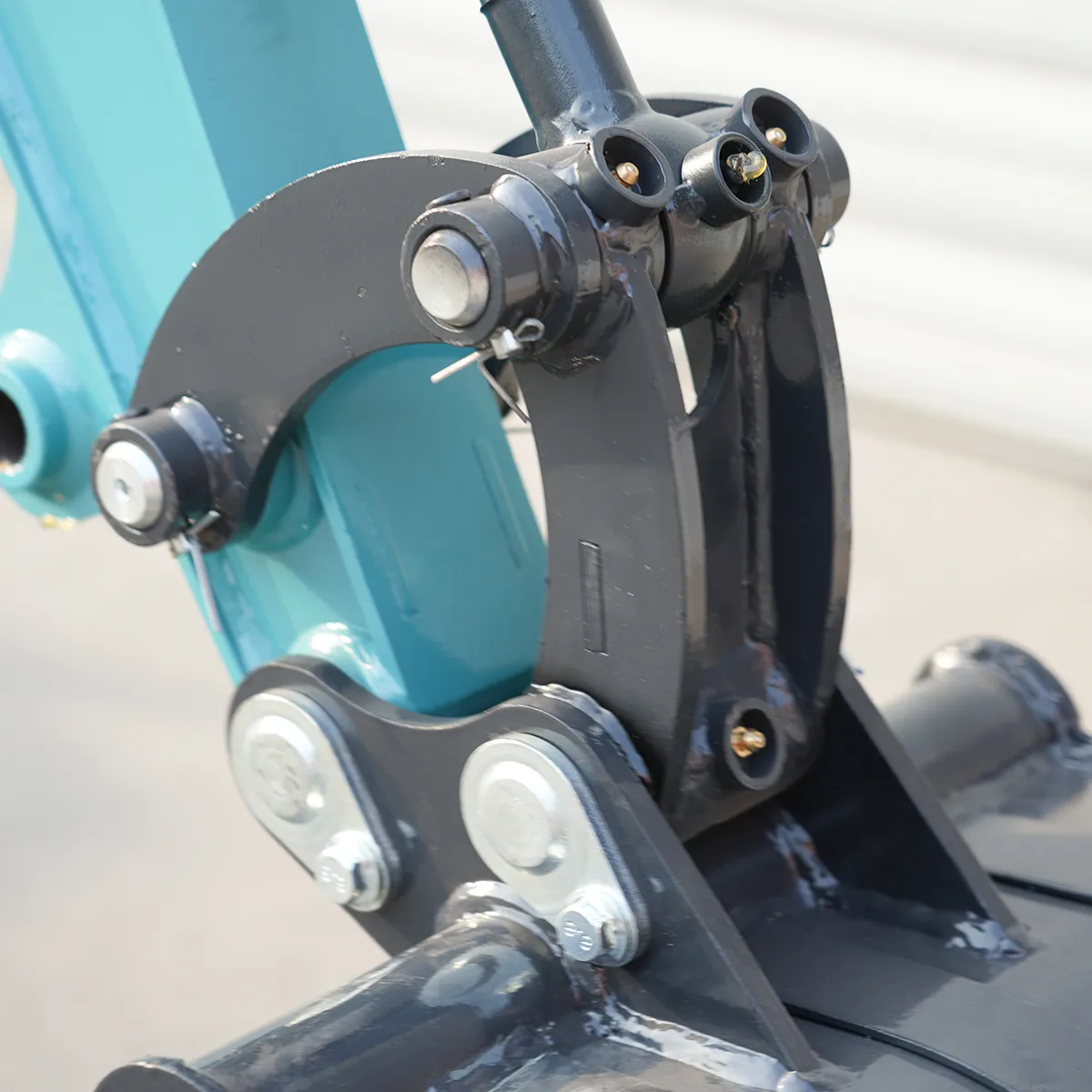

Boom and Bucket Assembly
Front digging structure integrating boom, arm, hydraulic cylinders, and bucket.

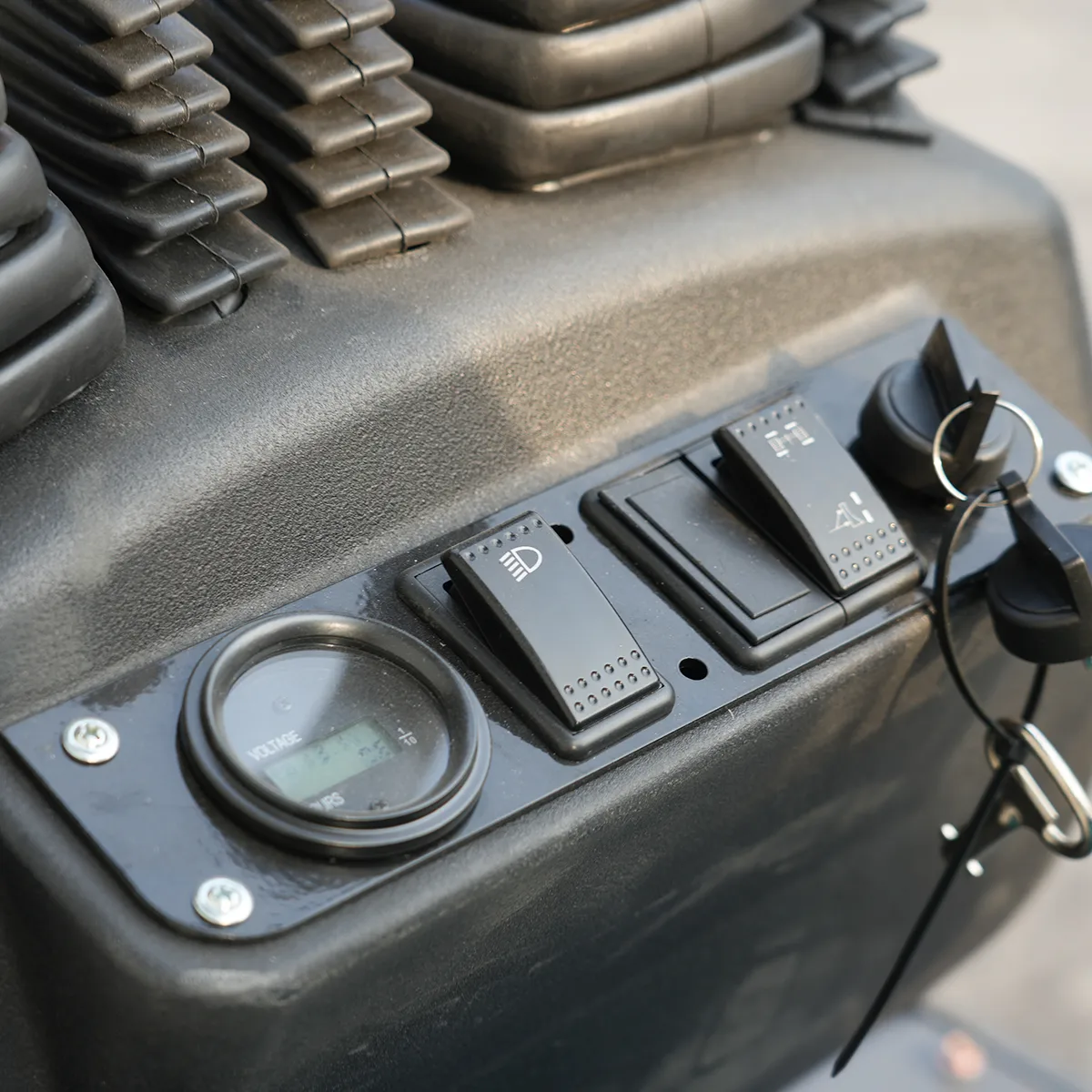

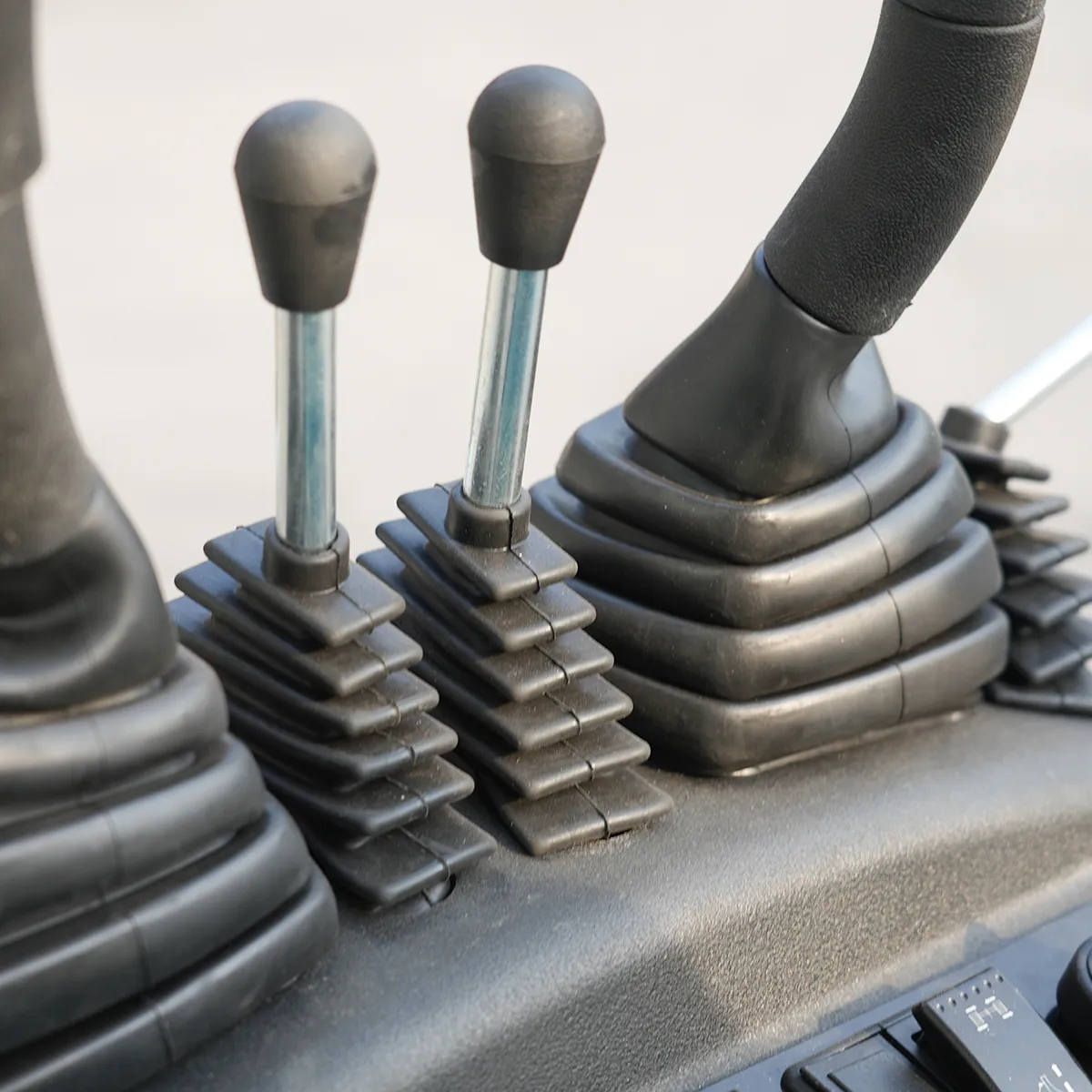

Control Console Module
Operator control unit with multiple levers for machine and hydraulic functions.

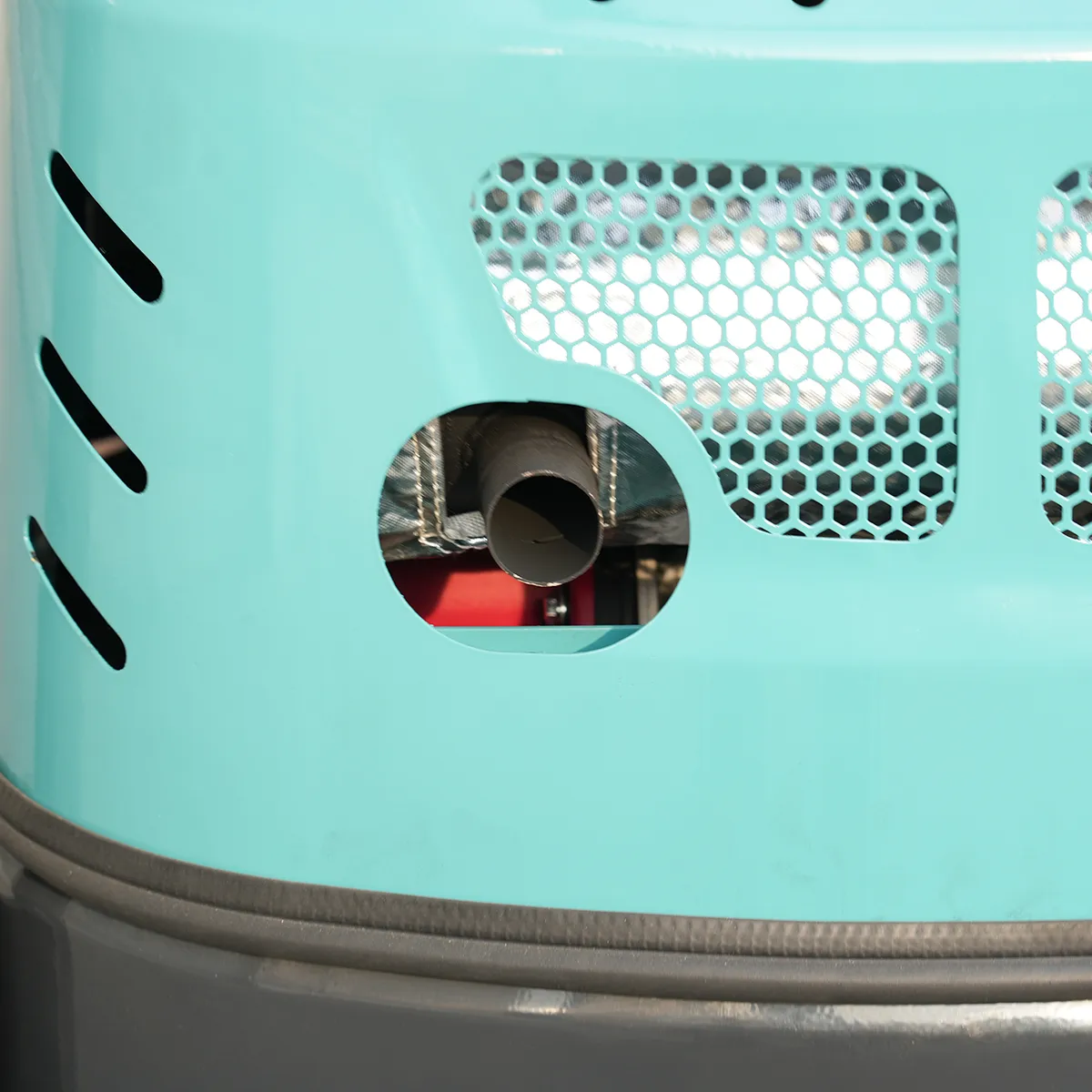

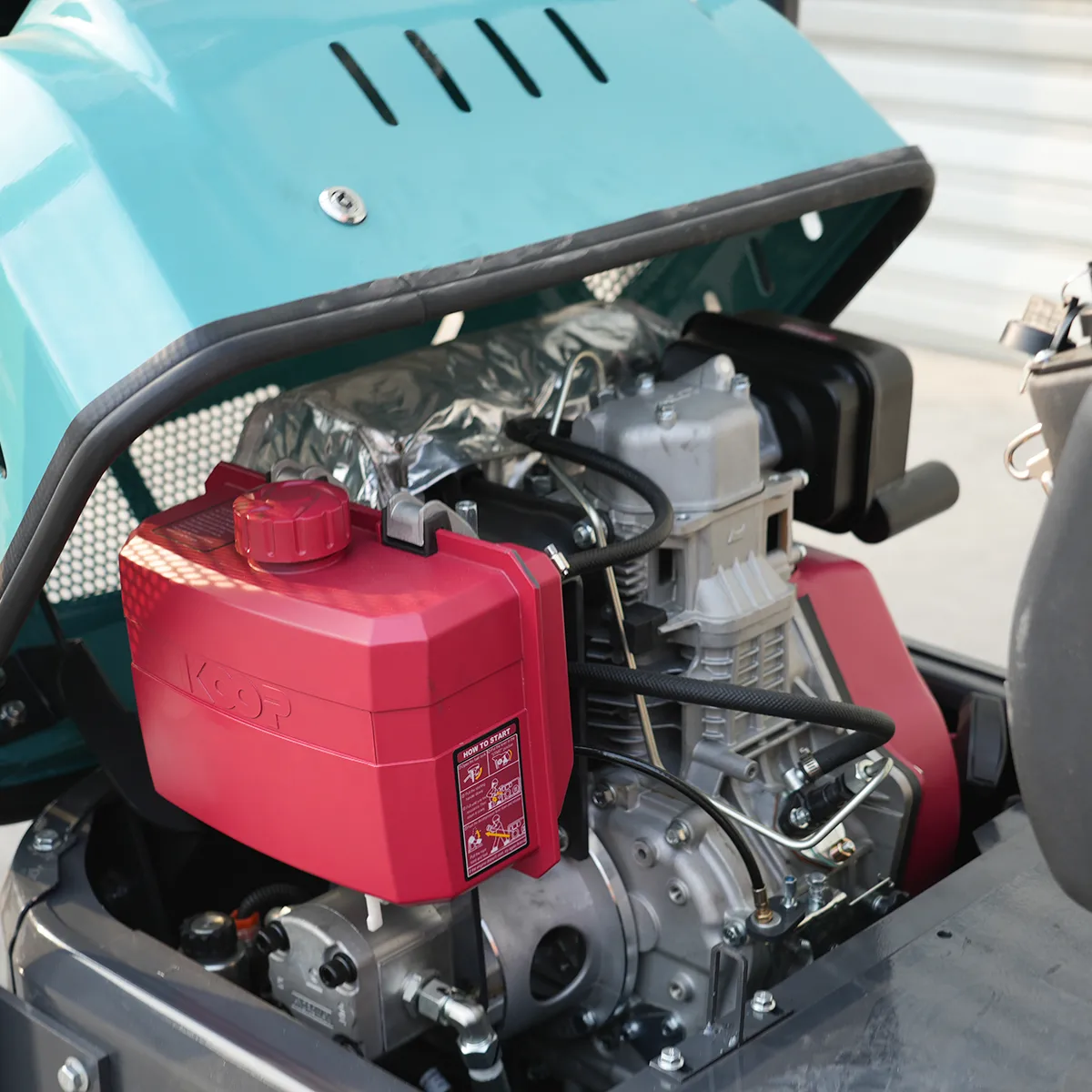

Engine Cover Assembly
Teal protective enclosure surrounding the rear engine and ventilation area.
Upper Body Assembly
Main rotating body structure supporting the operator station and working equipment.

General information

Operating weight(kg): 950
Bucket capacity(m³): 0.016
Travel speed Low/High(Km/h): 2
Gradeability(°): 30
Swing speed(r/min): 8
Bucket maximum digging force(KN): 8
Arm maximum digging force(KN): 5

General instructions

Simplified explanation

Product Attachments or Core Configurations

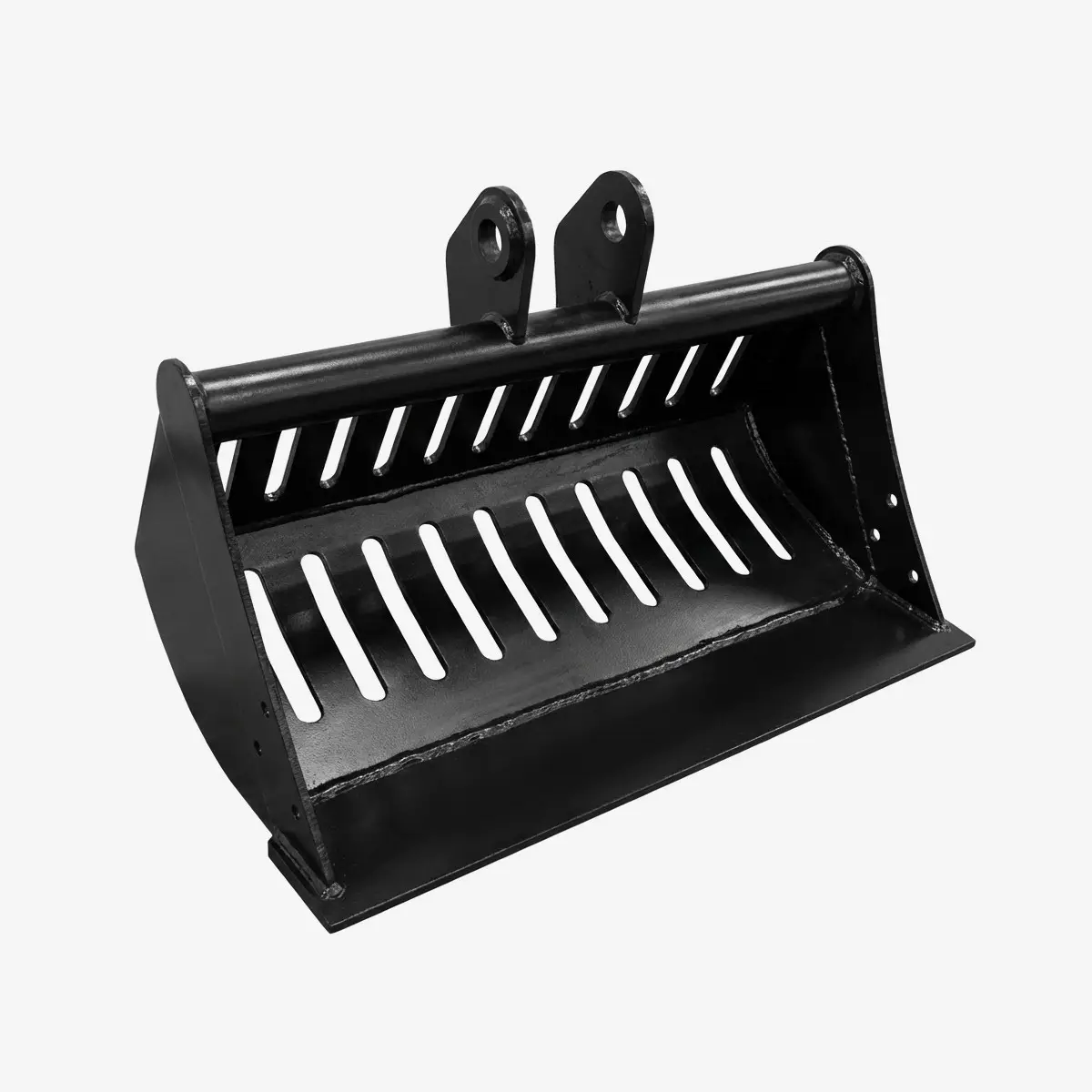

Screening Bucket

The slotted bucket separates finer soil from larger stones and debris during loading and sorting.

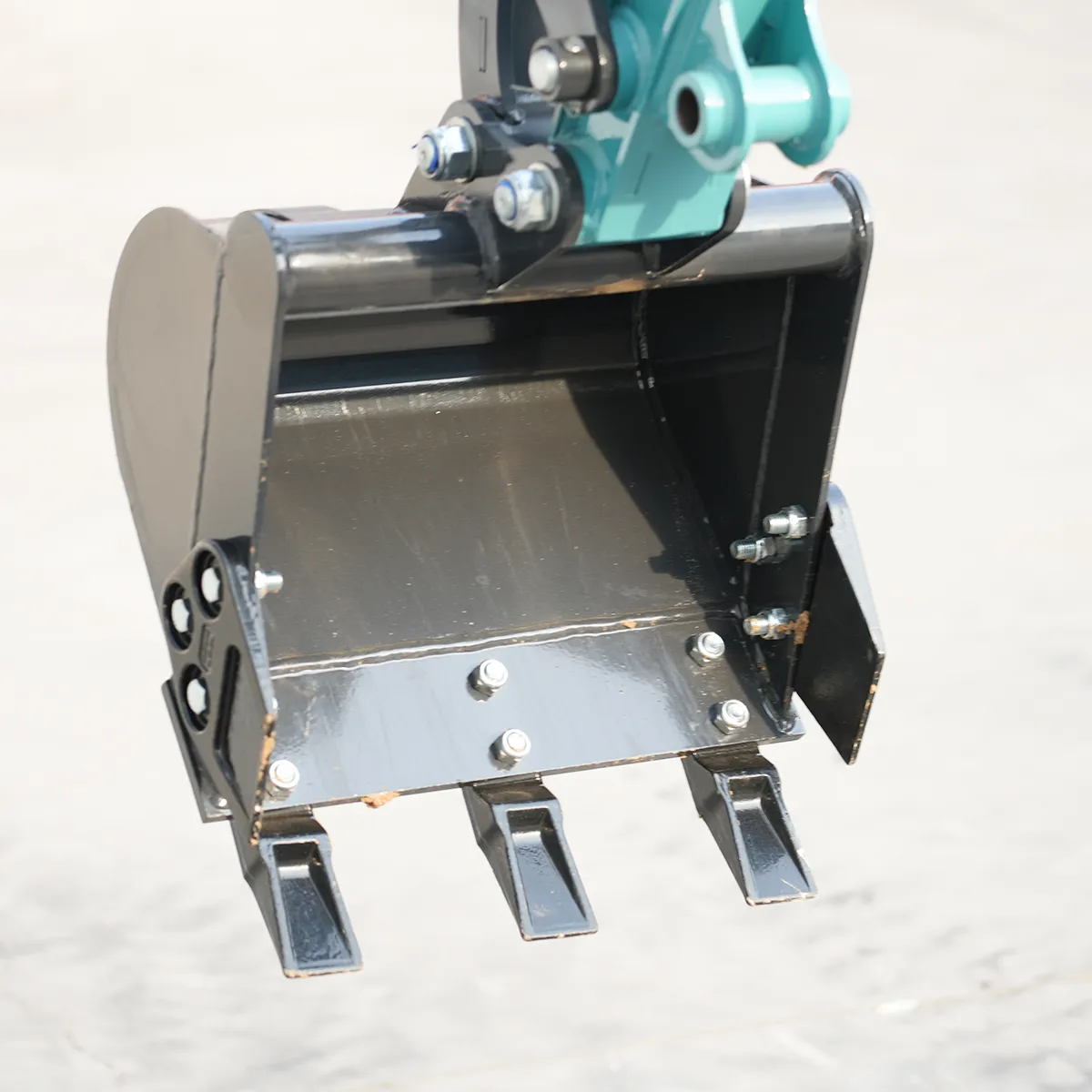

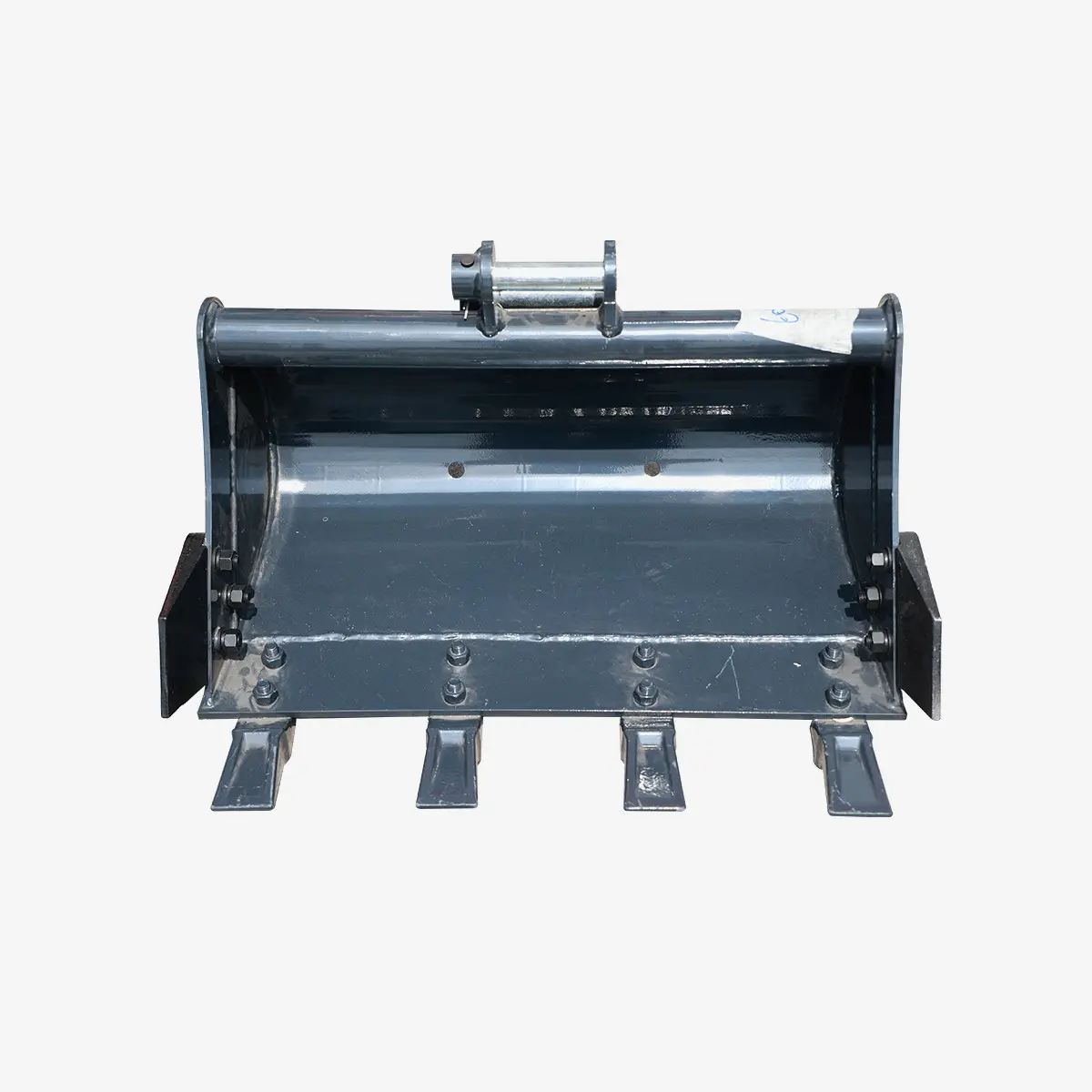

Toothed Digging Bucket

The toothed cutting edge penetrates firm ground and supports efficient digging and material pickup.

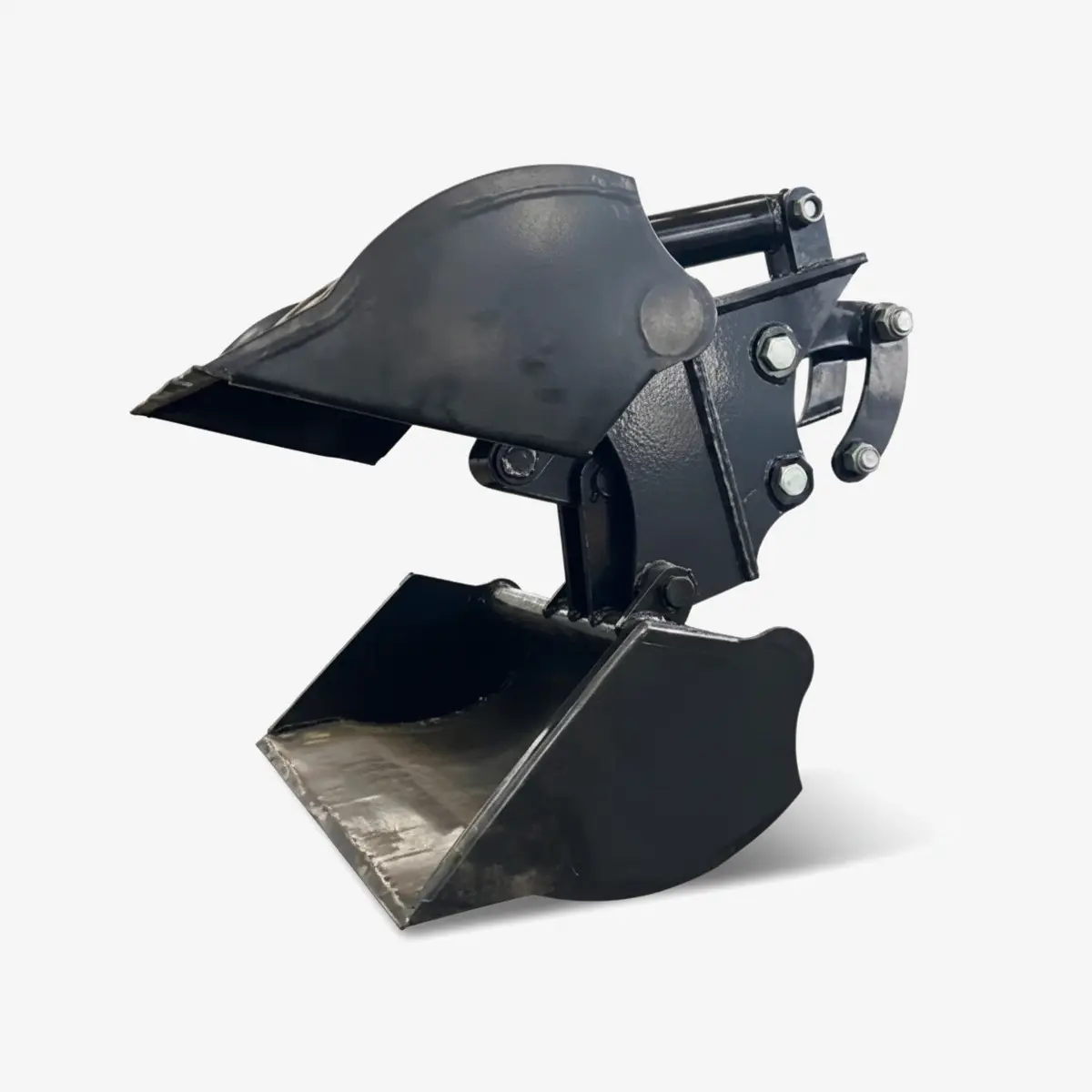

Clamshell Bucket

The opening jaws grip loose soil and bulk material for controlled pickup, transfer, and placement.

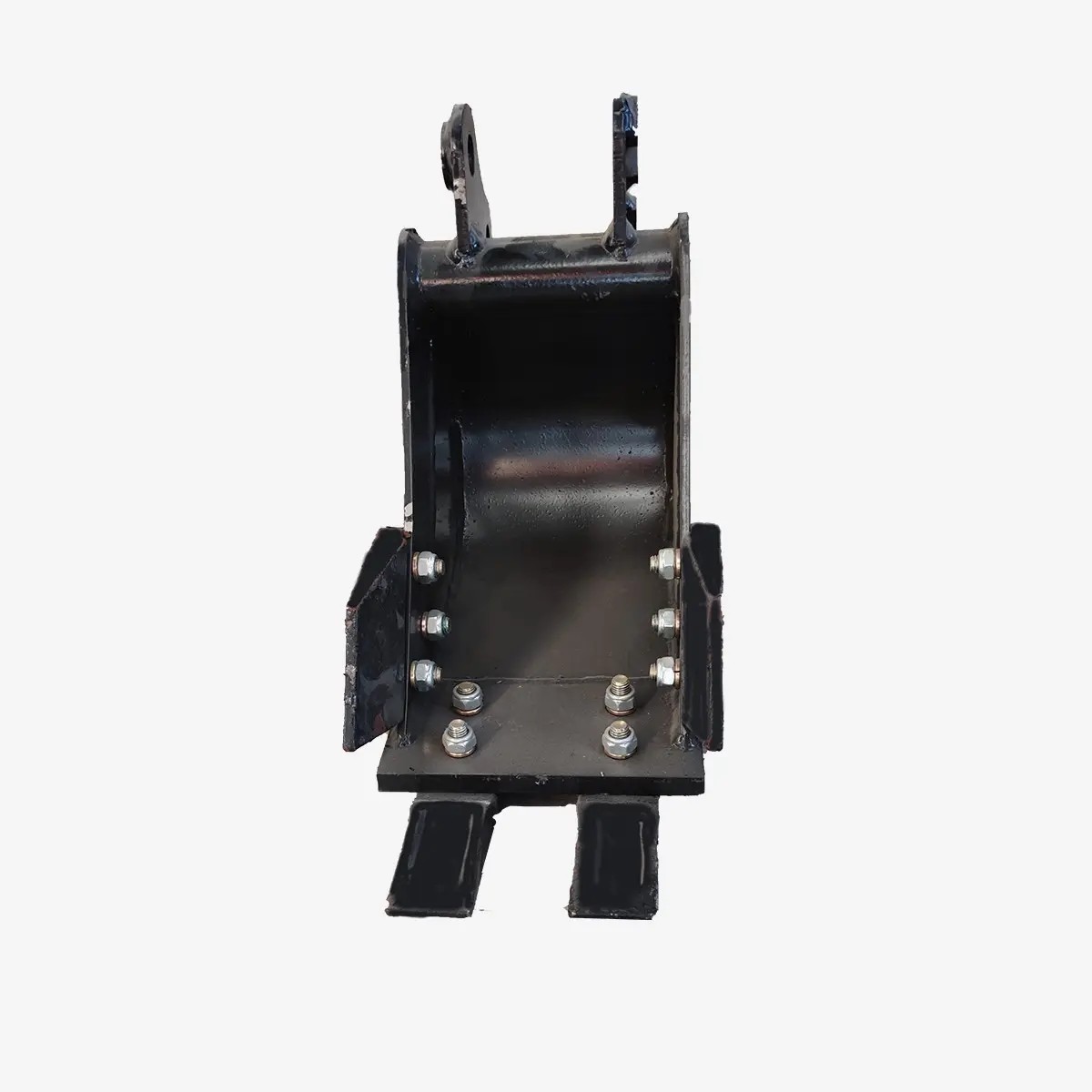

Compact Digging Bucket

Its compact shell supports general digging and soil handling where working space is limited.

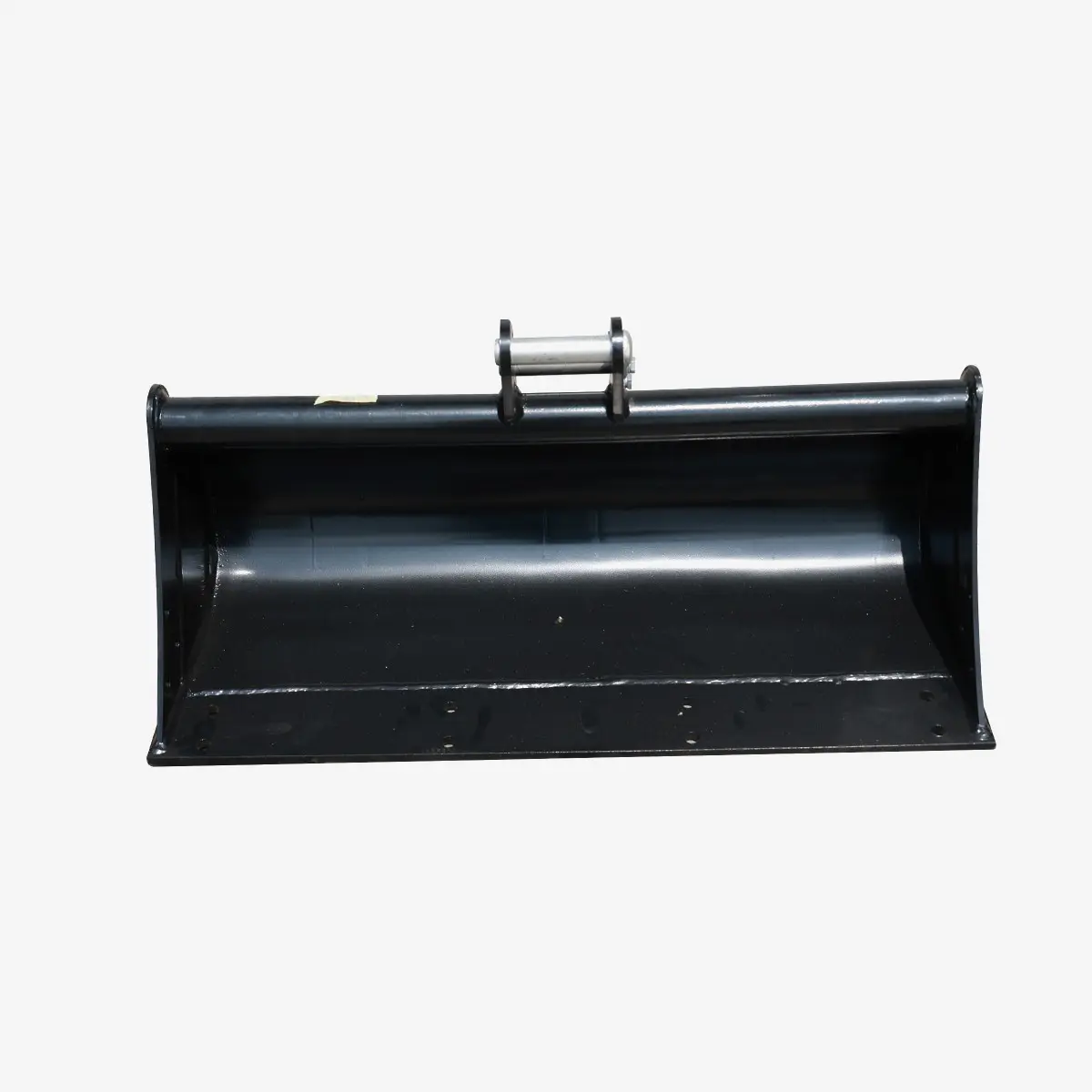

Ditch Cleaning Bucket

The wide, smooth-edge profile grades trench floors and clears loose material with fewer passes.

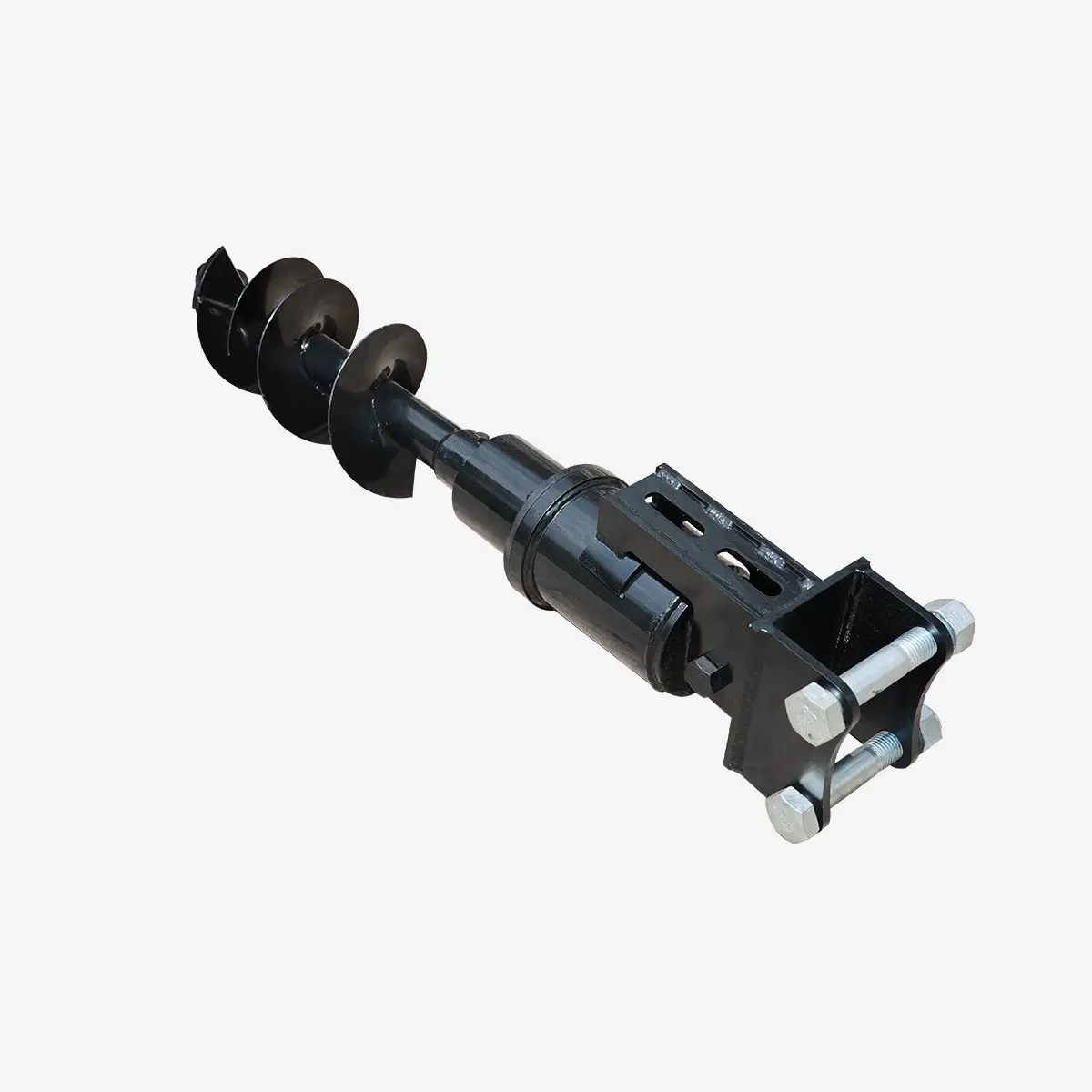

Earth Auger

The spiral drilling tool opens round holes for planting, posts, and similar ground preparation.

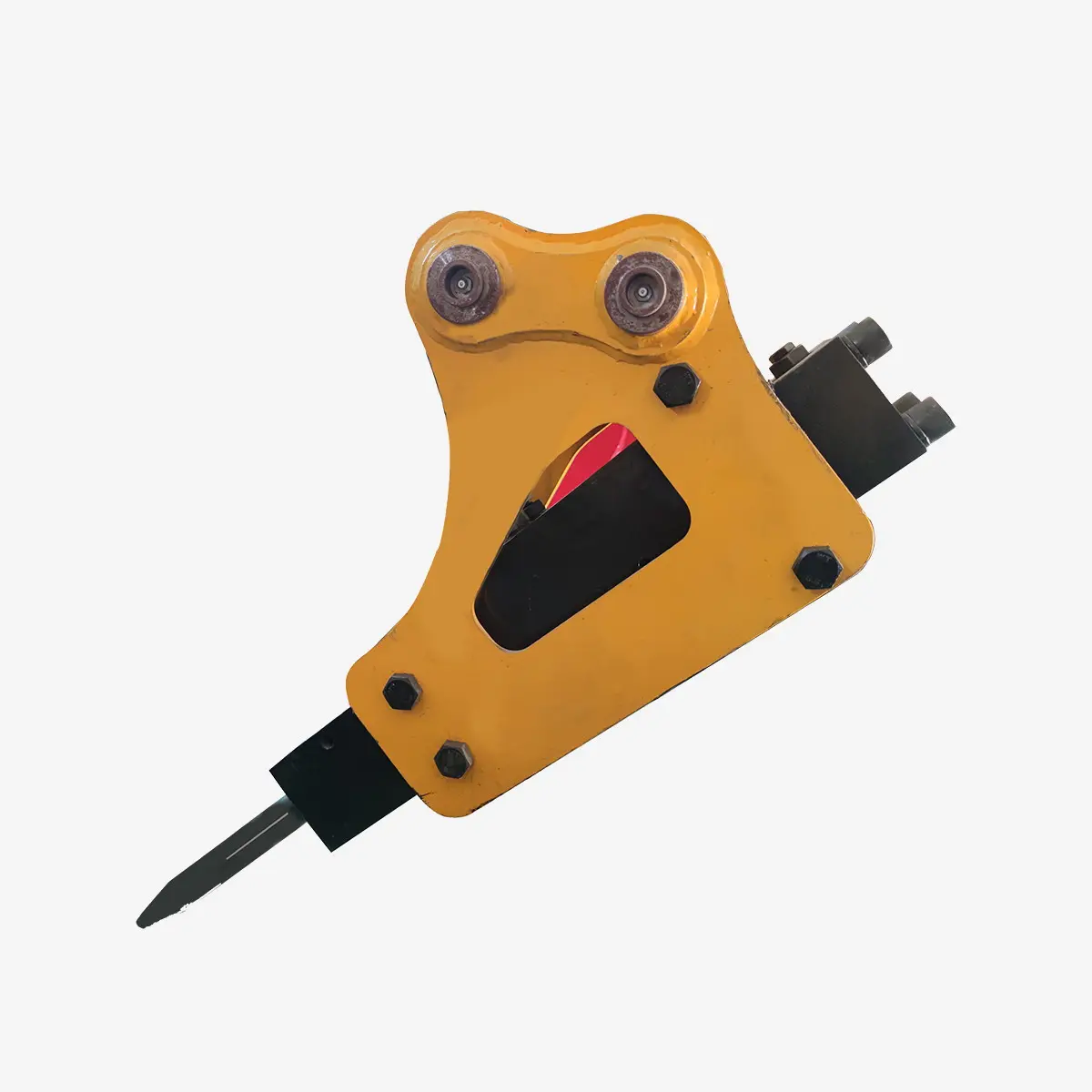

Hydraulic Breaker

The pointed hydraulic tool breaks hard surfaces and compact material for focused demolition work.

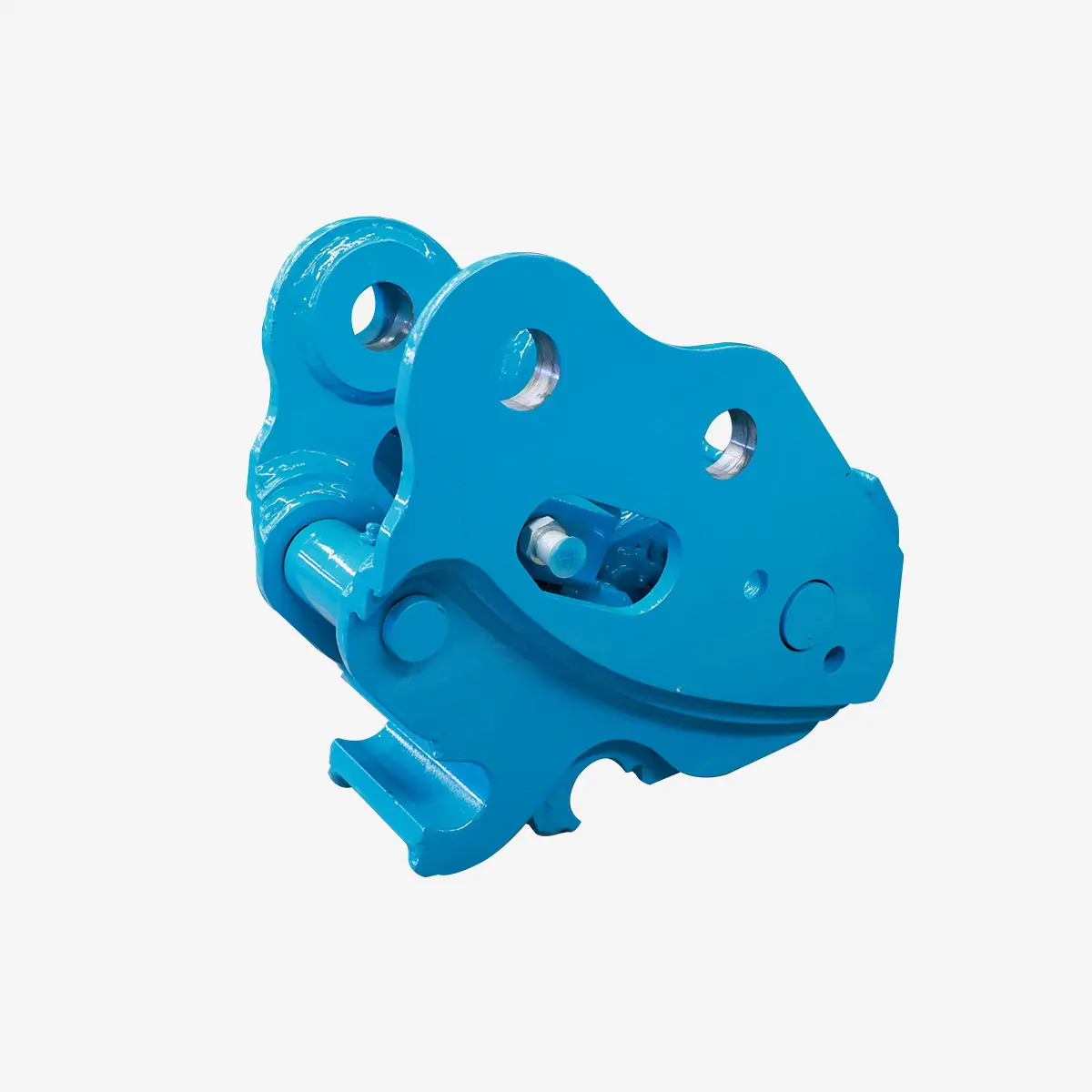

Hydraulic Quick Coupler

Hydraulic locking supports faster attachment changes while reducing repeated manual pin handling.

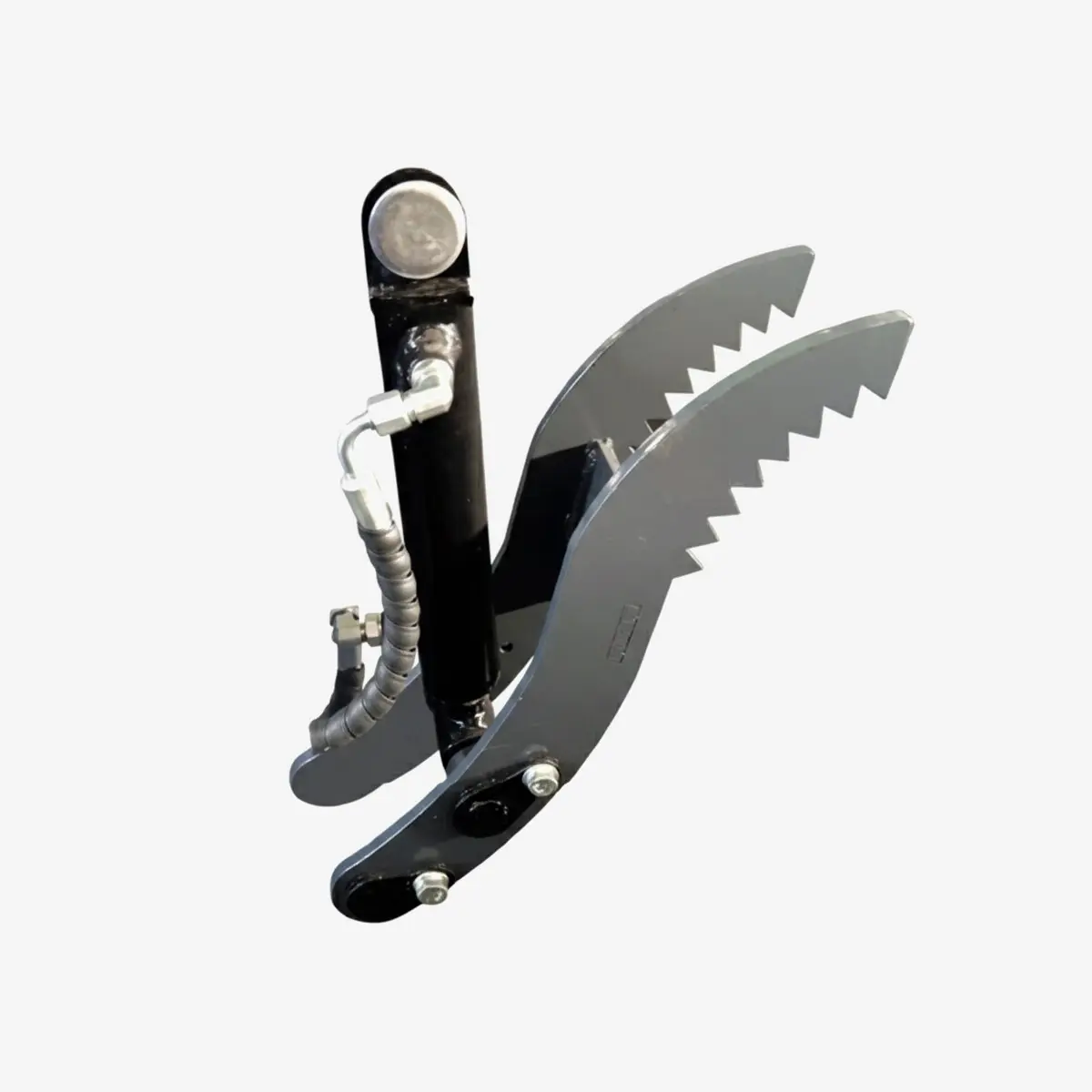

Hydraulic Thumb

The powered jaw holds material against the bucket for controlled lifting, sorting, and placement.

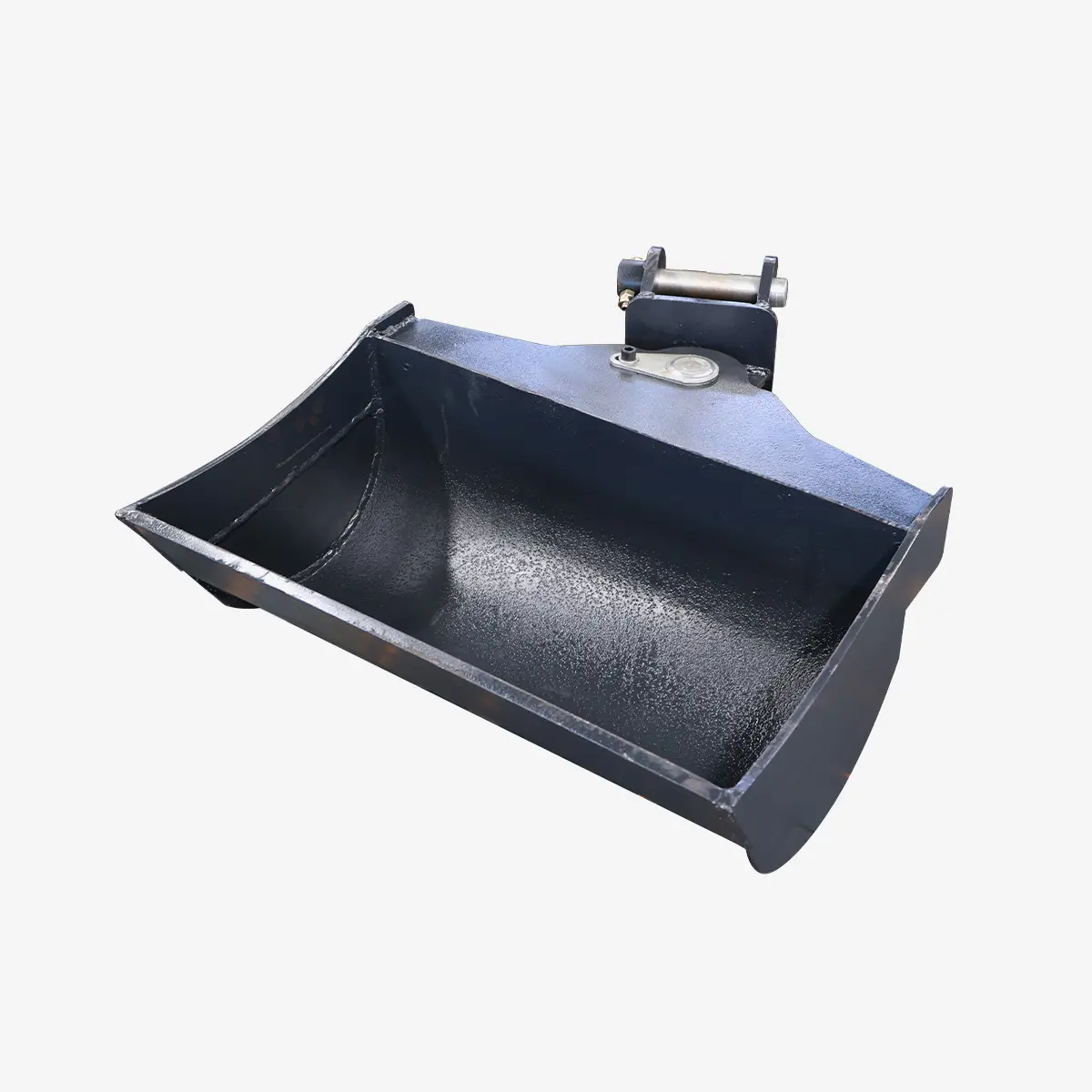

Hydraulic Tilt Bucket

The tilting bucket adjusts its working angle for slope shaping, ditch finishing, and grading.

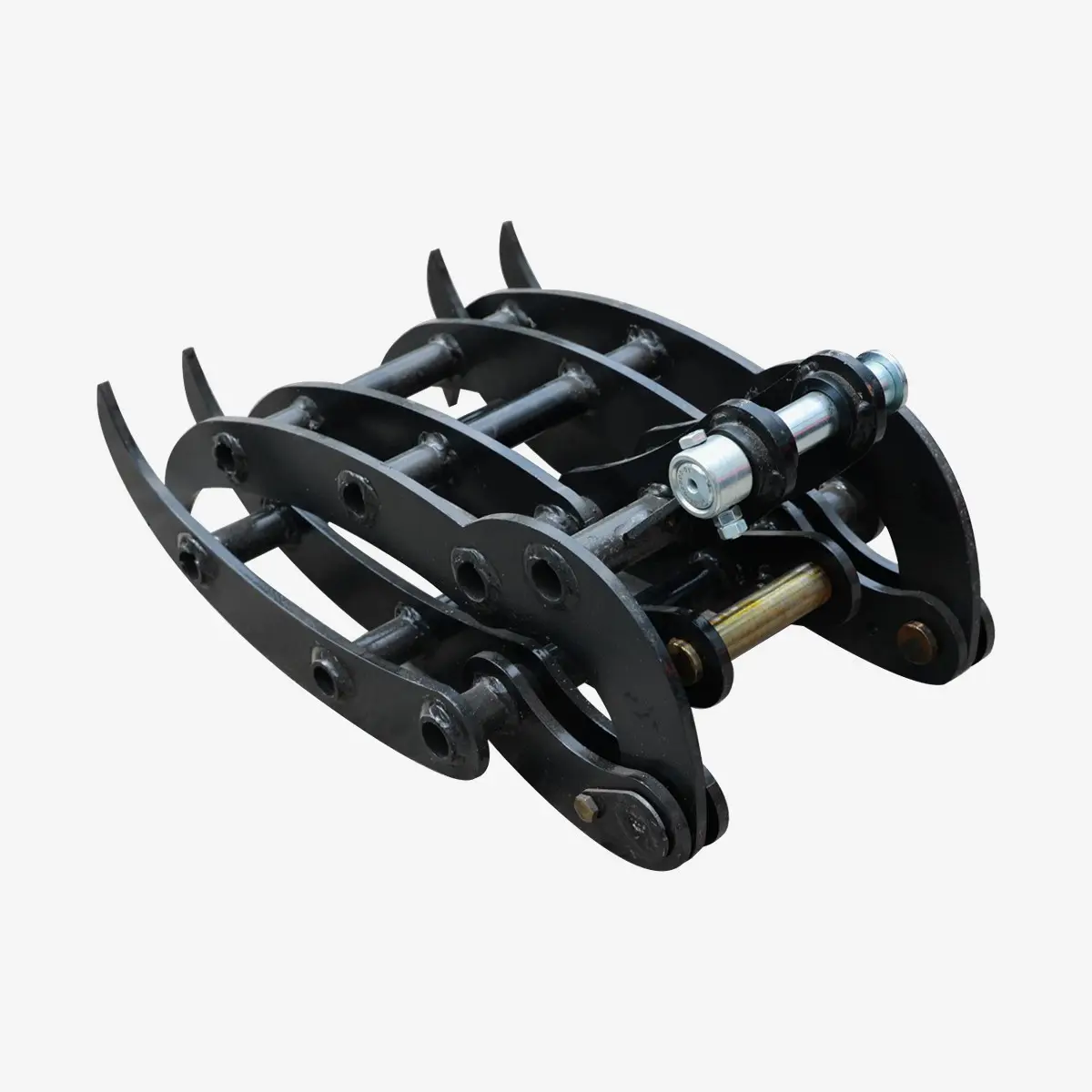

Log Grapple

The curved gripping arms secure logs and branches for controlled lifting, sorting, and loading.

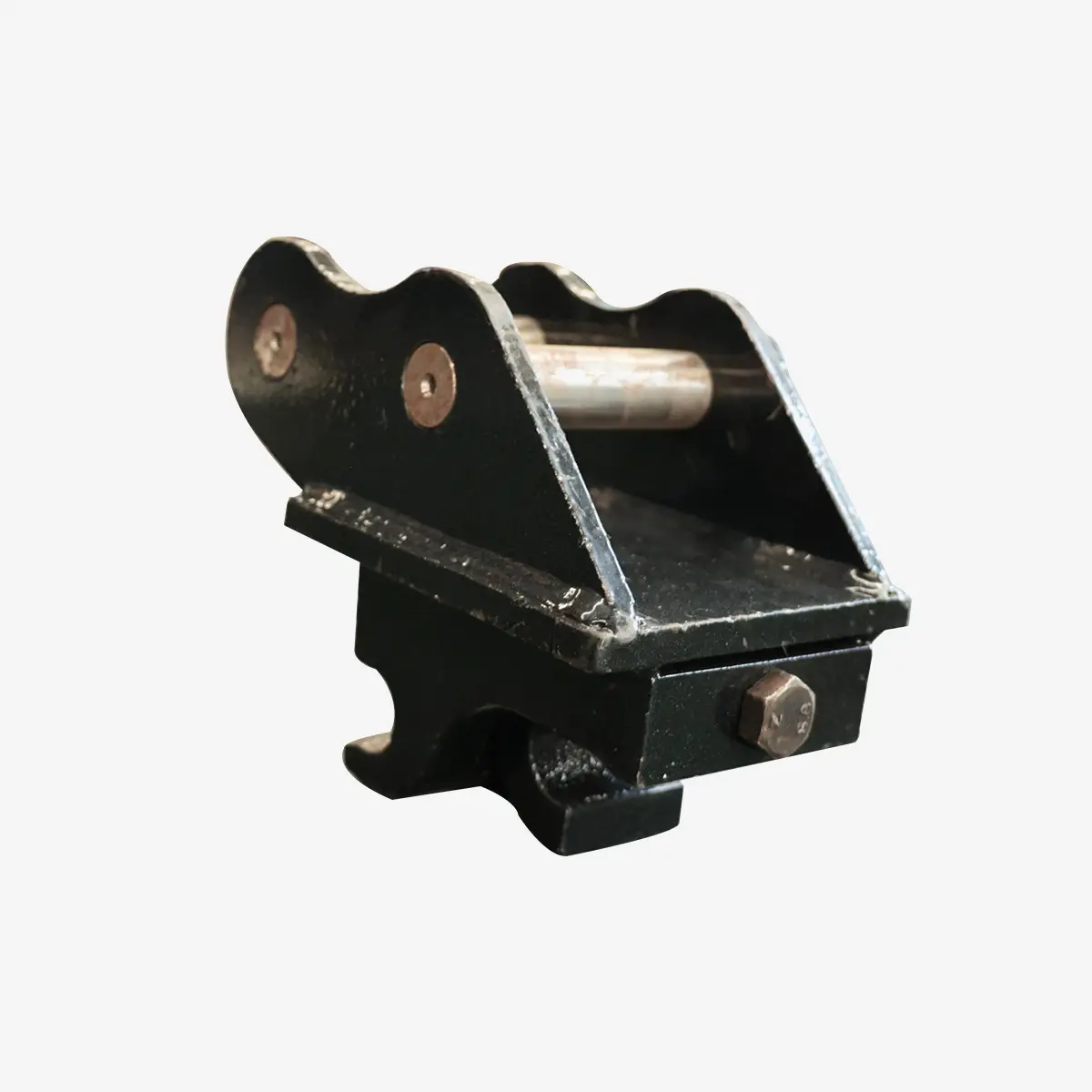

Mechanical Quick Coupler

The mechanical locking body enables attachment changes without adding a hydraulic locking circuit.

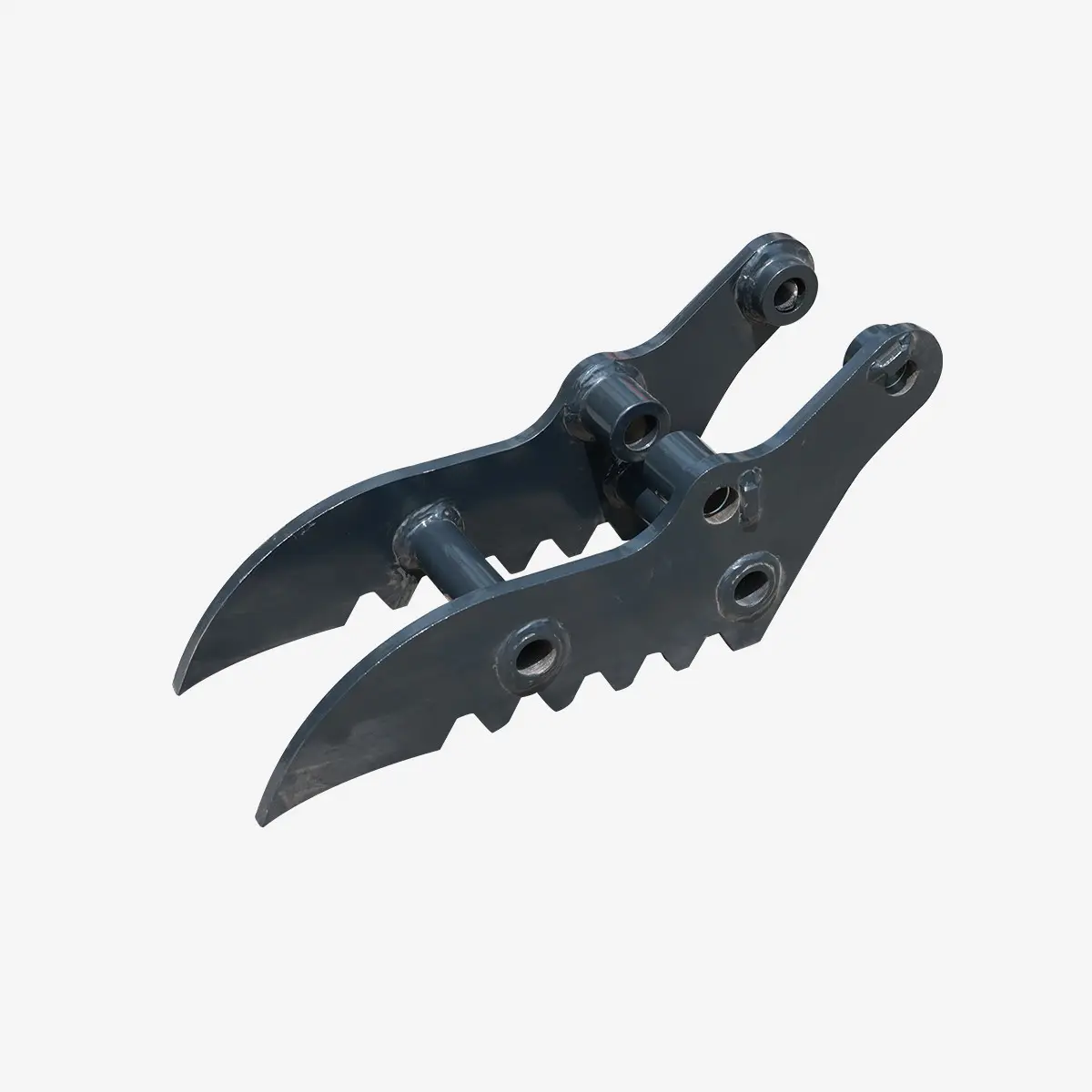

Mechanical Thumb

The fixed opposing jaw holds branches, rocks, and debris against the bucket during handling.

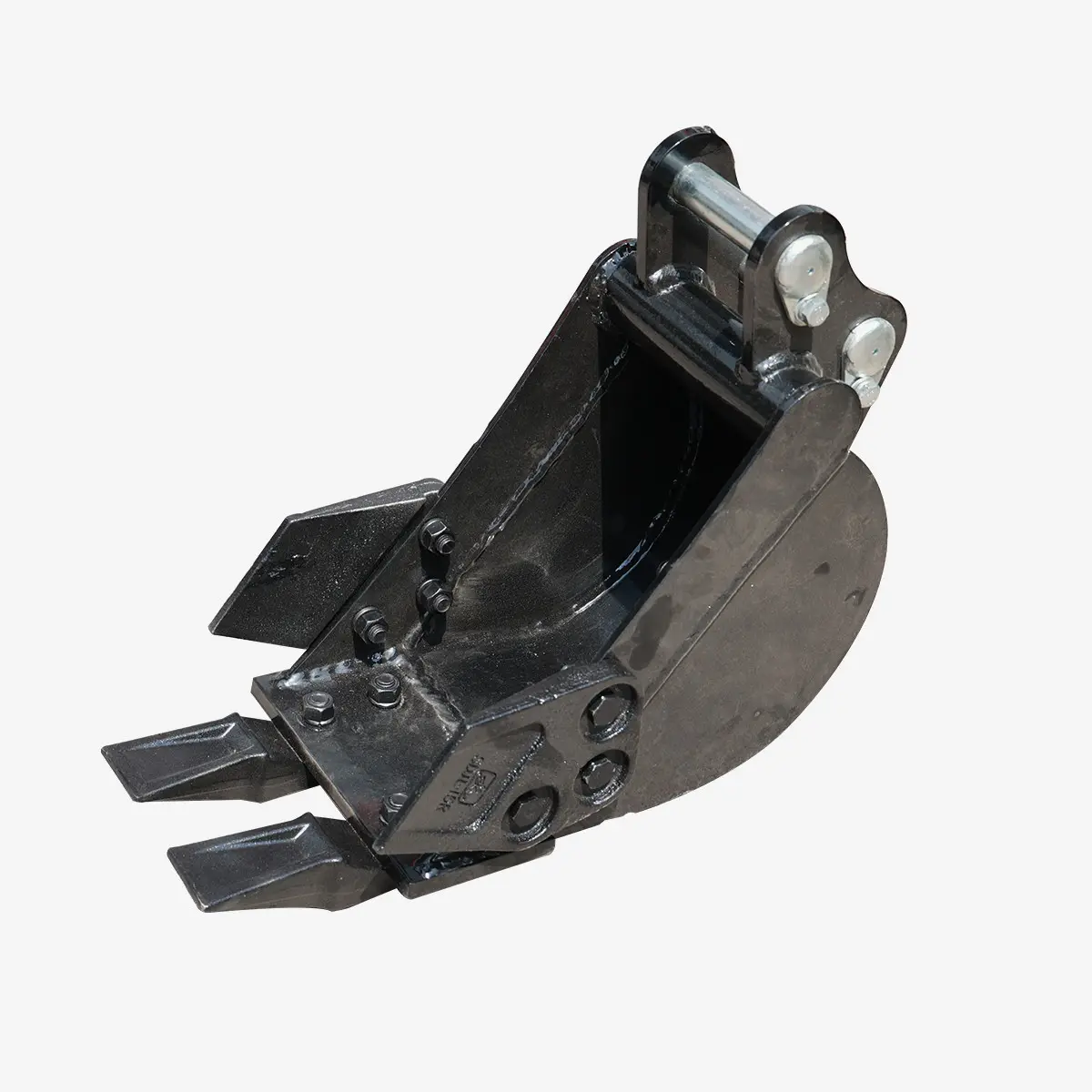

Narrow Digging Bucket

The narrow profile cuts compact trenches and channels while limiting the width of disturbed ground.

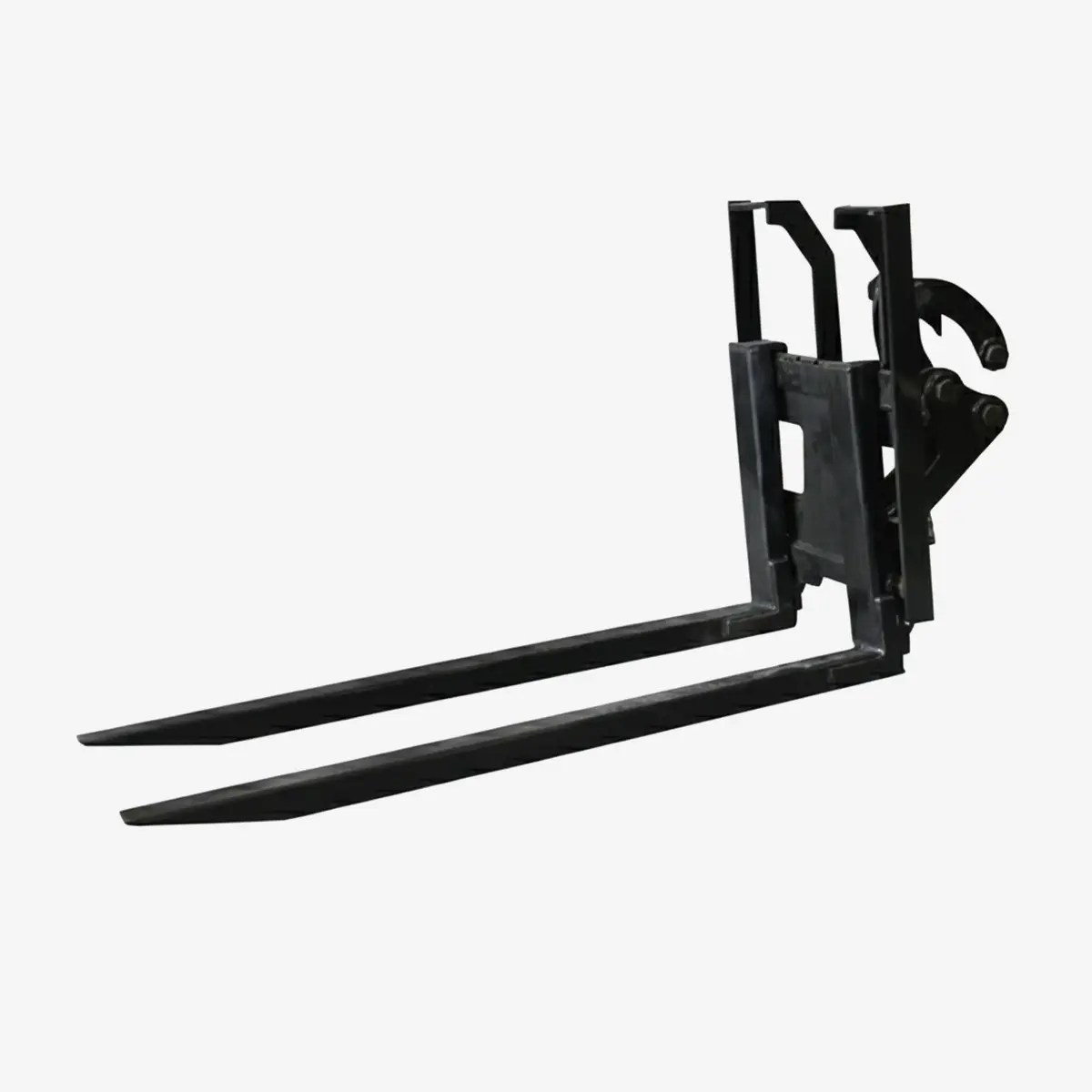

Pallet Forks

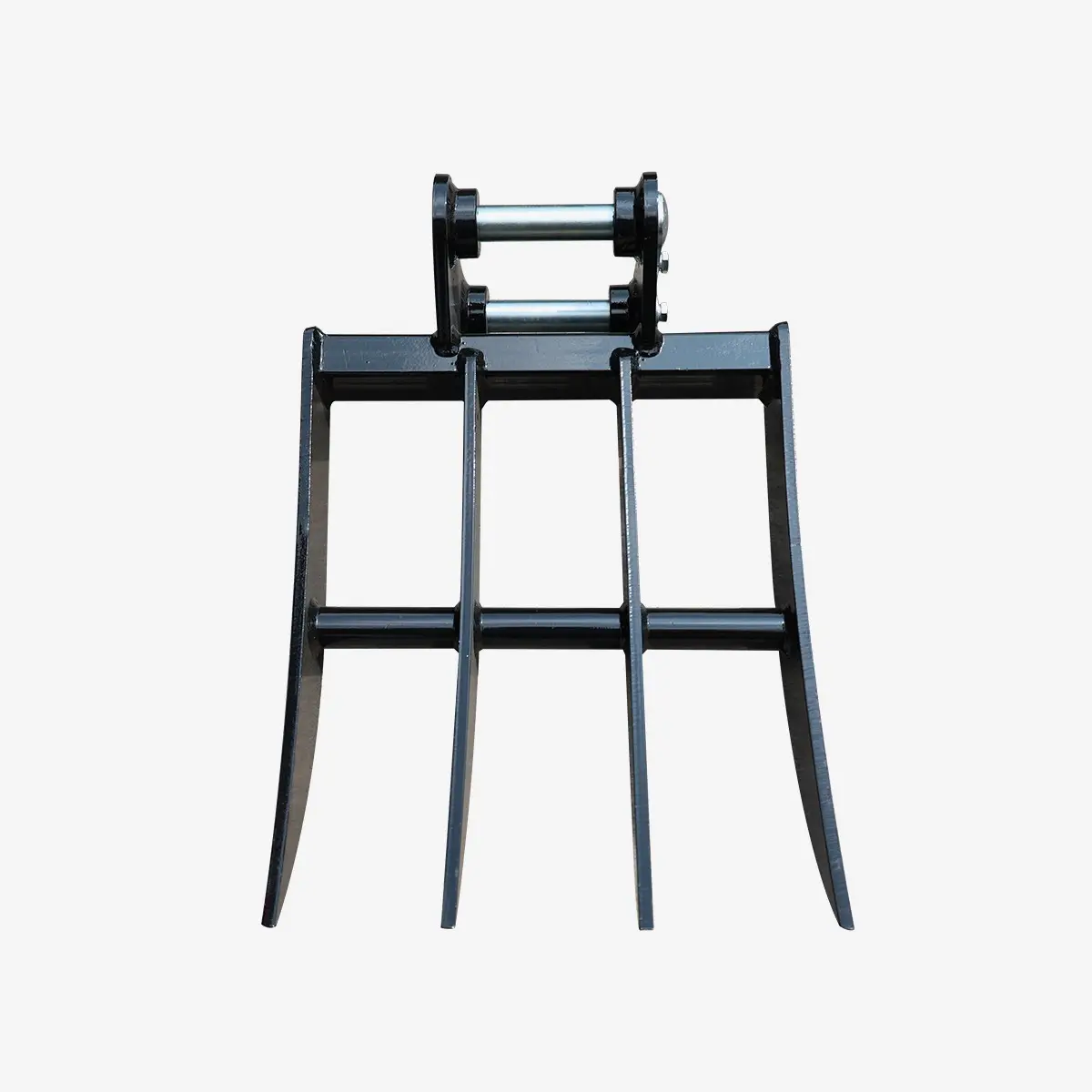

Rake Attachment

The spaced tines gather roots, branches, and loose debris while allowing finer soil to pass through.

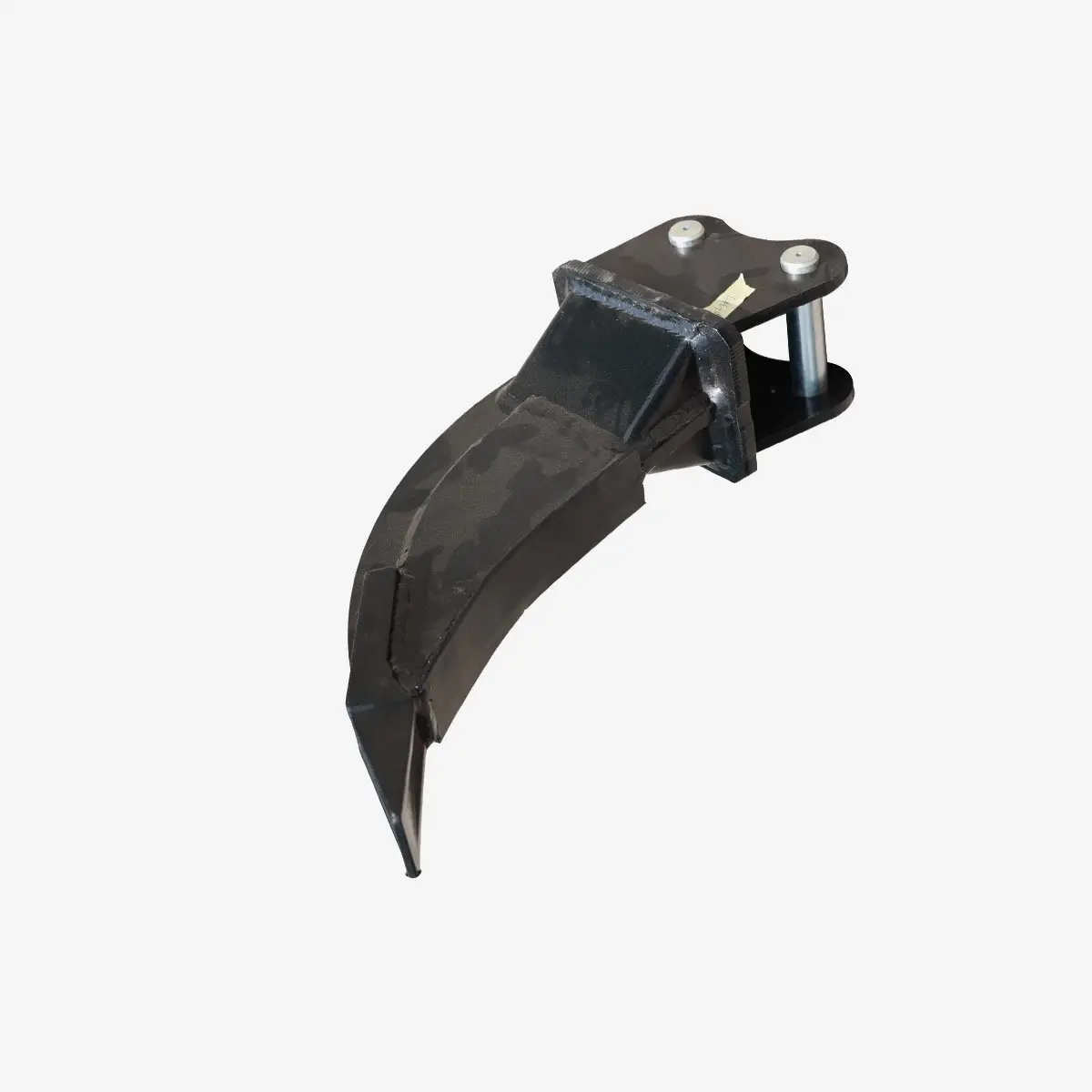

Ripper Attachment

The single reinforced tooth loosens compacted ground, roots, and hard layers before excavation.

Screening Bucket

The slotted bucket separates finer soil from larger stones and debris during loading and sorting.

Toothed Digging Bucket

The toothed cutting edge penetrates firm ground and supports efficient digging and material pickup.

Clamshell Bucket

The opening jaws grip loose soil and bulk material for controlled pickup, transfer, and placement.

Compact Digging Bucket

Its compact shell supports general digging and soil handling where working space is limited.

Product Video

00:45

Compact Teal Design

Compact teal-colored body fits easily through yards, gates and tight sites.

Compact Teal Design

00:45Compact teal-colored body fits easily through yards, gates and tight sites.

10 Machinery - Operation

01:12Lightweight compact design lets a single operator mount and control the machine.

Product packaging

00:59Whole machine secured in container, bucket detached and strapped, hydraulic ports capped, glass film-protected, foam corner guards—arrives intact by sea.

Product loading in the cabinet

00:46Driven into container, bucket lowered, wooden wedges under tracks, body multi-point steel-strapped, glass film-protected—no shifting in transit. 消耗 0 今天 19:32

Real Factory Footage

Real on-site records from our factory, offering a practical view of our production capability and delivery readiness.

Factory scene

Real excavator factory: orderly welding and assembly lines, every unit test-run with smooth hydraulics and no leaks—bulk stock direct from plant

0:00 / 0:00

Product Review

Product Inspection

We centrally purchase equipment, test the data and the machine, then publish the models that clear our review. You get a shorter path from "could work" to a quote your team can act on.
