Provides a stable upper deck for dock connection and supports smooth vehicle loading transitions.
Mobile Setup For Busy Loading AreasMobile forklift access for warehouse logistics
Ground-to-vehicle loading support
This mobile yard ramp is commonly used in warehouses, factory yards, distribution centers and container loading areas where forklifts need to move goods between ground level and trucks or containers. It can be positioned beside loading bays, outdoor storage zones or temporary shipping points to support pallet transfer, vehicle loading and goods turnover without requiring a permanent dock platform.
- railer Loading Access - Ground Level Forklift Access To Trailer
- Container Cargo Handling - Container Loading With Stable Ramp Support

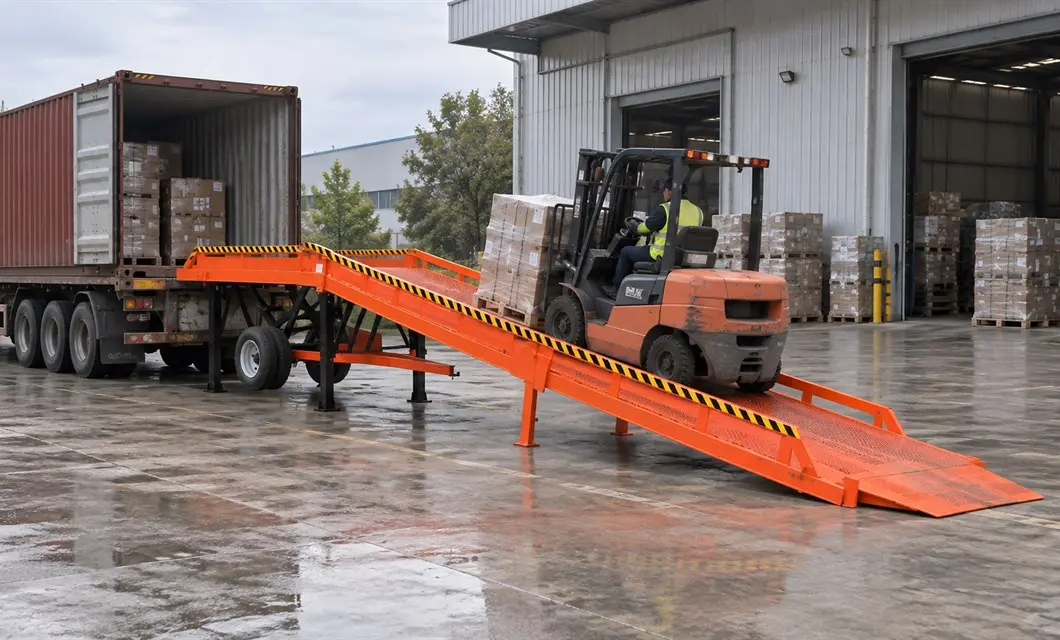

- Yard Pallet Transfer - Pallet Handling Between Yard And Trailer

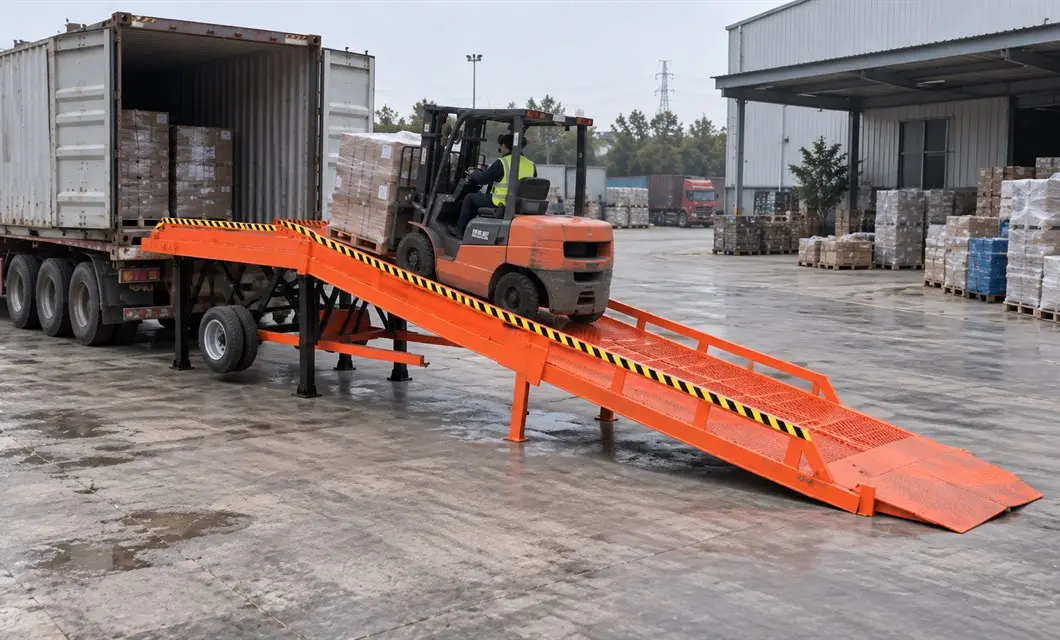

- Flexible Loading Area - Mobile Setup For Busy Loading Areas

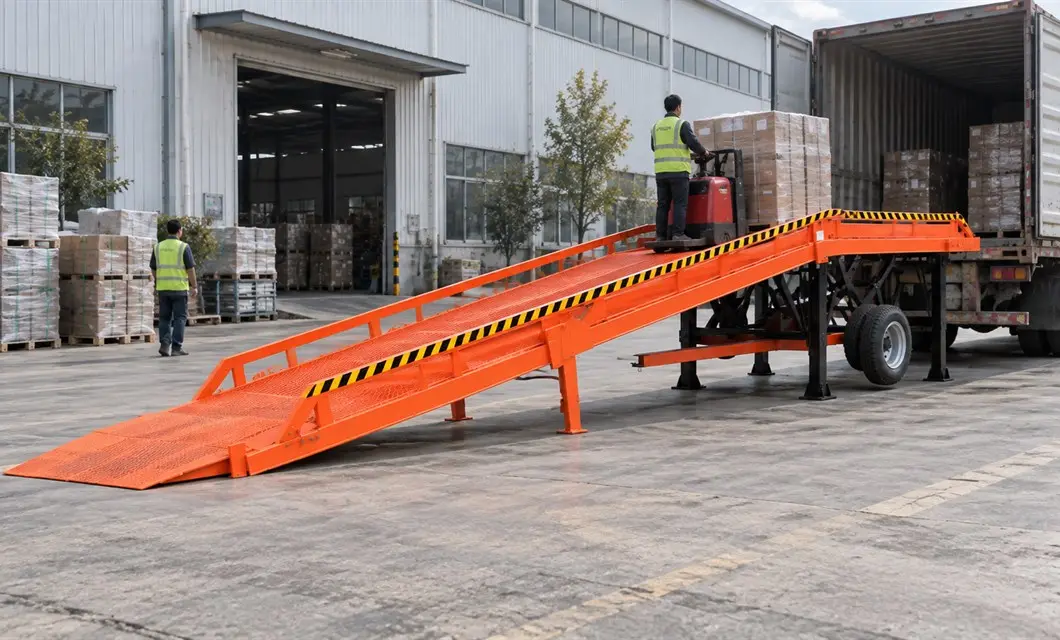

Container Loading With Stable Ramp Support

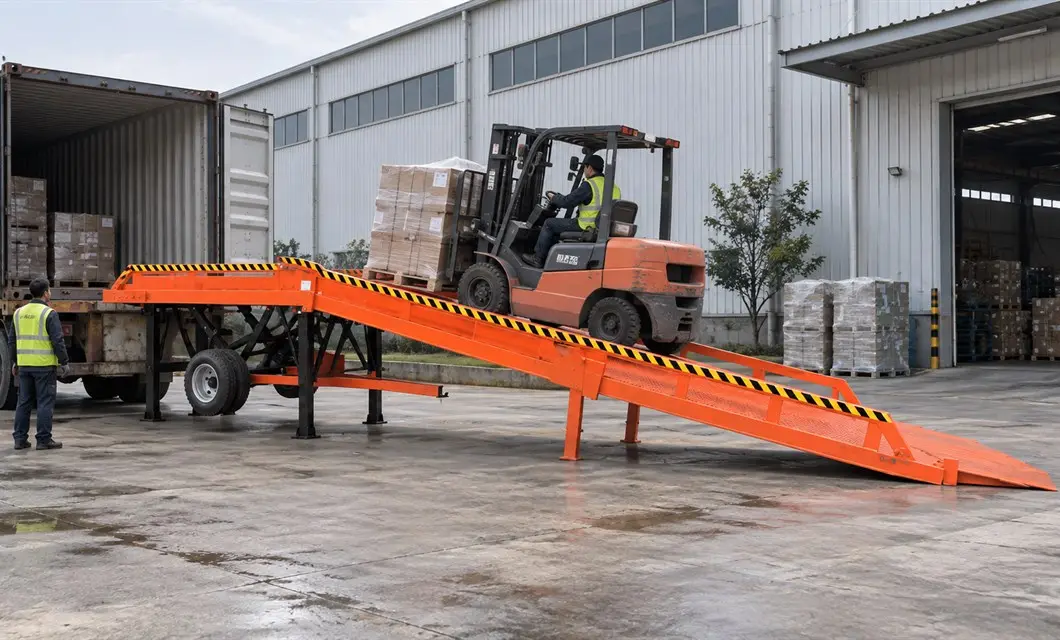

Ground Level Forklift Access To TrailerMobile Setup For Busy Loading Areas
Pallet Handling Between Yard And TrailerContainer Loading With Stable Ramp SupportGround Level Forklift Access To TrailerProduct Advantages

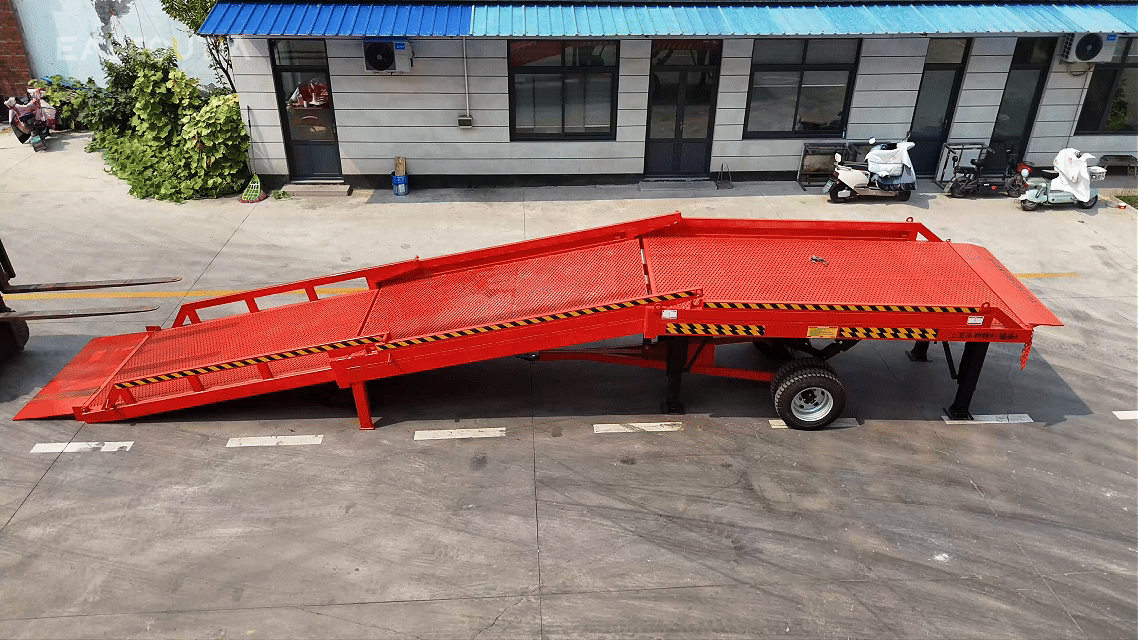

Anti-slip steel grating and hazard rails—reliable forklift load path for safer, faster loading.
Specifications & Structural Decomposition

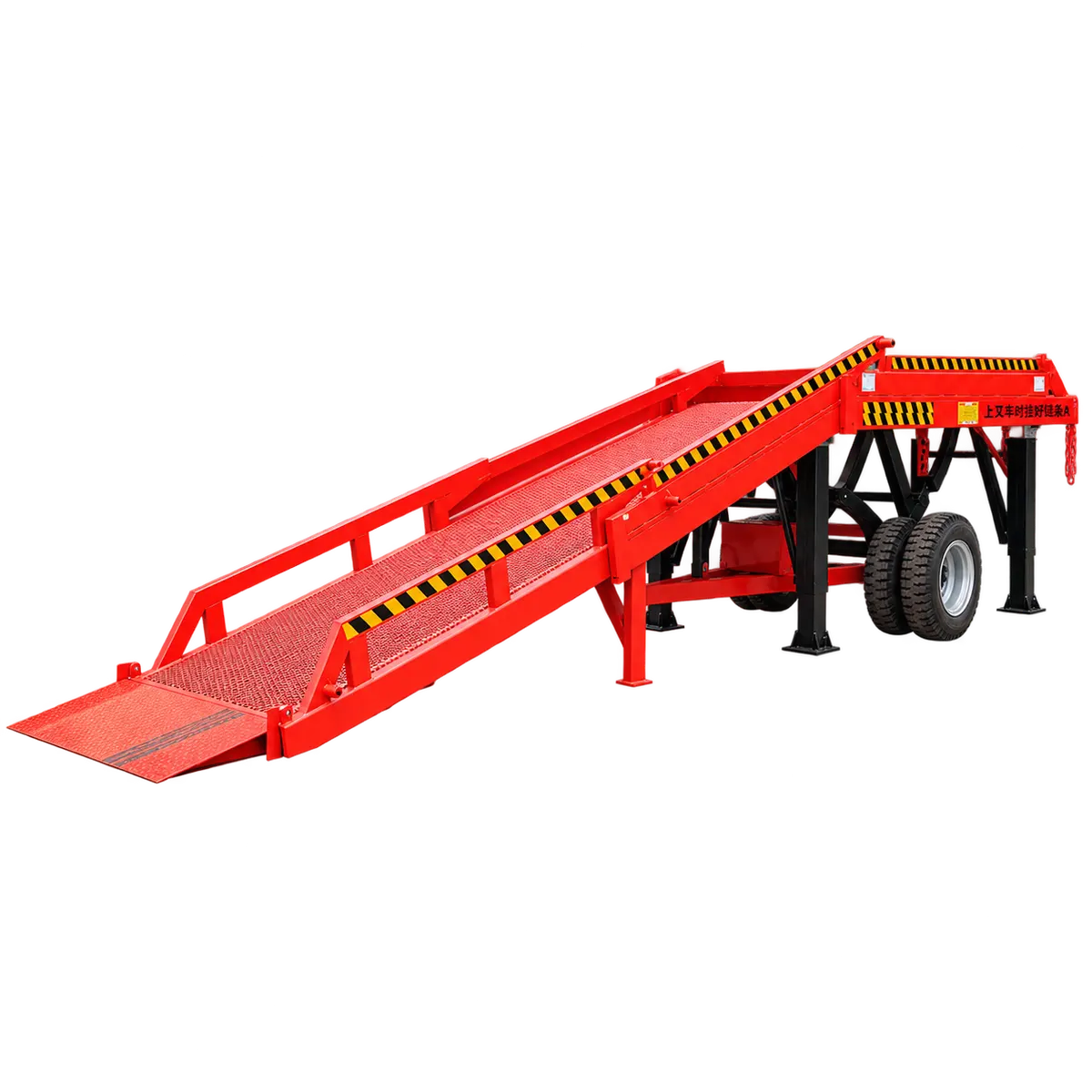

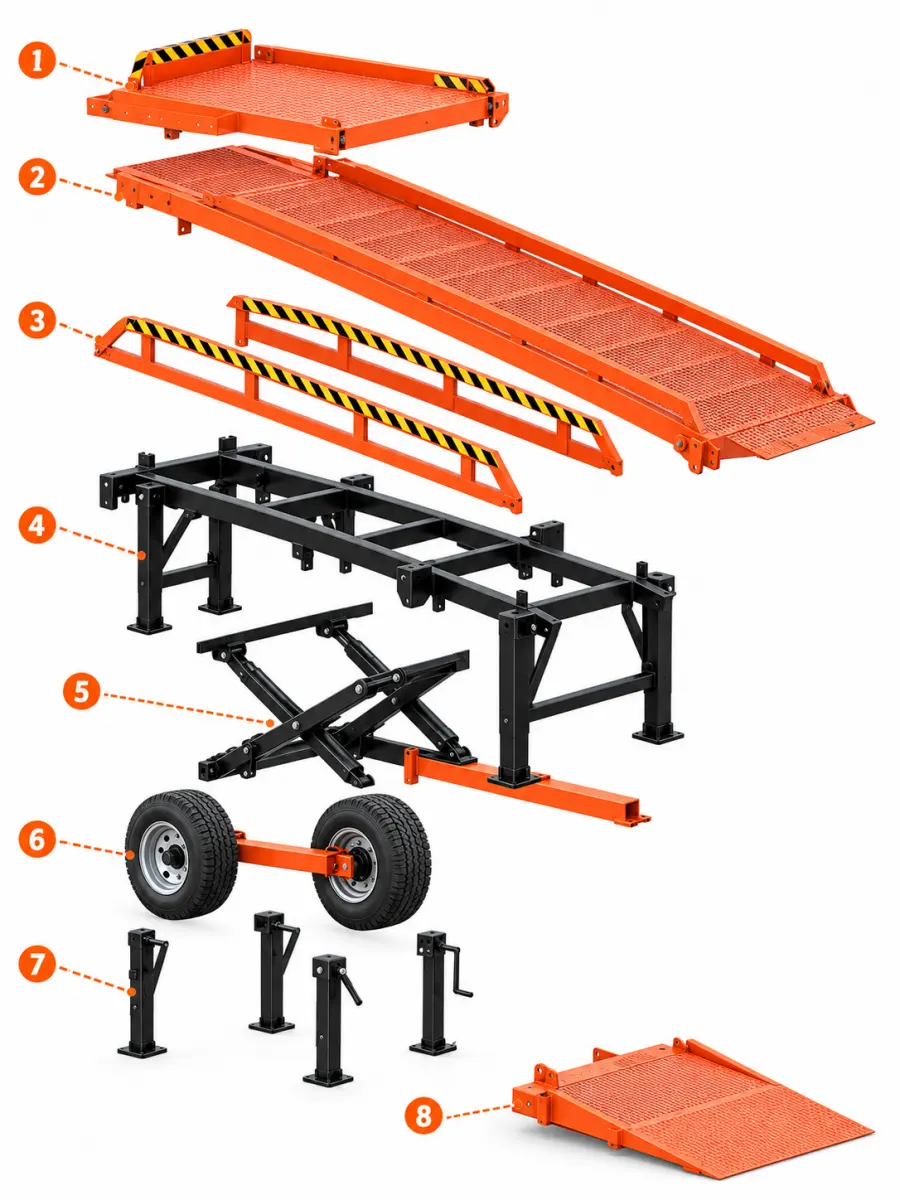

Product Structure Diagram
- Upper Loading Platform
- Main Inclined Ramp Deck
Anti-slip ramp deck guides vehicles between ground level and the raised loading platform safely.

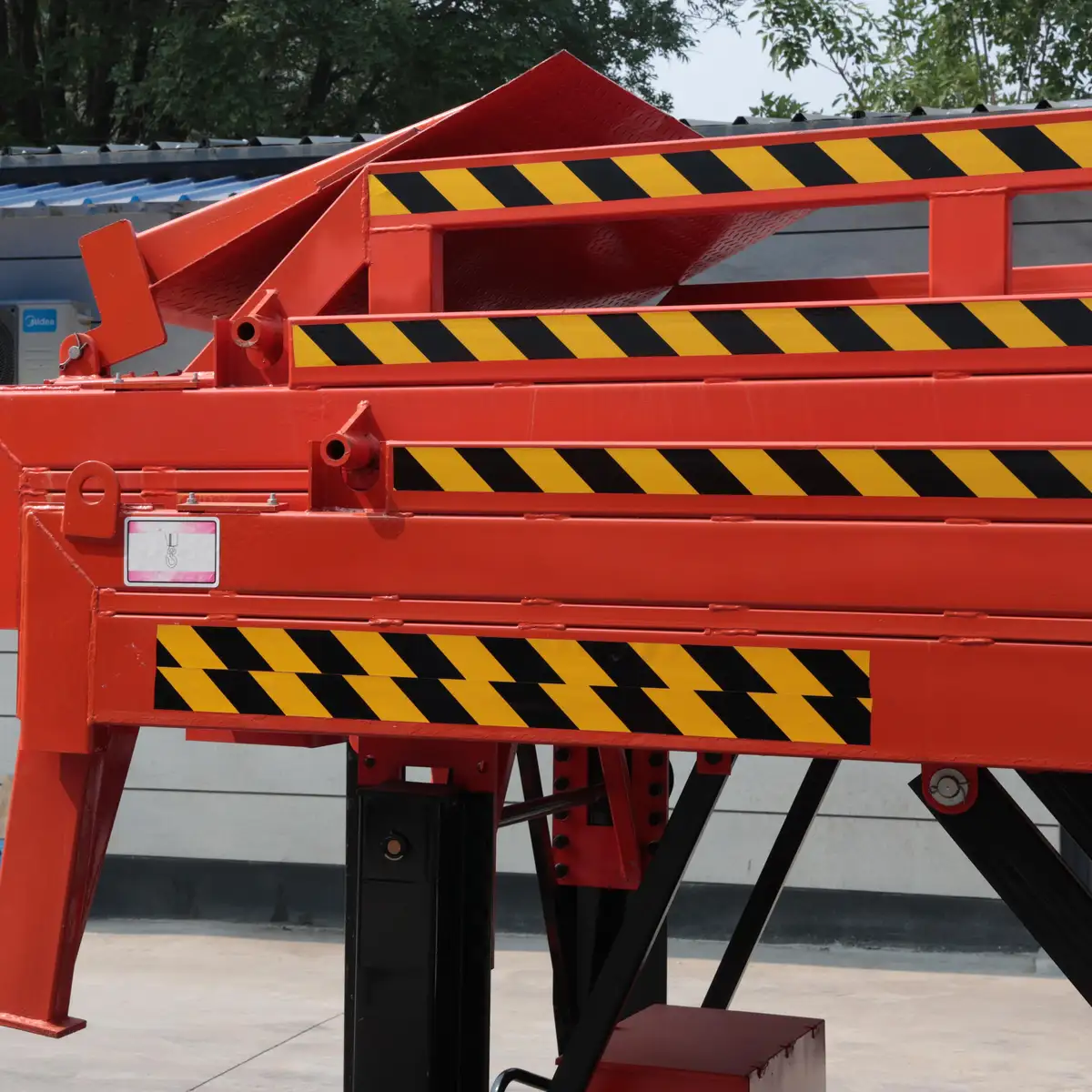

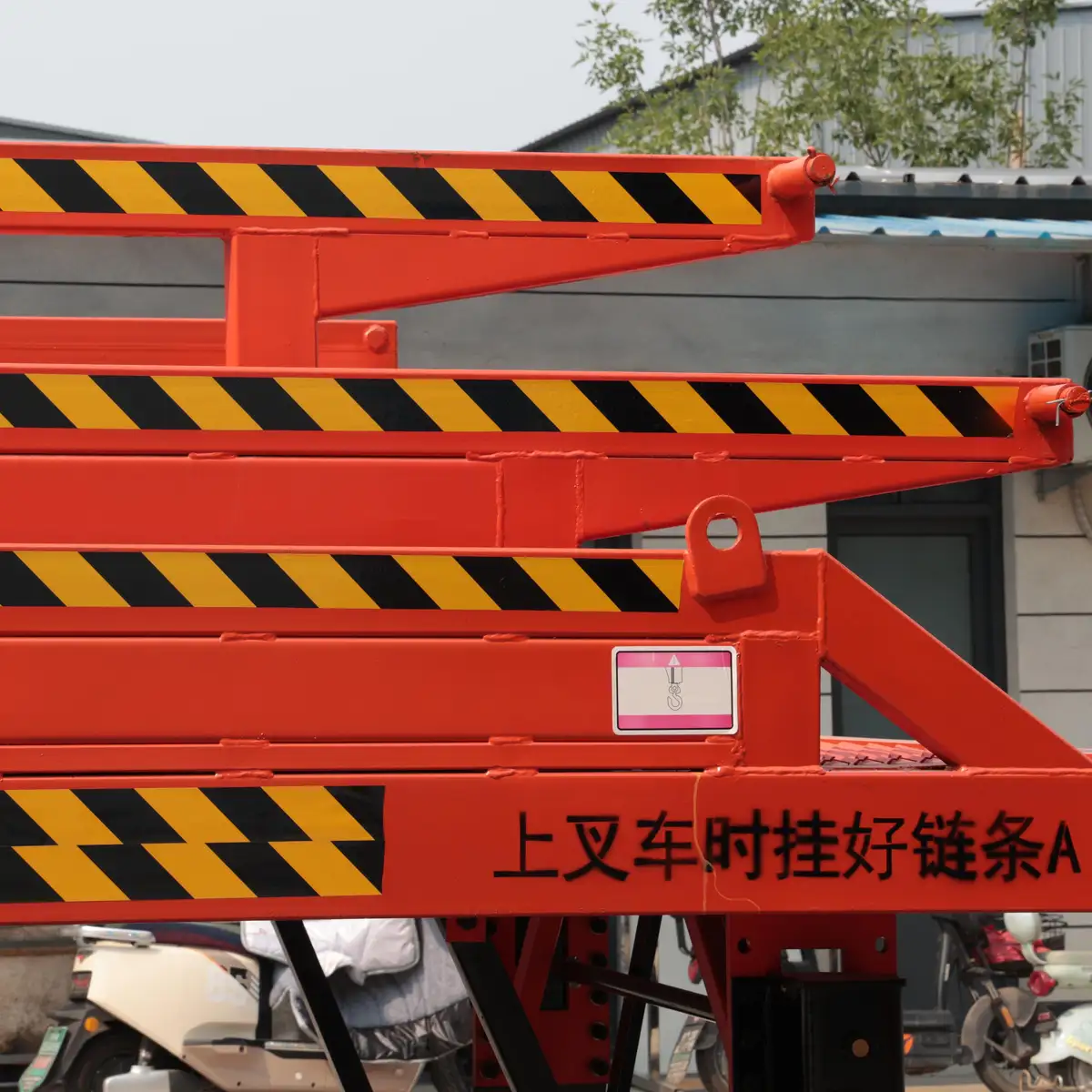

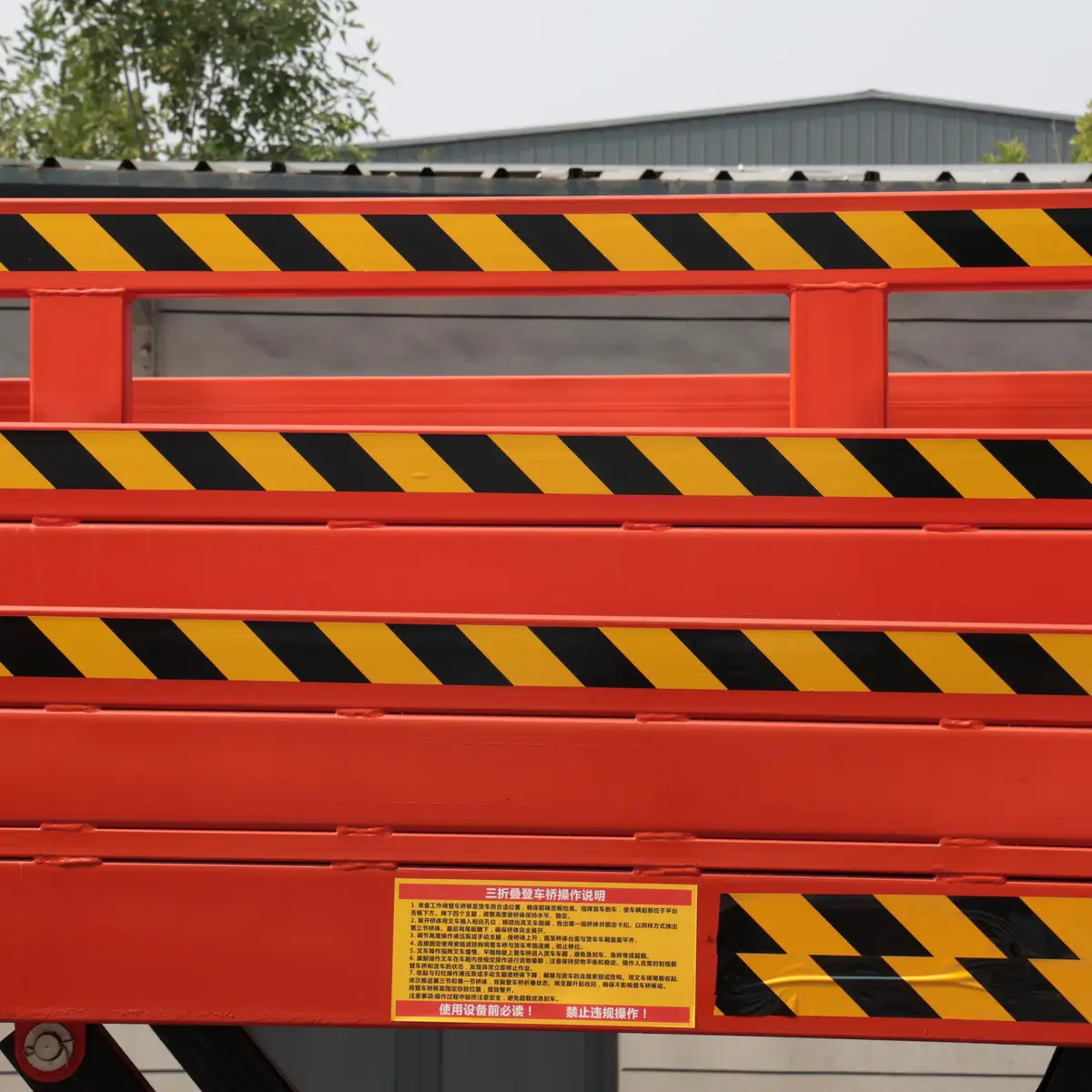

- Safety Guardrail Assembly
Side guardrails improve edge protection and provide clear visual guidance during ramp operation.
- Main Support Frame
Heavy-duty steel frame supports the ramp body and transfers working loads evenly to the ground.

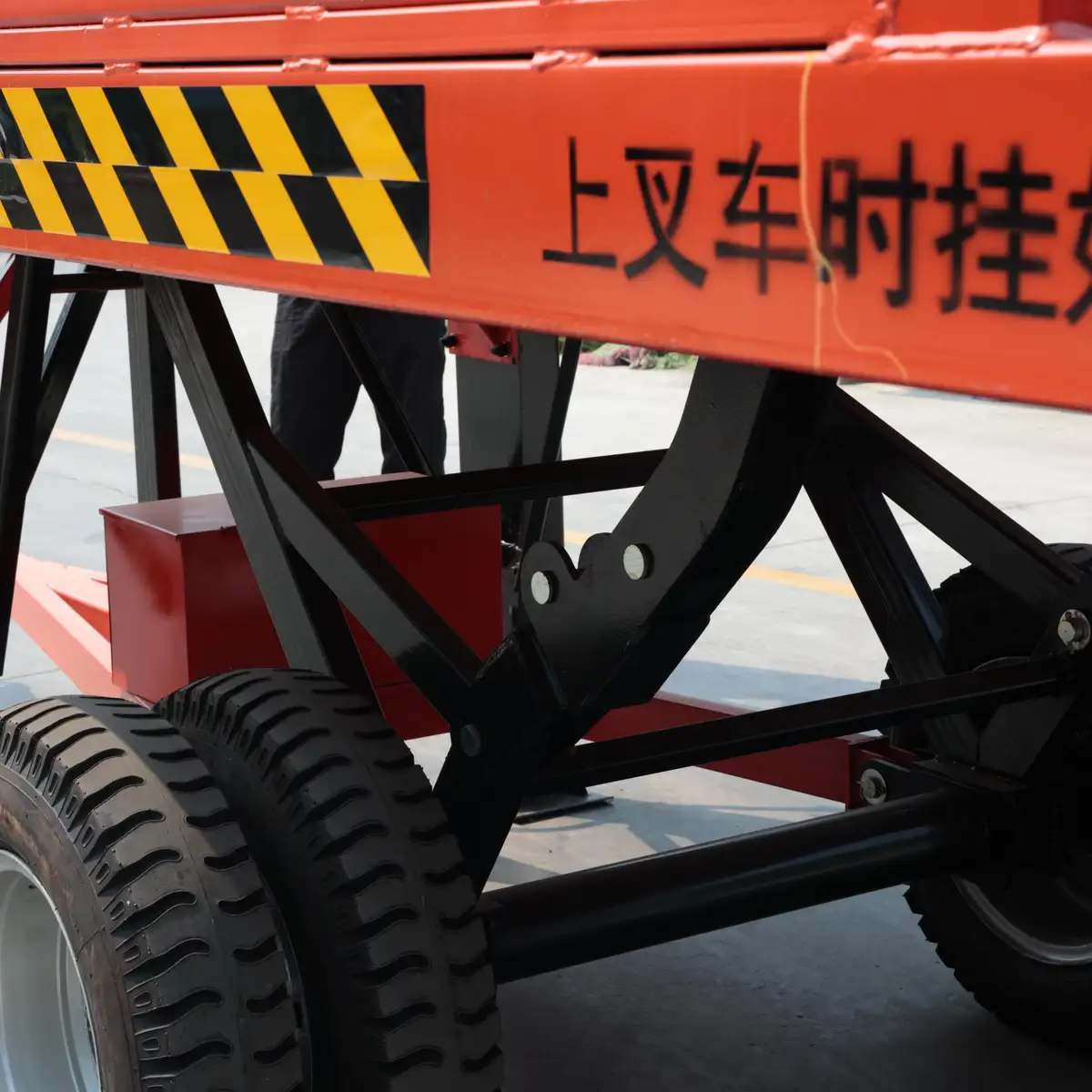

- Hydraulic Lifting Assembly
Hydraulic lifting structure adjusts ramp height and maintains stable positioning during operation.

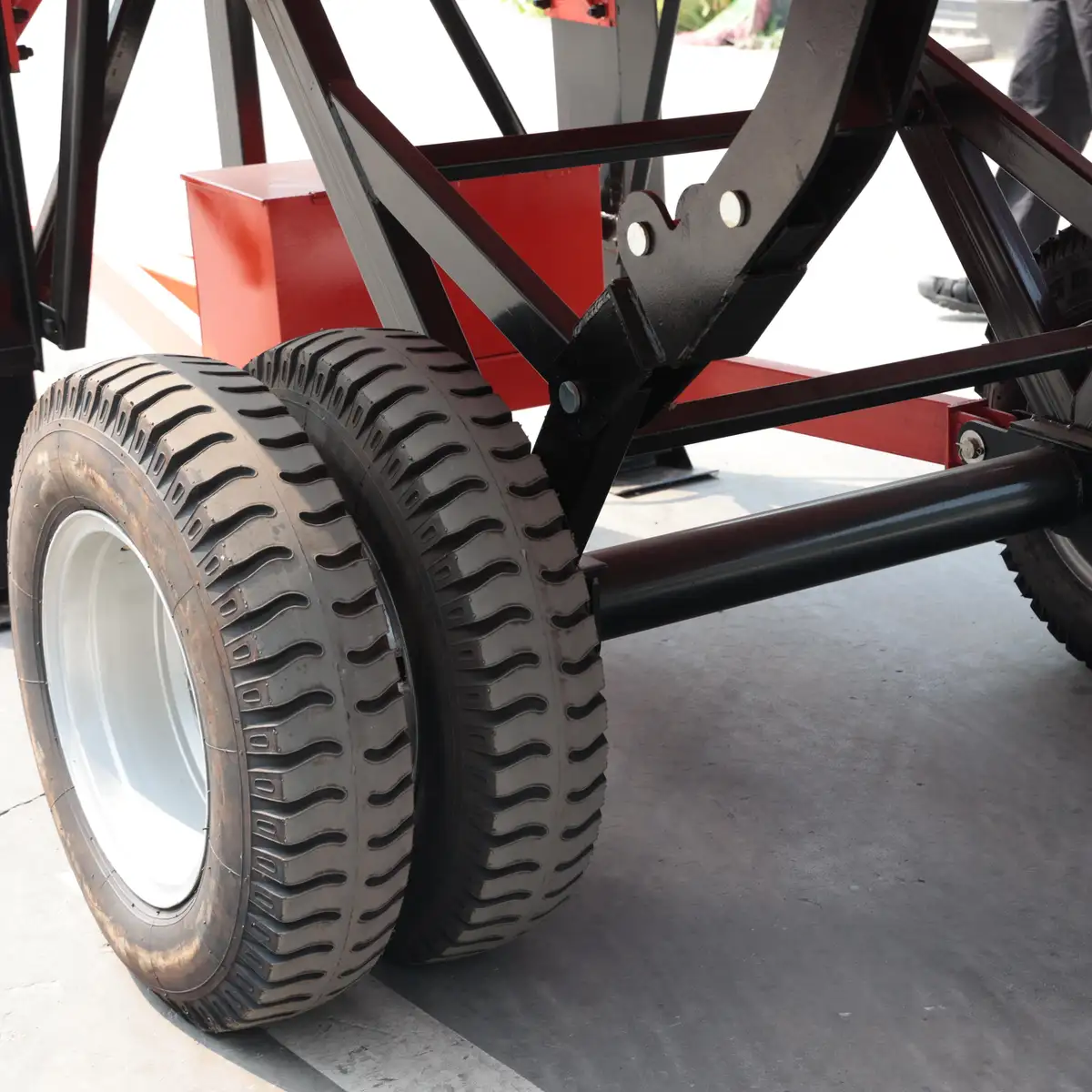

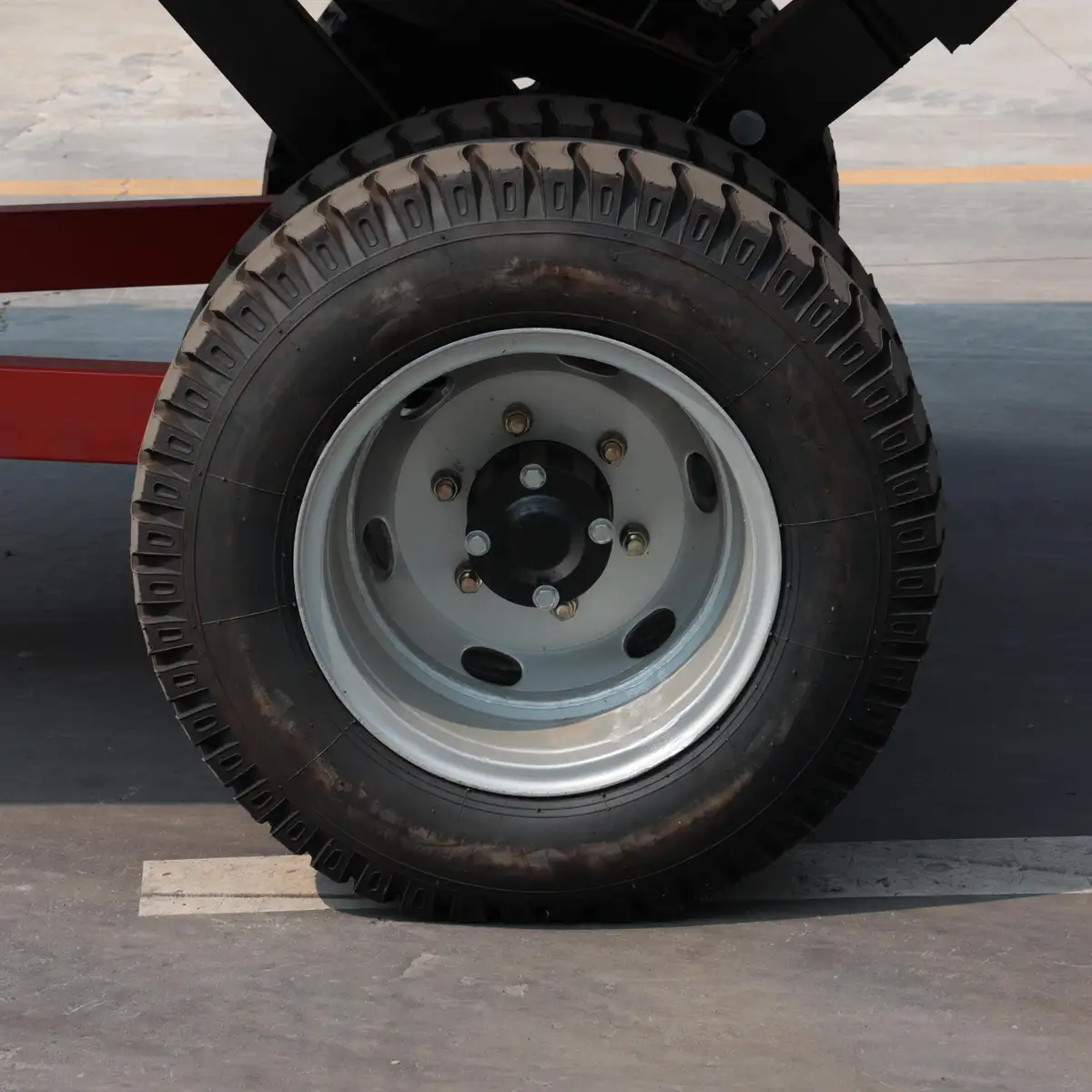

- Wheel and Axle Assembly
Wheel and axle assembly supports ramp relocation while maintaining balanced mobile movement.

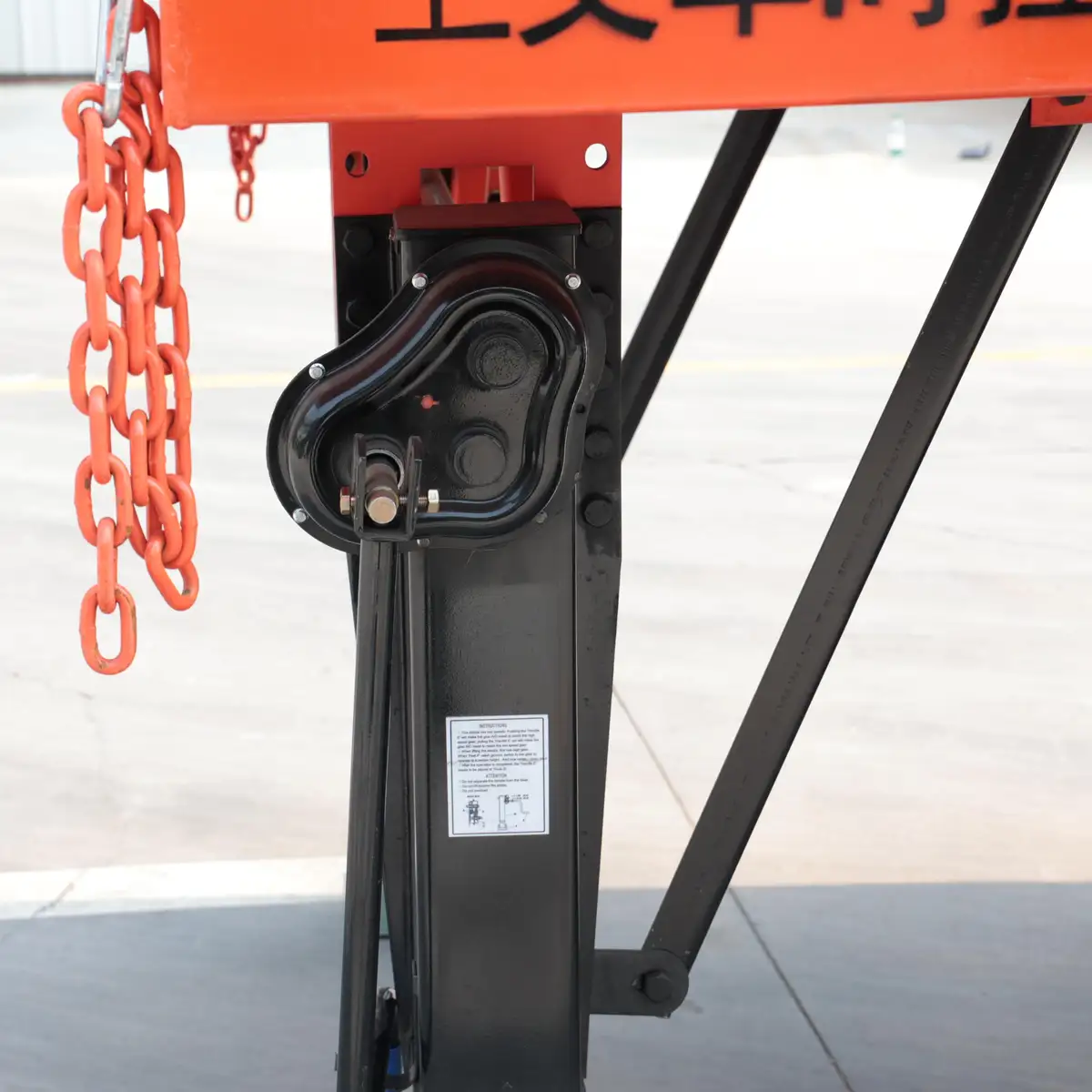

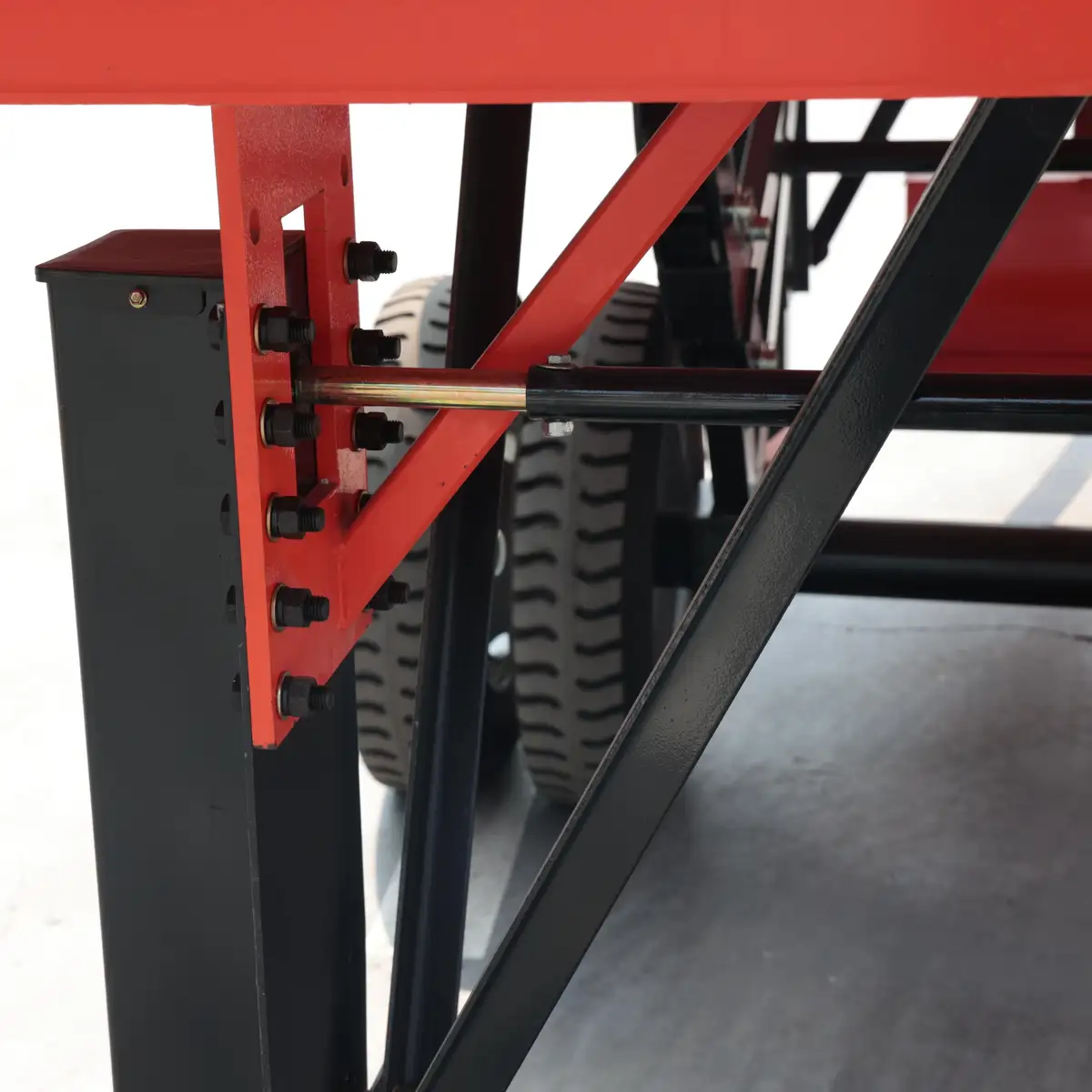

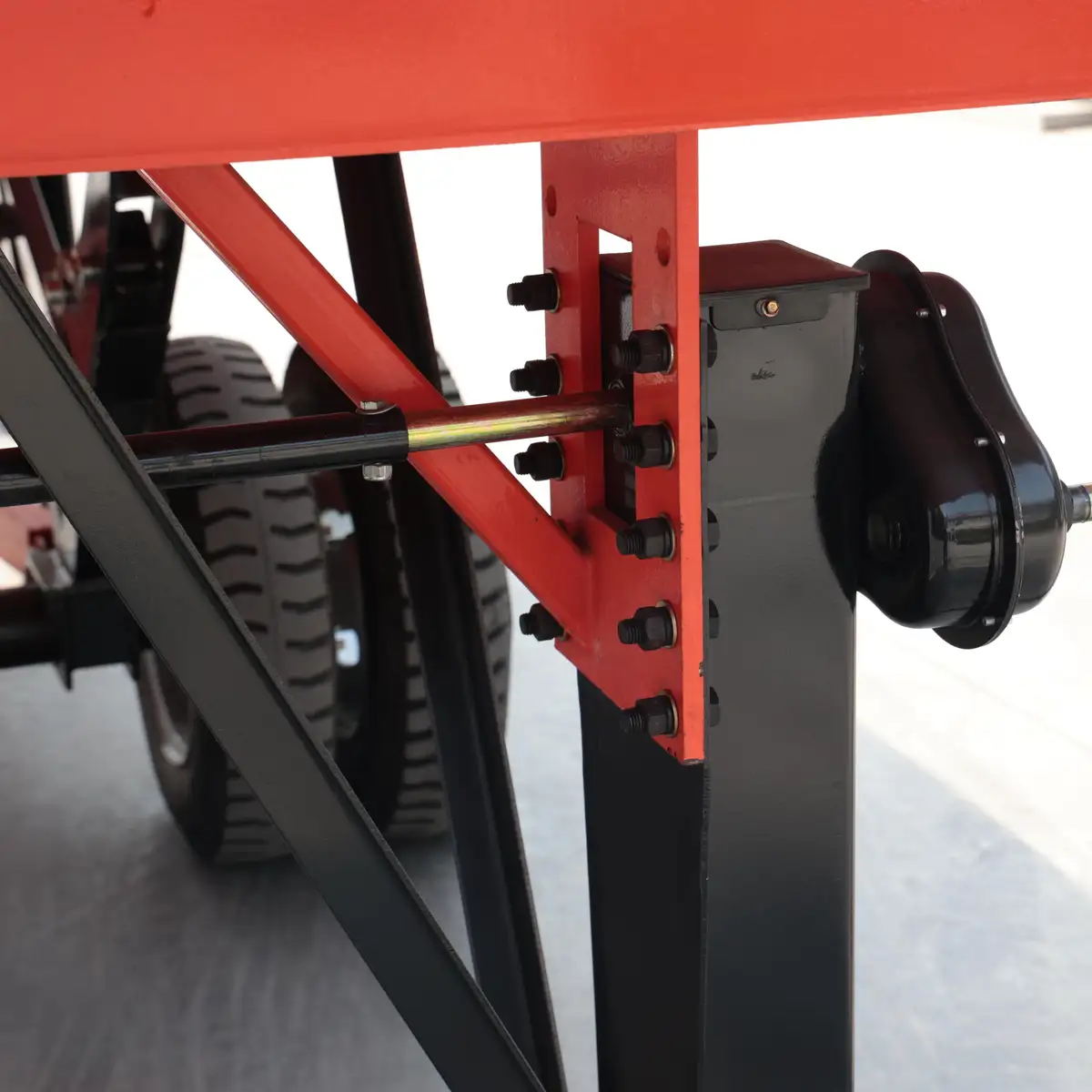

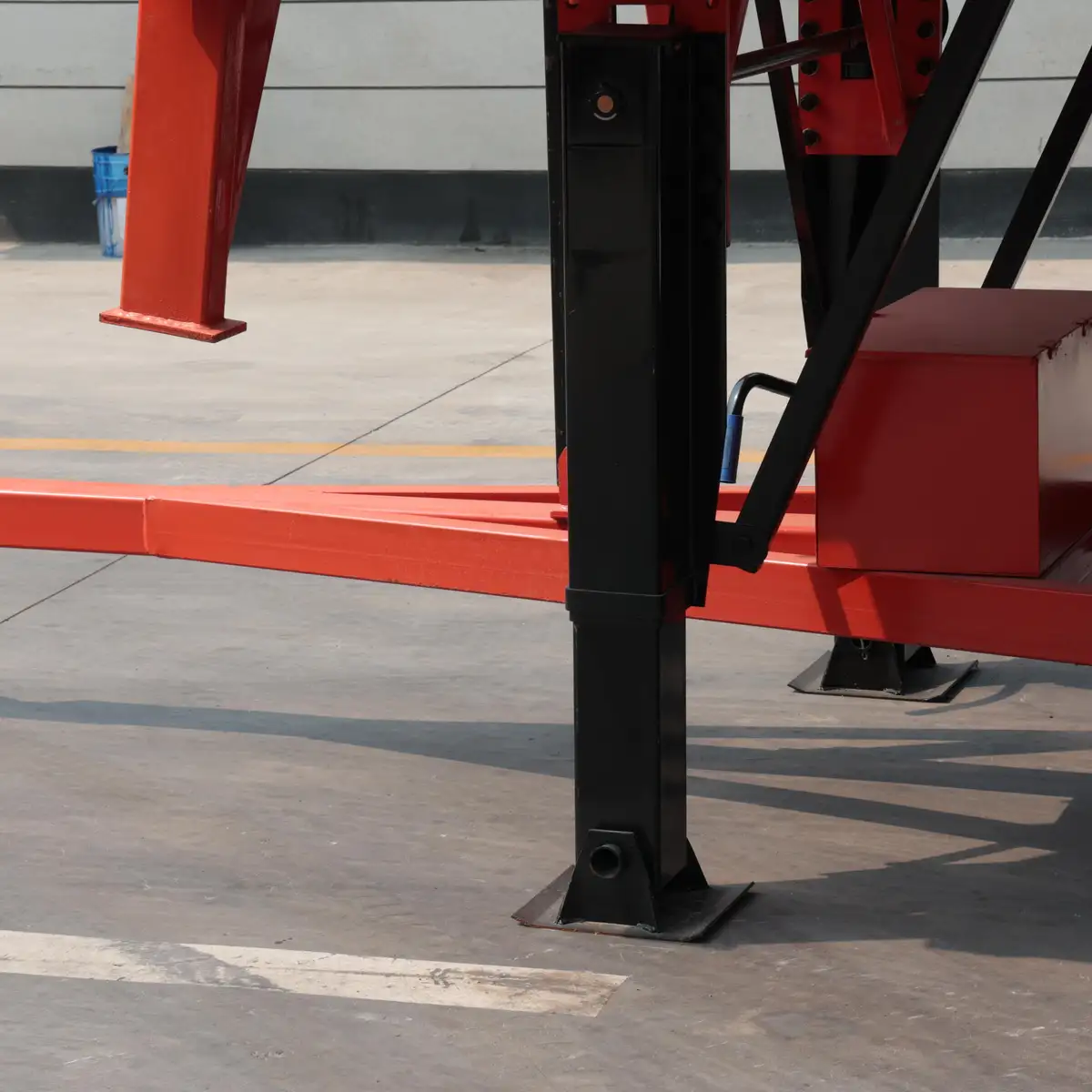

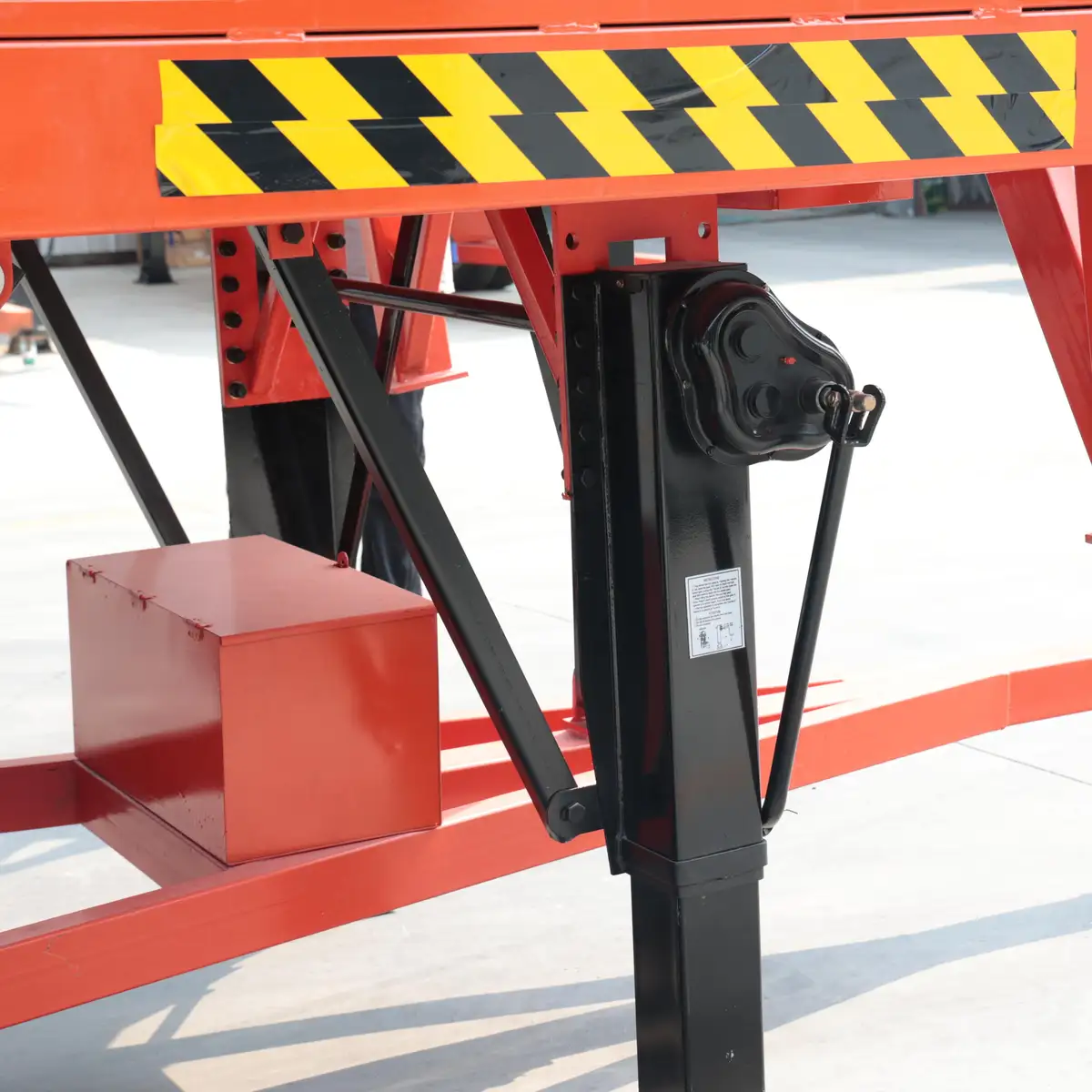

- Heavy-Duty Support Legs
Heavy-duty support legs stabilize the ramp and reduce movement during loading and unloading.
General information
General instructions
Simplified explanationProduct Video

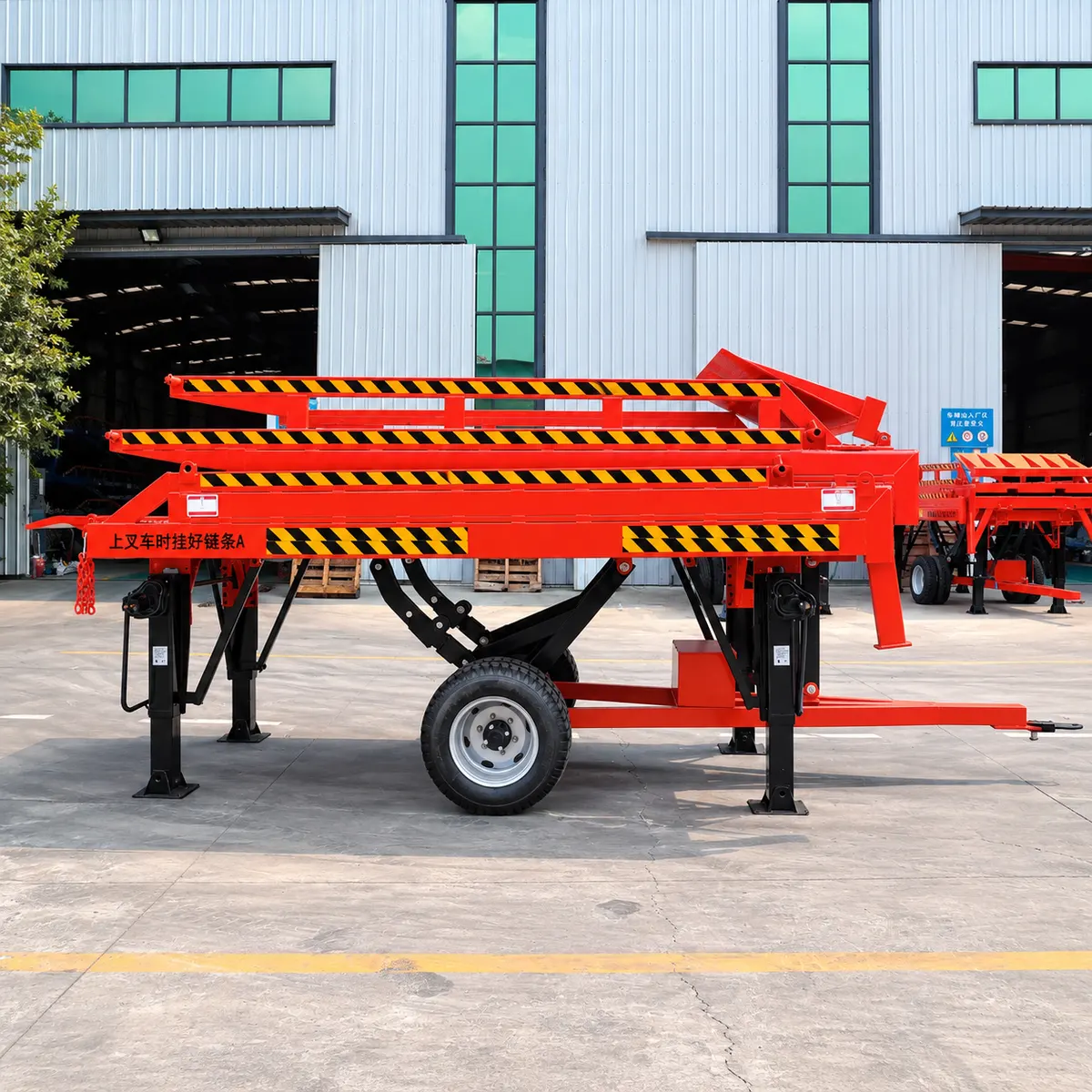

Compact Build, Easy Move

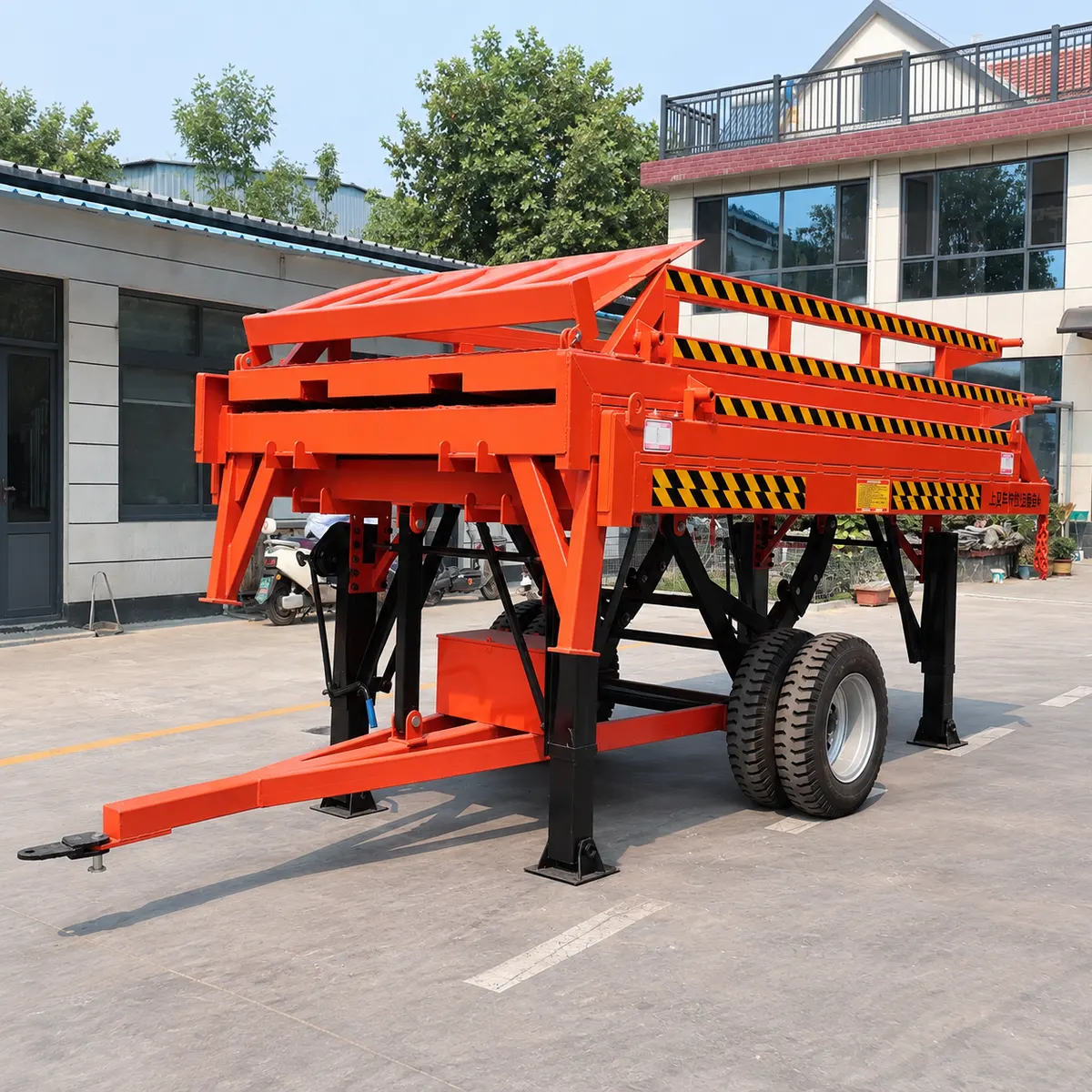

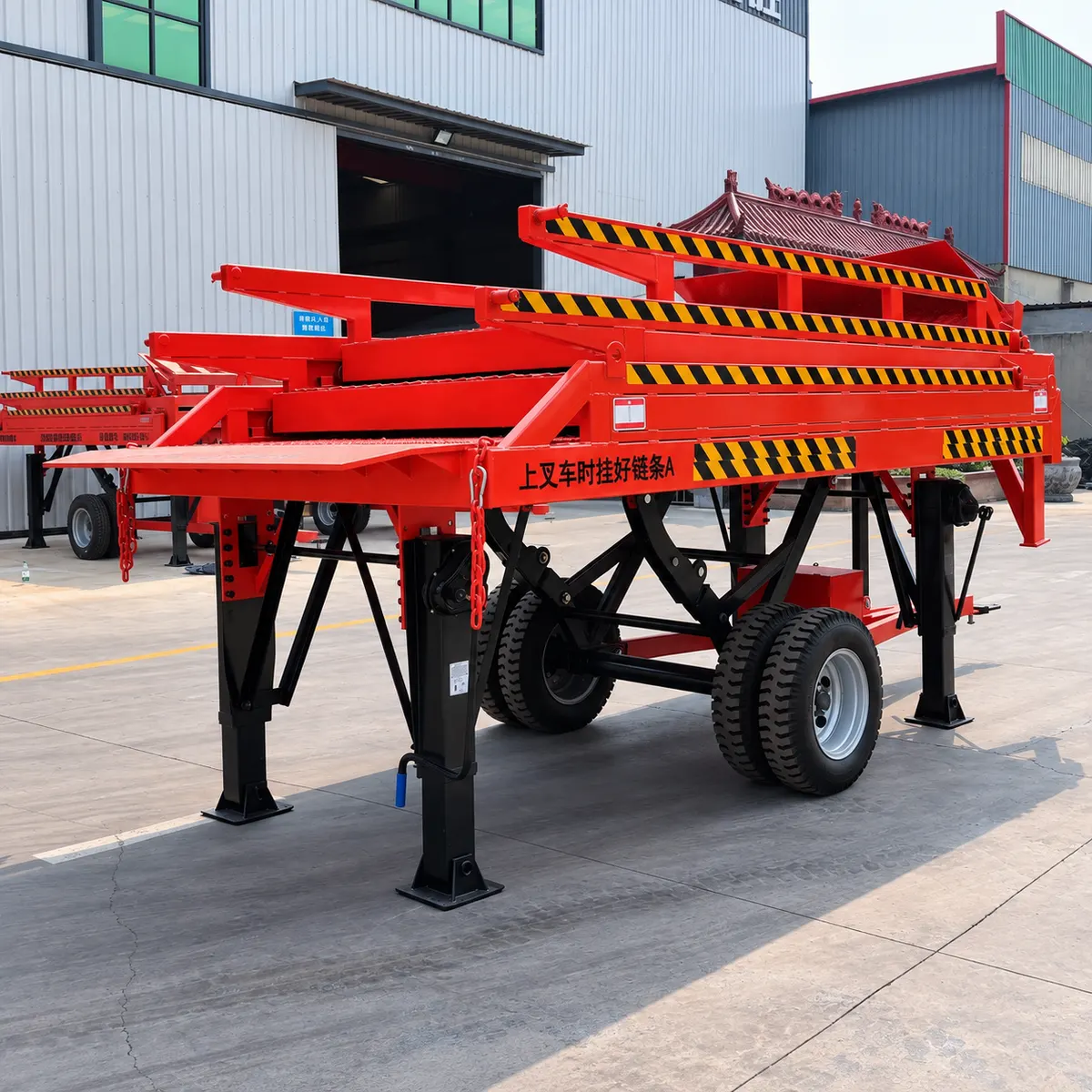

Folds compact with hitch, axle and legs complete—less storage space, freer deployment.
Compact Build, Easy Move
01:33Folds compact with hitch, axle and legs complete—less storage space, freer deployment.
Faster Mobile Loading
00:31Tow, unfold, load—less need for fixed docks, higher yard turnaround.
Dock Leveler Container Loading
00:52Crane and forklift load blue dock levelers into the container—stable stack transfer with clear guardrail hazard stripes.
Easier Step-by-Step Ops
01:06Clear tow–leg–height steps; one person plus a forklift can set it—less time on site.
Real Factory Footage
Real on-site records from our factory, offering a practical view of our production capability and delivery readiness.
0:00 / 0:00
Product Review
Product Inspection
We centrally purchase equipment, test the data and the machine, then publish the models that clear our review. You get a shorter path from "could work" to a quote your team can act on.
0:00 / 0:00
Core Component Details
We're here to help
Our team is ready to advise you on the best product configuration and procurement plan.
info@eascoutia.com400 158 5899Frequently Asked Questions (FAQ)
How is the ramp height adjusted?
The supplied configuration uses manual hydraulic adjustment, allowing the ramp height to be matched to common loading vehicles within the verified adjustment range.
Where can this ramp be used?
It is suitable for warehouse yards, factories, distribution areas and container loading zones where forklifts need ground-to-vehicle access.
Can it serve temporary loading points?
Yes. The mobile layout is useful for temporary or flexible loading points when a fixed dock platform is unavailable or not convenient.

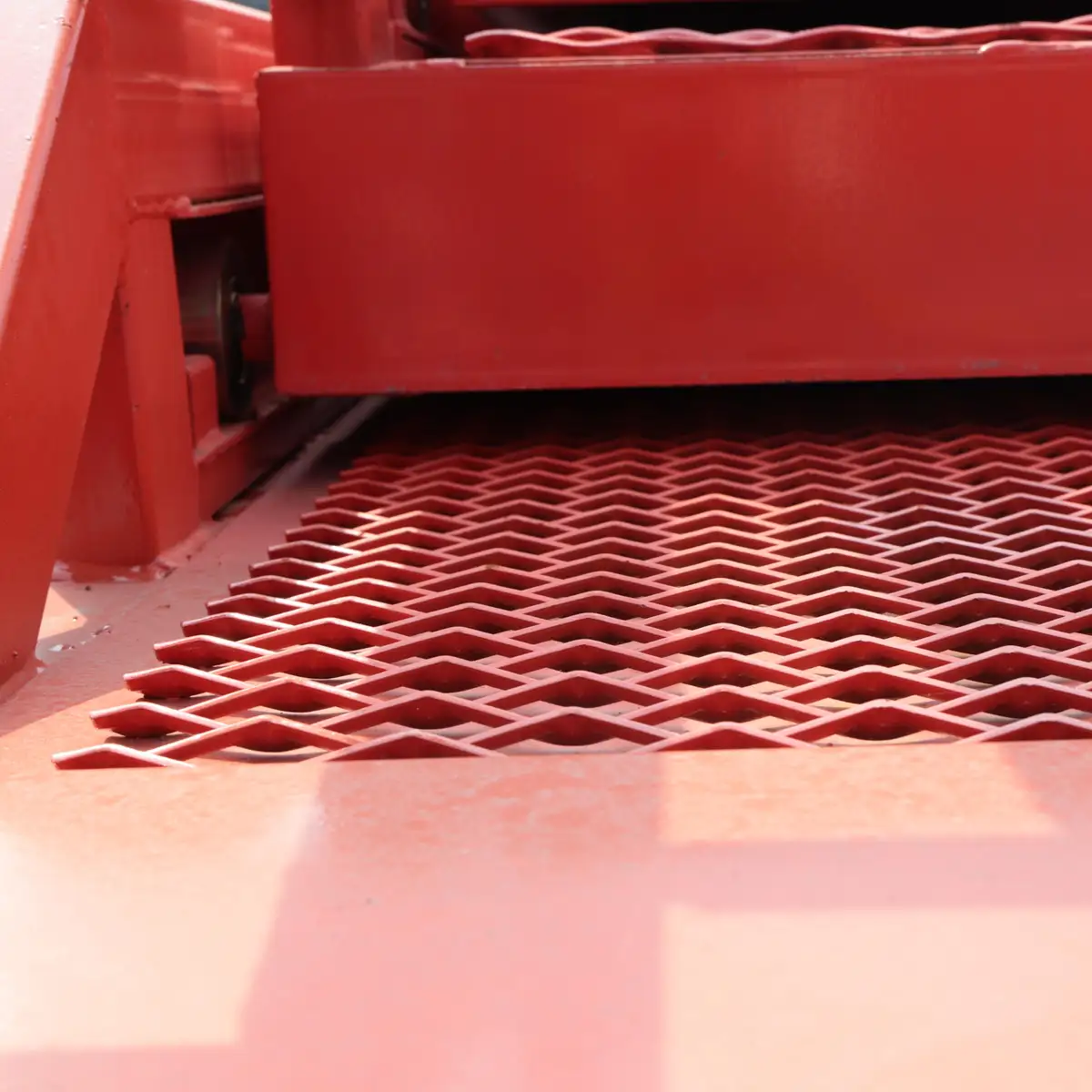

What surface is used on the deck?
The deck uses steel plate with raised anti-slip mesh, providing a practical driving surface for forklift movement during cargo handling.
How is the ramp positioned for work?
The ramp is placed between the ground working area and the vehicle or container, then supported and secured according to the site loading arrangement.
