Liva 880 Body Composition Analyzer
  • Smooth Motion
  • Easy Adjust
  • User Friendly
  • Durable Frame

Gym Training and Fitness Center Use with Liva 880 body detector

Professional application of Liva 880 body detector

Liva 880 body detector is suited to commercial gyms, training studios, rehabilitation rooms and fitness assessment areas. It supports repeatable exercise or measurement routines for users with different body sizes and training goals. Before deployment, confirm user range, resistance or measurement functions, footprint, load and adjustment options.

  • Commercial Gyms
  • Training Studios
  • Rehabilitation Rooms
  • Fitness Assessment
Body Management StudioBody Management Studio
Health Assessment RoomHealth Assessment Room
Personal fitness studioPersonal fitness studio

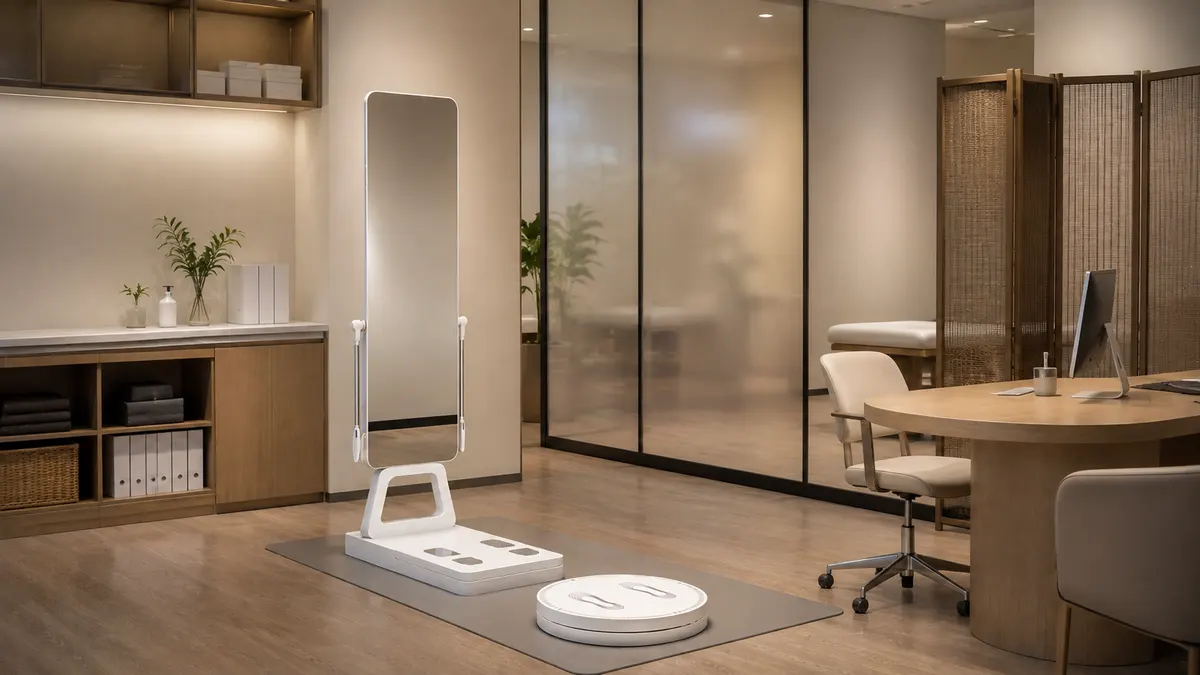

Comprehensive Fitness CenterComprehensive Fitness Center
Sports Training CenterSports Training Center
Body Management StudioBody Management Studio
Health Assessment RoomHealth Assessment Room
Personal fitness studioPersonal fitness studio
Comprehensive Fitness CenterComprehensive Fitness Center

Műszaki adatok és szerkezeti felépítés

Product Structure Diagram

Product Structure Diagram
  1. Mirror Display and Interaction Panel

    Display operation guidance and physical fitness test information.

  2. Left-handheld electrode assembly

    Designed for left-handed use and to perform contact measurements.

  3. Right-hand-held electrode assembly

    Designed for right-hand grip and contact measurement.

  4. Triangular column support frame

    Connects and stably supports the host structure.

  5. Host standing platform top cover

    Supports the user’s standing measurement area.

  6. Host Weighing and Sensing Module

    Acquire the load-bearing capacity and sensing signals of the host platform.

  7. Elongated Connection and Positioning Guide Panel

    Connects the host to the circular platform and guides positioning.

Általános információk

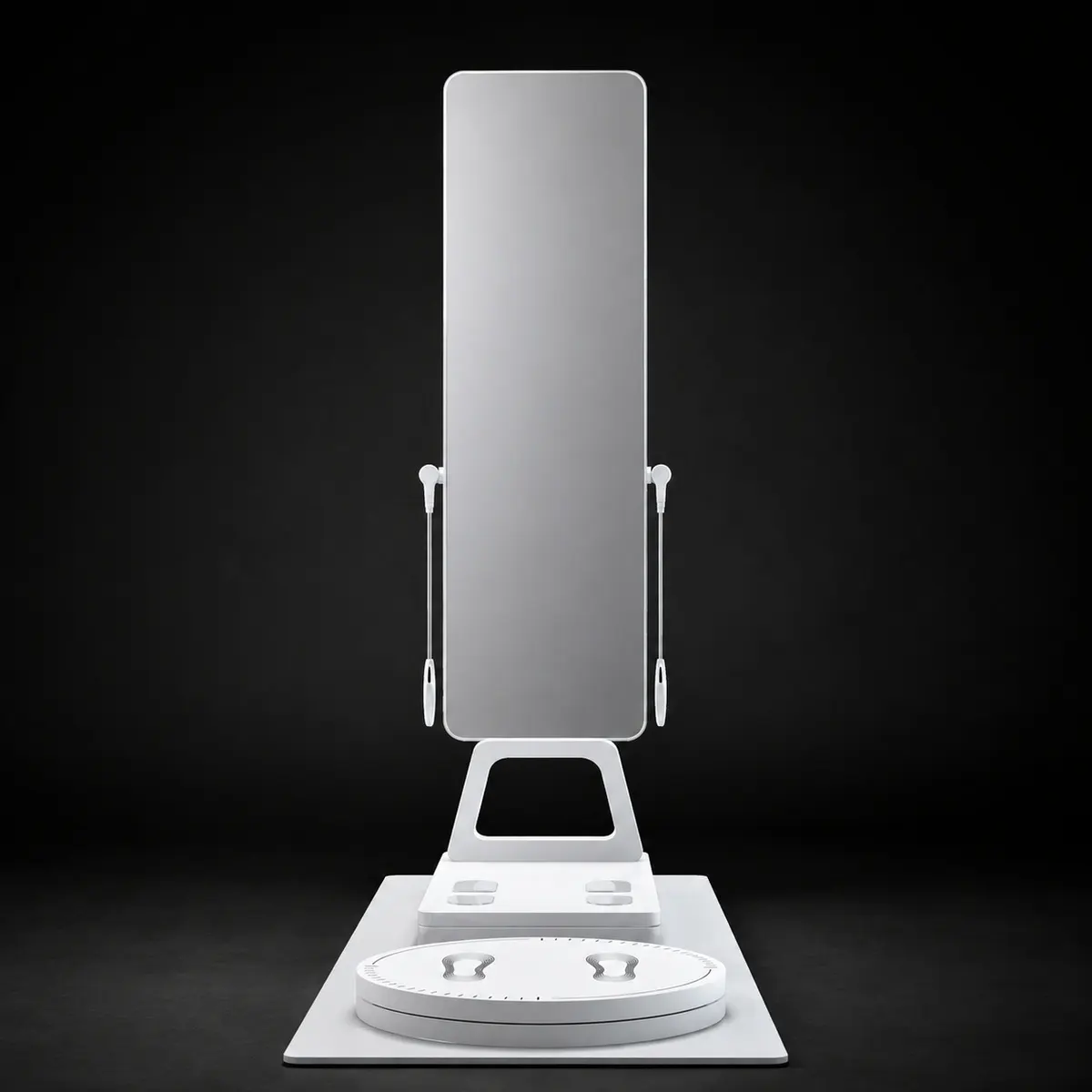

Liva 880 Body Composition Analyzer
Supply voltage
Input voltage: AC 220V, 50/60Hz Output voltage: DC 12V, 5A
Transport Interface
USB 3.0/Bluetooth/Wired/Wireless
Height entry range
100–200 cm; weight measurement range: 0–250kg
Storage environment
Temperature: -20°C to 70°C; ambient humidity shall not exceed 95%.
Measurement method
8-point contact electrodes, multi-frequency bioelectrical impedance analysis technology
Network support
Compatible with wired and wireless networks
Measurement frequency band
5, 20, 50, 100, 250 kilohertz (kHz)

Általános útmutató

Rövid magyarázat

Fő alkatrészek részletei

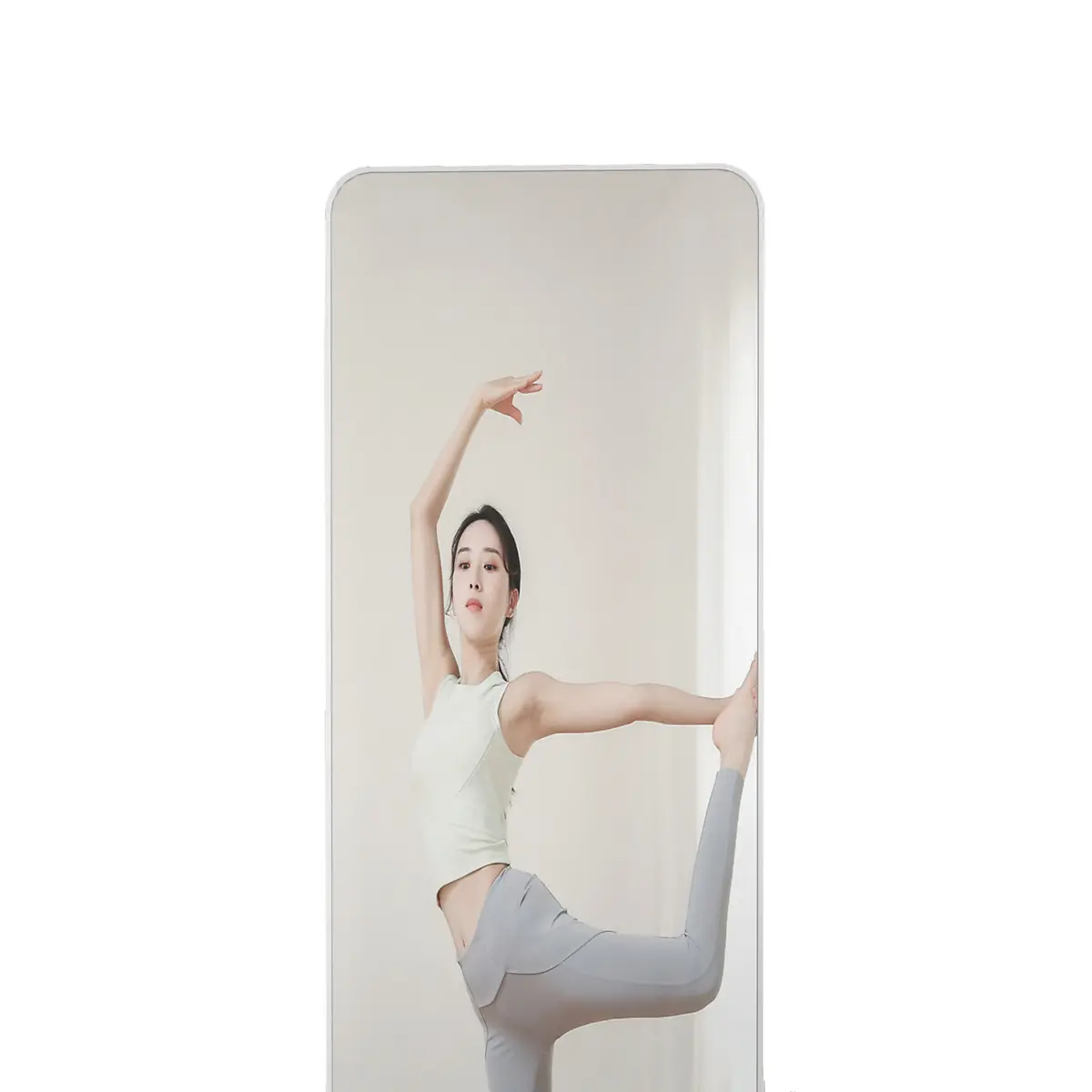

01_High-definition mirror display screen

02_Two-handed measurement electrode

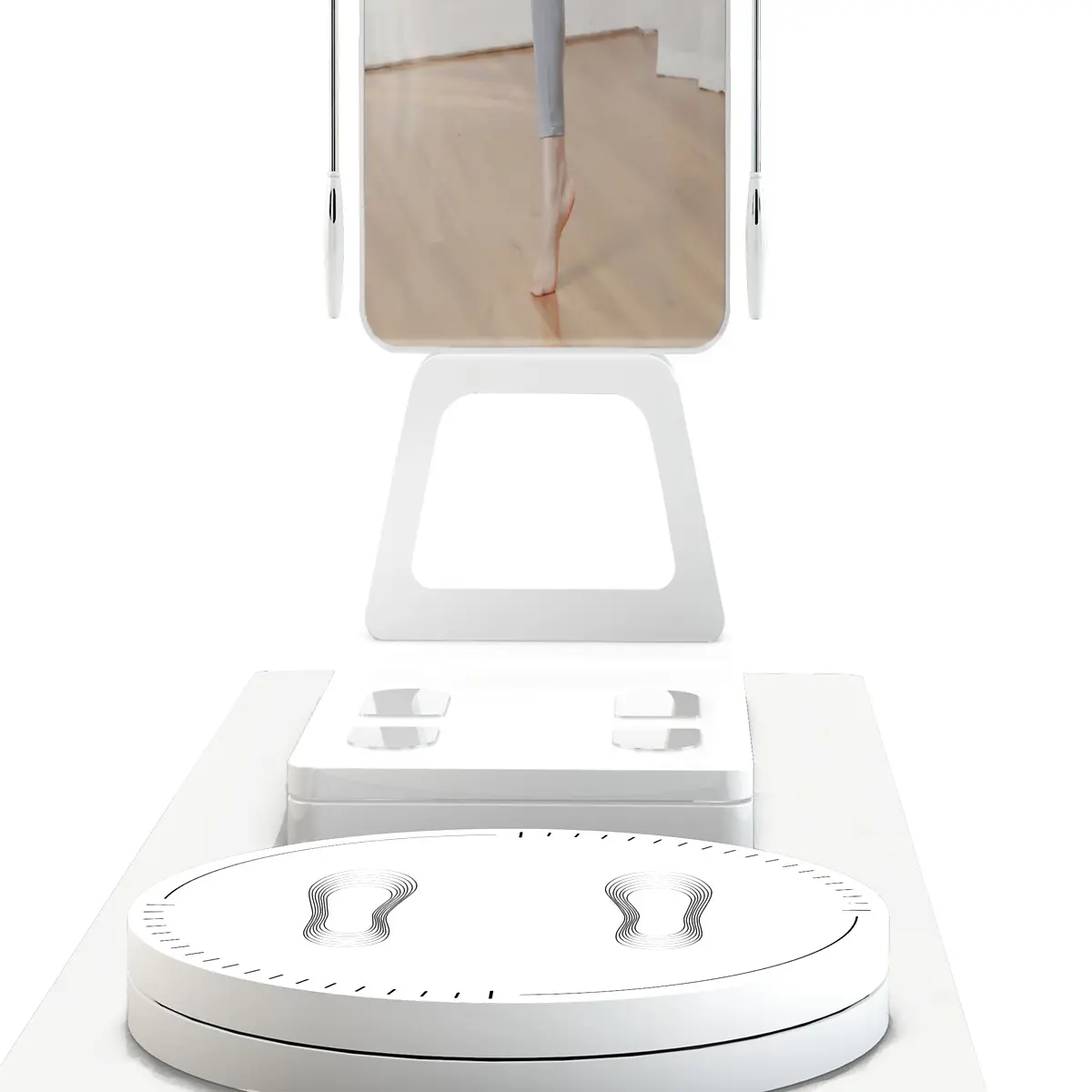

03_Integrated Measurement Host

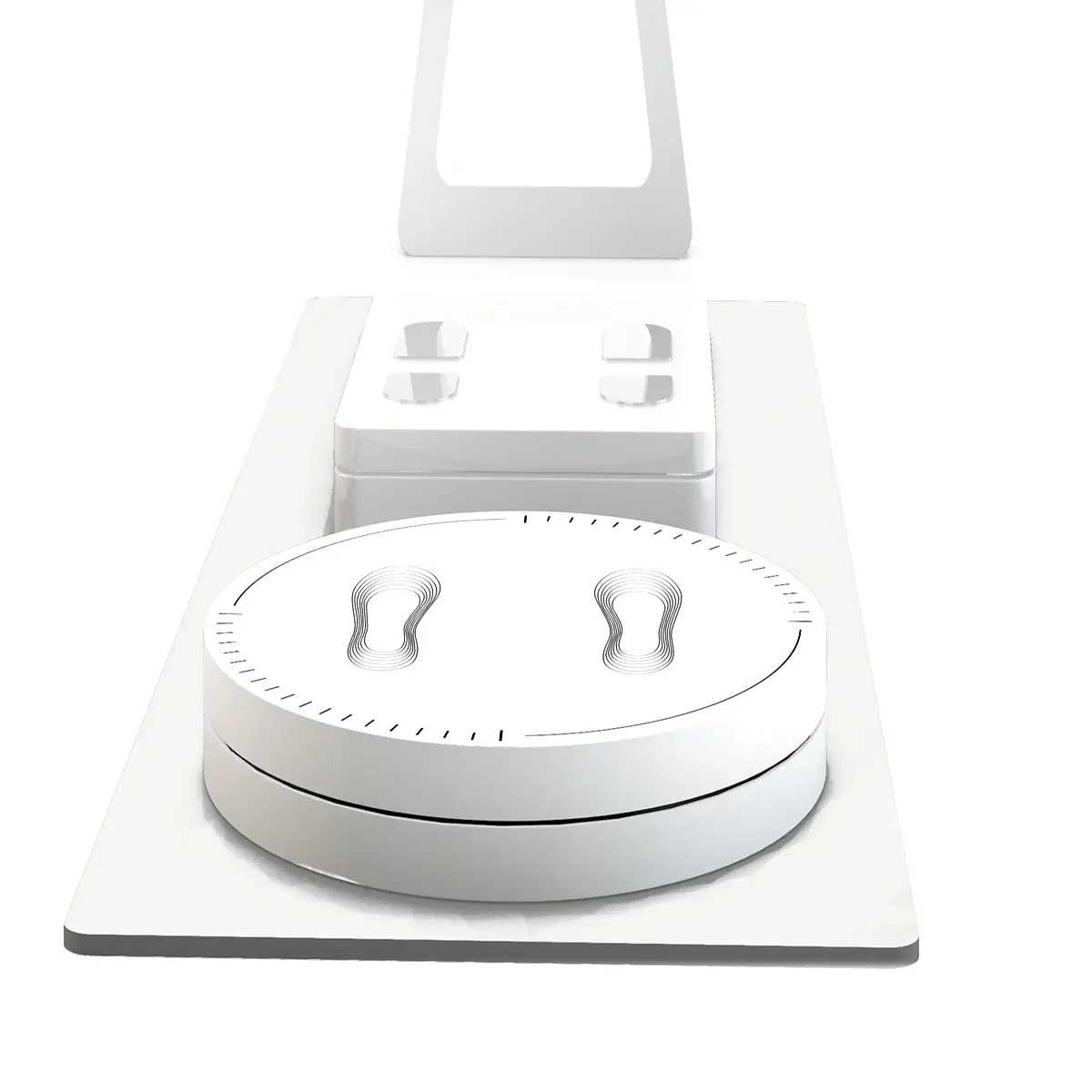

04_Foot Measurement Turntable

880 Details 01_Mirror Display Screen

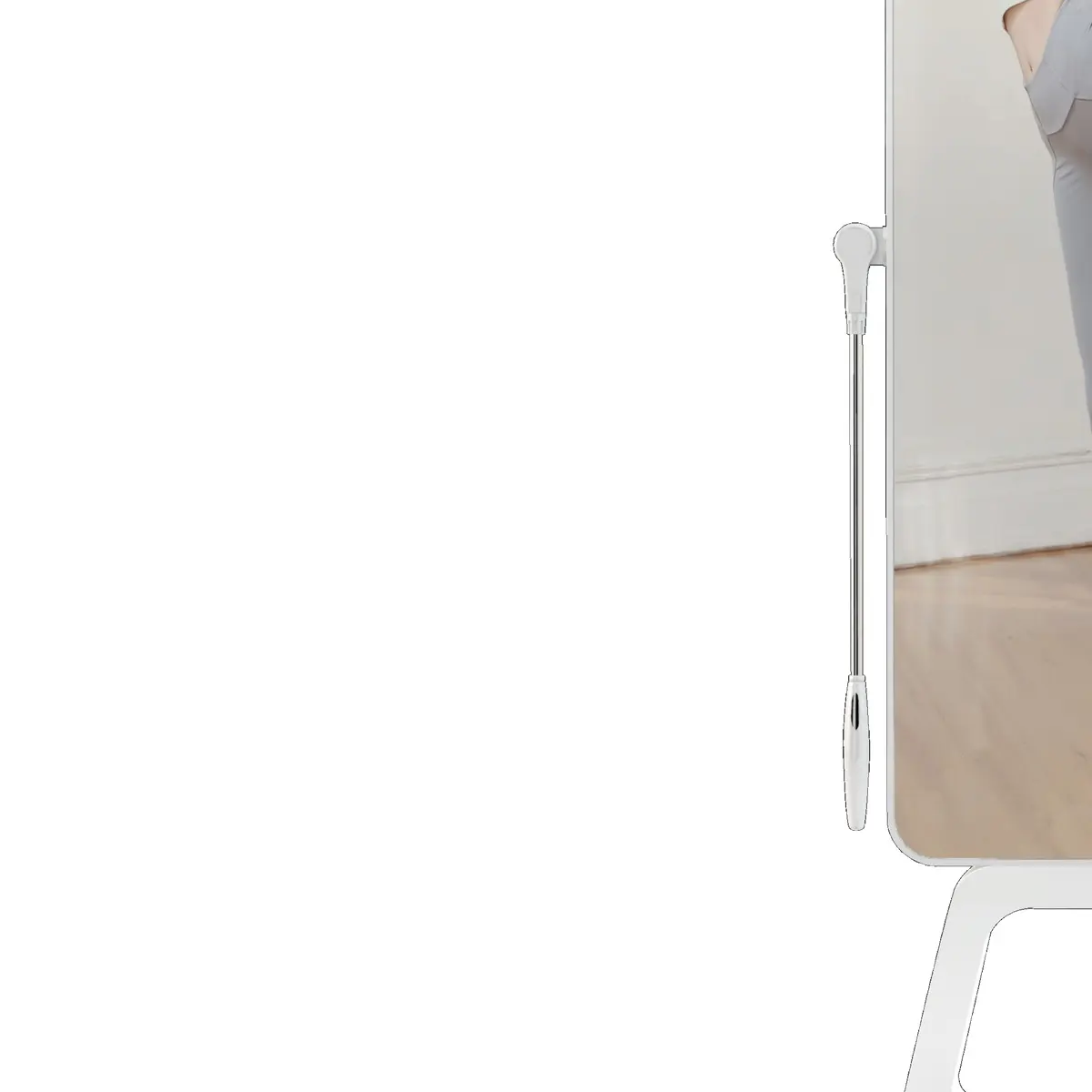

880 Detail 02_Handheld Electrode

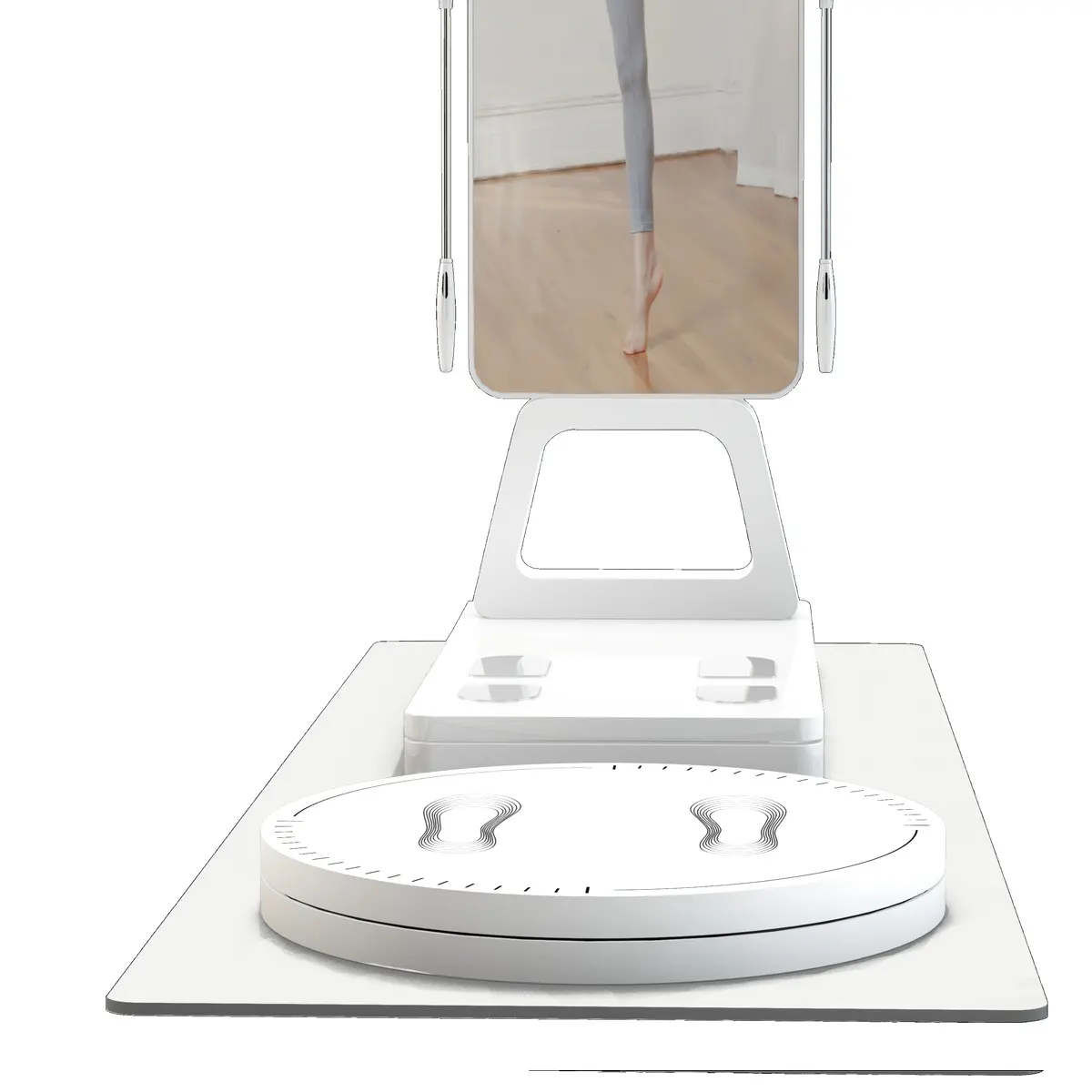

880 Detail 03_Foot Electrode

880 Detail 04_Rotational Detection Platform

Segítünk Önnek

Csapatunk segít kiválasztani a legjobb termékkonfigurációt és beszerzési tervet.

400 158 5899

Frequently Asked Questions (FAQ)

1. Where is Liva 880 body detector typically used?

1. It is commonly used for commercial gyms, training studios, rehabilitation rooms and fitness assessment areas, subject to the selected model and site conditions.

2. How do I choose the right model?

2. Match user range, resistance or measurement functions, footprint, load and adjustment options to the actual workload and operating environment.

3. What should be confirmed before ordering?

3. Confirm model, upholstery or frame color, dimensions and accessory package, then verify the response time and any special requirements.

4. How should it be installed and maintained?

4. Prepare level flooring, adequate safety clearance and scheduled inspection of moving or sensing parts; follow the manual for operation, inspection and routine maintenance.
