Woodworking CNC Nesting Router
  • Furniture panel routing platform
  • Vacuum worktable support
  • Guided spindle gantry system
  • Professional joinery equipment

Furniture Panel Preparation

Organized CNC Routing for Joinery Workshops

These four daylight views present the machine in realistic furniture and joinery interiors, surrounded by plywood stacks, cabinet fronts and finished wood components. The static display keeps the white-and-blue frame, gantry, spindle head, vacuum table, control cabinet, hoses and cable chain visible from distinct sales angles.

  • Clean Workshop View
  • Spindle Head Inspection
  • Cabinetmaking Floor
  • Static Panel Setup
Cabinetmaking Floor OverviewCabinetmaking Floor Overview
Static Furniture Panel SetupStatic Furniture Panel Setup

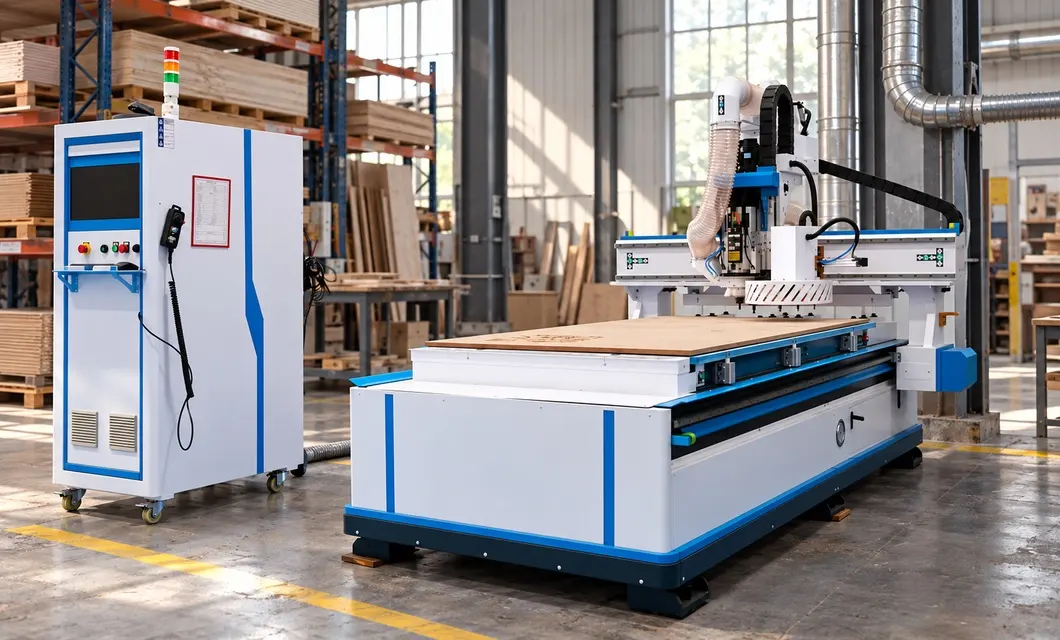

Clean Workshop PresentationClean Workshop Presentation
Access to the Spindle HeadAccess to the Spindle Head
Cabinetmaking Floor OverviewCabinetmaking Floor Overview
Static Furniture Panel SetupStatic Furniture Panel Setup
Clean Workshop PresentationClean Workshop Presentation
Access to the Spindle HeadAccess to the Spindle Head

Specifications & Structural Decomposition

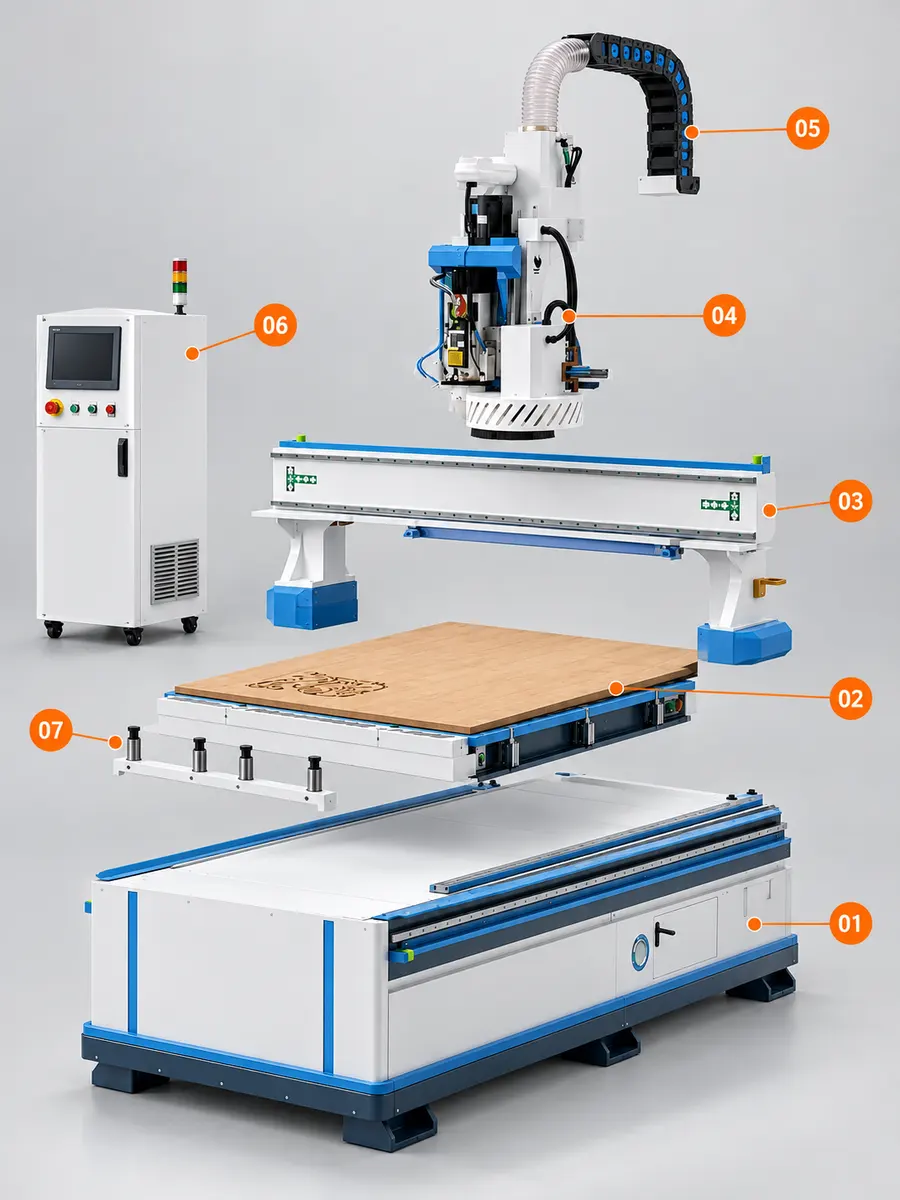

Product Structure Diagram

Product Structure Diagram
  1. Closed Machine Base

    Supports the router frame and keeps the lower housing enclosed.

  2. Vacuum Worktable

    Provides the visible sheet support surface for CNC routing.

  3. Gantry and Guide Rail

    Spans the work area and carries the moving spindle assembly.

  4. Spindle Head and Dust Shoe

    Holds the visible cutting spindle and dust shoe above the table.

  5. Cable Chain and Vacuum Hose

    Guides service cables and extraction hose along the moving axis.

  6. Freestanding Control Cabinet

    Provides the visible operator interface and electrical enclosure.

  7. Front Locating Pin Set

    Positions sheet material against the front stops on the table.

General information

Woodworking CNC Nesting Router
Gross weight of the entire machine
2300kg
Work itinerary
Max 1300*2800*200mm
screw rod
Taiwan TBI
External dimensions
2200*3850*2300mm
Guide rail
Taiwan Dinghan 30 Guide Rail, OEM Slider
Dry-run speed
X-axis:50-90m/min Y-axis:50-90m/min Z-axis:20m/min
Maximum machining speed
X-axis:10-25m/min Y-axis:10-25m/min Z-axis:12m/min

General instructions

Simplified explanation

Real Factory Footage

Real on-site records from our factory, offering a practical view of our production capability and delivery readiness.

01

Factory Site View 1

0:00 / 0:00

Core Component Details

Cable Chain Guide

Control Cabinet Panel

Cutting Head Closeup

Dust Hood Assembly

Dust Hose Connection

Electrical Cabinet Wiring

Front Worktable Edge

Spindle Brush Head

Spindle Tooling

Spindle Underside

Tool Rack Detail

Vacuum Table Surface

We're here to help

Our team is ready to advise you on the best product configuration and procurement plan.

400 158 5899

Frequently Asked Questions (FAQ)

Which workshop layout is suitable?

A level furniture or joinery workshop with clear floor space suits the complete bed, gantry, control cabinet and connected hoses shown in the product views.

How are panels supported on the bed?

Place sheet panels flat on the perforated worktable and keep the visible support area clear while reviewing the setup for a planned routing task.

What parts should remain accessible?

Leave access around the control cabinet, gantry ends, table perimeter and hose connections so inspection and service planning remain straightforward.

How is the spindle area presented?

The spindle head and dust-routing assembly are shown above the table as a connected working interface, with the equipment powered off in these scenes.

What should be confirmed before dispatch?

Confirm the agreed machine configuration, access route and installation area before dispatch, and communicate any special requirements in advance.
