Heavy-duty disc harrow
  • Heavy Disc Harrow
  • Trailed Disc Harrow
  • Dual Wheel Harrow
  • Field Tillage Tool

Heavy Disc Harrow Across Field Tasks

Four Field Tillage Applications

These four scenes show the same red trailed disc harrow working in wheat stubble, corn residue, a prepared pre-sowing field and dry fallow ground. Every view retains the twin main frame, paired black disc gang assemblies, paired center wheels, long drawbar and spring-screw assembly in a complete tractor-towed layout.

  • Wheat Stubble Primary Tillage
  • Corn Residue Soil Mixing
  • Pre-Sowing Field Preparation
  • Fallow Field Clod Breaking
Pre-Sowing Field PreparationPre-Sowing Field Preparation
Fallow Field Clod BreakingFallow Field Clod Breaking
Wheat Stubble Primary TillageWheat Stubble Primary Tillage
Corn Residue Soil MixingCorn Residue Soil Mixing
Pre-Sowing Field PreparationPre-Sowing Field Preparation
Fallow Field Clod BreakingFallow Field Clod Breaking
Wheat Stubble Primary TillageWheat Stubble Primary Tillage
Corn Residue Soil MixingCorn Residue Soil Mixing

Specifications & Structural Decomposition

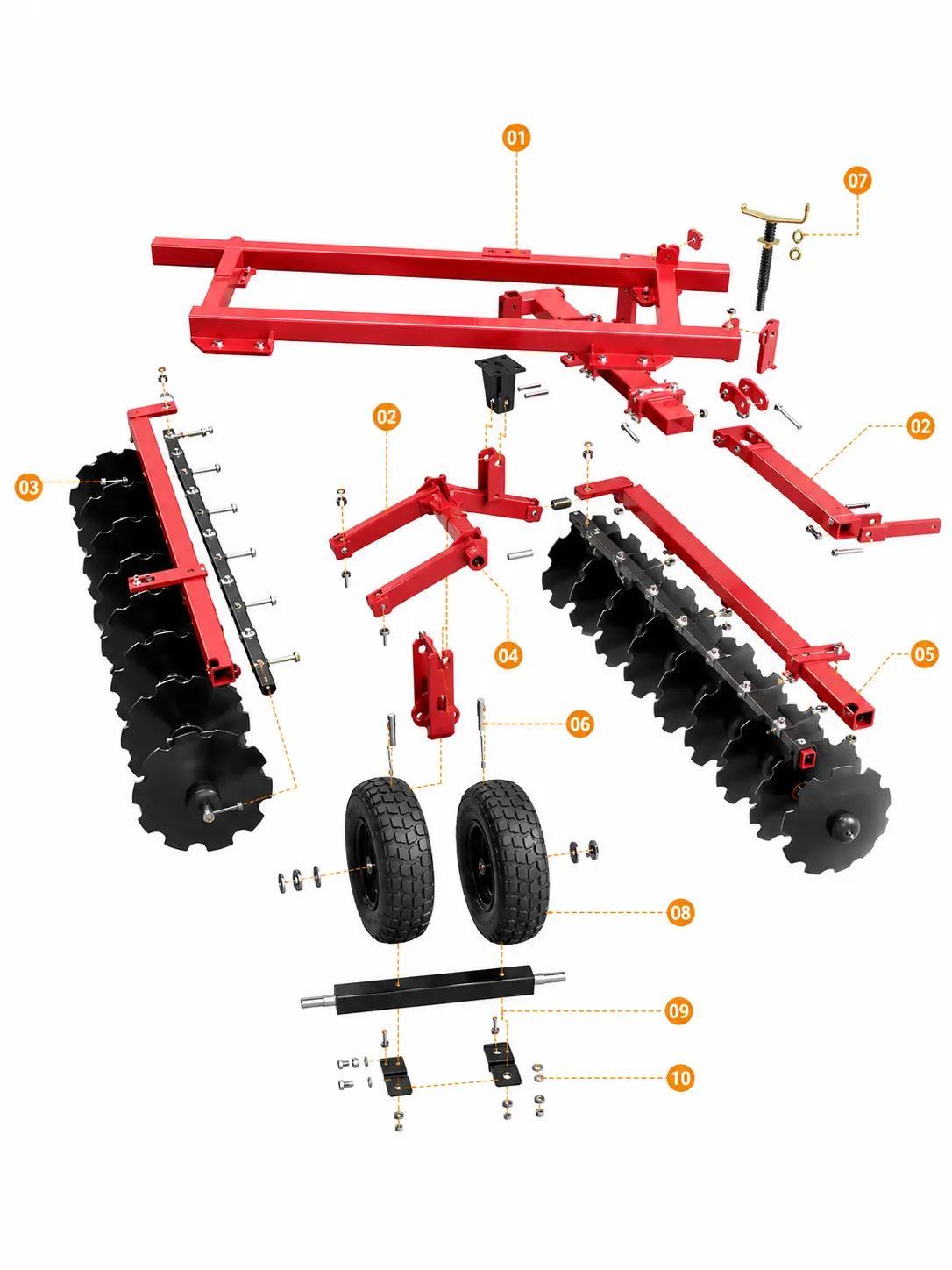

Product Structure Diagram

Product Structure Diagram
  1. Twin Rectangular Main Frame

    Two long red box-section beams with crossmembers, bolted plates and visible gang mounting points.

  2. Paired Disc Gang Assemblies

    Paired black gang assemblies carrying closely spaced scalloped concave discs beneath the frame.

  3. Dual Transport Wheel Assembly

    Two central black tires mounted together on the visible red pivot arms and supporting linkage.

  4. Drawbar and Screw Adjuster

    Long red towing member paired with the exposed spring, screw and handle adjustment structure.

  5. Main Frame Crossmembers

    Crossmembers and bolted plates distribute loads between the twin beams and the disc gang mounting points.

  6. Disc Gang Shafts

    Gang shafts hold the scalloped discs in aligned rows and maintain consistent soil contact during operation.

  7. Bearing and Spacer Hardware

    Bearing housings, spacers and end hardware support smooth rotation of the paired disc gangs.

General information

Heavy-duty disc harrow
Product Parameters
Working Width (mm) 2500 Working Depth (mm) 180-220 Disc Quantity 24 Disc Diameter (mm)660
Adapted horsepower
110hp
Weight
1950Kg
Suspension type
Cat Ⅱ three-point suspension
Hydraulic output device
1 set

General instructions

Simplified explanation

Core Component Details

Central Dual Wheel Pivot

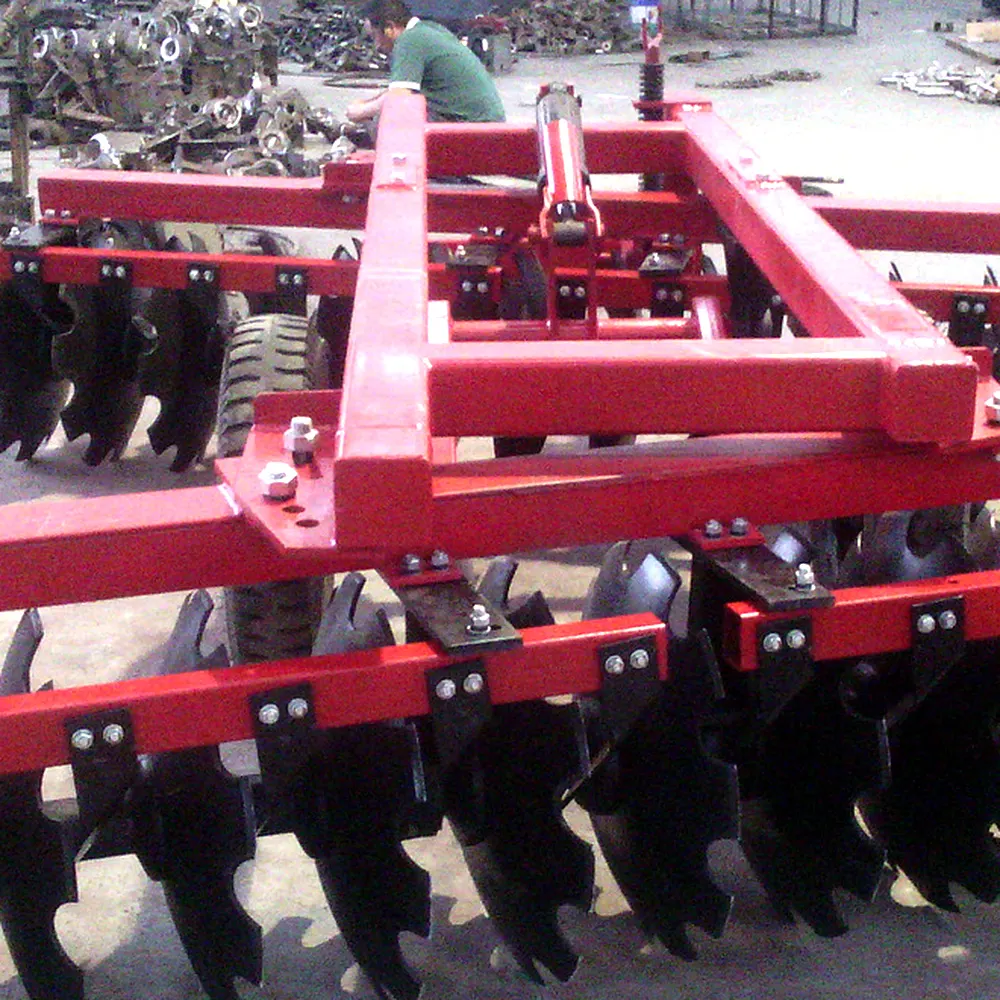

Central Linkage and Pivot Mount

Gang Clamp and Crossmember

Scalloped Disc Gang and Shaft

Spring Screw Adjustment

Twin Main Frame and Bolted Bracket

Scalloped Disc Gang and Shaft

Gang Clamp and Crossmember

We're here to help

Our team is ready to advise you on the best product configuration and procurement plan.

400 158 5899

Frequently Asked Questions (FAQ)

Which product identity is used throughout the formal image set?

Every formal image uses the same red twin-beam frame, paired disc gang assemblies, paired center wheels, drawbar and screw adjuster.

Which visible parts should be reviewed before use?

Review the visible towing point, frame bolts, gang shafts, bearing areas, wheel linkage and adjustment hardware.

Can the product color be designated for an order?

The purchasing plan lists the product color as designated color.

Which field settings appear in the application scenes?

The scenes show wheat stubble, corn residue, pre-sowing preparation and dry fallow clod breaking.

How should special purchasing or connection needs be communicated?

Communicate special requirements based on actual needs so the requested details can be reviewed before confirmation.
