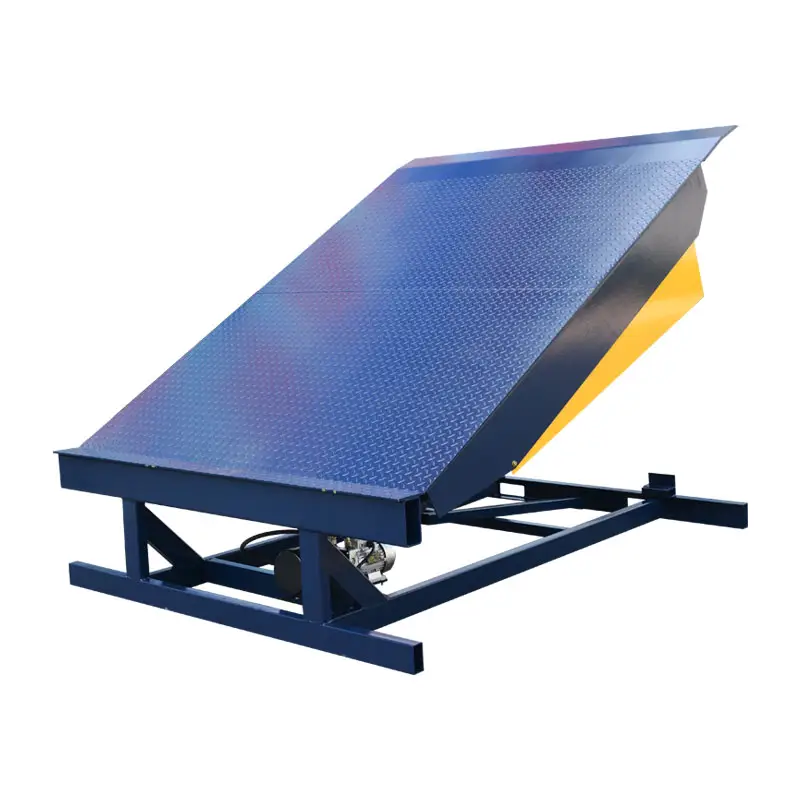

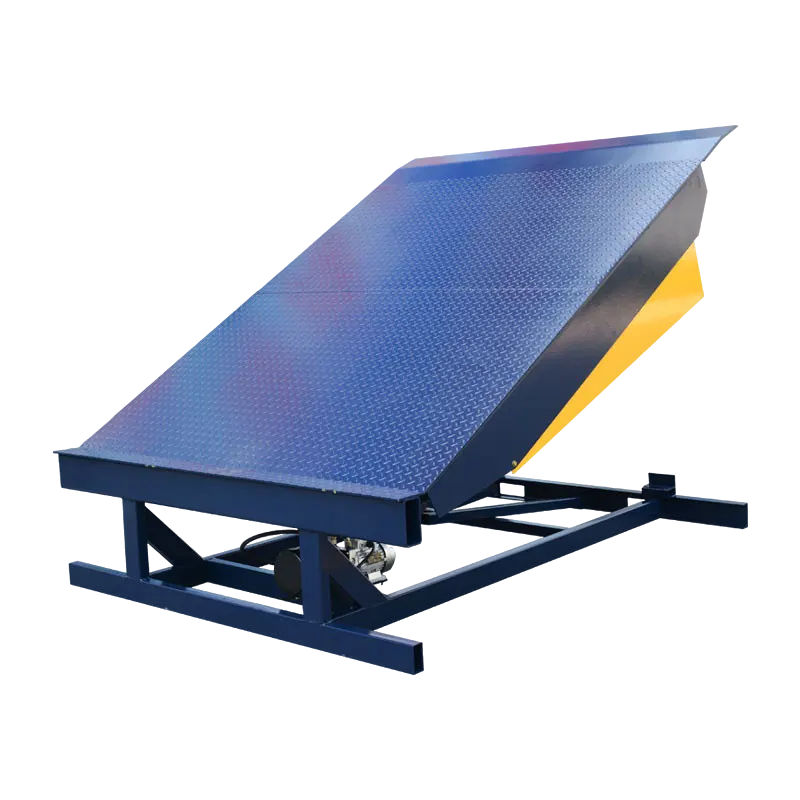

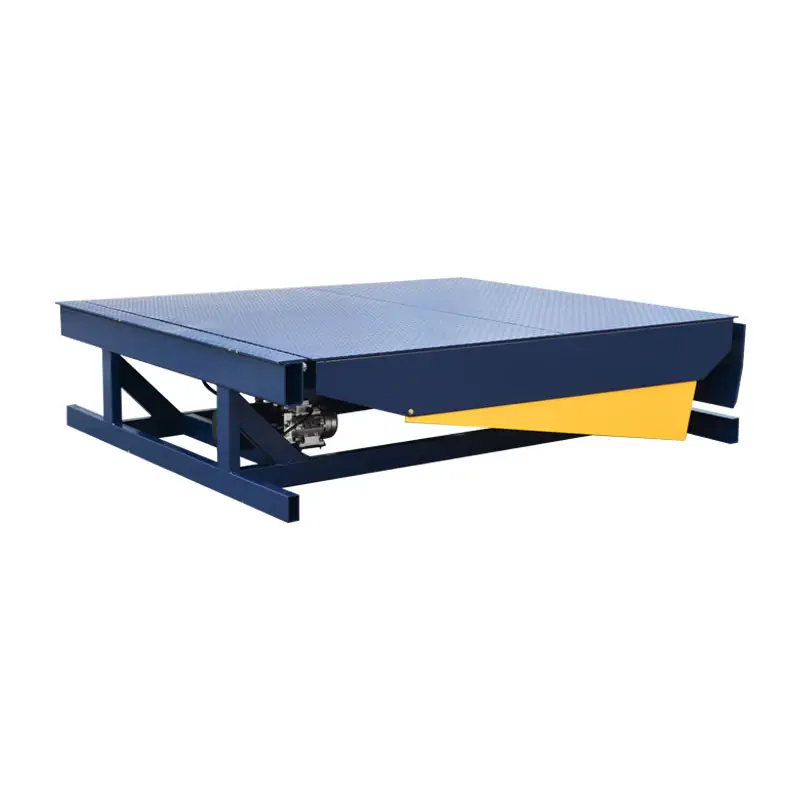

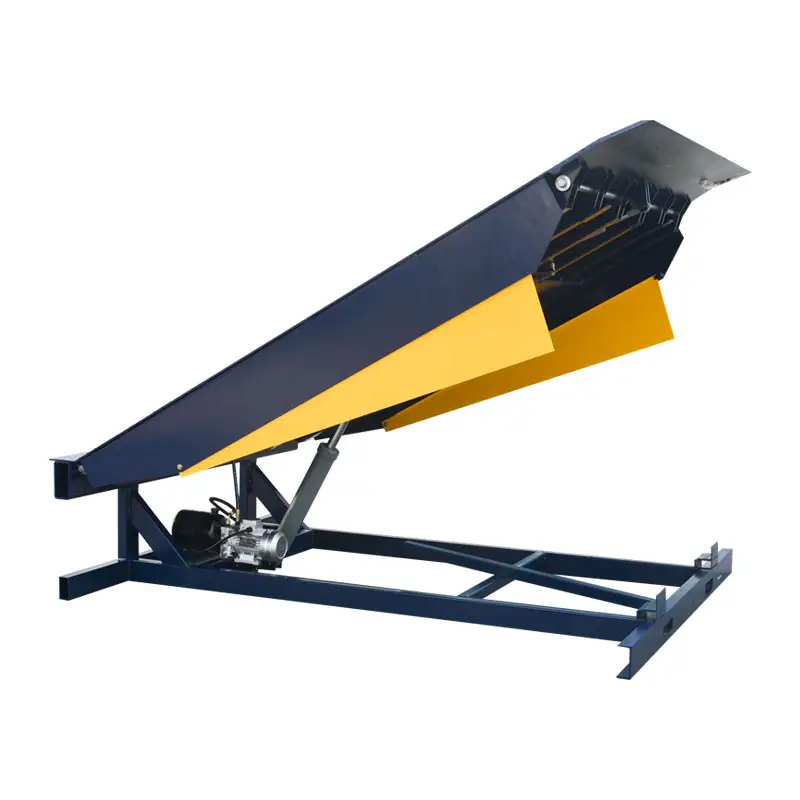

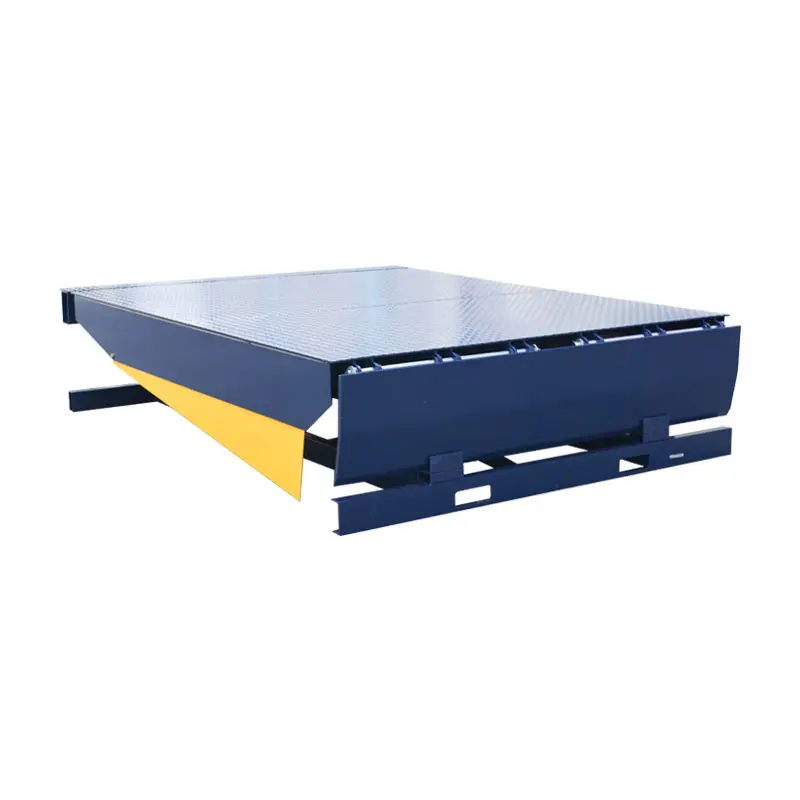

Dock Leveler

Name: Dock Leveler
SKU: p1_0Cqz6QrN3tuTYNYjdiyL2czEud4
Availability: InStock

Dock leveler is a professional auxiliary equipment to load and unload the goods faster. Its height adjustment function makes a bridge between the truck and the cargo platform of the warehouse. Forklifts and other handling vehicles can drive directly into the trucks through it for cargo loading and unloading. Only one person can operate PRODUCT CUSTOMIZATION We can customize products according to your requirements to make products more in line with your needs. Like load, color, brand, logo, nameplate, and so on.

DCQG

Core parameters

Full specifications

Maximum working height: 300mm\300mm\300mm\300mm
Platform dimensions: 2000*2500mm\2000*2500mm\2000*2500mm\2000*2500mm
Rated power: 0.75kw\0.75kw\0.75kw\0.75kw

QuantityUnit: Units

Get a Tailored Procurement Plan

产品型号: DCQG
产品颜色: Designated color
响应时间: 24 hours
特殊需求: Communicate based on actual needs

Loading Bay Access for Forklift Transfer and Goods Handling

Efficient Dock-to-Truck Transfer

his dock leveler is designed for distribution-center loading, forklift transfer, dock bridge adjustment, and receiving-area inspection. The adjustable deck bridges the height difference between the warehouse platform and truck bed, allowing forklifts and other handling vehicles to move directly across the loading interface during goods transfer.

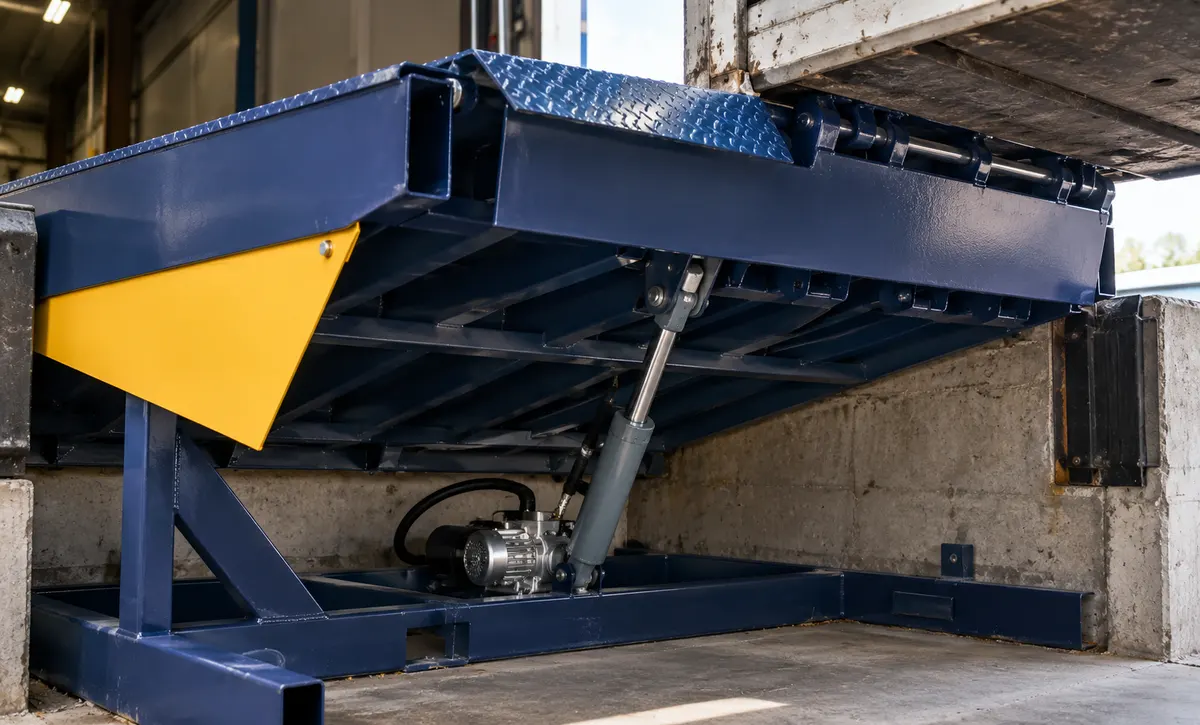

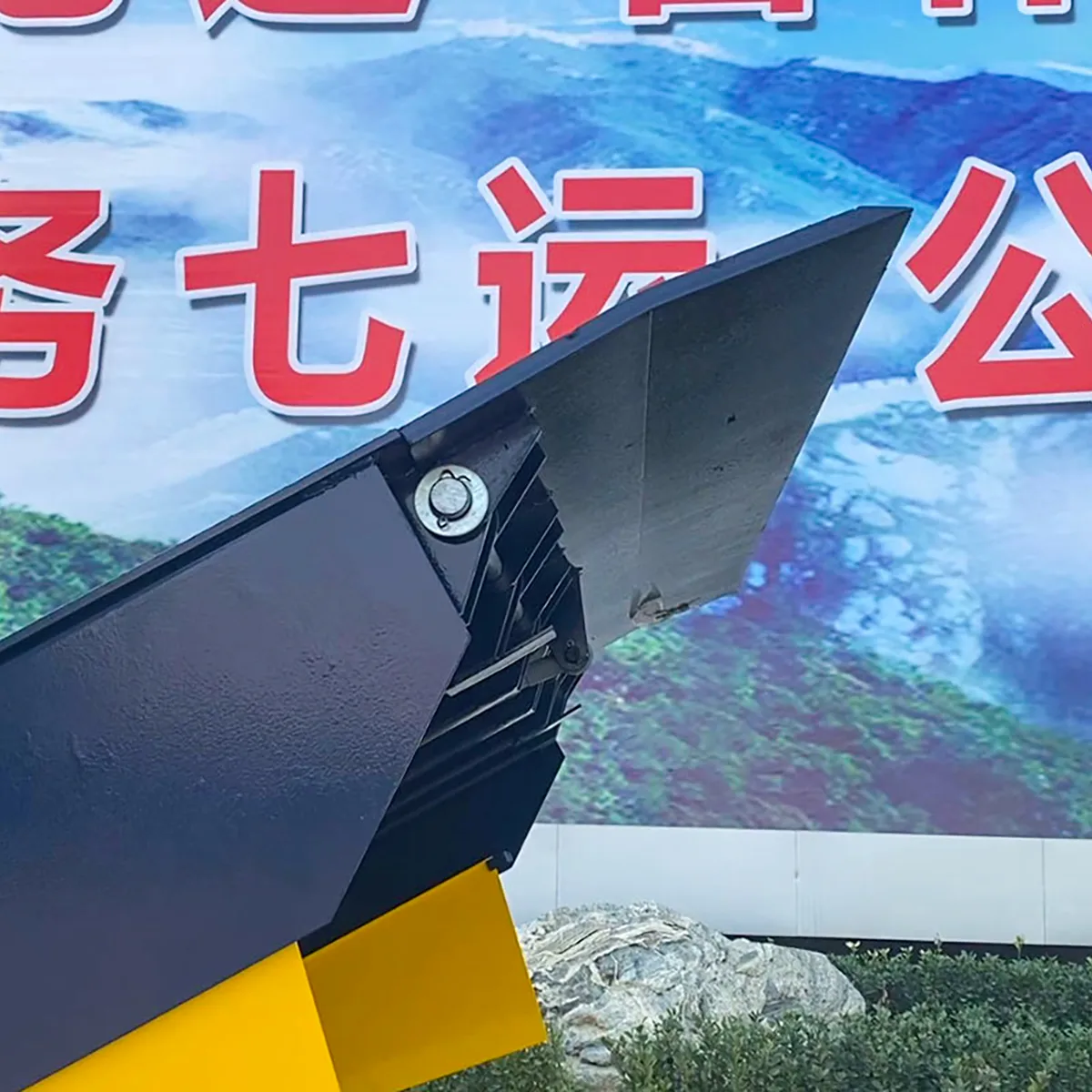

Focuses on the adjustable deck, tongue plate, and lifting mechanism during dock-height adjustment

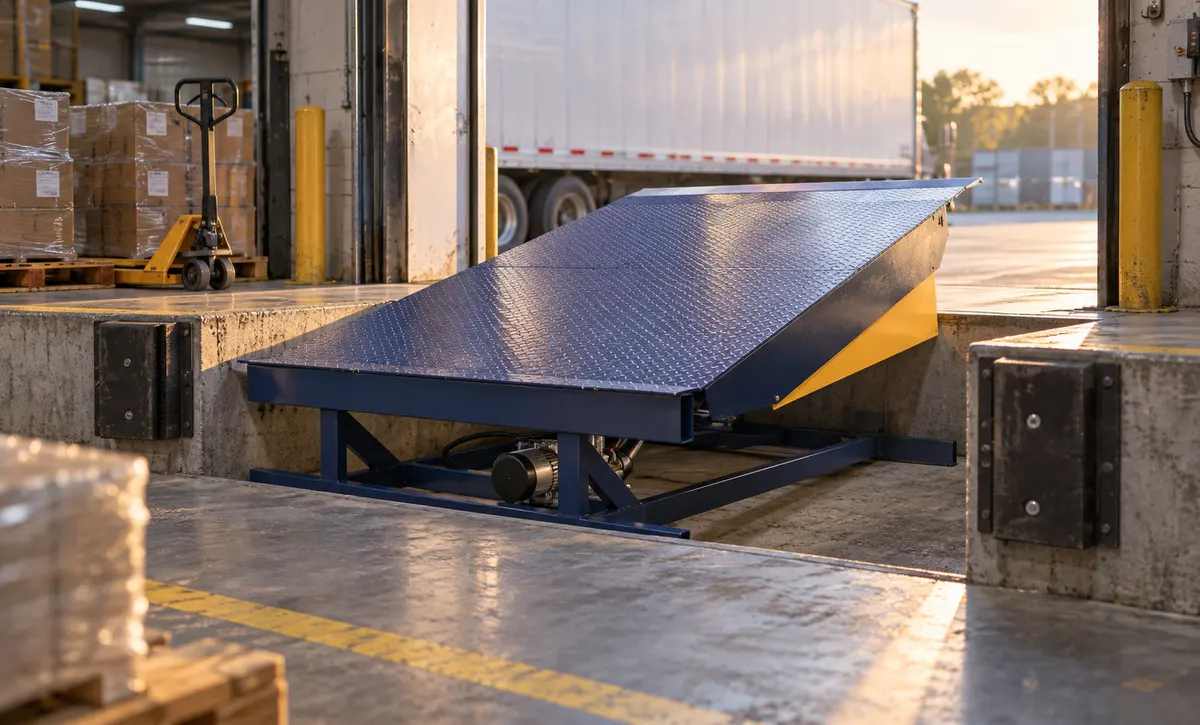

Supports receiving workflows where the dock interface is positioned and checked before material transfer

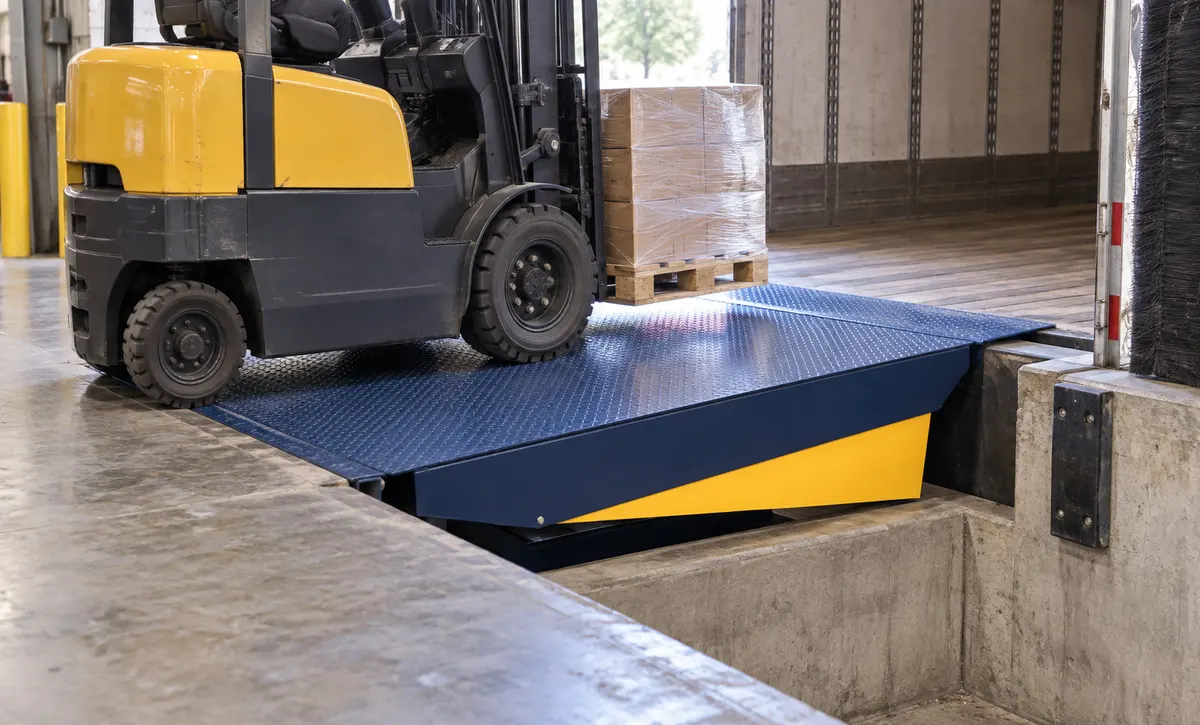

Allows forklifts and handling vehicles to travel directly between the dock platform and truck bed

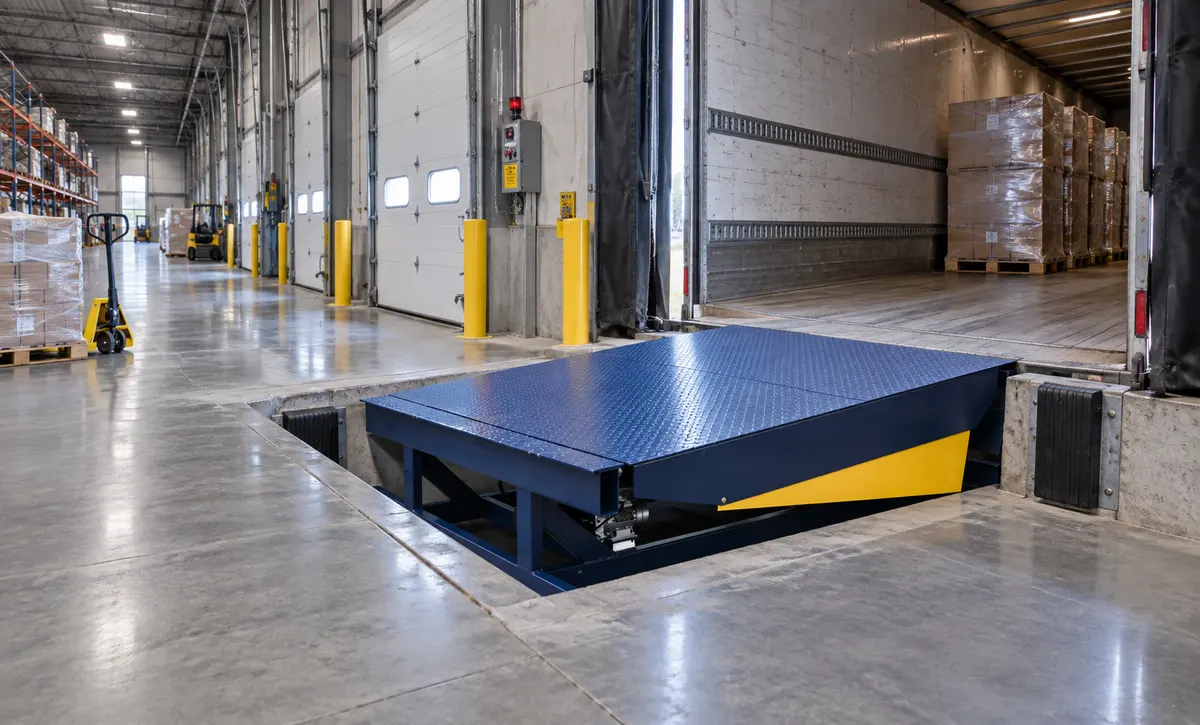

Creates an adjustable connection between the warehouse dock and truck for loading and unloading operations

Focuses on the adjustable deck, tongue plate, and lifting mechanism during dock-height adjustment

Supports receiving workflows where the dock interface is positioned and checked before material transfer

Allows forklifts and handling vehicles to travel directly between the dock platform and truck bed

Creates an adjustable connection between the warehouse dock and truck for loading and unloading operations

Specifications & Structural Decomposition

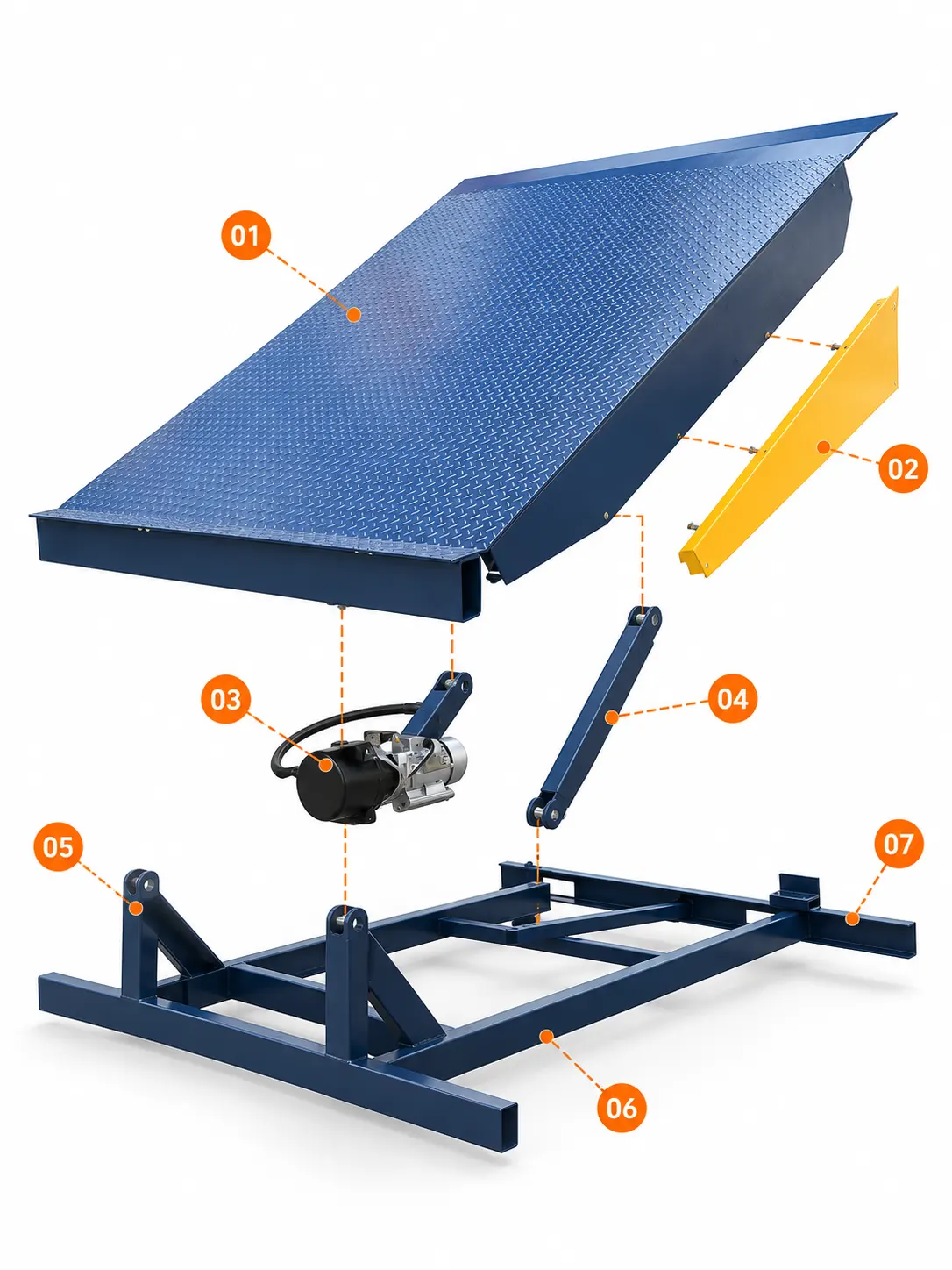

Dimensional Diagram

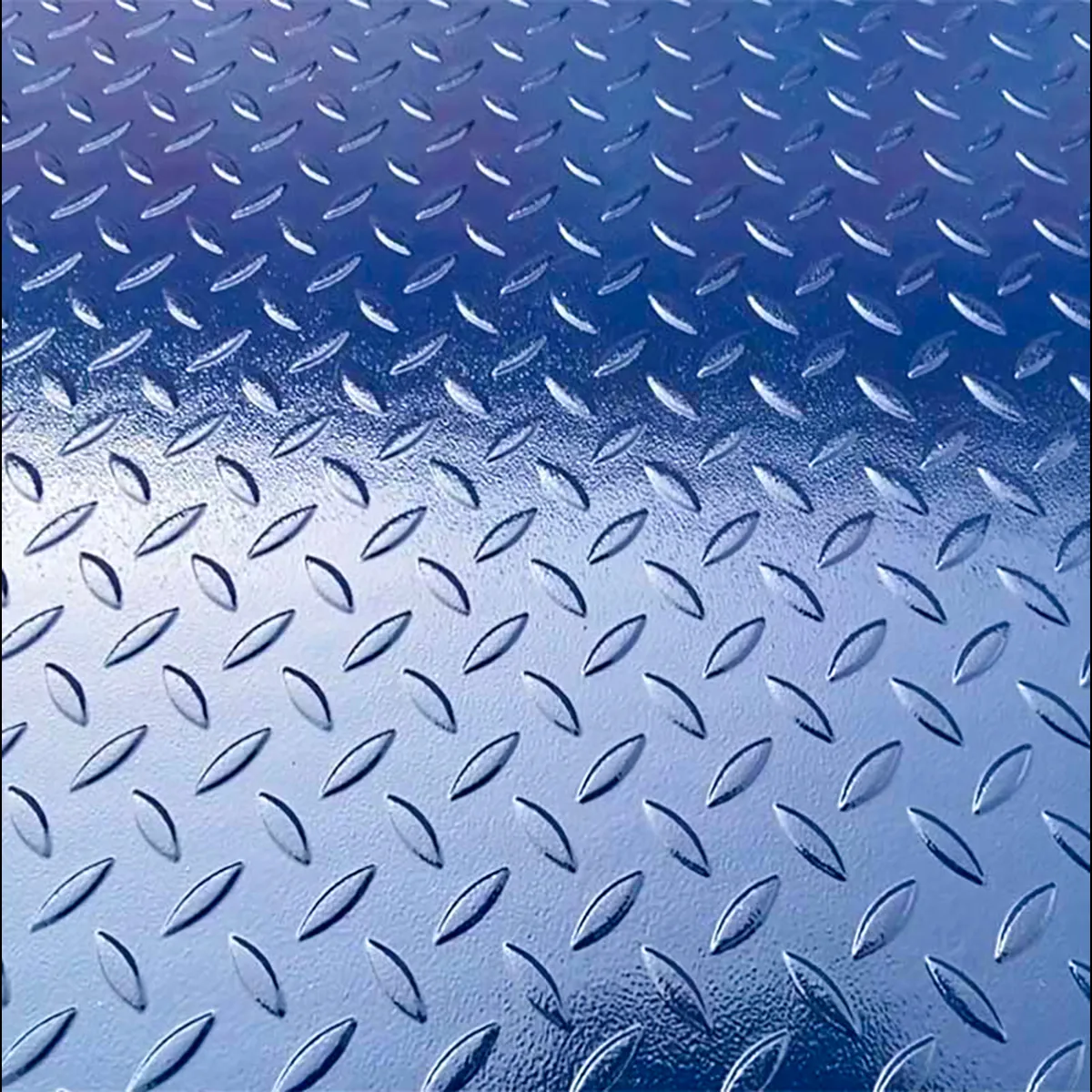

Dock Platform Deck
The reinforced deck provides the main load surface between the dock and vehicle.

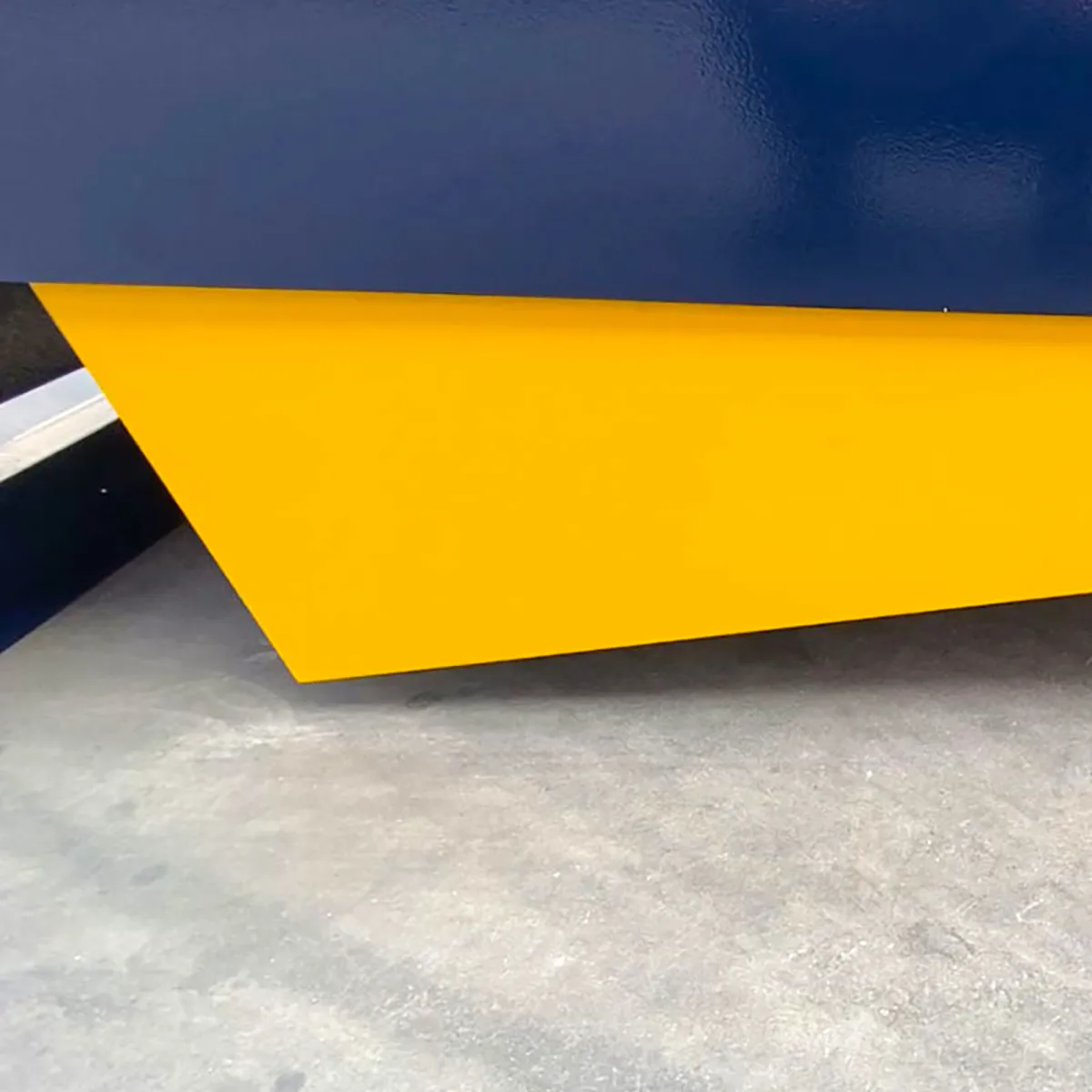

Side Safety Panel
The side panel covers the exposed gap beside the raised platform.
Hydraulic Power Unit
The power unit supplies hydraulic pressure for lifting the dock platform.
Lifting Link Arm
The link arm connects the platform to the base during lifting movement.
Pivot Support Bracket
The reinforced bracket supports the pivot connection of the lifting mechanism.
Base Frame Assembly
The rigid frame supports the platform, hydraulic system, and lifting components.
Rear Support Beam
The rear beam supports and positions the dock leveler within the installation area.
