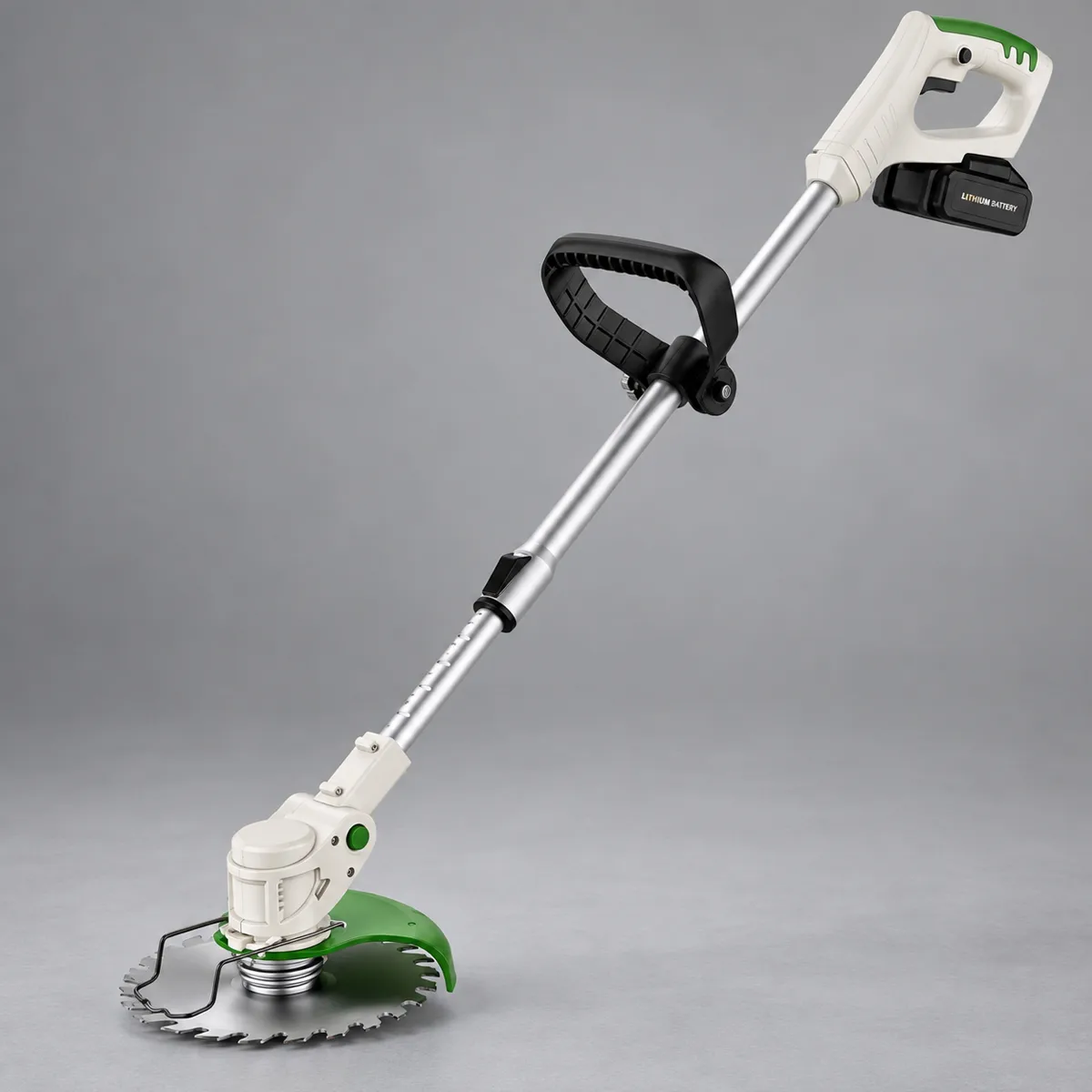

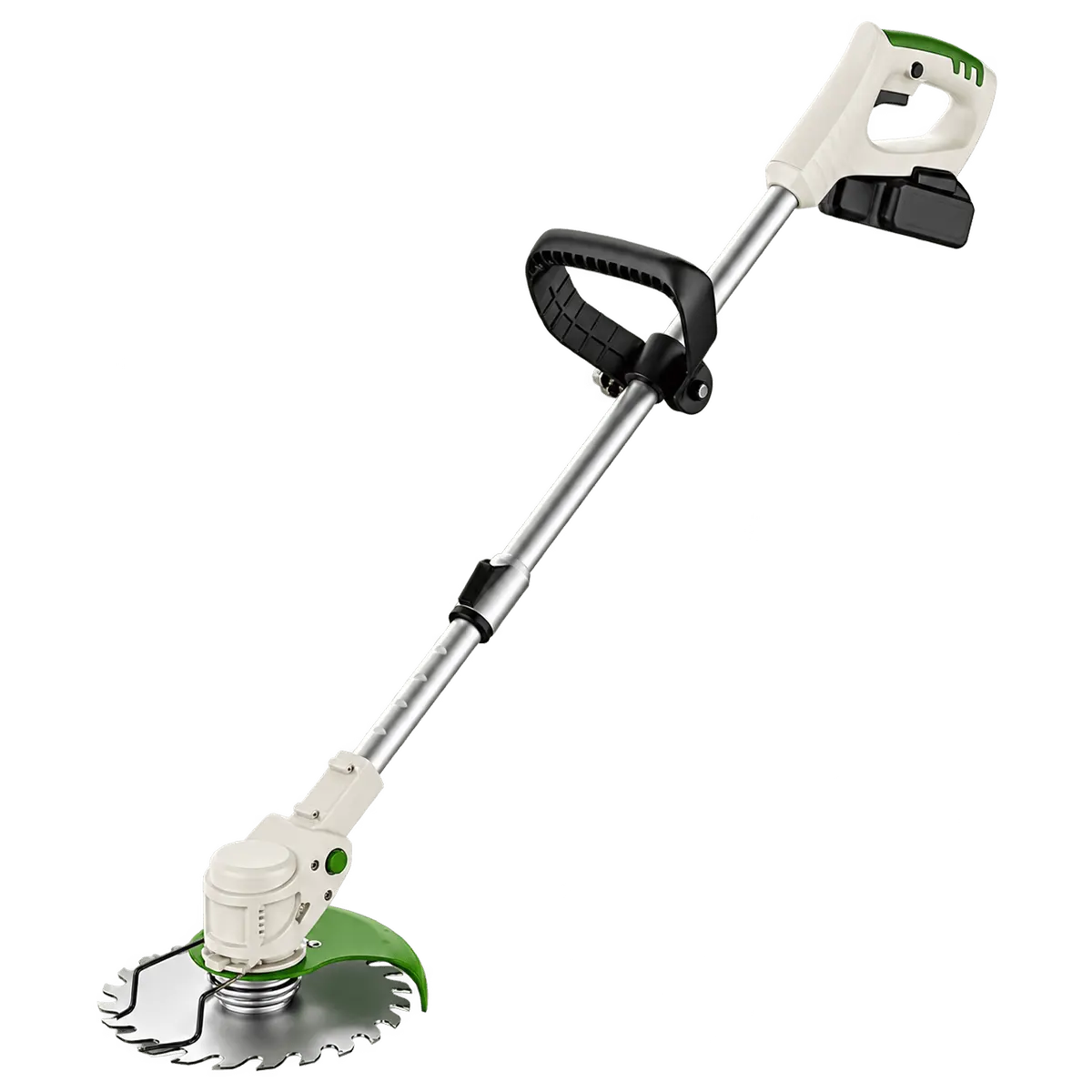

Lithium Electric Mower
  • Lithium Battery Power
  • Adjustable Length
  • Auxiliary Handle
  • 8000 RPM Load Speed

Versatile Garden Grass Trimming

Maintain small lawns, path borders, fence lines, and grass around garden beds with cordless freedom.

In small yards, cut overgrown grass to tidy lawn patches. Along paths, trim encroaching growth to maintain neat borders. Beside fences, use the adjustable length to reach grassy strips. Around flower beds, guide the trimmer with both hands to tidy surrounding grass while keeping the blade clear of plants.

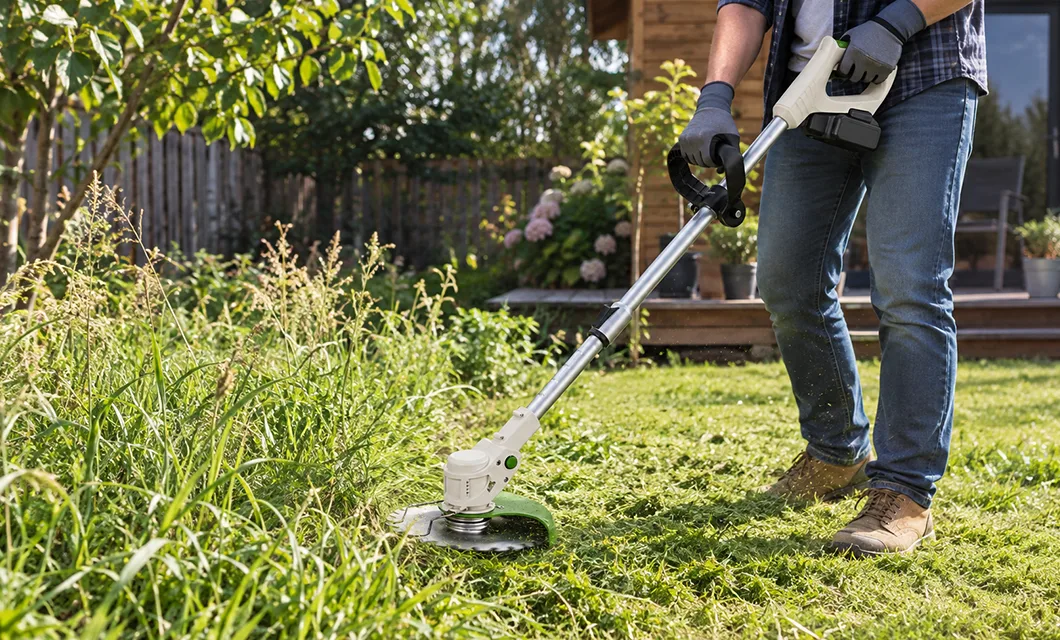

  • Backyard Upkeep - Trim Uneven Grass Around the Yard
  • Walkway Borders - Clear Grass Creeping Onto Paths

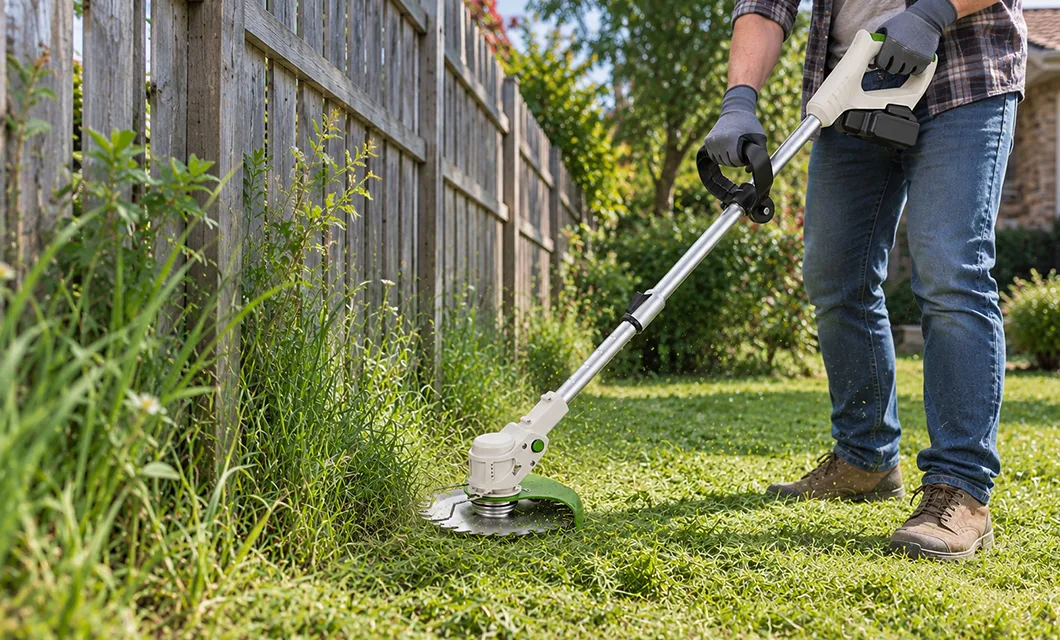

  • Fence Side Areas - Tidy Grass Along Boundary Lines
  • Flower Bed Edges - Trim Grass Outside Planted Beds
Trim Grass Outside Planted BedsTrim Grass Outside Planted Beds
Trim Uneven Grass Around the YardTrim Uneven Grass Around the Yard
Clear Grass Creeping Onto PathsClear Grass Creeping Onto Paths
Tidy Grass Along Boundary LinesTidy Grass Along Boundary Lines
Trim Grass Outside Planted BedsTrim Grass Outside Planted Beds
Trim Uneven Grass Around the YardTrim Uneven Grass Around the Yard
Clear Grass Creeping Onto PathsClear Grass Creeping Onto Paths
Tidy Grass Along Boundary LinesTidy Grass Along Boundary Lines

Specifications & Structural Decomposition

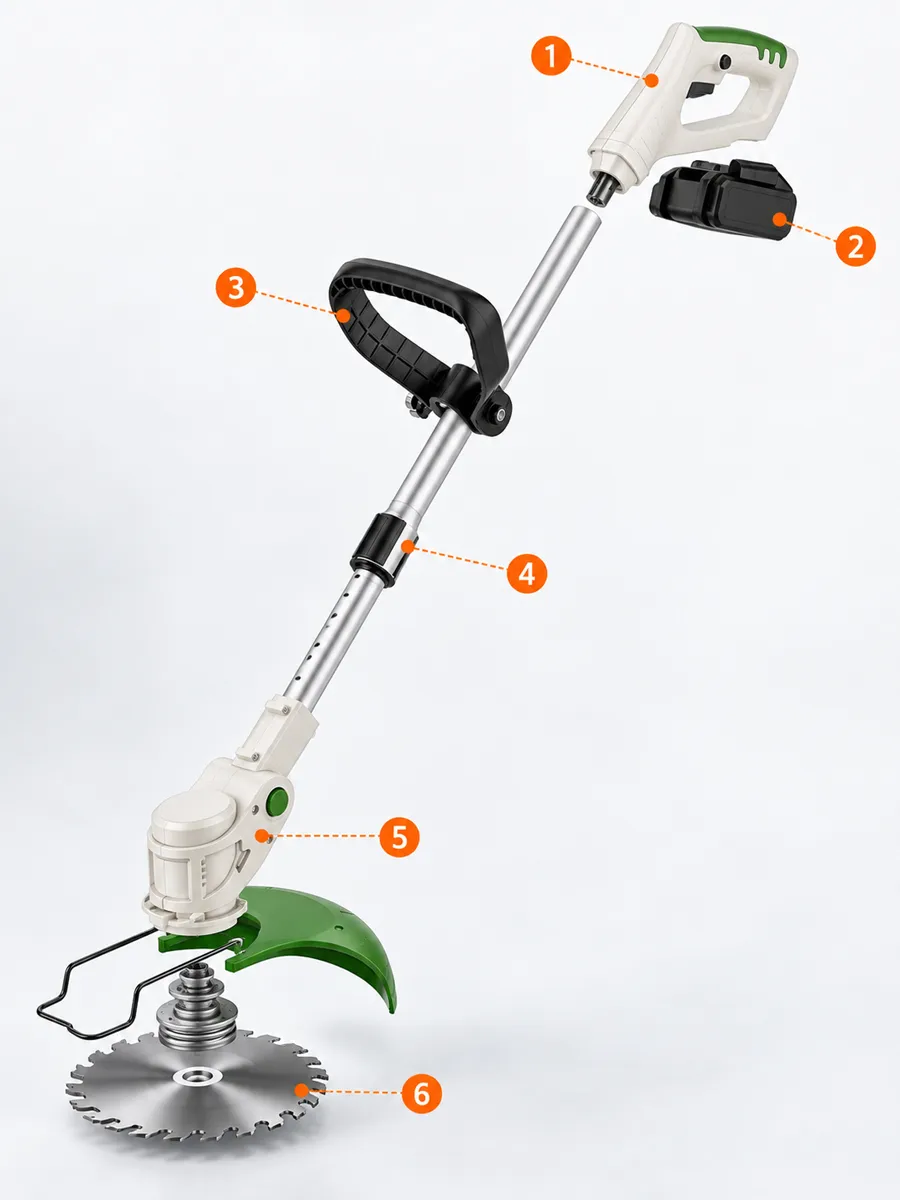

Product Structure Diagram

Product Structure Diagram
  1. Main Handle Assembly

    Provides the primary handhold and houses the operating trigger area, allowing the user to securely control and guide the trimmer during operation.

  2. Detachable Battery Pack

    Supplies cordless electrical power to the machine and can be removed from the handle assembly for charging or replacement.

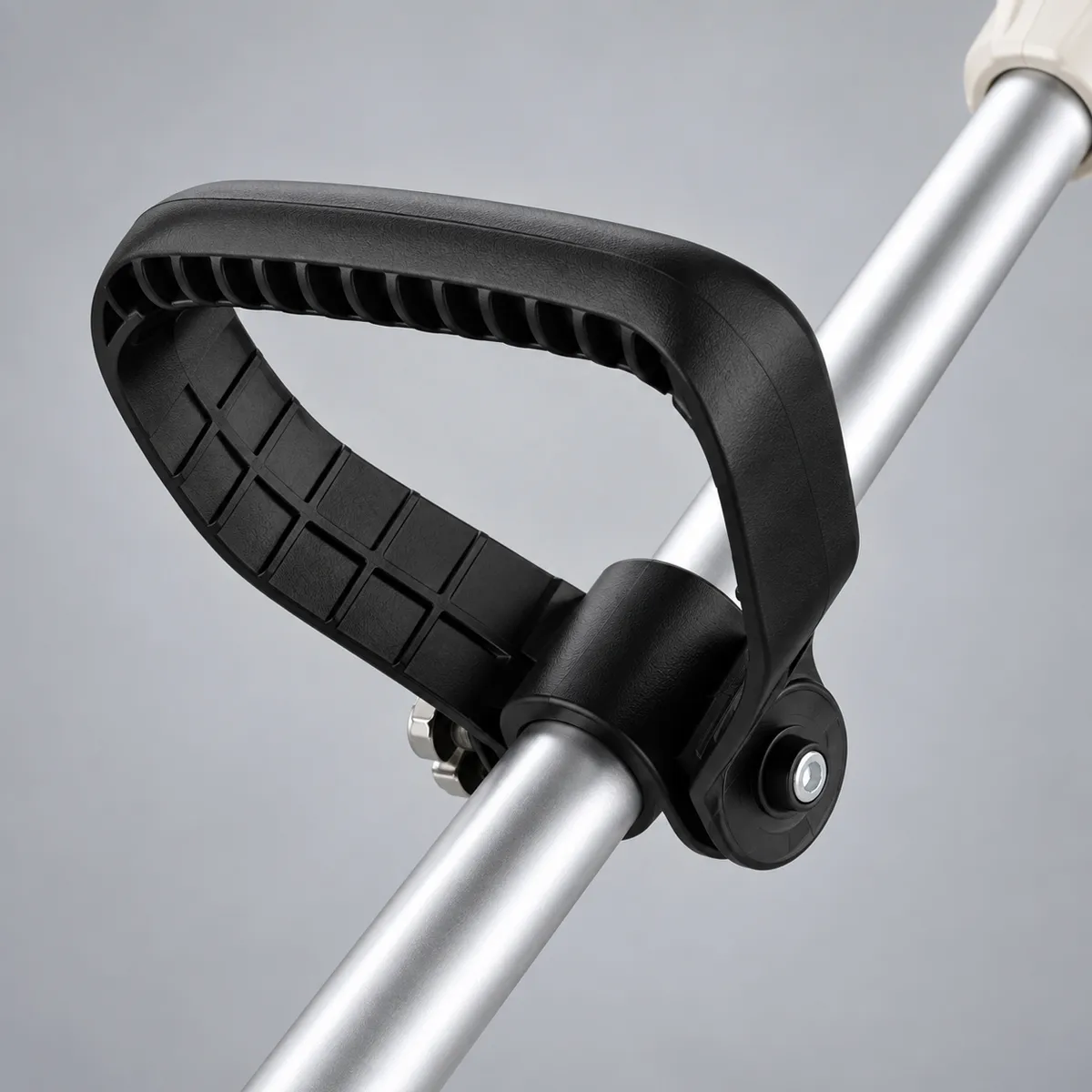

  3. Auxiliary Support Handle

    Provides a secondary gripping point on the shaft, helping the user stabilize the machine and maintain better two-handed control while trimming.

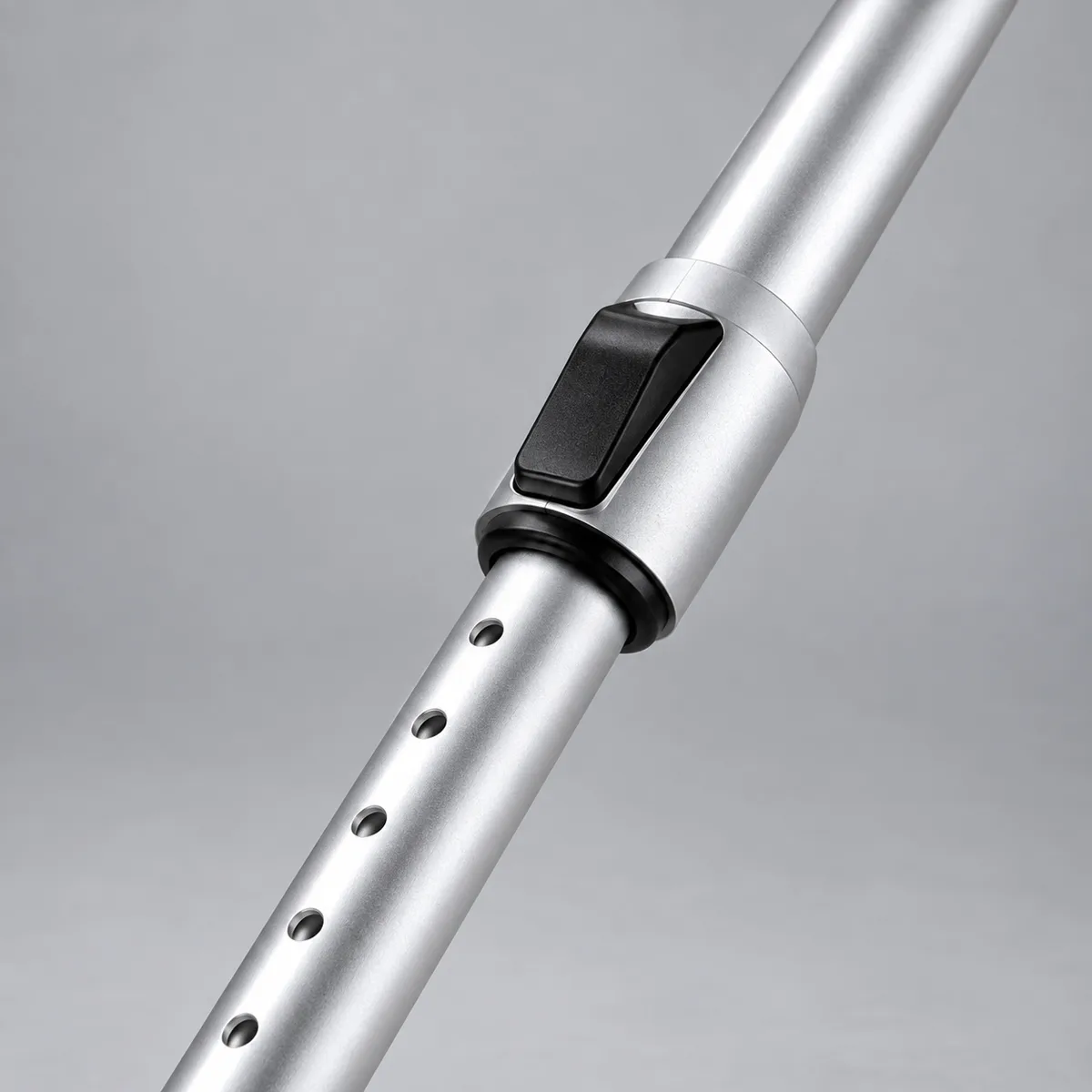

  4. Telescopic Shaft Lock

    Secures the adjustable shaft section at the selected extension position, helping maintain a suitable working length during use.

  5. Cutting Head Assembly

    Connects the shaft to the lower cutting section and supports the drive and blade mounting area required to transmit power to the cutting attachment.

  6. Circular Cutting Blade

    Acts as the direct cutting attachment at the bottom of the machine, using its toothed outer edge to cut grass and suitable vegetation during operation

General information

Lithium Electric Mower
Model
Type B
Power Supply Type
Rechargeable - Lithium
Battery Interface
Makita
Rated Voltage
21V
Rated Power
120-140W
Motor Drive
755 Brush motor
Load Speed
8000 r/min

General instructions

Simplified explanation

Core Component Details

Auxiliary-Support-Handle

Circular-Cutting-Blade

Detachable-Battery-Pack

Telescopic-Shaft-Lock

We're here to help

Our team is ready to advise you on the best product configuration and procurement plan.

400 158 5899

Frequently Asked Questions (FAQ)

What is this cordless grass trimmer suitable for?

It is suitable for trimming grass in small yards, along garden paths, beside fences, and around flower beds.

What type of power supply does it use?

It uses a rechargeable lithium battery, with a listed rated voltage of 21V, for cordless grass trimming.

Can the length of the trimmer be adjusted?

Yes. The body length adjusts from 0.8 to 1.2 m, allowing users to adapt the working reach to different trimming areas.

What are the motor specifications?

The trimmer uses a 755 brushed motor, with a rated power of 120–140W and a listed load speed of 8,000 rpm.

How does the auxiliary handle help during use?

The auxiliary handle provides a second grip point for two-handed operation, helping users guide the cutting head with steadier control.
