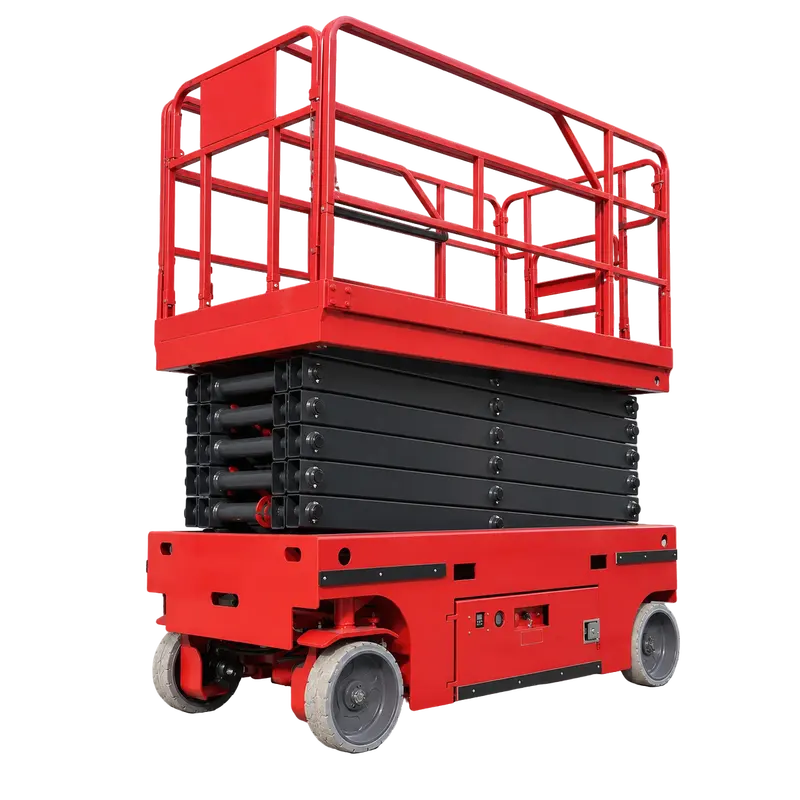

Self Propelled Scissor Lift
  • Hydraulic lift
  • Self propelled
  • Extension platform
  • Solid tires

Indoor Elevated Access

Platform Work and Ground Checks

The lift is shown on level indoor floors in a warehouse, workshop, exhibition hall and service bay. Raised platforms bring workers near overhead lights and fittings, while the lowered unit allows a ground-level check. Guardrails surround the deck, and clear floor space separates the base from nearby equipment.

Hall InstallationHall Installation
Service BayService Bay
Warehouse MaintenanceWarehouse Maintenance
Workshop InspectionWorkshop Inspection
Hall InstallationHall Installation
Service BayService Bay
Warehouse MaintenanceWarehouse Maintenance
Workshop InspectionWorkshop Inspection

Specifications & Structural Decomposition

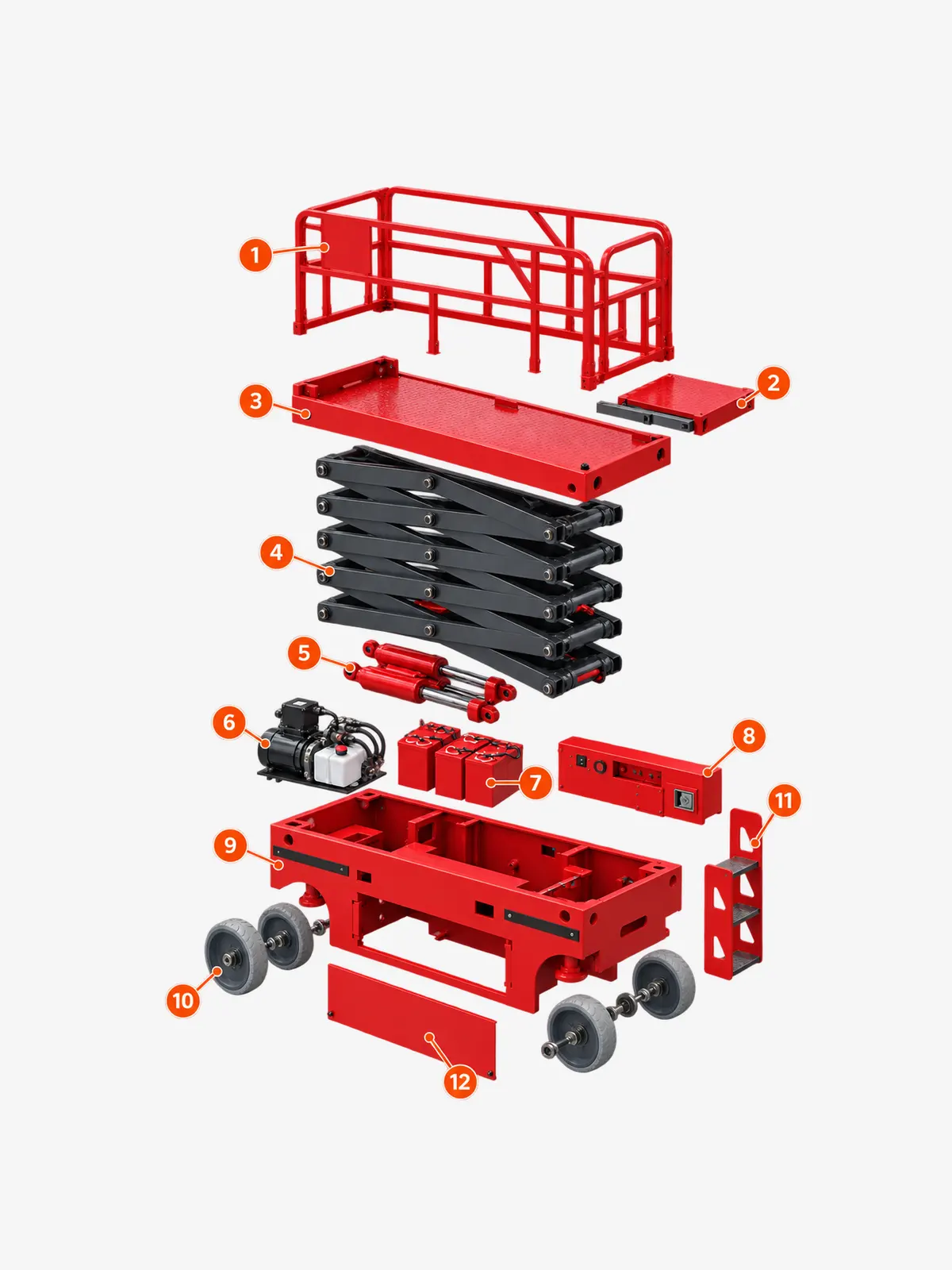

Exterior Assembly Reference

Exterior Assembly Reference

General information

Self Propelled Scissor Lift
Model
SJYZ-1214
Safe working load
320 kg
Extension platform load
113 kg
Platform extension
0.9 m
Maximum occupants
2
Maximum working height
14 m
Maximum platform height
12 m

General instructions

Simplified explanation

Core Component Details

01_Guardrail_Joint

04_Scissor_Pivot

07_Ground_Controls

10_Battery_Compartment

We're here to help

Our team is ready to advise you on the best product configuration and procurement plan.

400 158 5899

Frequently Asked Questions (FAQ)

What is the maximum platform height?

The configuration sheet lists a maximum platform height of 12 m.

What is the rated working load?

The rated working load is 320 kg; the extension deck is rated at 113 kg.

How many people can use the platform?

The source configuration permits a maximum of two people within the rated load.

What battery arrangement is specified?

Four 6 V, 200 Ah batteries are listed for the 24 V system.

What should be checked before use?

Check ground conditions, operating limits and the supplied inspection procedure before operation.
