Machined Shaft Inspection - Measuring Outside DiameterFast Metric or Inch Checks Across Common Parts
Digital Dimensional Inspection for Workshop and Prototype Components
Wipe the measuring faces and workpiece clean, close the jaws gently and confirm zero before use. Hold the caliper square to the measured feature, apply light consistent contact, lock the slider if needed and read the display without forcing the jaws. Use the external jaws, internal jaws, step faces or depth rod only for their intended measurement mode, and store the tool dry after use.
- Machined Shaft Inspection - Measuring Outside Diameter
- Aluminum Plate QC - Checking Material Thickness
- Fastener Inspection - Measuring a Precision Bolt Shank
- Prototype Workshop - Checking a 3D-Printed Component Width
Aluminum Plate QC - Checking Material Thickness
Fastener Inspection - Measuring a Precision Bolt ShankMachined Shaft Inspection - Measuring Outside Diameter
Prototype Workshop - Checking a 3D-Printed Component WidthAluminum Plate QC - Checking Material ThicknessFastener Inspection - Measuring a Precision Bolt ShankProduct Advantages
Thumb-wheel fine-tunes the jaws—LCD reads to hundredths of a mm for precise sizing.
Specifications & Structural Decomposition
Product Structure Diagram
General information
- Model
- CL711015
- Product Type
- Digital Caliper
- Blade Material
- Hardened stainless measuring beam and jaws with black digital slider housing
- Package Quantity
- 1 / 50
- Product Weight
- 0.310 kg
- Measuring Range
- 0-150 mm
- Resolution
- 0.01 mm
General instructions
Simplified explanationProduct Video
Smooth Slide — Instant Digital Read
Stainless digital caliper slides smoothly with a clear LCD—zero and mm/inch toggle for quick checks.
Real Factory Footage
Real on-site records from our factory, offering a practical view of our production capability and delivery readiness.
0:00 / 0:00
Core Component Details
We're here to help
Our team is ready to advise you on the best product configuration and procurement plan.
info@eascoutia.com400 158 5899Frequently Asked Questions (FAQ)
What is the measuring range and resolution?
The listed measuring range is 0–150 mm and the listed resolution is 0.01 mm.
Can the display switch between millimetres and inches?

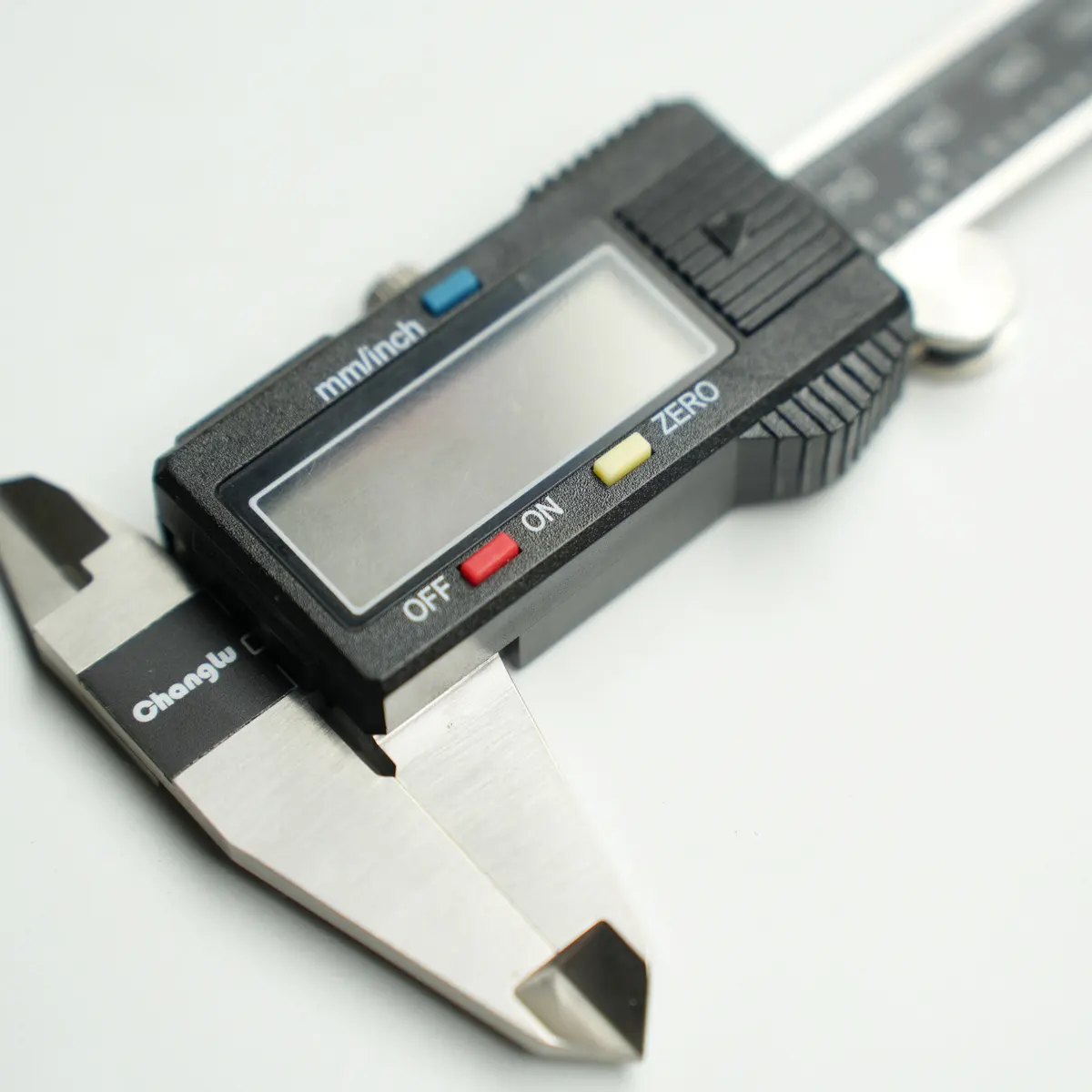

Yes. Use the blue mm/inch control to switch the displayed unit, then verify the selected unit before recording the result.
Which measurement modes are supported?
The supplied specification lists external, internal, step and depth measurement. Select the correct measuring surfaces and keep the tool square to the feature.
What should be done before taking a reading?
Clean the measuring faces, close the jaws gently, check the zero indication and inspect the workpiece for burrs or debris. Do not force the slider or use the jaws as a clamp.
What are the listed overall dimensions and weight?
The listed overall length is 234 mm, the listed overall width is 76.90 mm and the listed product weight is 0.310 kg.
