Product Overview

Controlled CO2 Engraving for Workshop Sheet Work

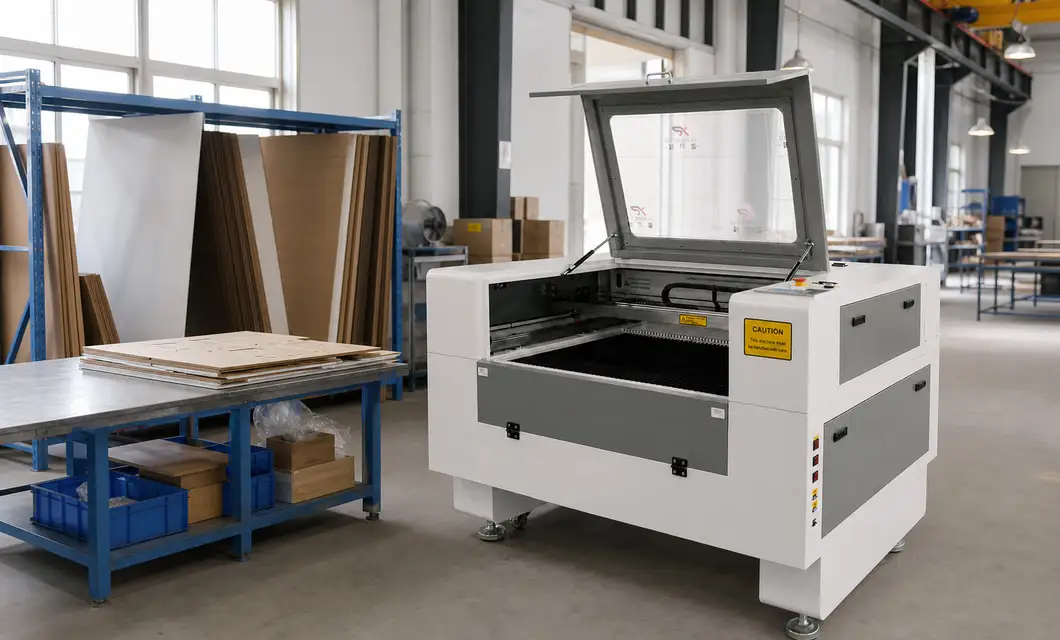

The enclosed machine supports organized workshop production of flat materials. Operators can prepare acrylic signs, wood panels, leather pieces, paper packaging and decorative sheets inside a defined work area, then follow programmed laser paths for engraving or cutting. The hinged lid keeps the working zone visually structured, while the openable access and surrounding support systems assist material handling, smoke extraction and routine preparation.

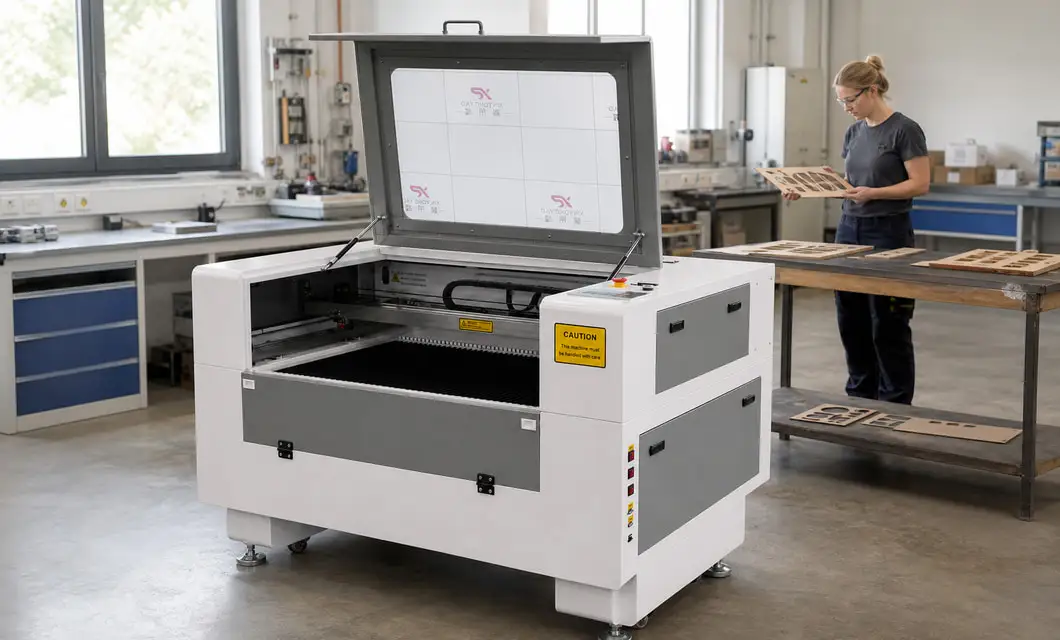

  • Workpiece Inspection

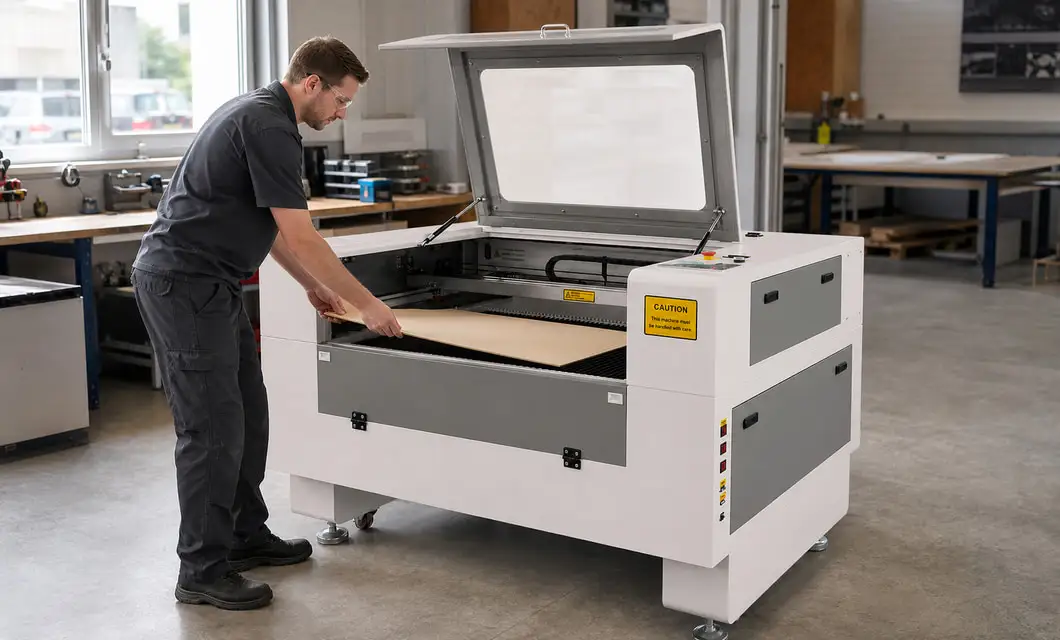

  • Flat Stock Positioning
  • Production Layout
  • Material Alignment

Product Advantages

GE-690 Acrylic Engraving - 900 x 600 mm working area for acrylic pattern engraving, signs, display decorations and craft gifts

Specifications & Structural Decomposition

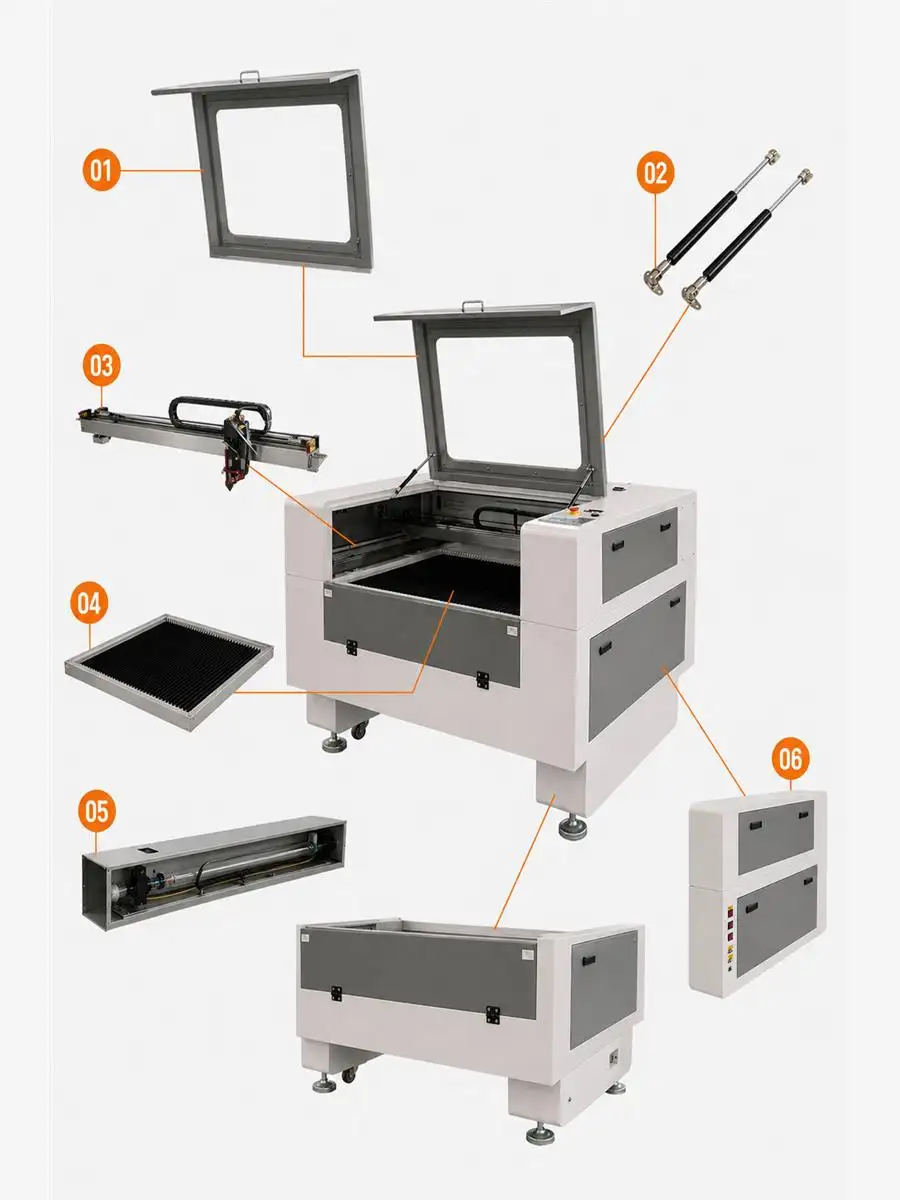

Structural Breakdown

Structural Breakdown

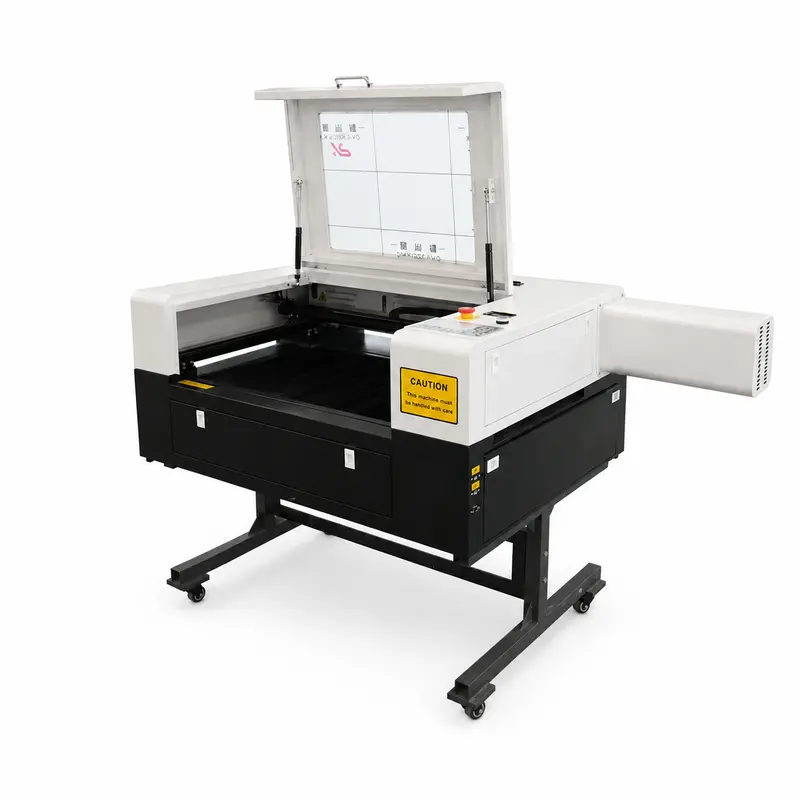

  1. Hinged Viewing Lid

    Opens above the workbed and defines the enclosed viewing and loading zone

  2. Lid Support Gas Struts

    Paired struts support the raised lid through its visible opening path

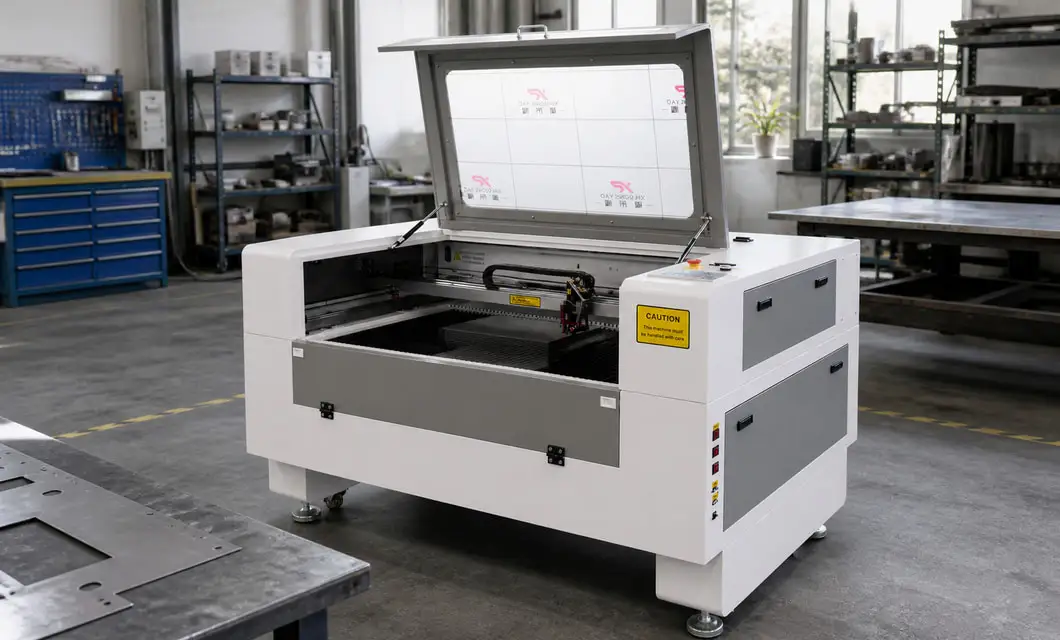

  3. Gantry and Laser Head Assembly

    Guided gantry carries the laser head across the work area for positioning

  4. Workbed Tray

    Removable slat or honeycomb tray supports flat materials during processing

  5. Laser Tube Support Housing

    Visible housing contains and supports the laser tube along the machine side

  6. Side Service Housing

    Removable side housing provides access to service and exhaust connections

  7. Control Panel and Machine Base

    Visible control and base assembly supports operation and stable placement

General information

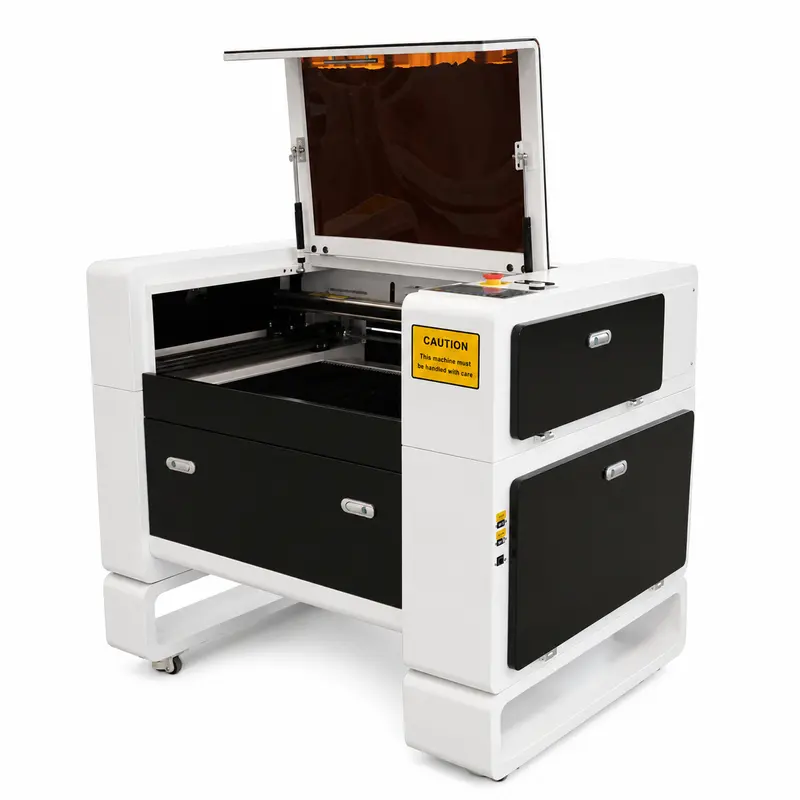

Laser engraving machine
Product Basic Information

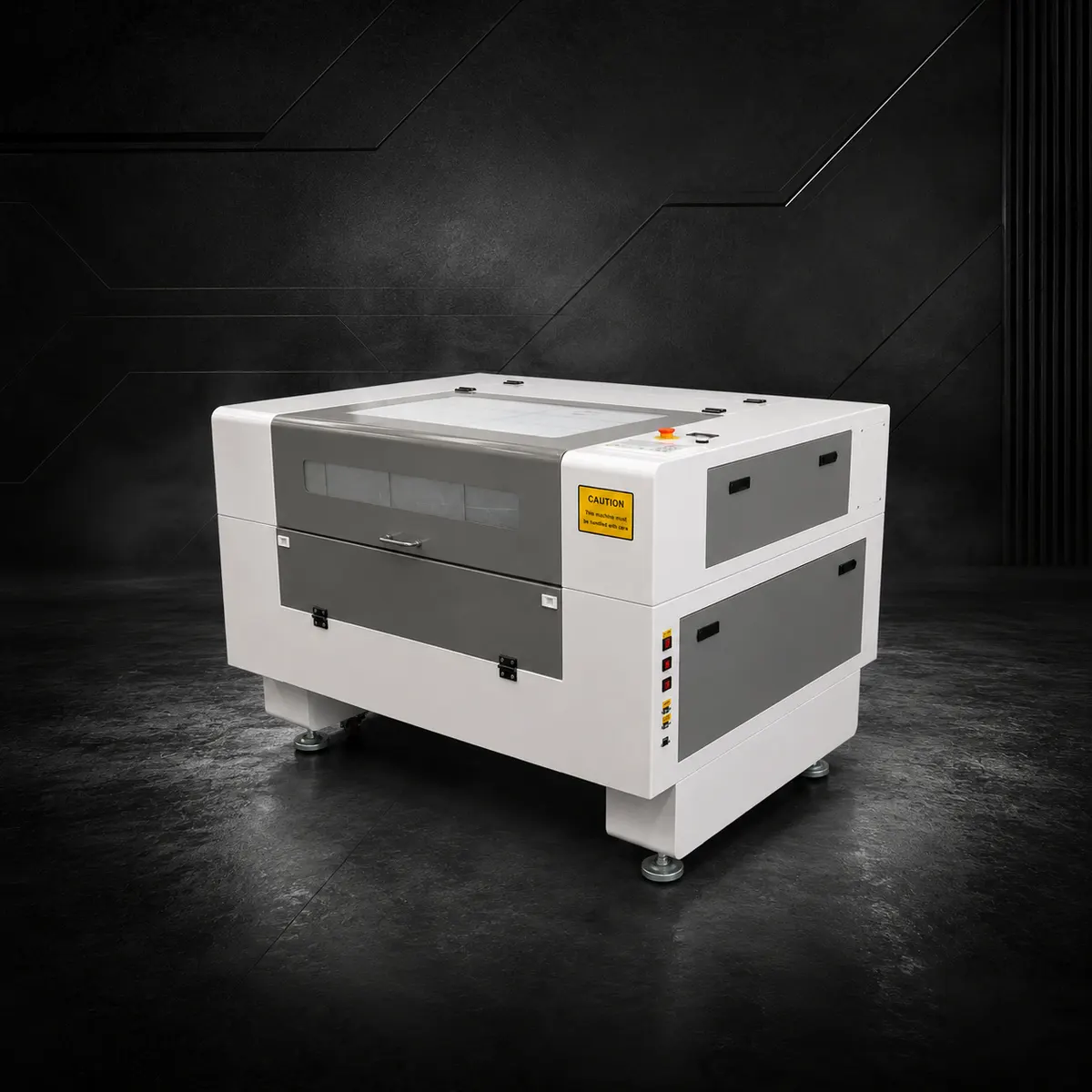

GE‑690 CO2 Laser Engraving Cutting Machine
Working width/mm
900*600
Product Introduction
CO2 laser engraving cutting machine for various non‑metal materials
Light source
RECI glass laser tube (CO2)
Power
≤1500W (laser tube: Reci 90W)
Adapter power supply
AC220V/110V ±10% 50/60HZ
Software system
Windows XP, Windows 98, Windows 7, Vista

General instructions

Simplified explanation

Product Video

01:24

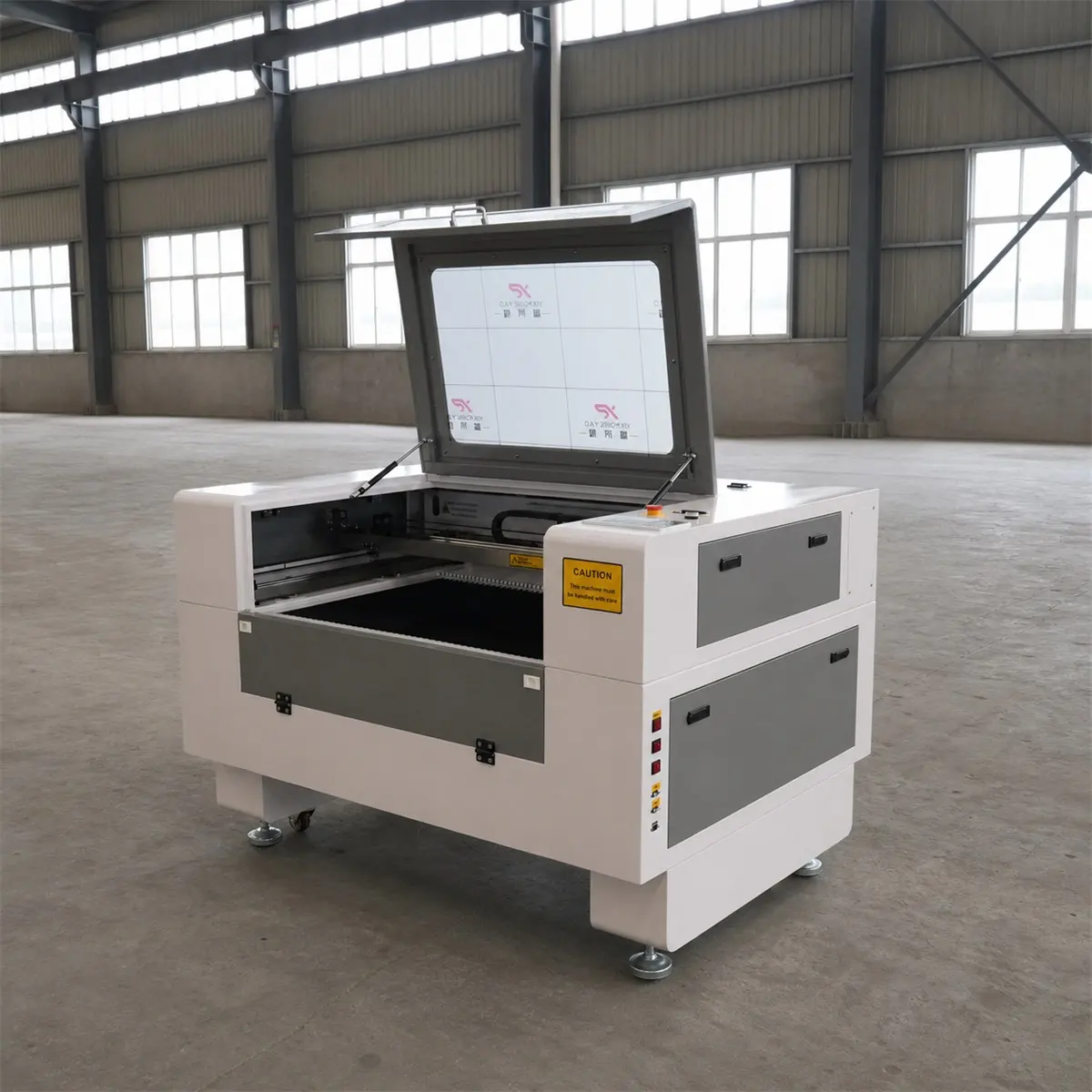

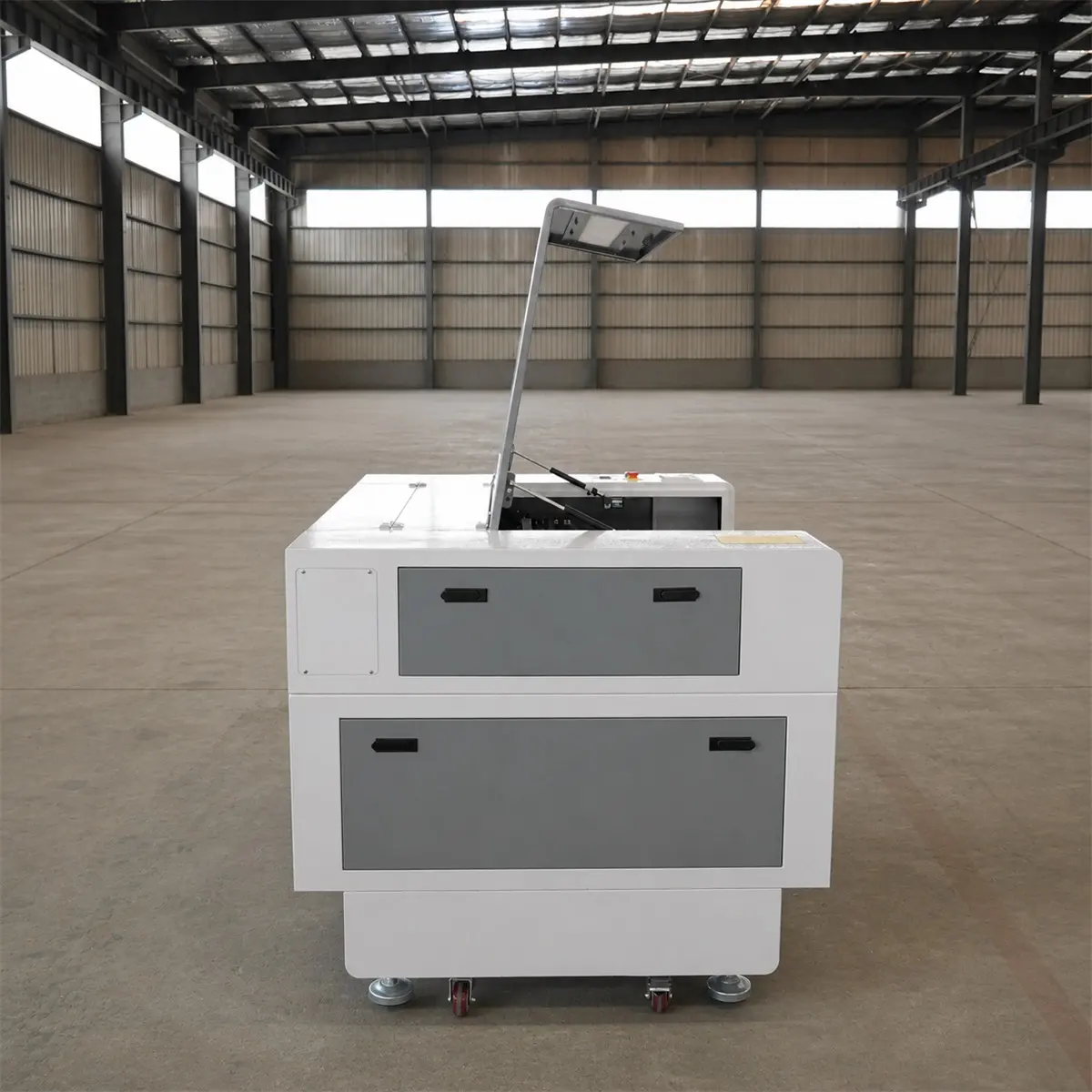

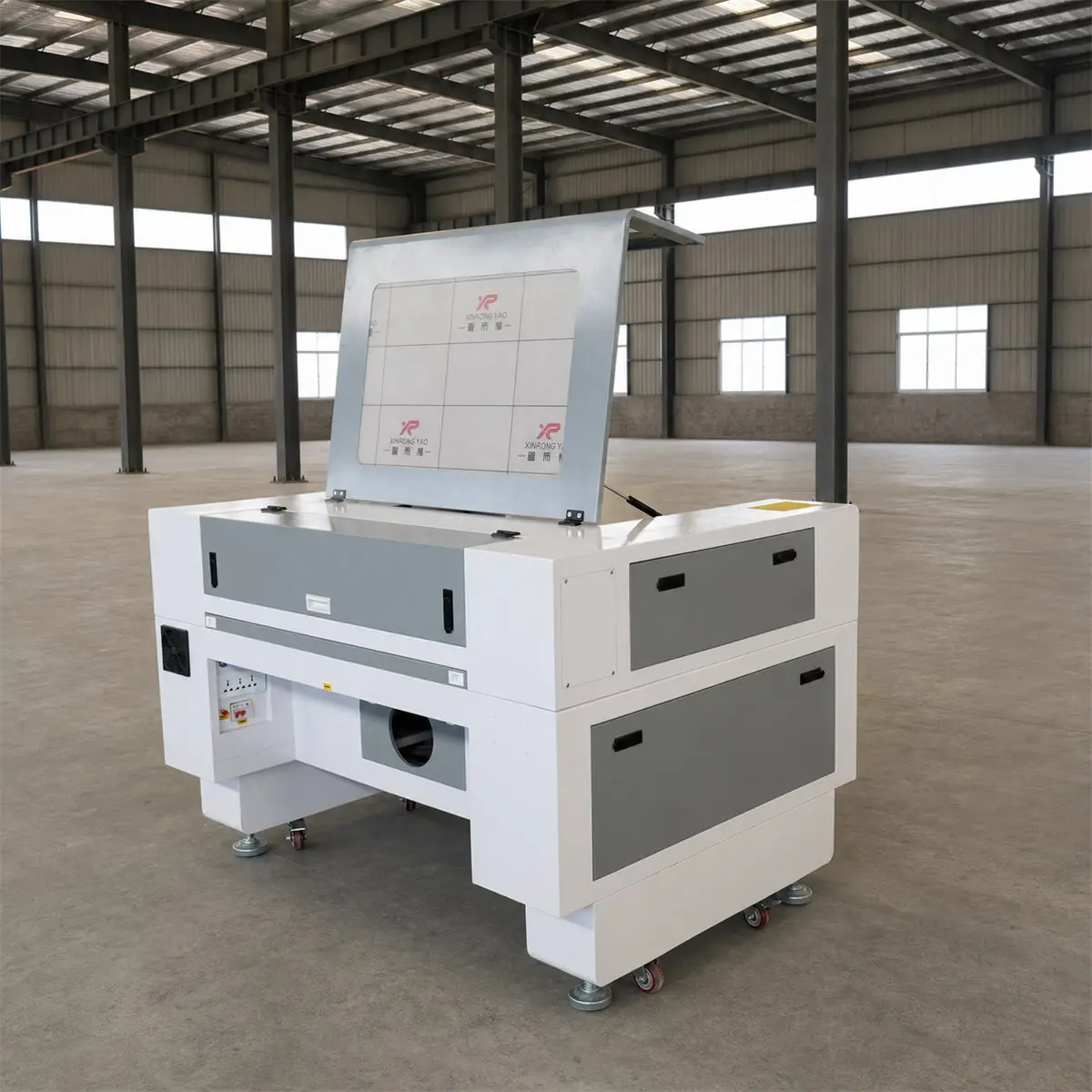

GE-690 Appearance

Exterior tour of the GE-690 CO2 laser engraving machine with a 900 x 600 mm work area.

GE-690 Appearance

01:24Exterior tour of the GE-690 CO2 laser engraving machine with a 900 x 600 mm work area.

GE-690 Operation and Use

01:24Operating the GE-690 CO2 laser machine for flat-sheet engraving and cutting tasks.

Core Component Details

Upper Housing Fasteners

Upper Display Housing

Lower Main Housing

LCD Display Window

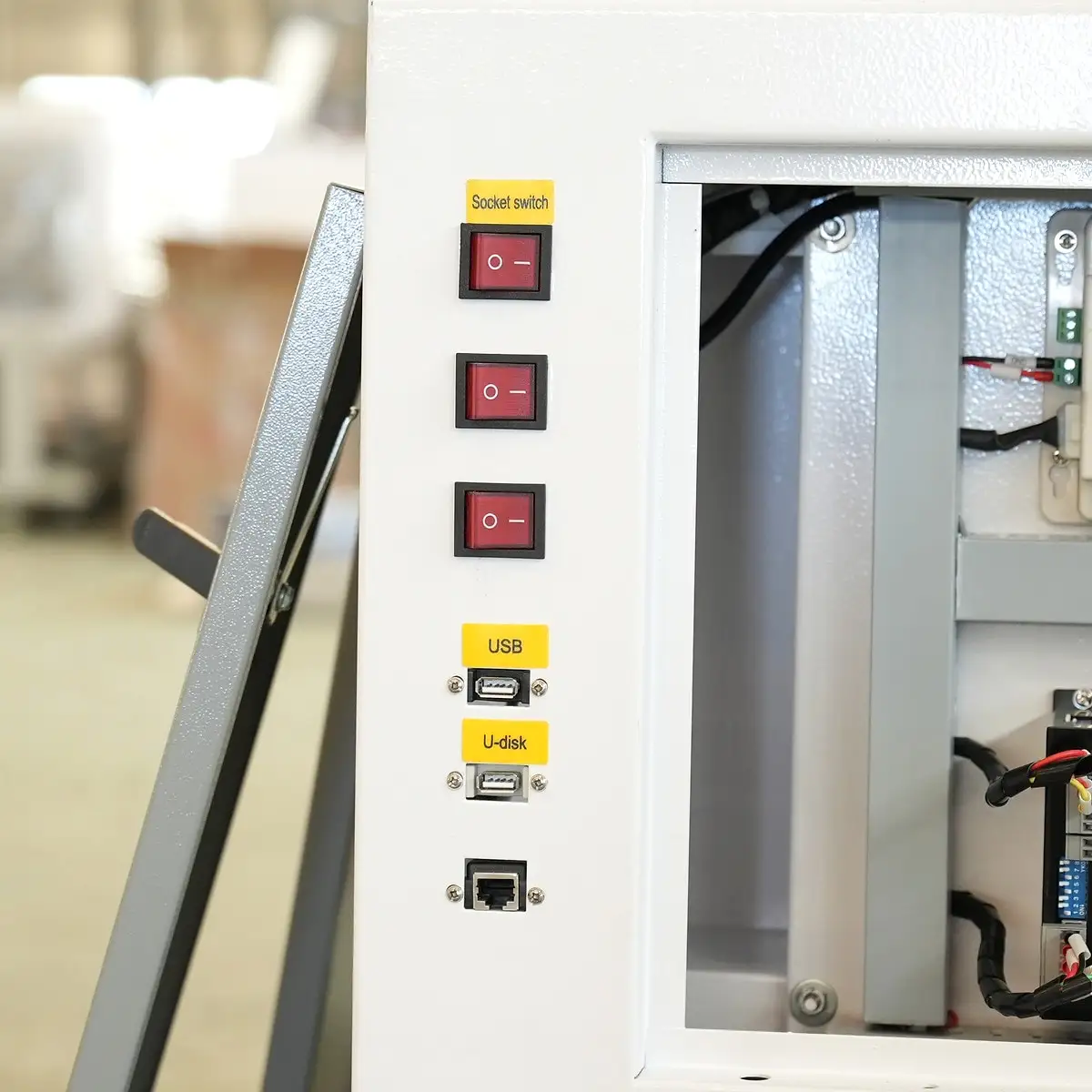

Slat Worktable Overview

Power Inlet and Socket

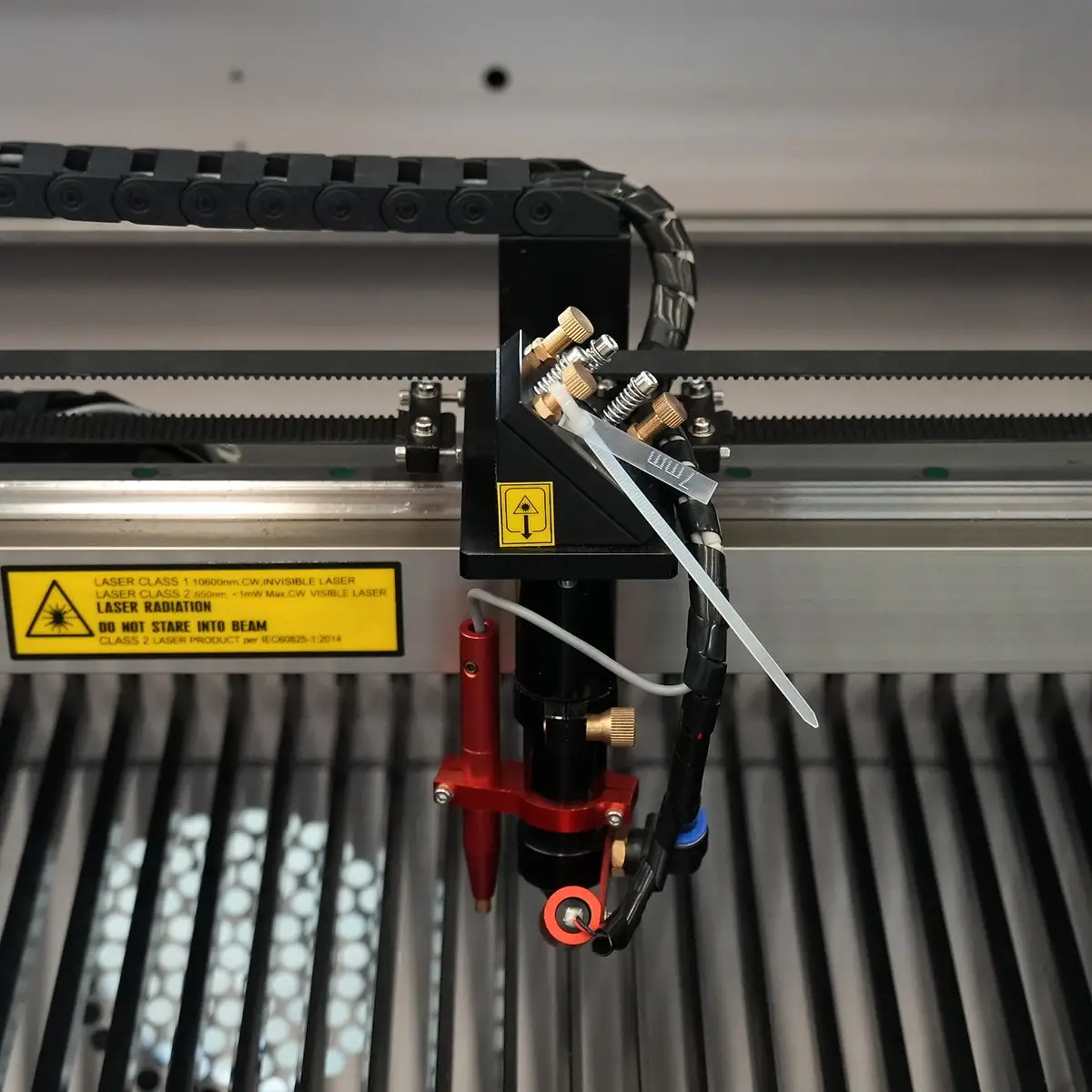

Optical Path Window

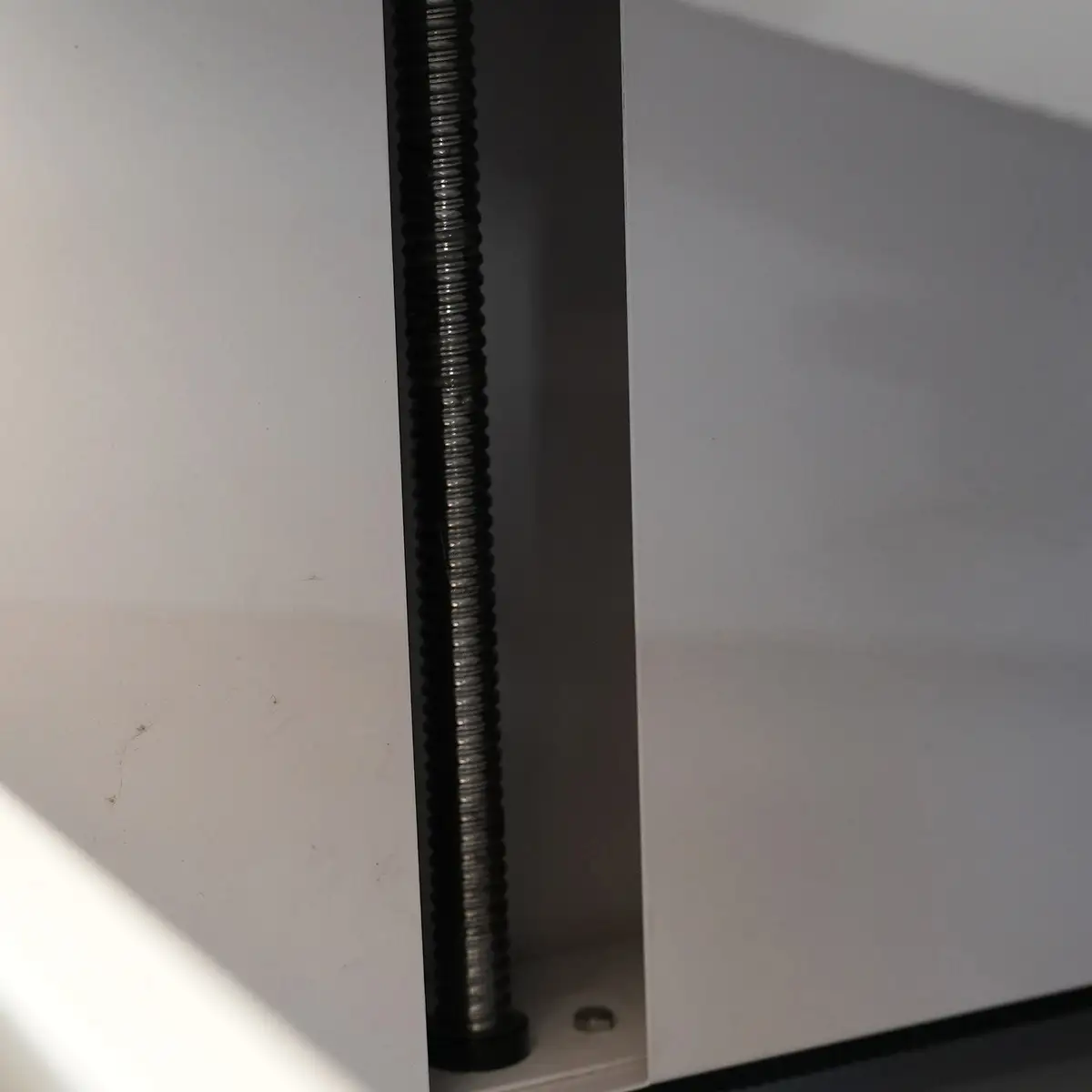

Lifting Lead Screw

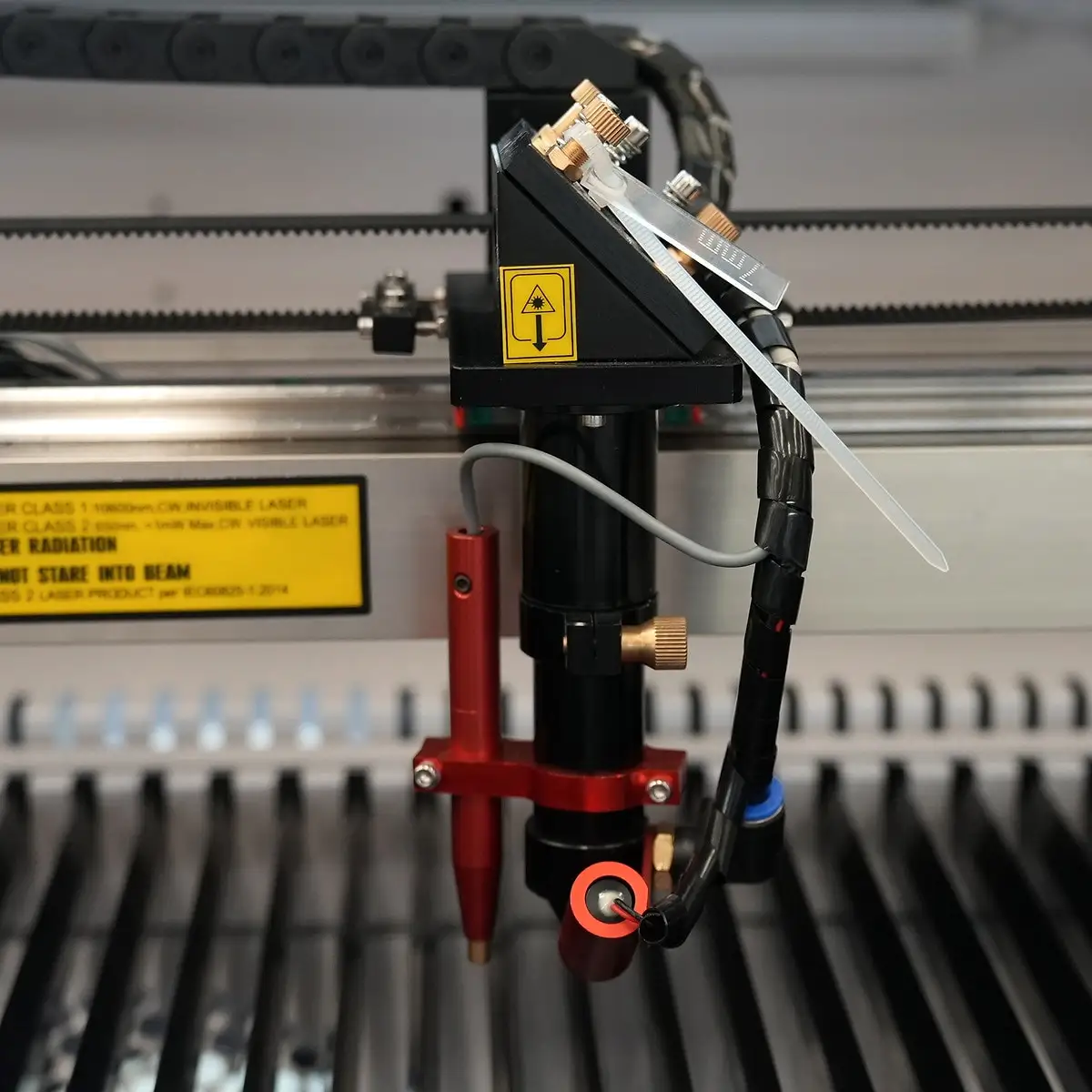

Laser Tube Assembly

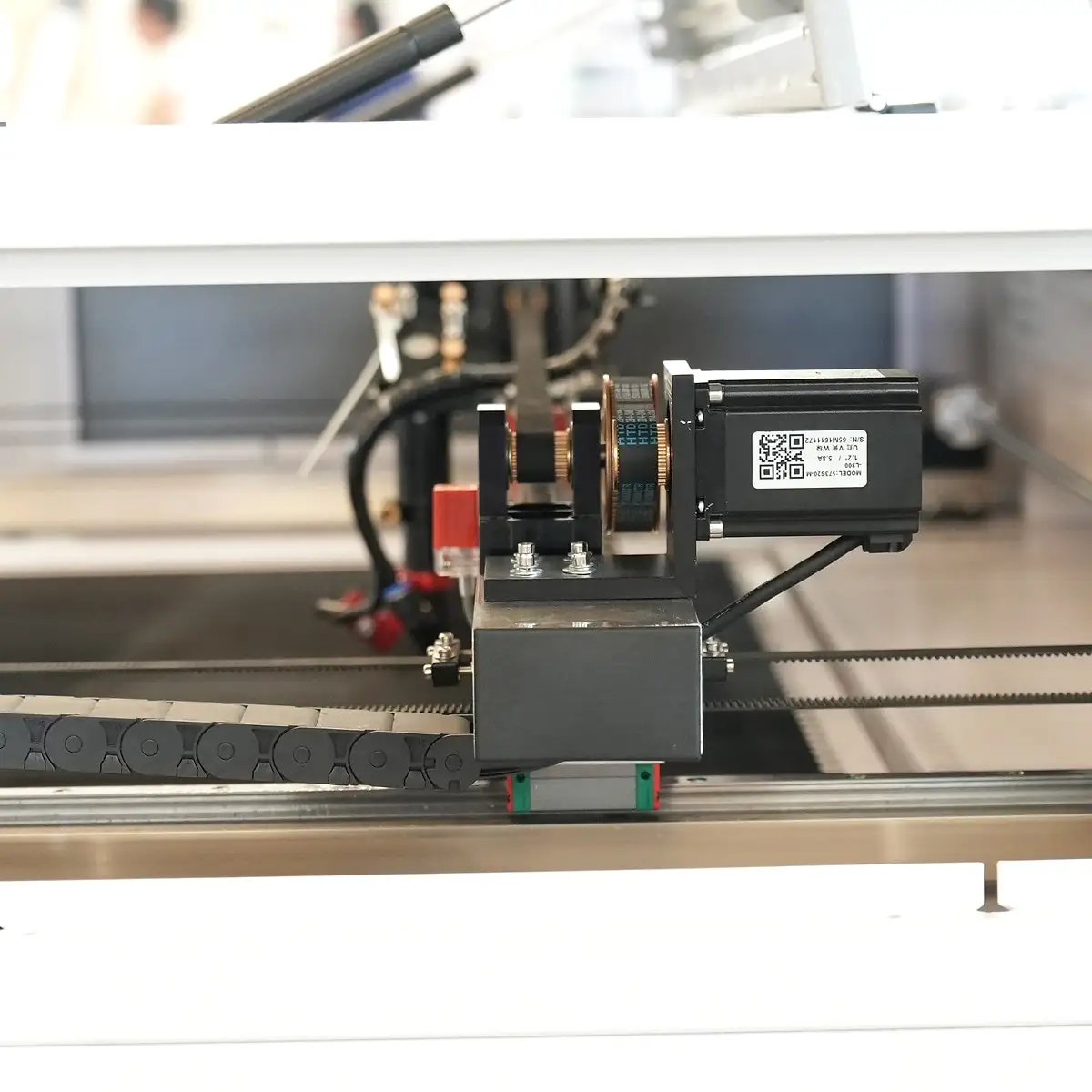

Laser Head Assembly 1

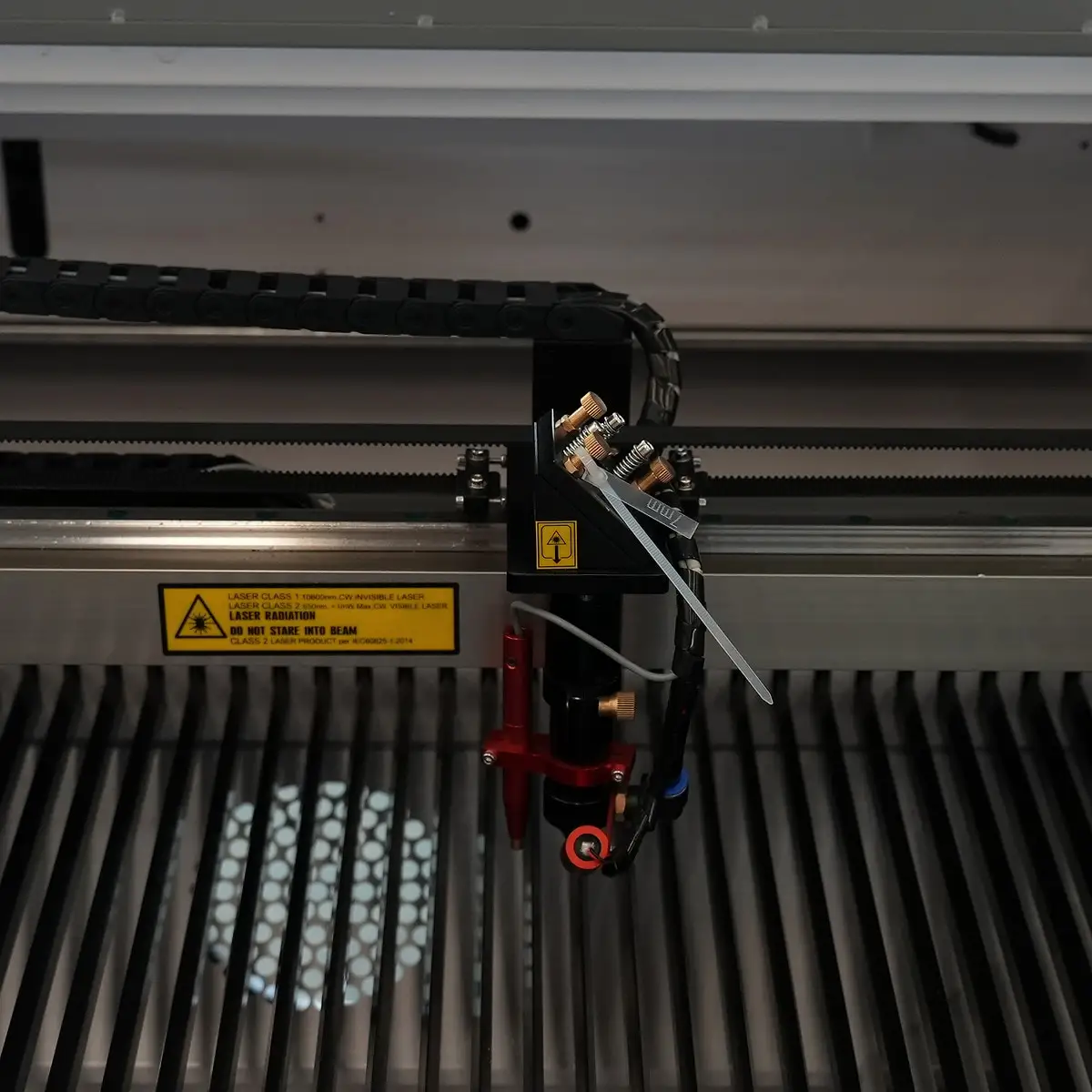

Laser Head and Cable Chain

Guide Rail and Limit Assembly

We're here to help

Our team is ready to advise you on the best product configuration and procurement plan.

400 158 5899

Frequently Asked Questions (FAQ)

What work area does this machine provide?

The supplied technical material lists a 900 x 600 mm working area for planned flat-sheet layouts.

Which laser source is specified?

The machine uses a glass CO2 laser tube with a 10.6 um wavelength and a standard laser head.

How is the laser tube cooled?

The listed cooling system is water cooling, arranged with the auxiliary support systems of the machine.

Which materials can be processed?

Supported work commonly includes wood, acrylic, leather, paper, plastic, glass, ceramic and stone.

What should be confirmed before ordering?

Confirm the selected configuration, product label, site requirements and written order details before purchase.
