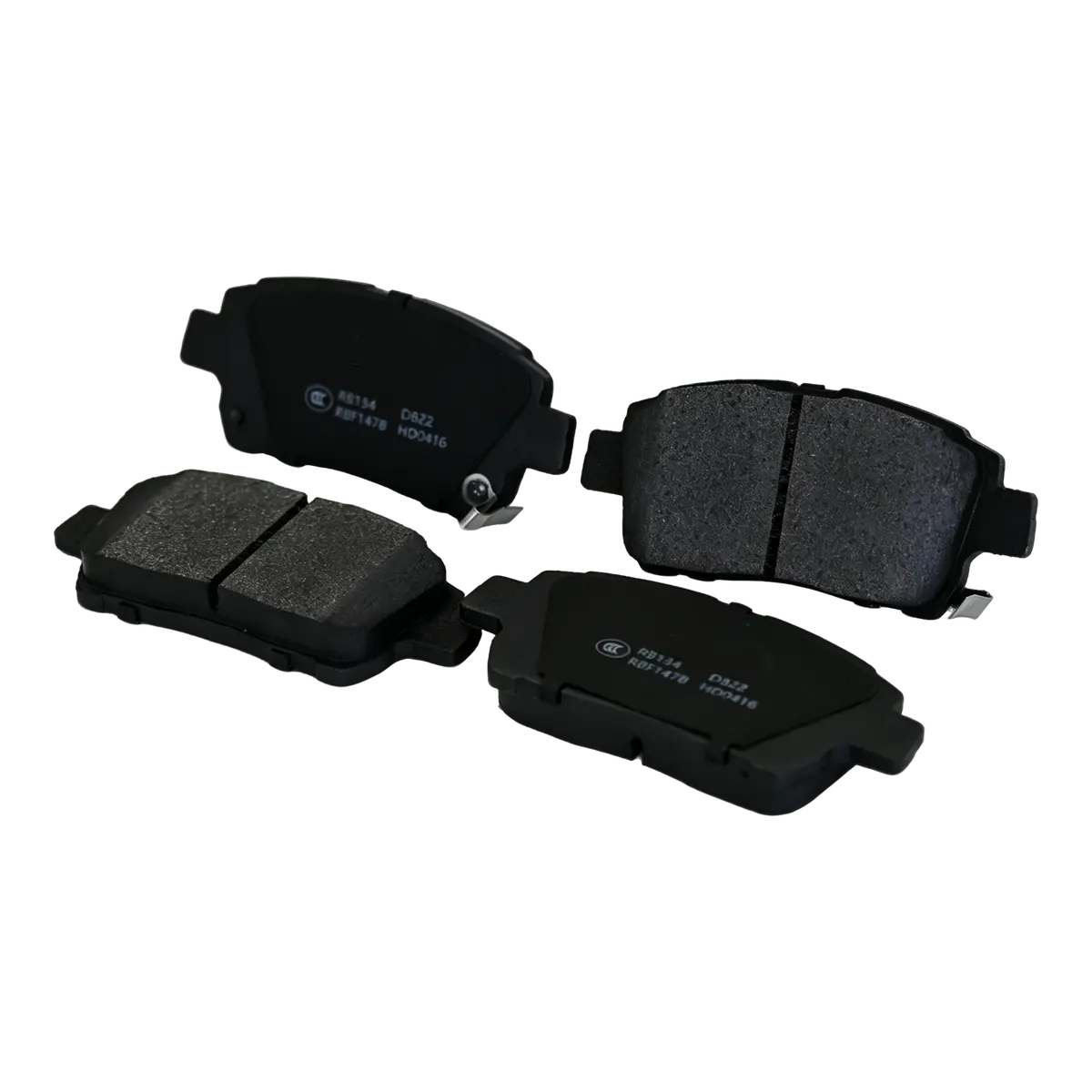

brake pad
  • Semi-Metallic Pad
  • 0.4 Friction Value
  • Center Slot Design
  • Side Tab Back Plate

Disc Pad Placement In Wheel Wells

Compact Brake Service

The scene group shows the vehicle lifted or supported with the wheel removed. Close views place the semi-metallic pad inside the caliper around the exposed rotor and hub studs. The sequence presents installed orientation, side access, workshop support and the open wheel well before assembly.

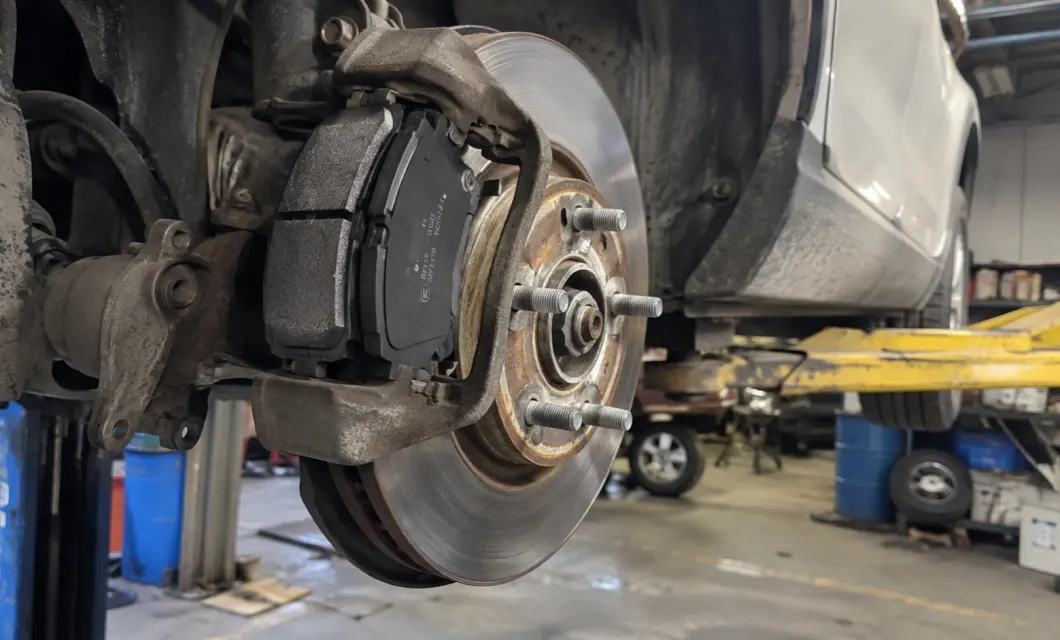

  • Lifted Hub Service - Pad Face Visible In Caliper

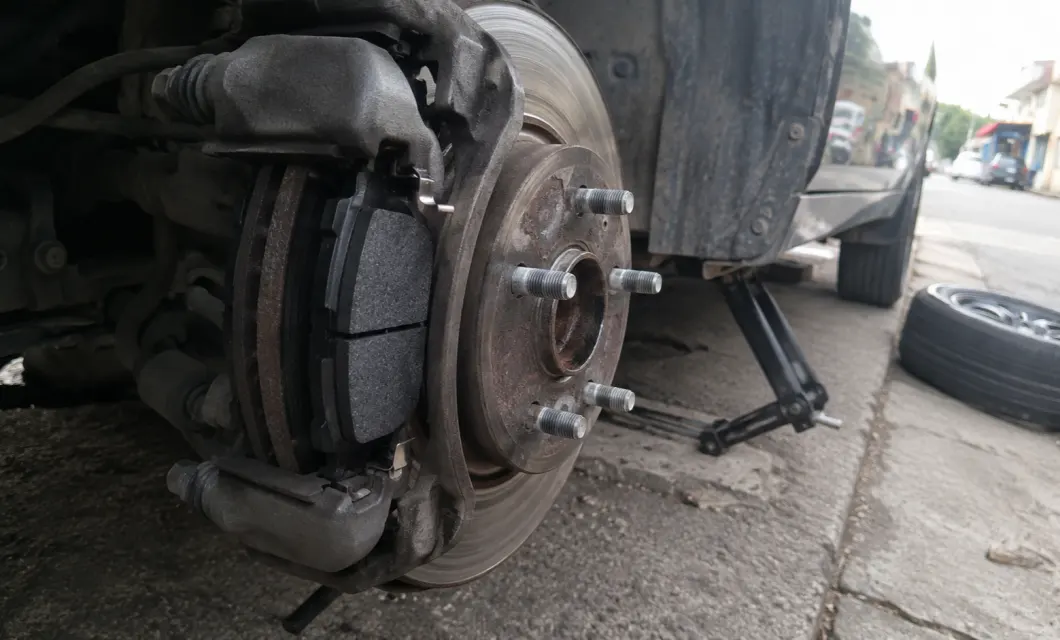

  • Roadside Rotor View - Pad Seated Behind Hub Studs

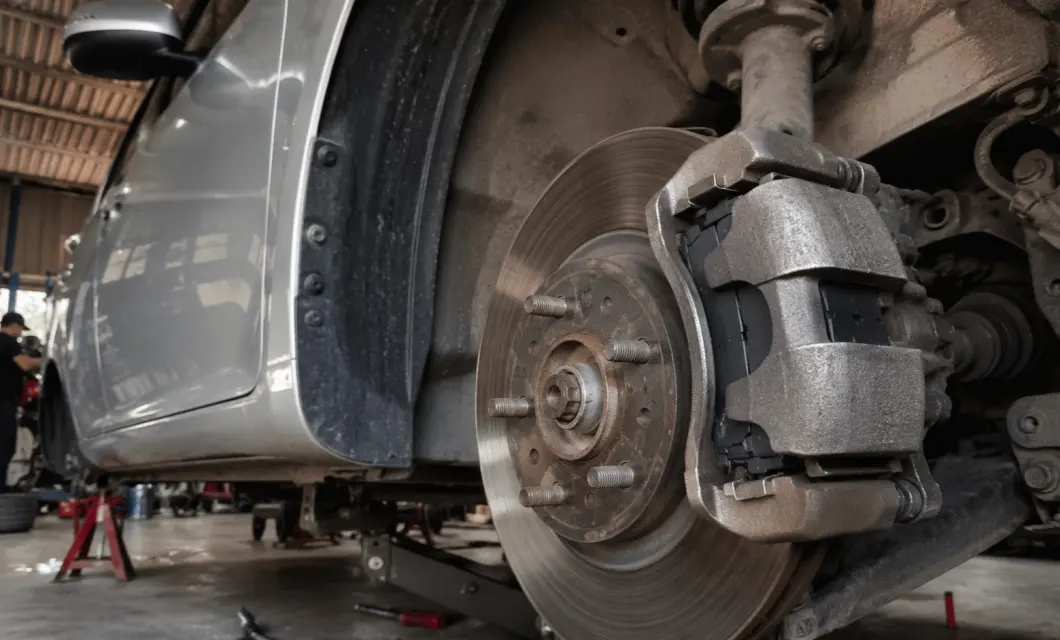

  • Workshop Stand Access - Caliper Body Around New Pad

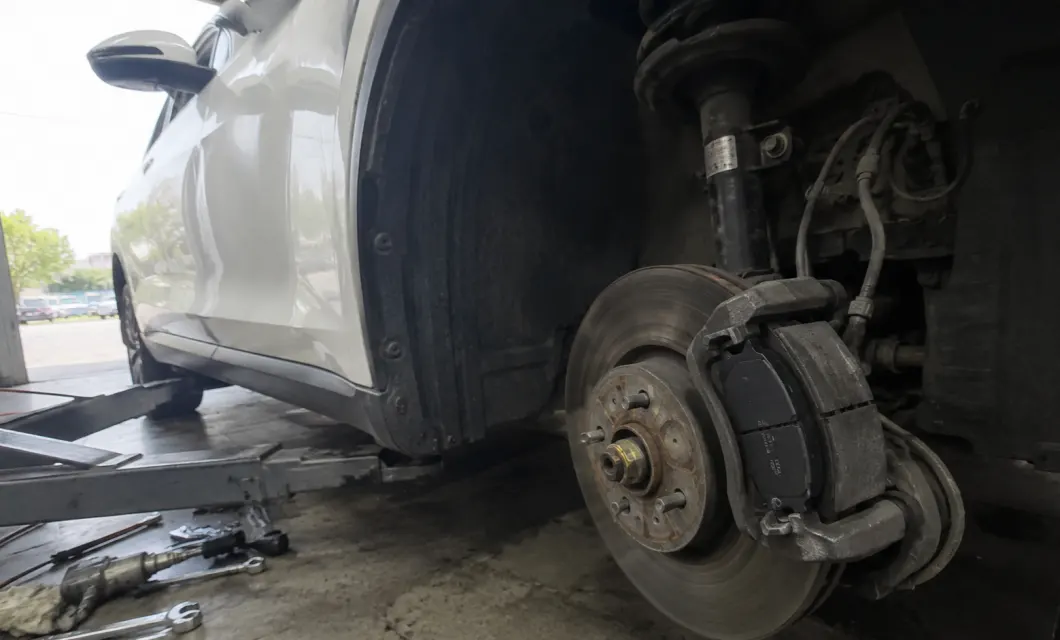

  • Wheel Well Service - Open Brake Area Ready
Pad Face Visible In CaliperPad Face Visible In Caliper
Pad Seated Behind Hub StudsPad Seated Behind Hub Studs
Caliper Body Around New PadCaliper Body Around New Pad
Open Brake Area ReadyOpen Brake Area Ready
Pad Face Visible In CaliperPad Face Visible In Caliper
Pad Seated Behind Hub StudsPad Seated Behind Hub Studs
Caliper Body Around New PadCaliper Body Around New Pad
Open Brake Area ReadyOpen Brake Area Ready

Specifications & Structural Decomposition

Dimensional Diagram

Dimensional Diagram
  1. Overall Length

    116.2 mm measures the full horizontal brake pad span marked as dimension A for matching the shown ou

  2. Overall Height

    51.5 mm measures the vertical brake pad height marked as dimension B across the main profile.

  3. Overall Thickness

    16.6 mm measures the total pad assembly thickness marked as dimension C in the side view.

General information

brake pad
Formula
Semi-metallic
L (mm)
116.2
W (mm)
51.5
H (mm)
16.6
Friction Coefficient
0.4

General instructions

Simplified explanation

Core Component Details

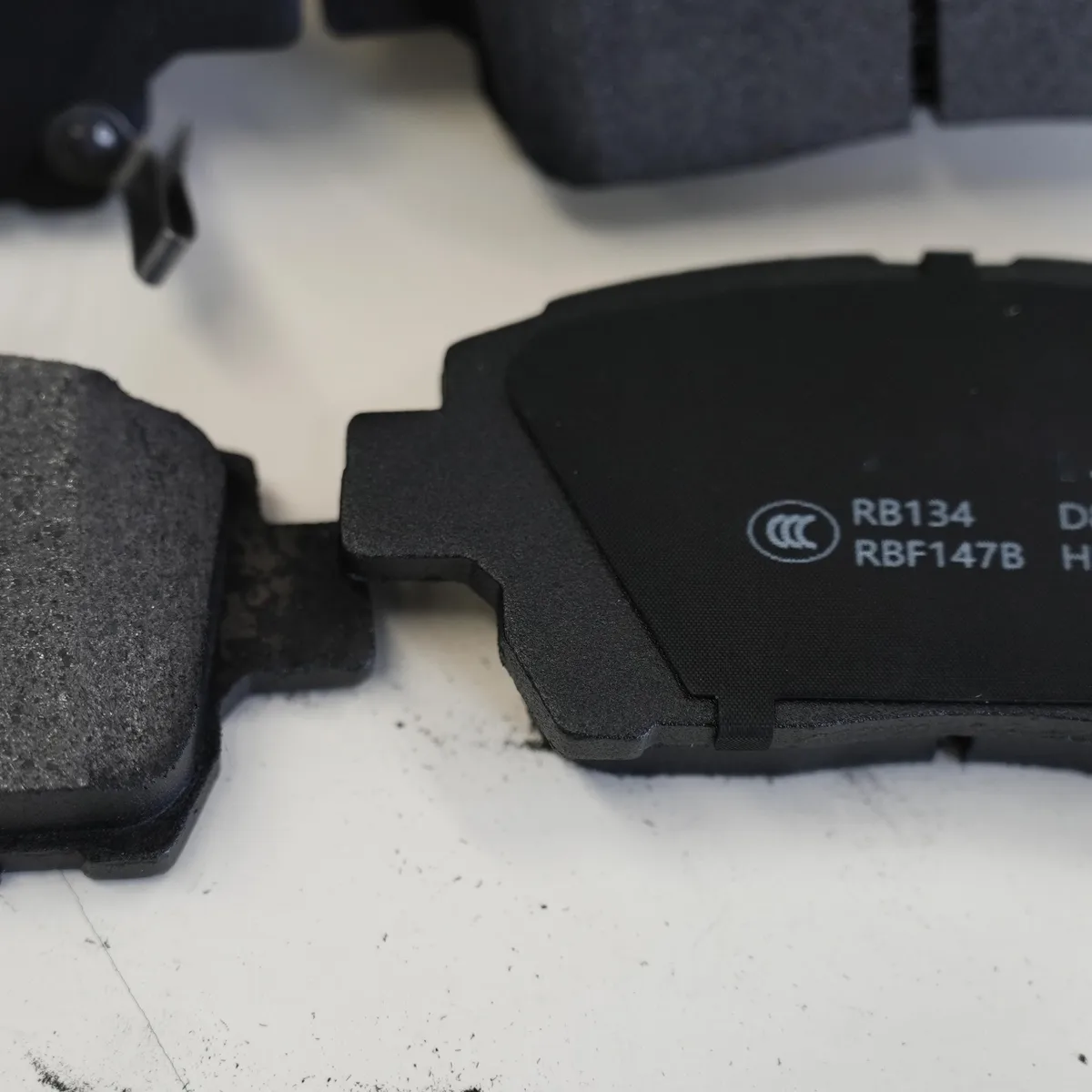

Back Plate Side Tab

Friction Surface Center Slot

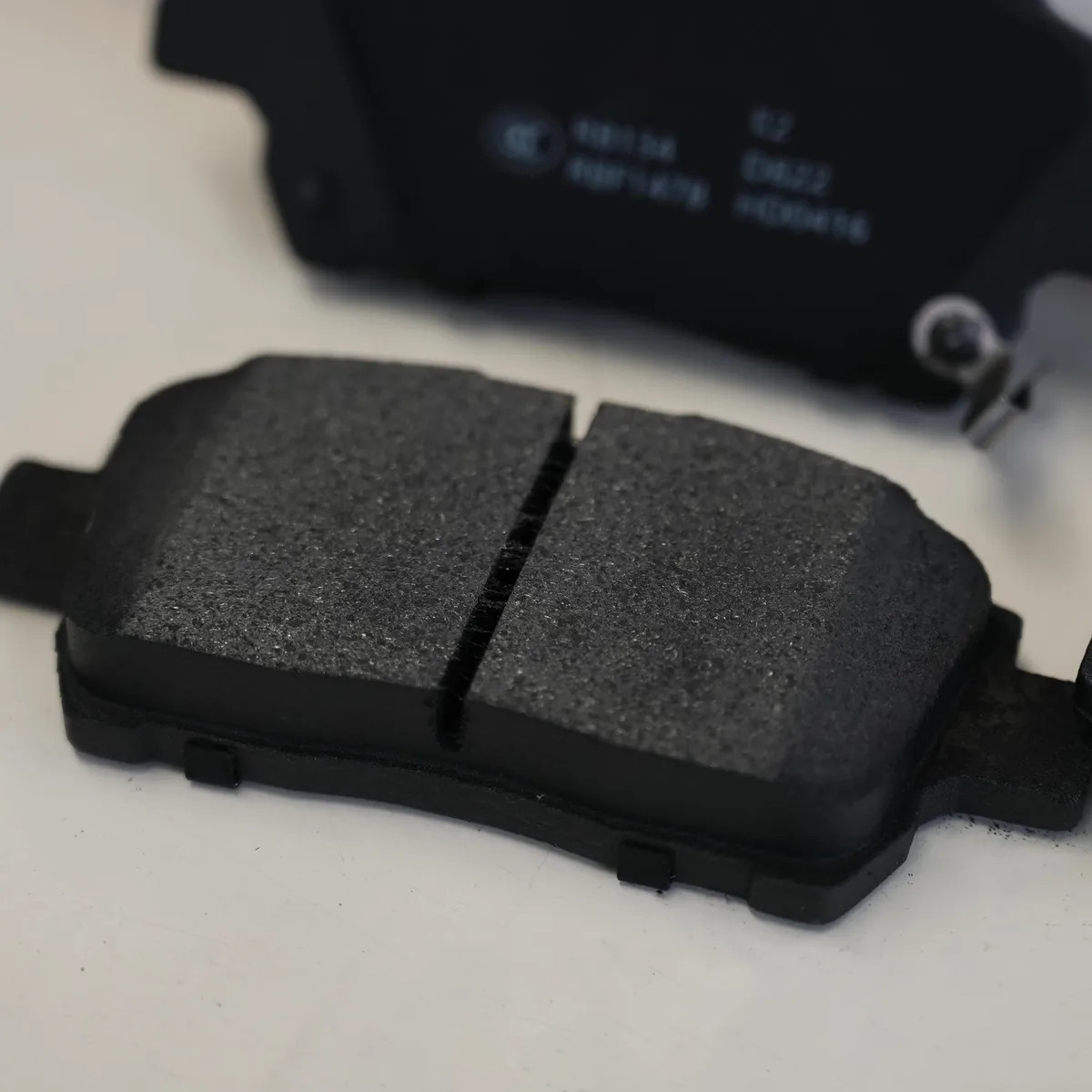

Friction Surface Side Edge

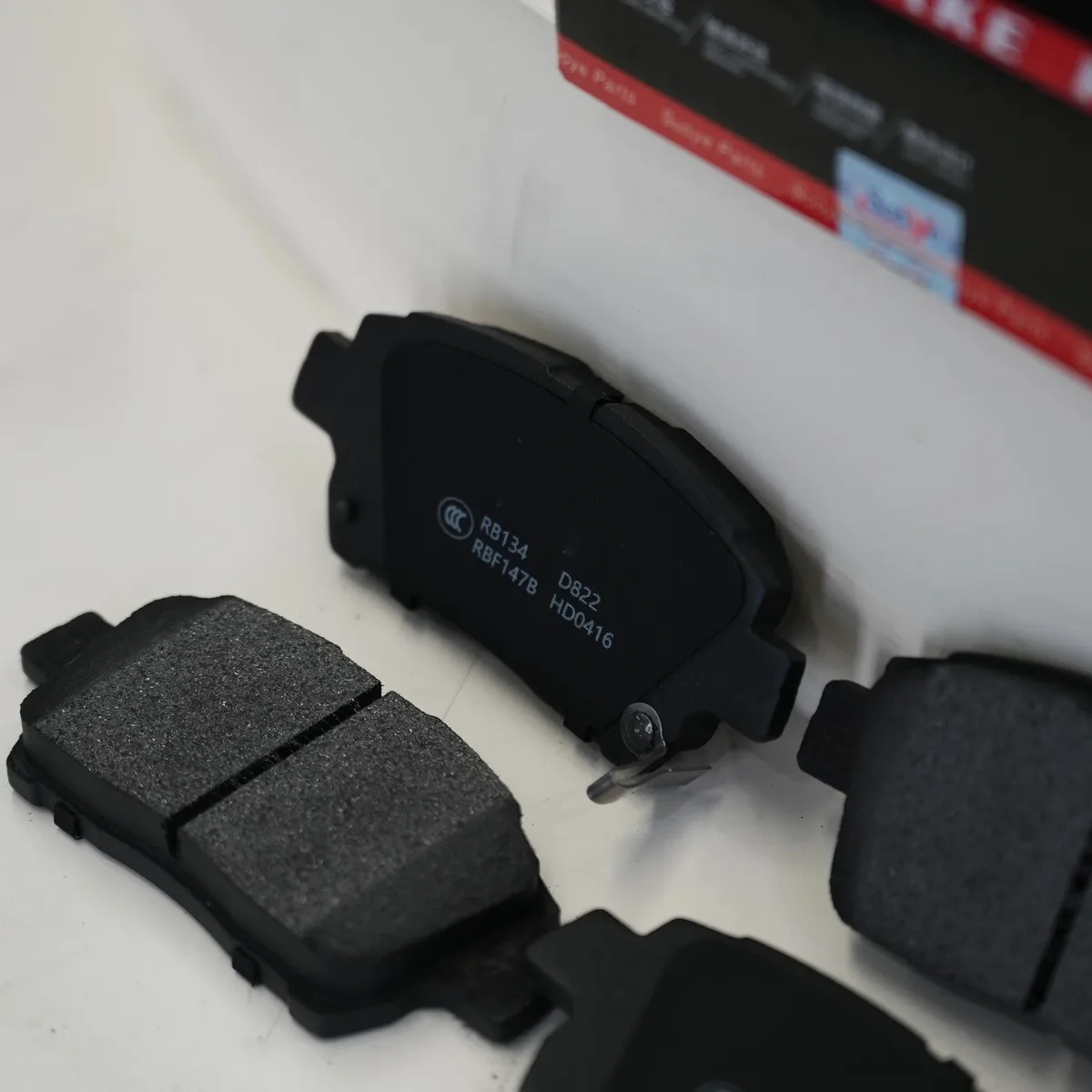

Pad Set Close Up

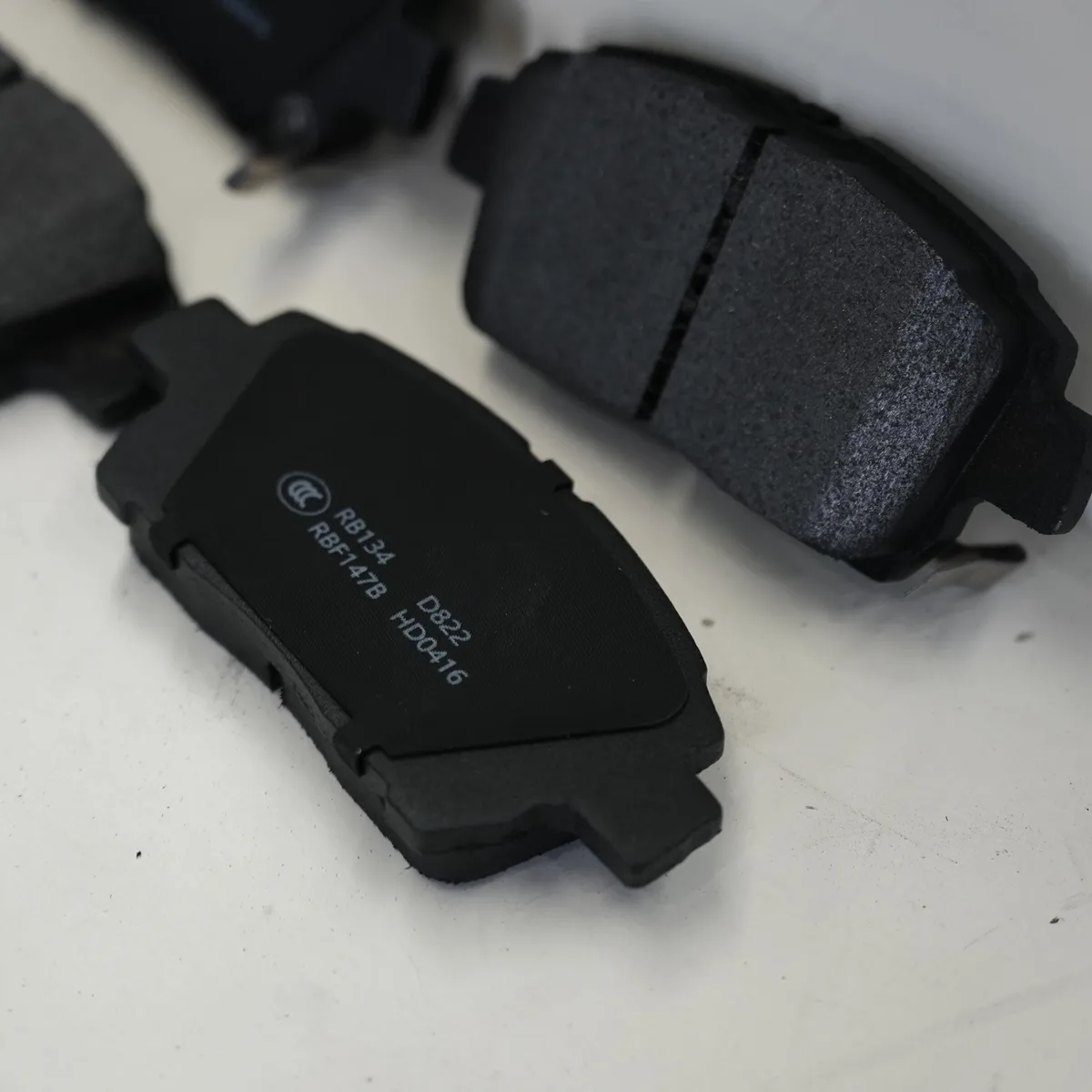

Back Plate And Friction Surface

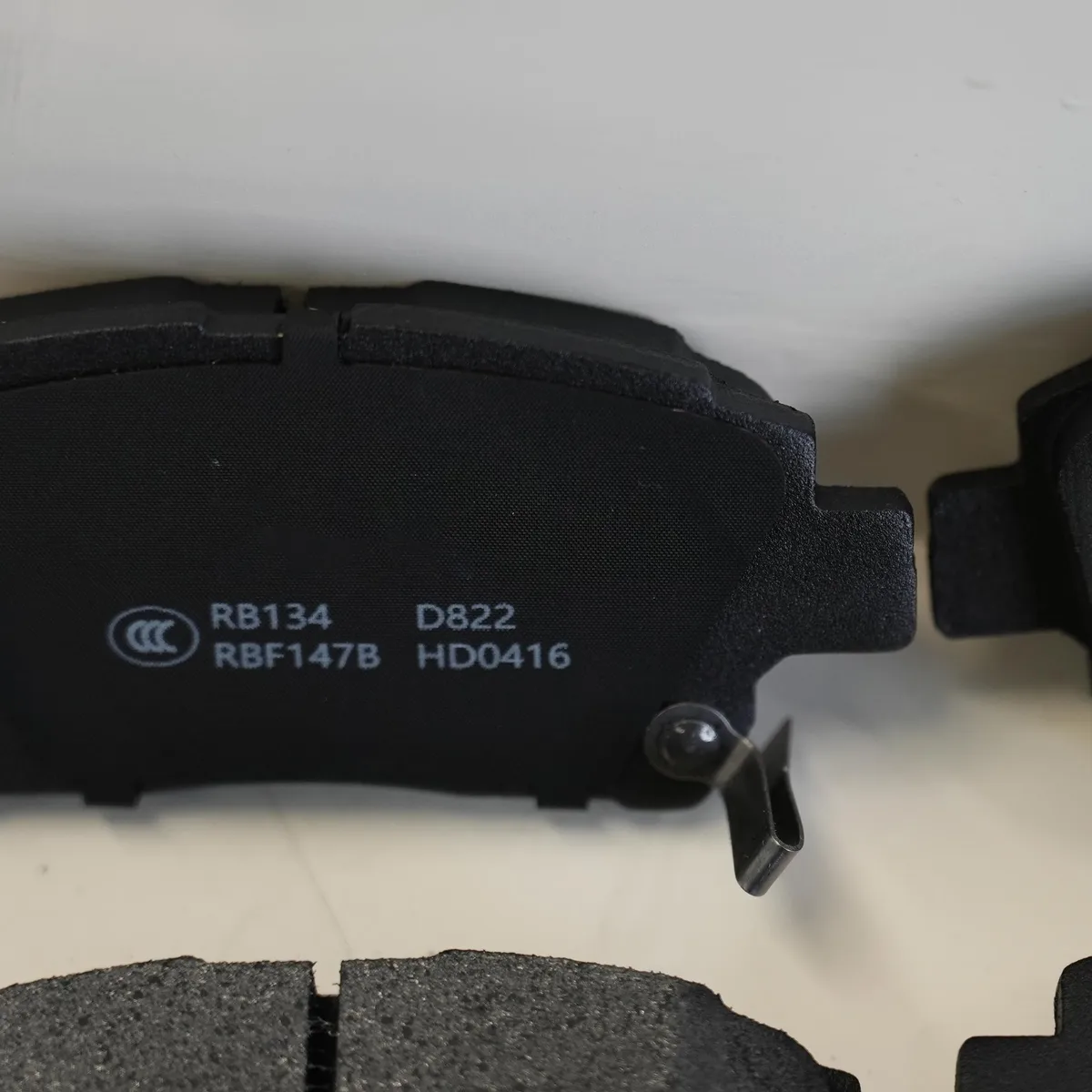

Back Plate Marking

Pad Set Close Up

Friction Surface Side Edge

We're here to help

Our team is ready to advise you on the best product configuration and procurement plan.

400 158 5899

Frequently Asked Questions (FAQ)

How do I match this pad?

Match the shown pad outline, listed dimensions and friction value with the compatible disc brake assembly before ordering.

What formula is listed?

The parameter chart lists semi-metallic friction material with a 0.4 friction coefficient for the working pad face.

What dimensions are shown?

The drawing and table show 116.2 mm length, 51.5 mm height and 16.6 mm total thickness.

What back plate detail appears?

The photos show side tabs on the back plate and a center slot on the friction face for the shown pad shape.

How is it used in service?

The scene images show wheel-off brake service, with the pad positioned around the exposed rotor and caliper during replacement.
