Set up seated shoulder training

Overhead Pressing on Strength Floors

Suitable for commercial gyms, fitness clubs, training centers and professional strength areas, this plate-loaded shoulder press machine provides a seated overhead pressing station for general strength, bodybuilding and athletic programs. It can be arranged with chest and incline presses, cable stations, benches, free weights and plate storage to create an organized upper-body pressing zone for routine member workouts and coached sessions.

Product Advantages

Both press arms rise and return with the user while the tall backrest supports the complete shoulder press.

Specifications & Structural Decomposition

Exploded Structure Diagram

Exploded Structure Diagram
  1. Upper Pivot Connector

    Connects both press-arm pivots and keeps the upper structure aligned during movement.

  2. Left Weight Loading Assembly

    Carries weight plates on the left side and transfers resistance into the press arm.

  3. Right Weight Loading Assembly

    Supports right-side loading plates while maintaining balanced resistance through the arm.

  4. Backrest Pad

    Provides firm upper-body support and helps maintain a stable pressing posture during training.

  5. Seat Cushion

    Offers cushioned seating support for a comfortable and controlled shoulder press position.

  6. Left Support Frame

    Forms the left structural base, supporting the pivot arm and stabilizing the machine under load.

  7. Right Support Frame

    Forms the right structural base, reinforcing the press mechanism and overall frame stability.

General information

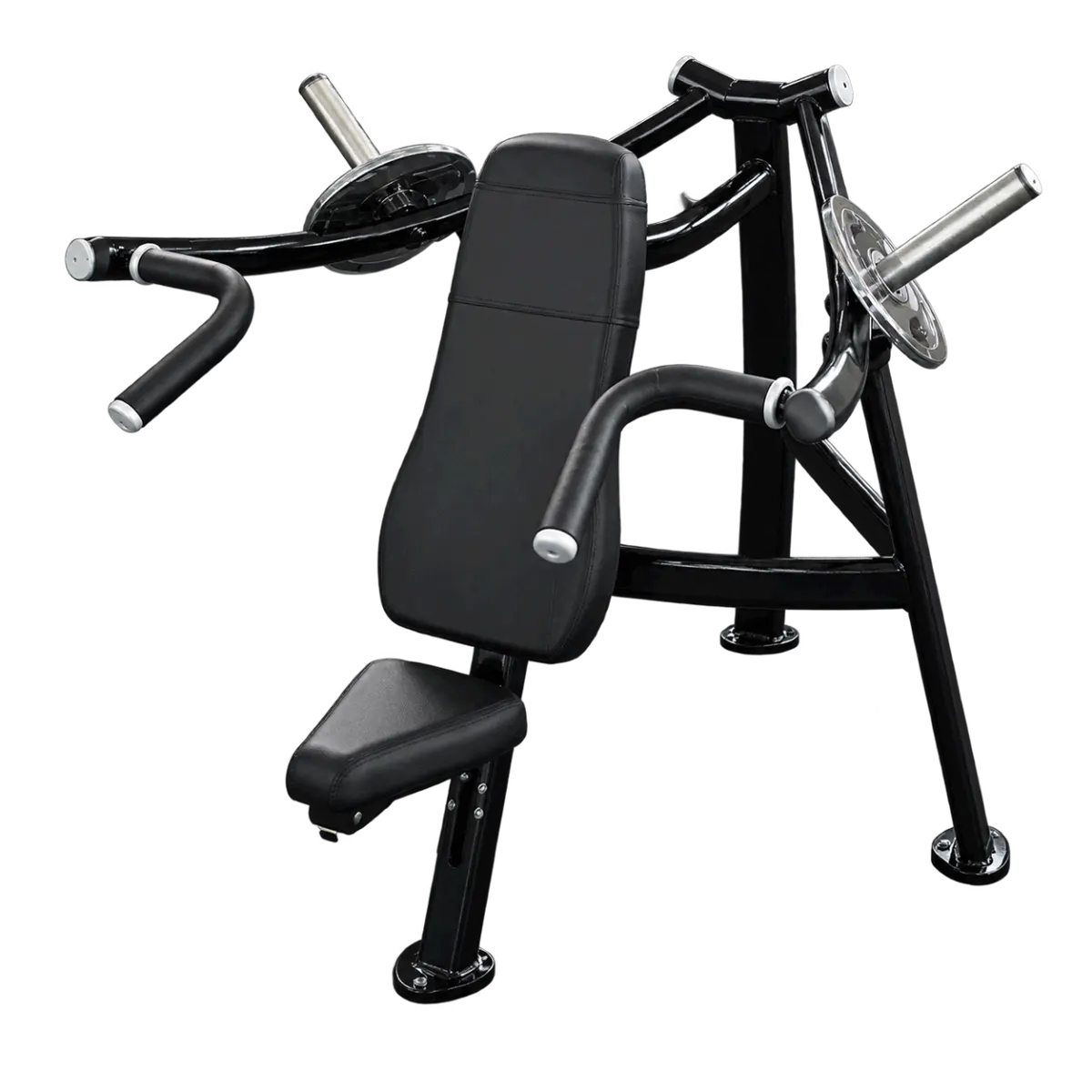

肩举训练器
Model
XS-02
Product Name
Plate Loaded Shoulder Press
Target Muscles
Anterior & Lateral Deltoids, Upper Trapezius, Triceps Brachii
Overall Dimension (L×W×H)
1171*1401*1248mm
Machine Weight
77.63kg
Weight Stack
Plate loaded, weight plates sold separately
Max User Weight
150 kg(330 lbs)

General instructions

Simplified explanation

Product Video

00:38

XS-02-Machine Detail Showcase

Shows the handles, backrest, loading sleeves, and complete machine structure.

XS-02-Machine Detail Showcase

00:38Shows the handles, backrest, loading sleeves, and complete machine structure.

XS-02-Comprehensive Operation Showcase

00:27Shows seat adjustment, plate loading, and shoulder press training.

00:27A look at the packaging process for fitness equipment. We make sure the equipment stays intact during shipping. All overseas orders come with fast shipping and reliable supply.

Real Factory Footage

Real on-site records from our factory, offering a practical view of our production capability and delivery readiness.

01

Factory scenario

0:00 / 0:00

Product Review

Product Inspection

We centrally purchase equipment, test the data and the machine, then publish the models that clear our review. You get a shorter path from "could work" to a quote your team can act on.

0:00 / 0:00

Core Component Details

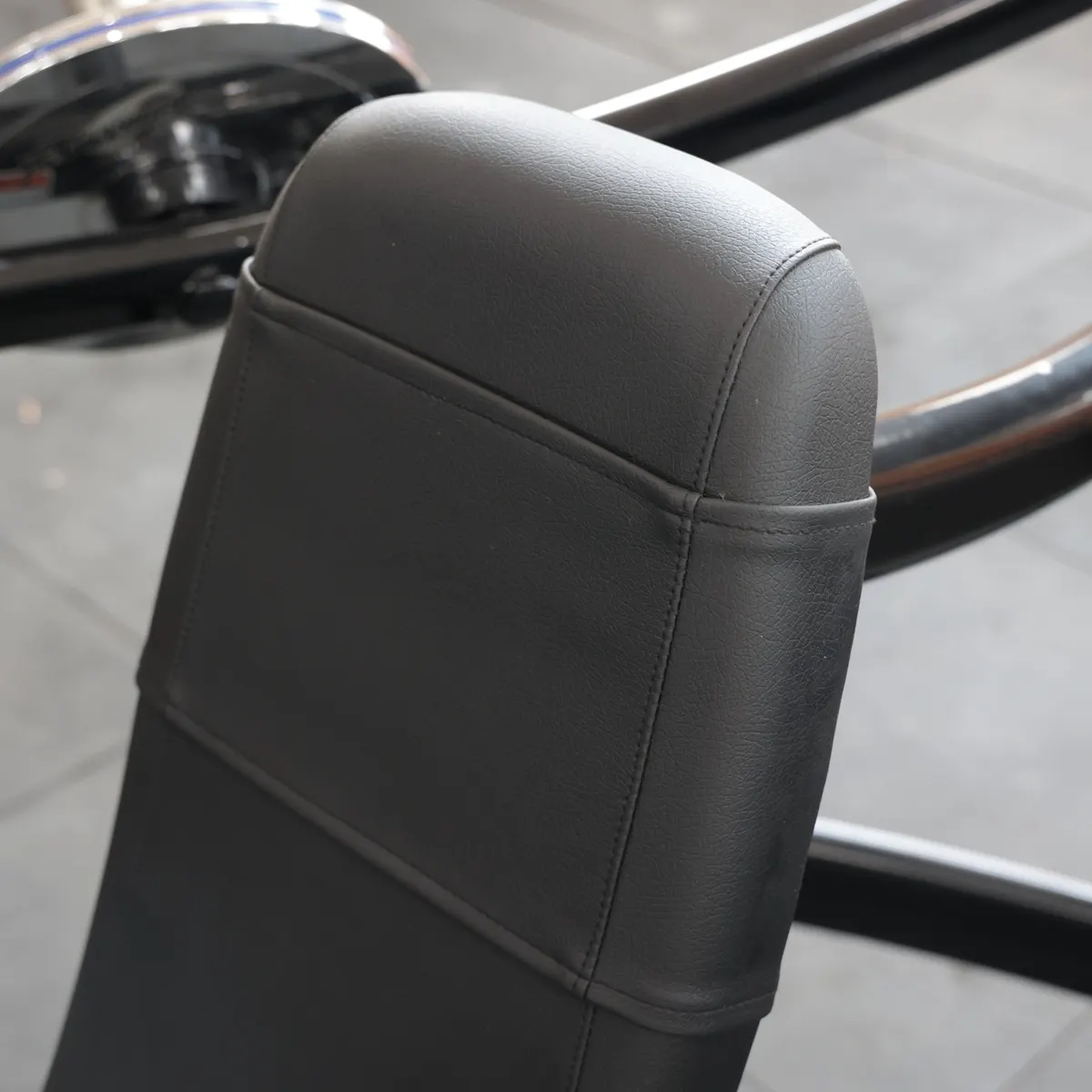

Backrest Pad

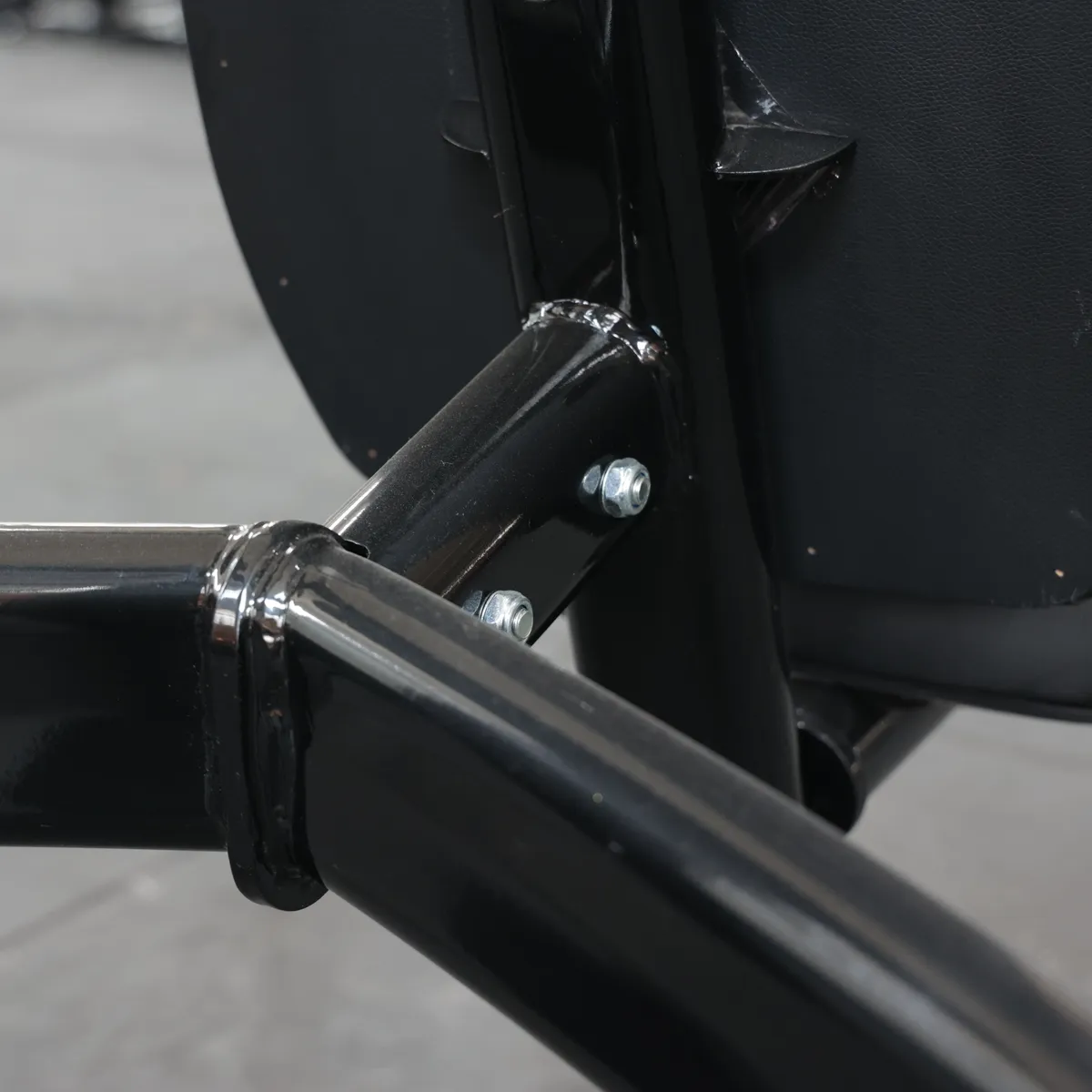

Backrest Support Welded Joint

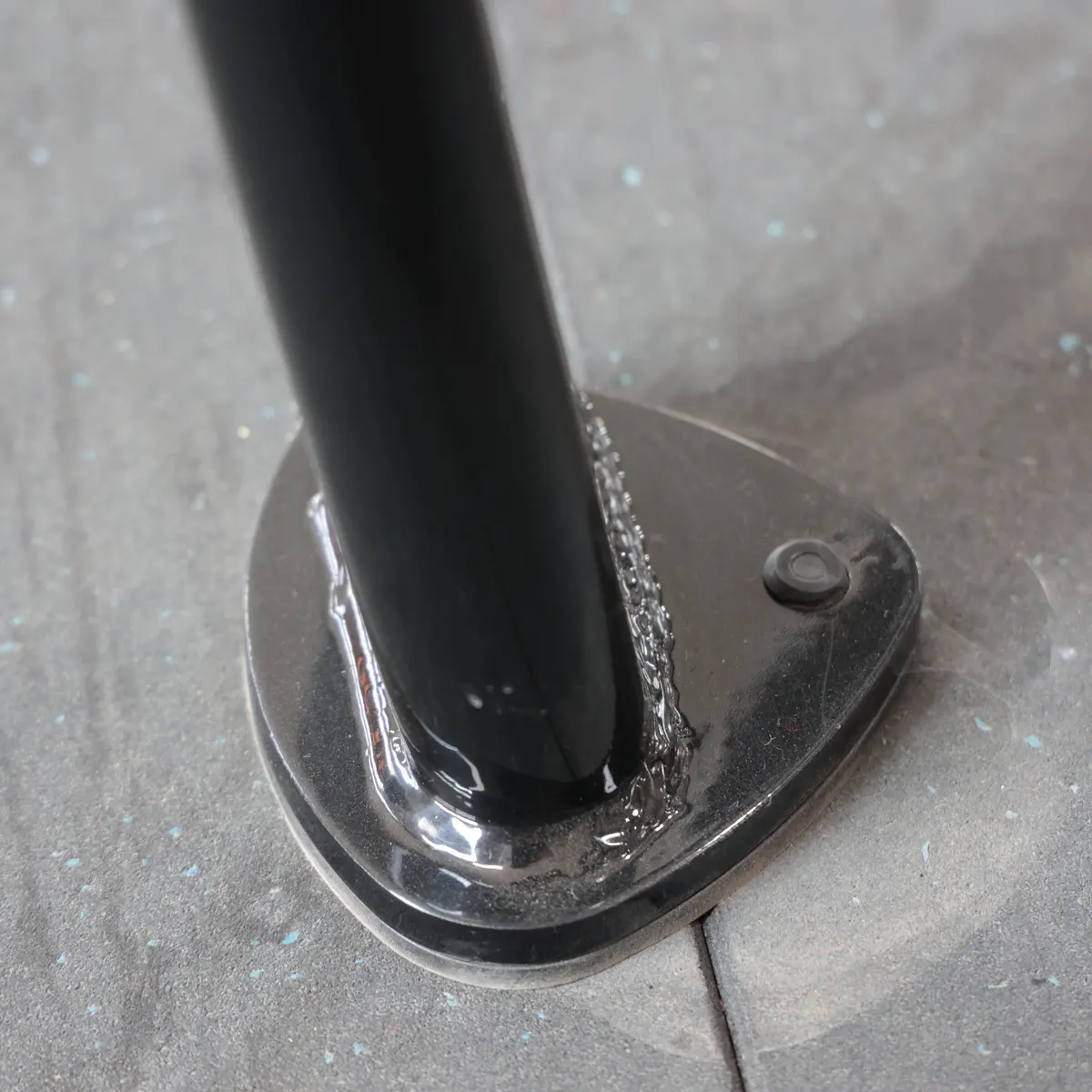

Base Foot Mounting Hole

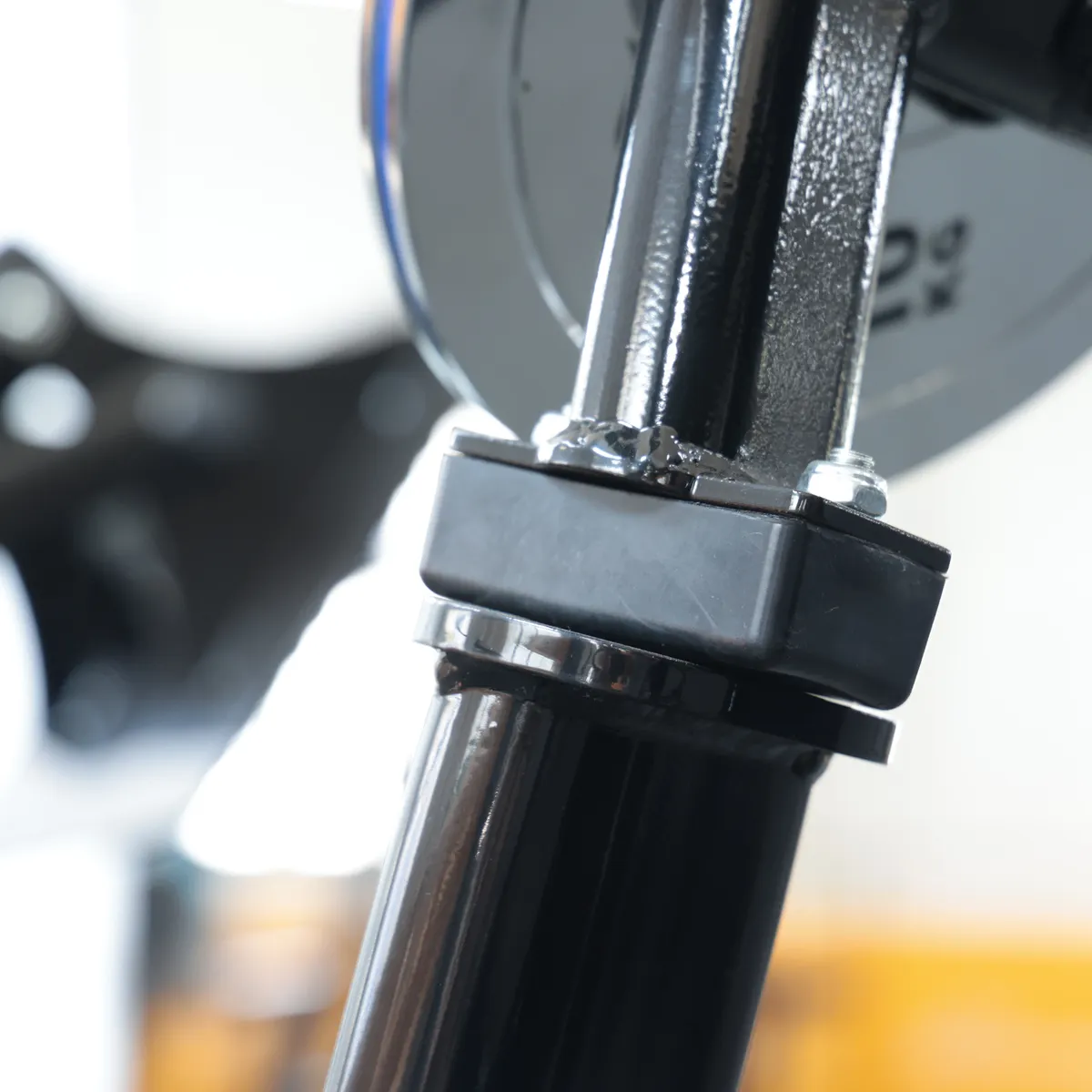

Exercise Arm Pivot Stop Block

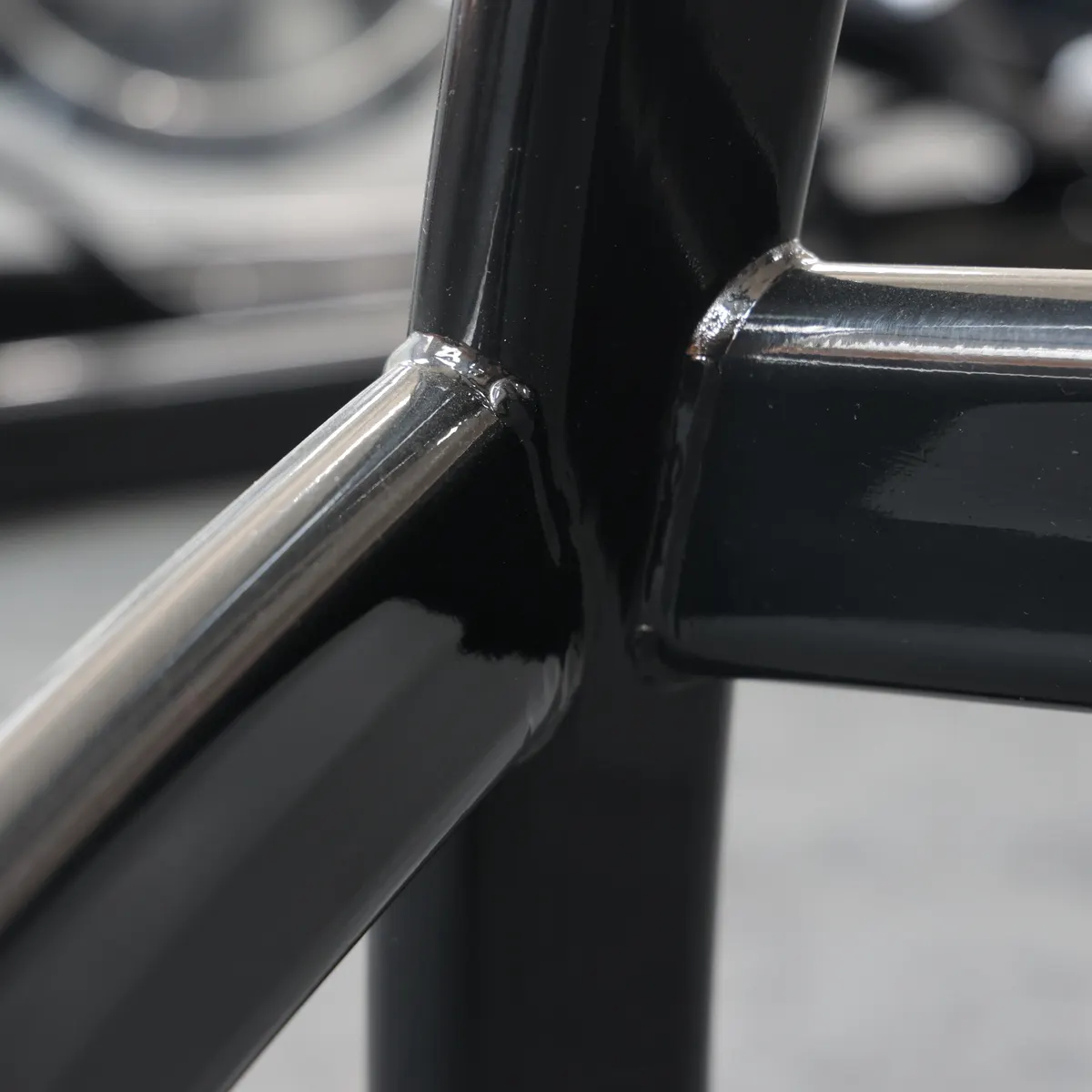

Frame Crossbar Welded Joint

Pivot Stop Block and Warning Label

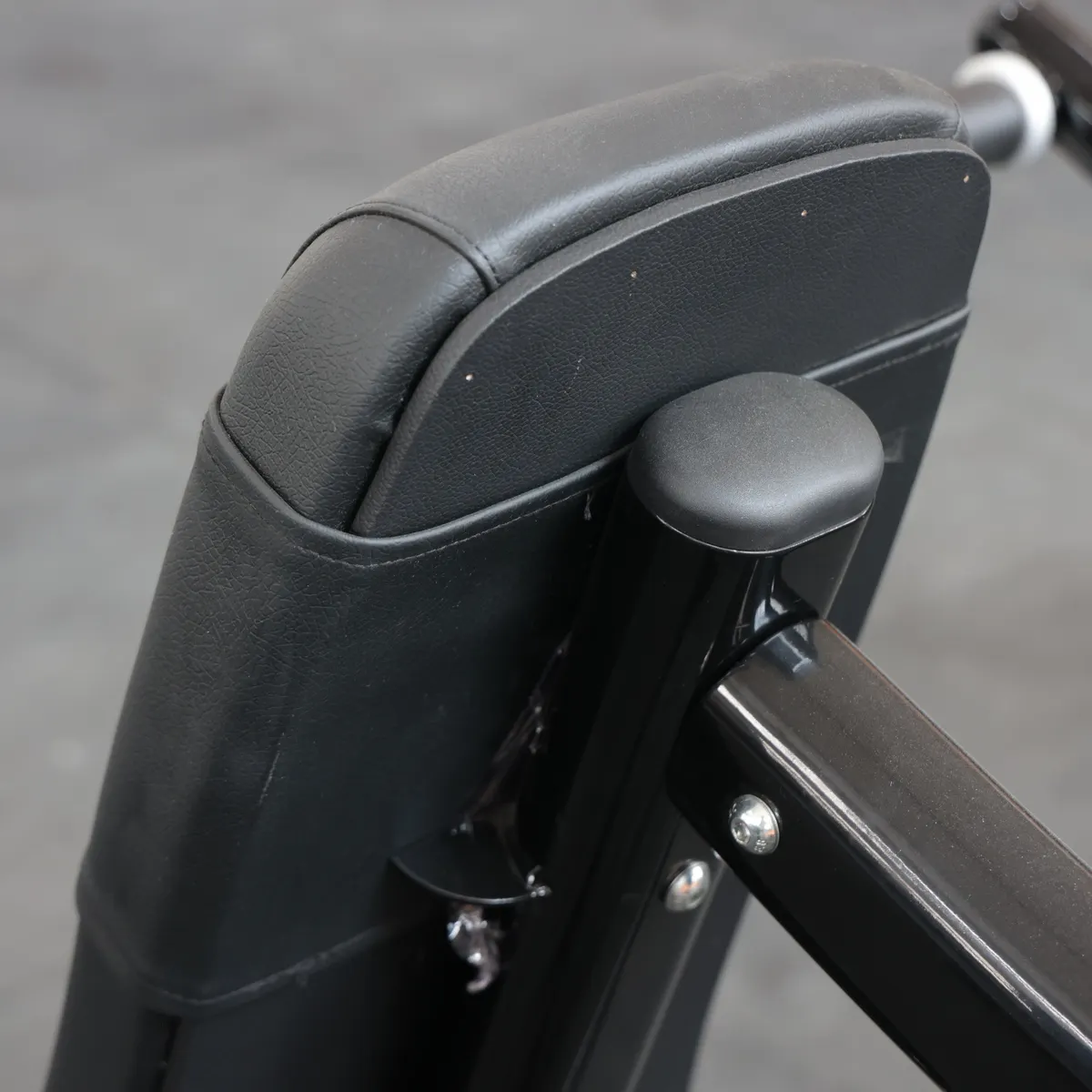

Rear Backrest Support Tube

Seat Adjustment Post

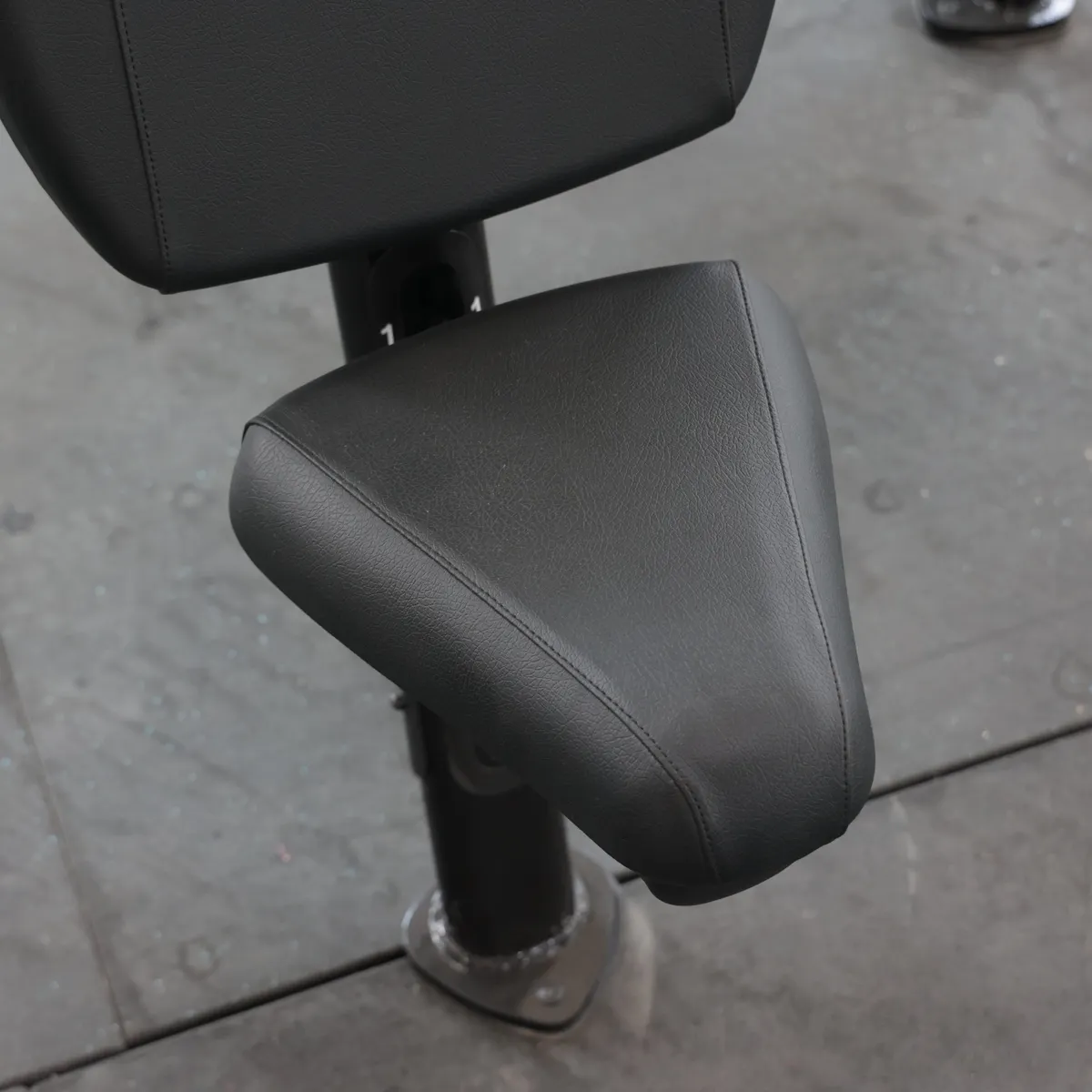

Seat Cushion

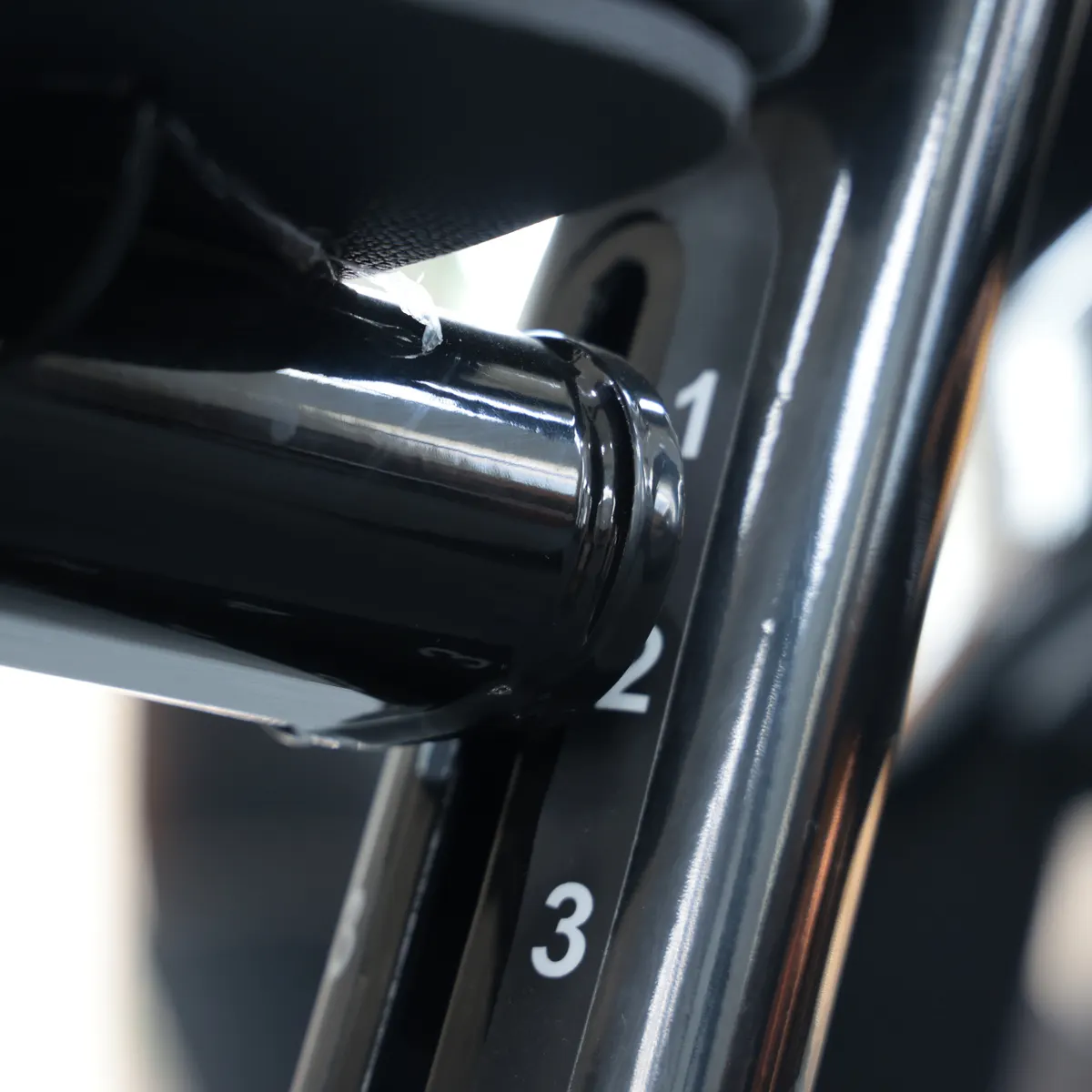

Seat Height Markings

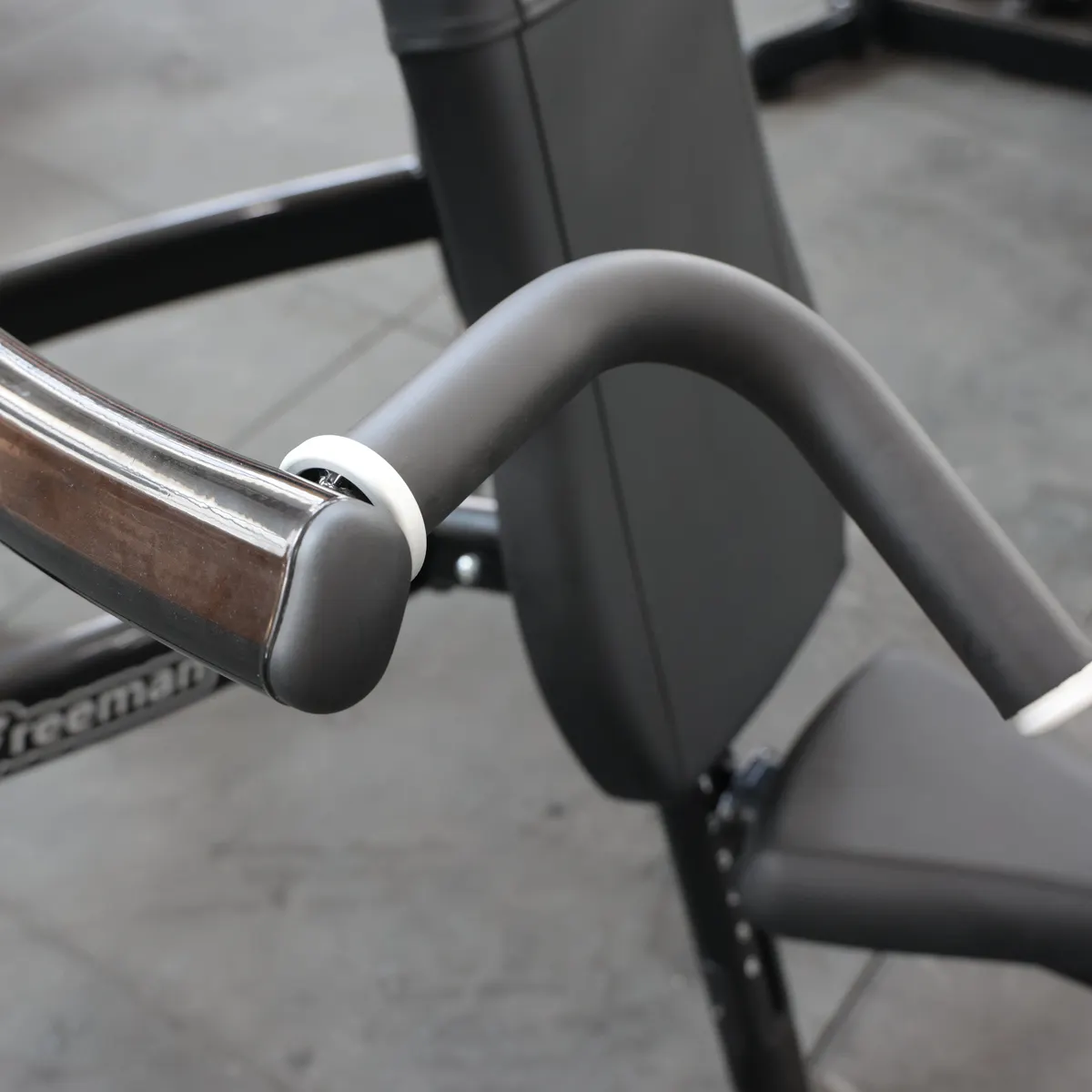

Shoulder Press Handle Left View

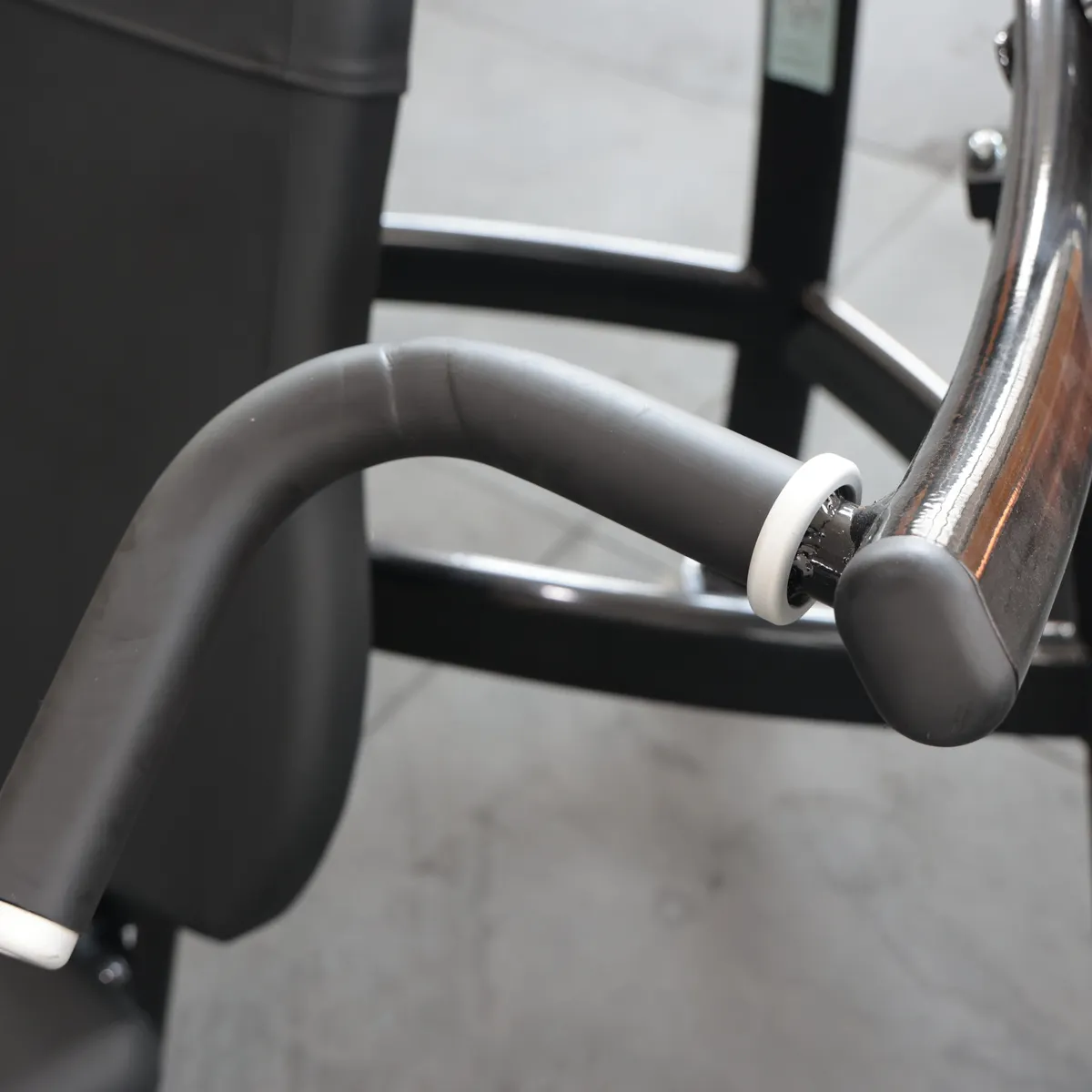

Shoulder Press Handle Right View

We're here to help

Our team is ready to advise you on the best product configuration and procurement plan.

400 158 5899

Frequently Asked Questions (FAQ)

What is the exercise focus?

The machine is intended for seated shoulder pressing through the paired overhead lever arms and handles.

How are weights loaded?

Weight plates load onto sleeves attached to the two moving arms, providing resistance for the pressing movement.

Can seat height be changed?

The padded seat sits on an adjustable post so its height can be set relative to the overhead pressing handles.

What supports the back?

A tall padded backrest supports the user's torso behind the seat during the seated pressing exercise.

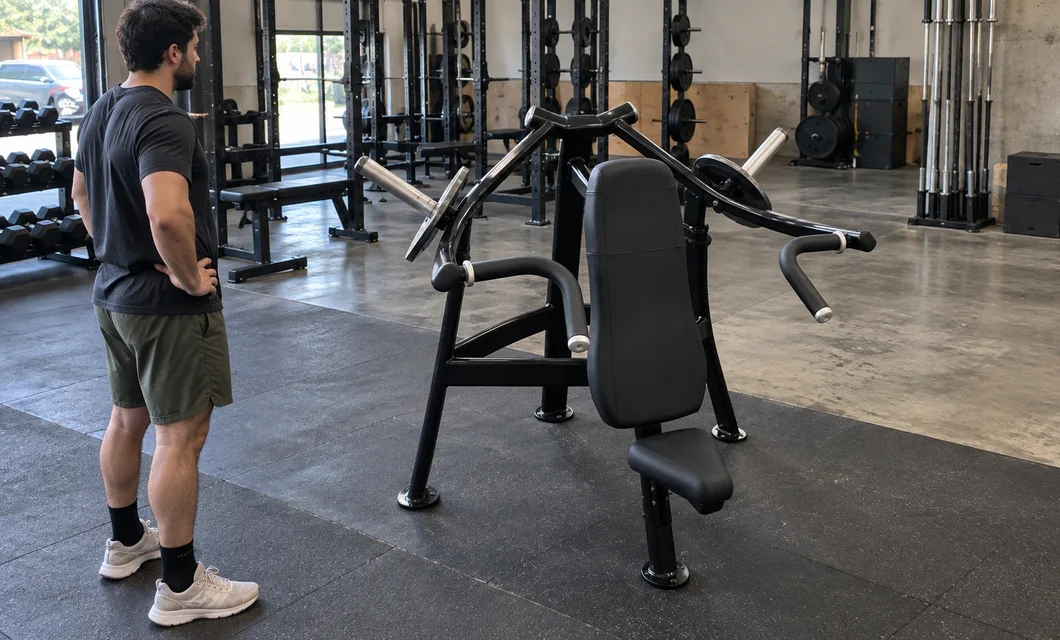

What access is available?

The open front provides an approach to the seat, while the side loading sleeves remain accessible for plate changes.
