Juice Refining ProcessHalf-Ton Standard Refining System
Refining System for Beverage, Bottling and Juice Processing

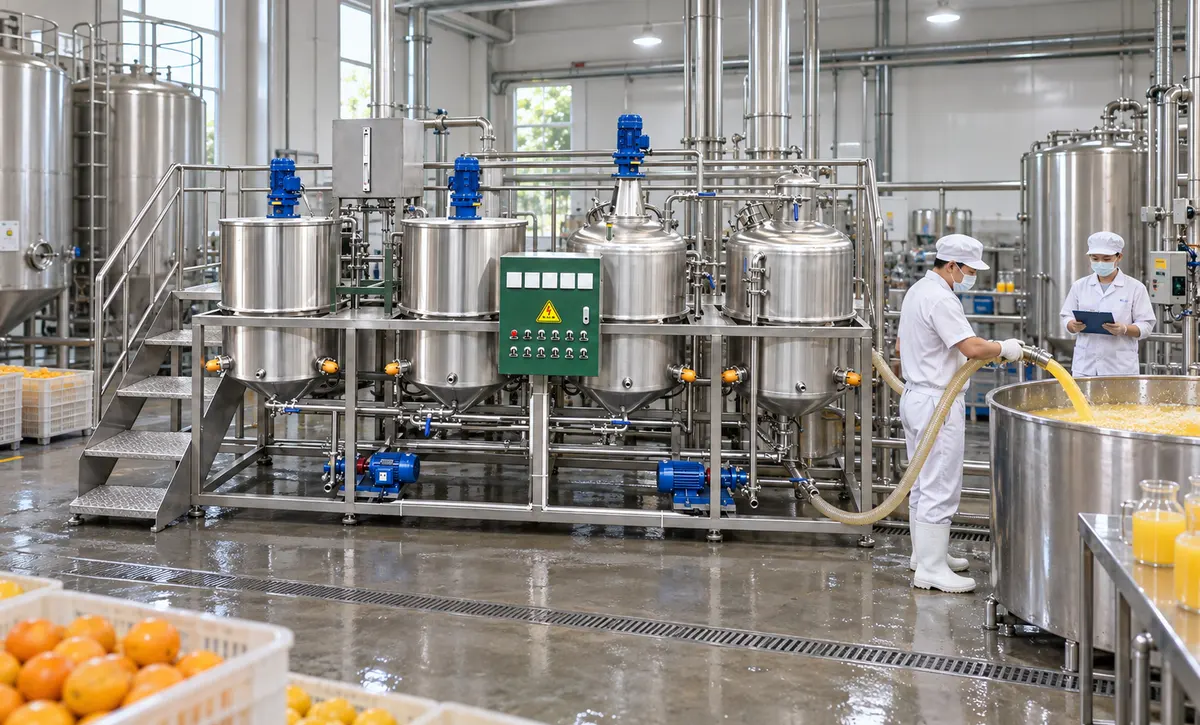

The system is shown installed in clean processing environments alongside production lines, stainless equipment and working personnel. The supplied scenes show beverage processing, bottling-line integration, juice refining and general liquid refining, with operators accessing the system from the floor and platform areas.
- Application Scenarios

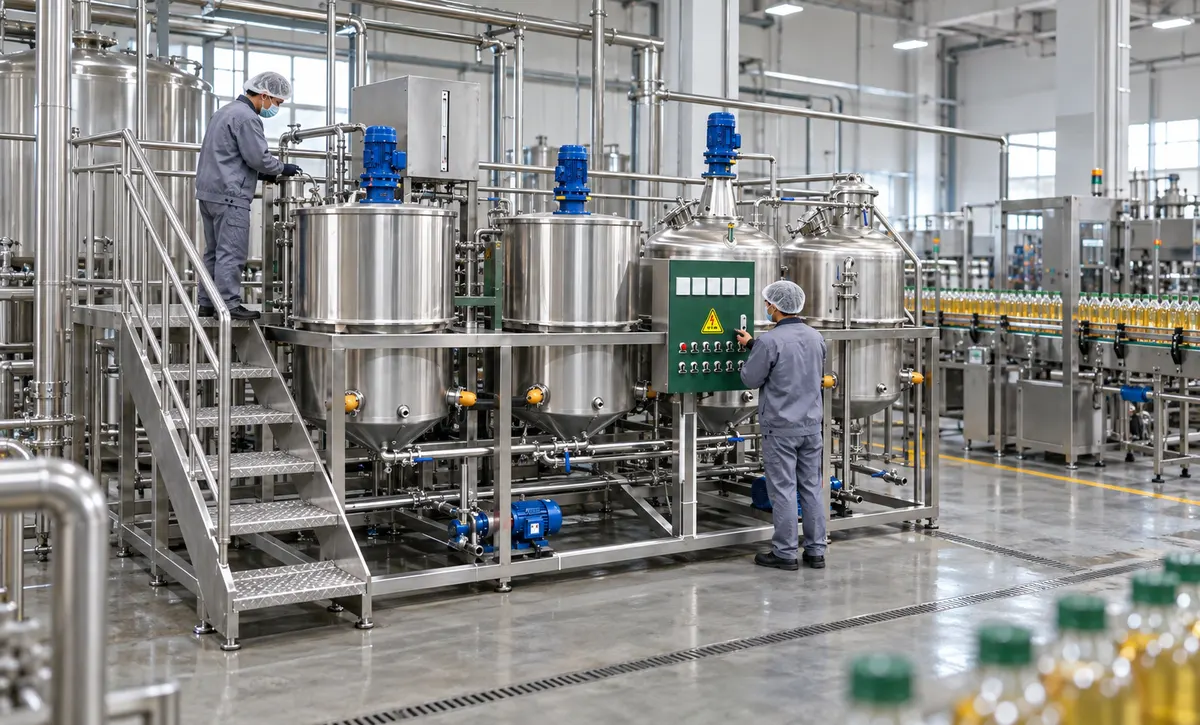

Beverage Processing Line

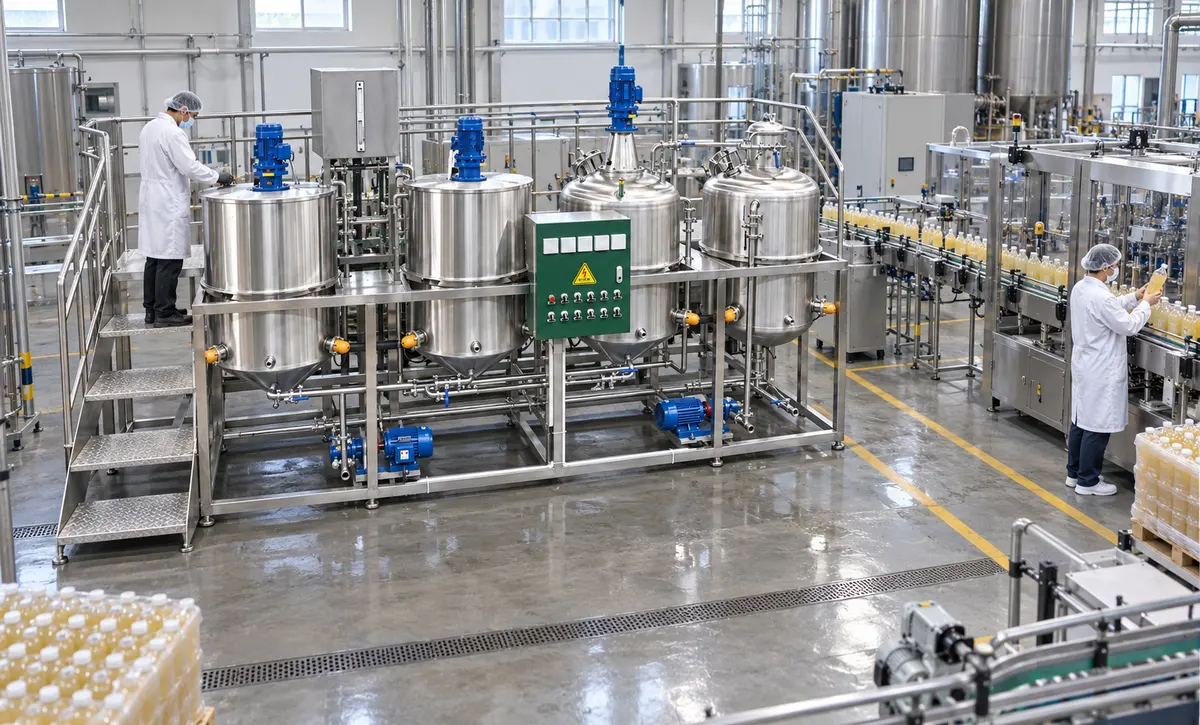

Bottling Line IntegrationJuice Refining Process

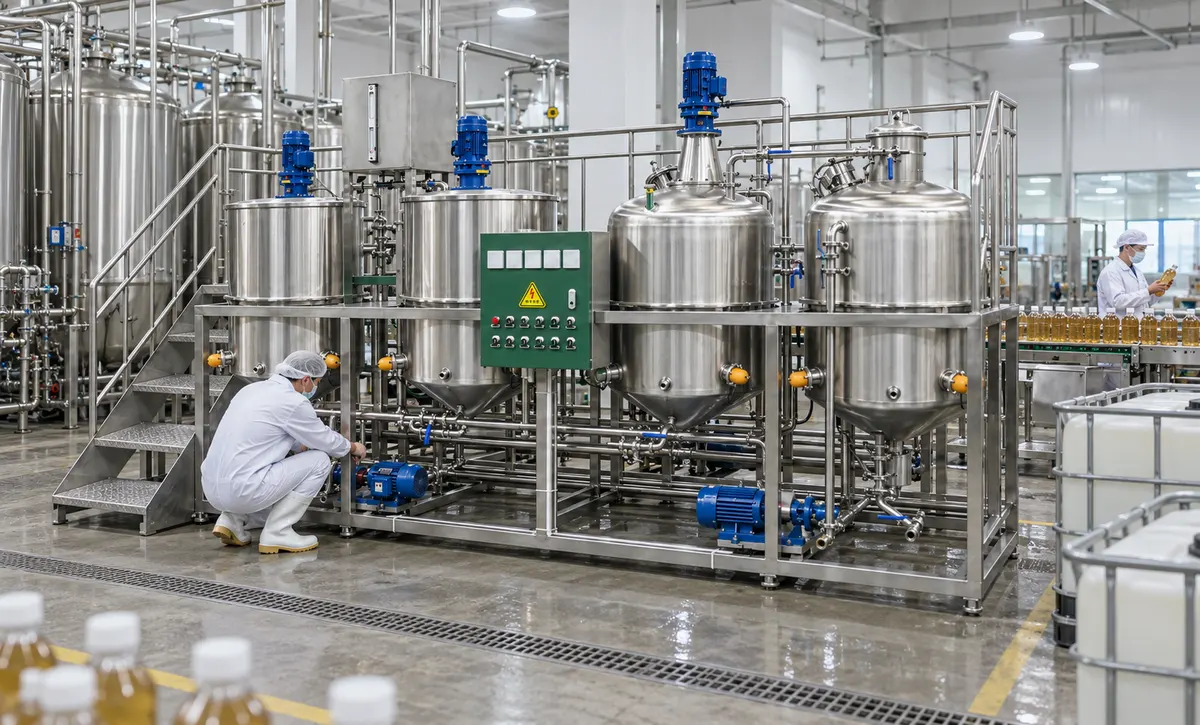

Liquid Refining OperationBeverage Processing LineBottling Line IntegrationSpecifications & Structural Decomposition

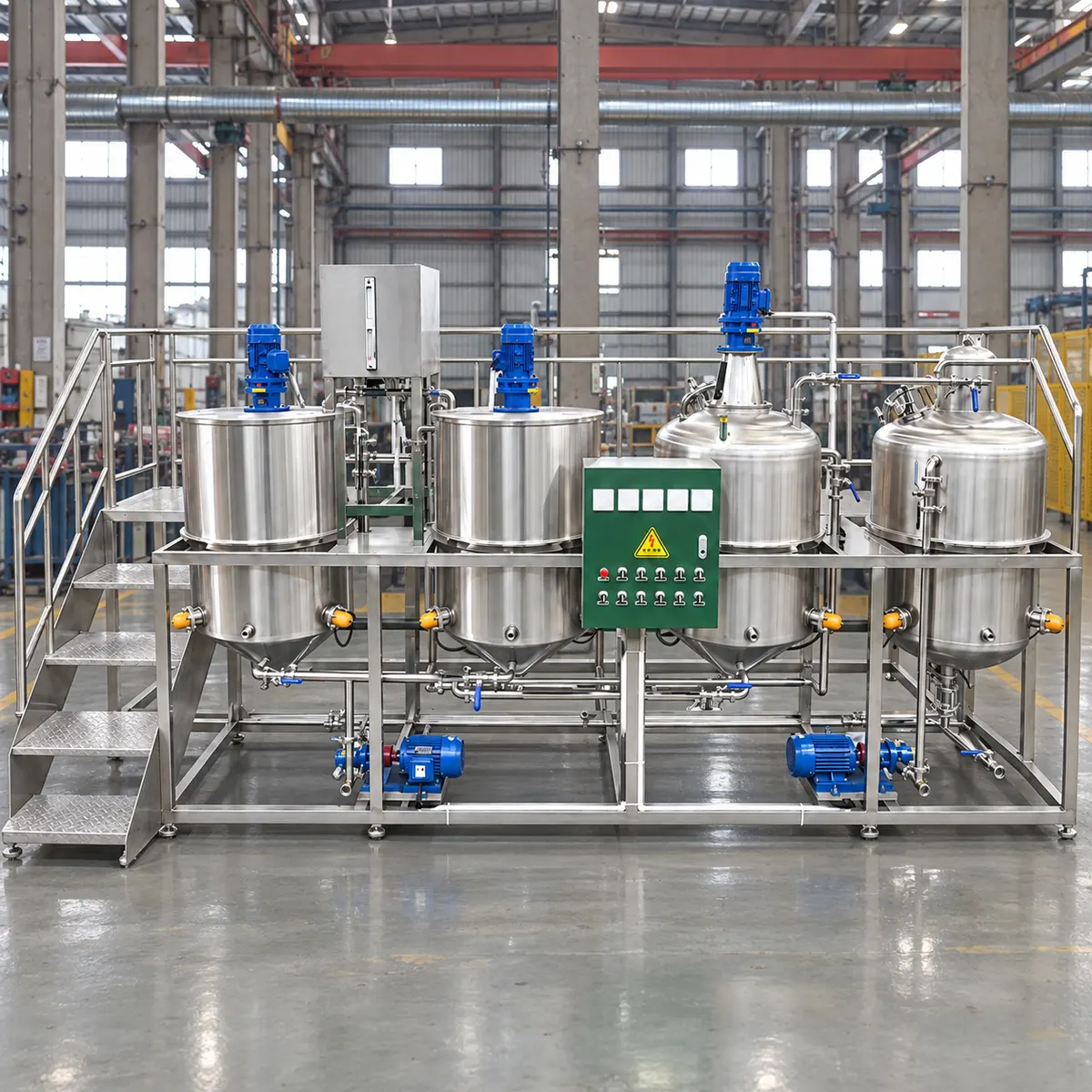

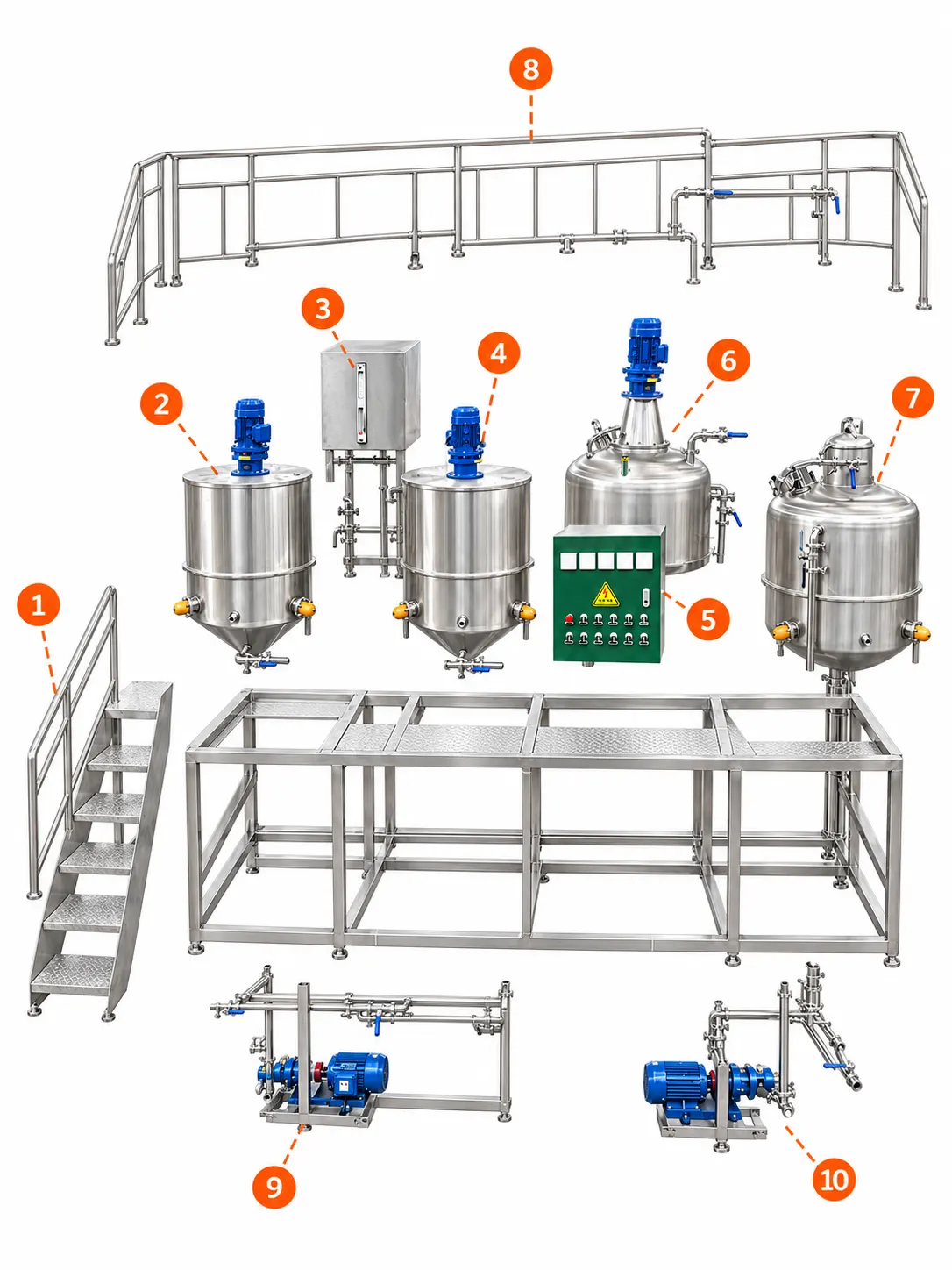

Product Structure Diagram
- Access Stair Assembly
- Left Mixing Vessel
Forms a stainless process vessel with top drive, lower outlet, and side-mounted connections.
- Auxiliary Feed Tank
Provides an elevated auxiliary chamber connected by piping for controlled material transfer.

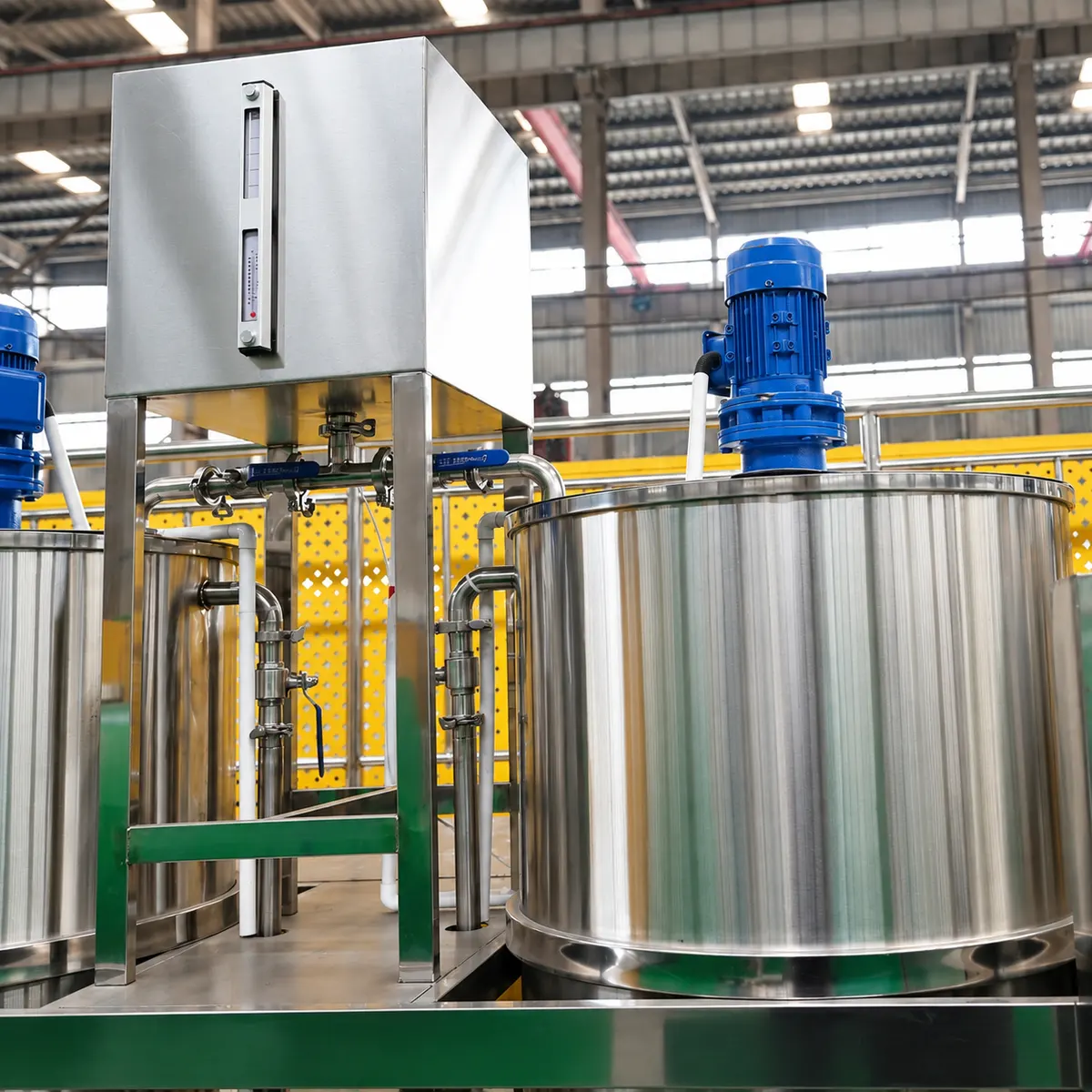

- Center Mixing Vessel
Combines a driven mixing tank with sanitary connections for controlled batch processing.

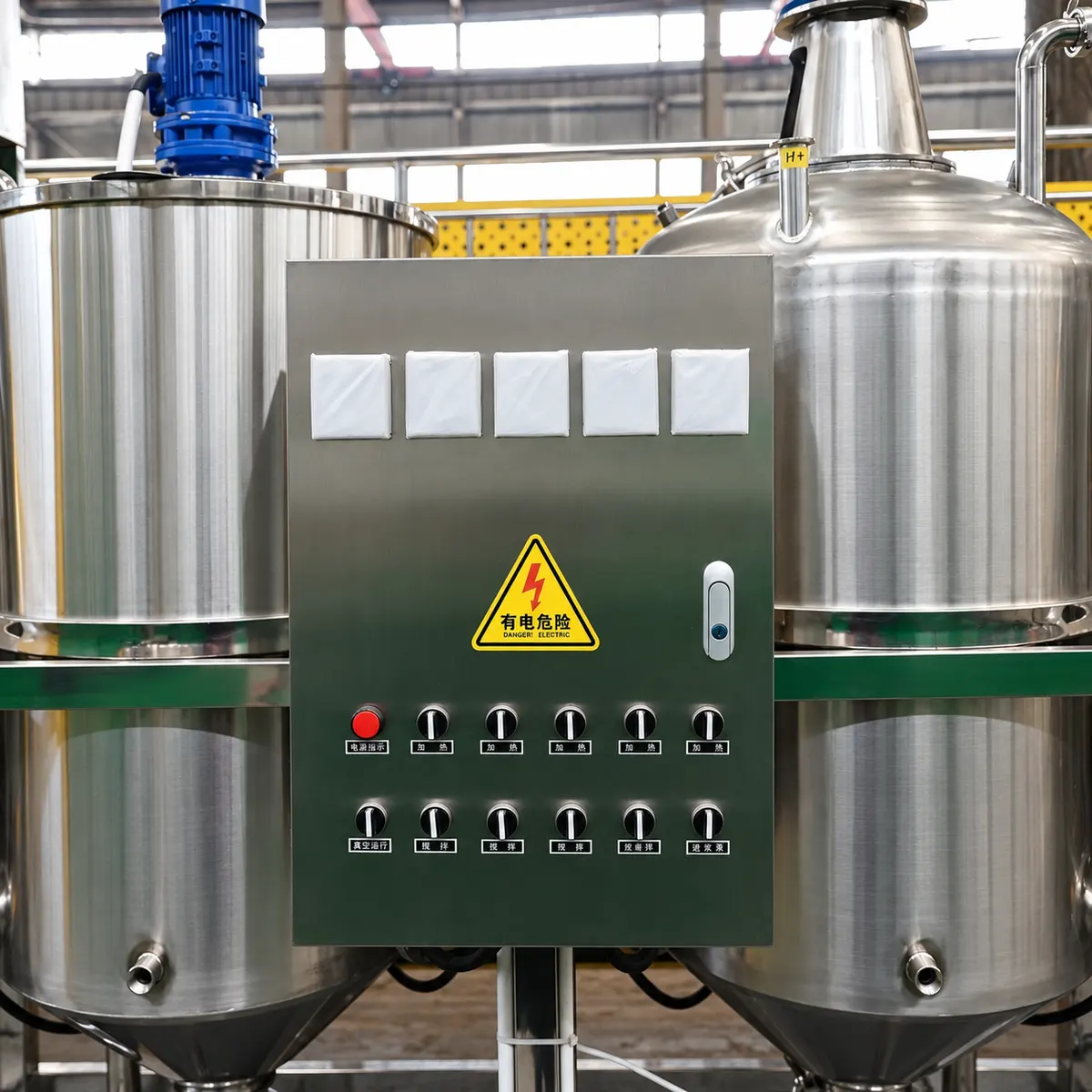

- Electrical Control Cabinet
Centralizes switches, indicators, and electrical controls for coordinated system operation.
- Main Agitated Process Vessel
Uses a top-mounted drive and connected piping for controlled mixing and liquid processing.
- Secondary Process Vessel
Provides an additional stainless chamber with access fittings and lower discharge connections.
General information
- Batch Capacity
- 500 jin / 0.5 ton
- Total Power
- 64.7
- Refining Section Dimension
- 4.1*2.4 m
- Platform Dimension
- 4.8*0.75*2.06 m
General instructions
Simplified explanationProduct Video
Half-Ton Refining — Multi-Vessel Efficiency
Half-ton refining model 201 combines vessels, pumps, valves and controls with a platform—more concentrated refining, less hauling, ideal for mid-scal…
Real Factory Footage
Real on-site records from our factory, offering a practical view of our production capability and delivery readiness.
0:00 / 0:00
Core Component Details
We're here to help
Our team is ready to advise you on the best product configuration and procurement plan.
info@eascoutia.com400 158 5899Frequently Asked Questions
What type of equipment is this product?
It is a half-ton standard refining system intended for liquid processing and refining applications.
What main components are visible in the system?

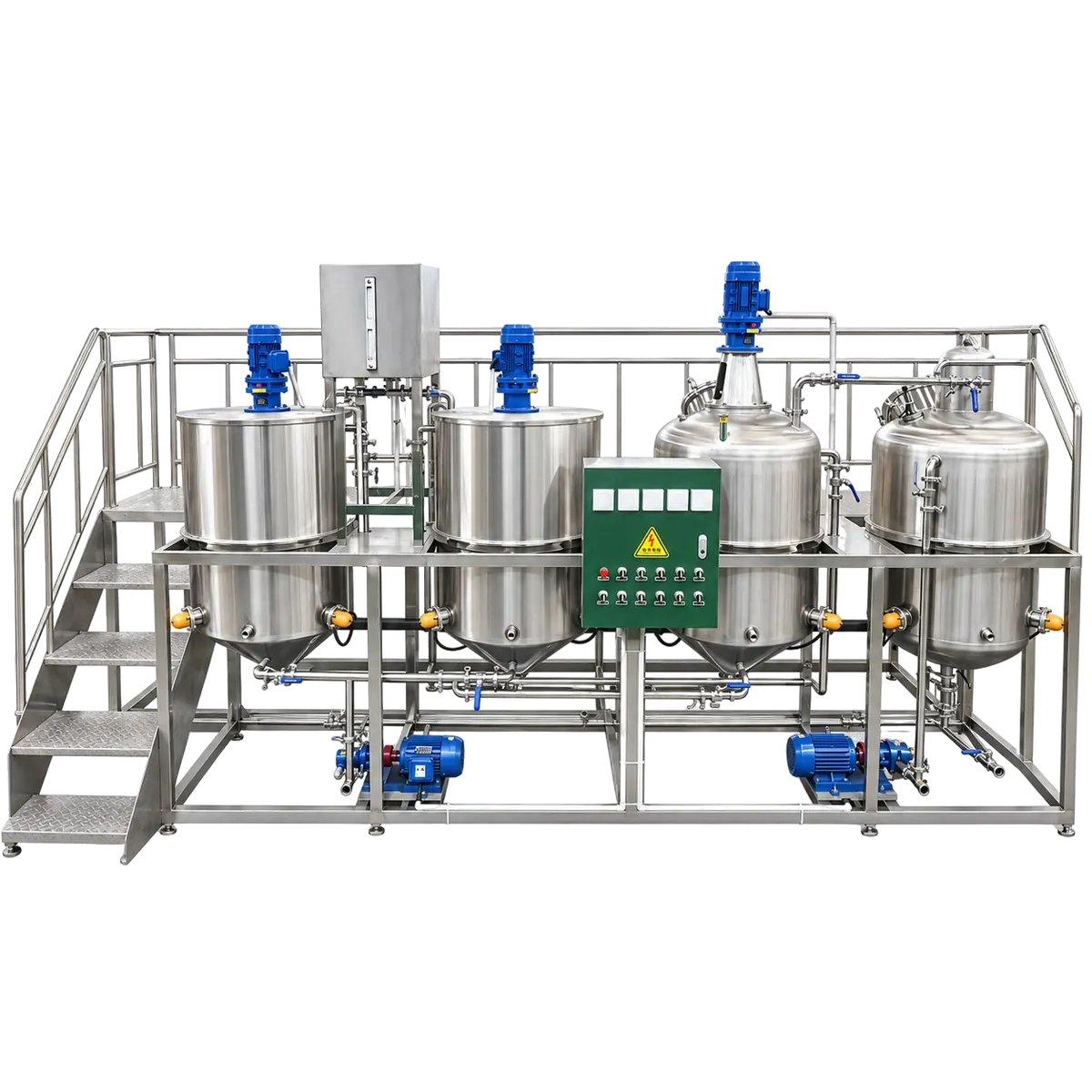

The product image shows multiple process vessels, motors, pumps, pipelines, valves, a control panel, stairs and an upper platform.
Does the system include an operator access platform?
Yes. The supplied product image clearly shows stairs, guardrails and an elevated working platform around the vessels.
What application scenes are shown for this equipment?
The supplied scenes show beverage processing, bottling-line integration, juice refining and general liquid refining operations.
Is the equipment shown as an integrated production system?
Yes. The equipment is shown as an integrated multi-vessel system connected through piping and installed within production environments.
