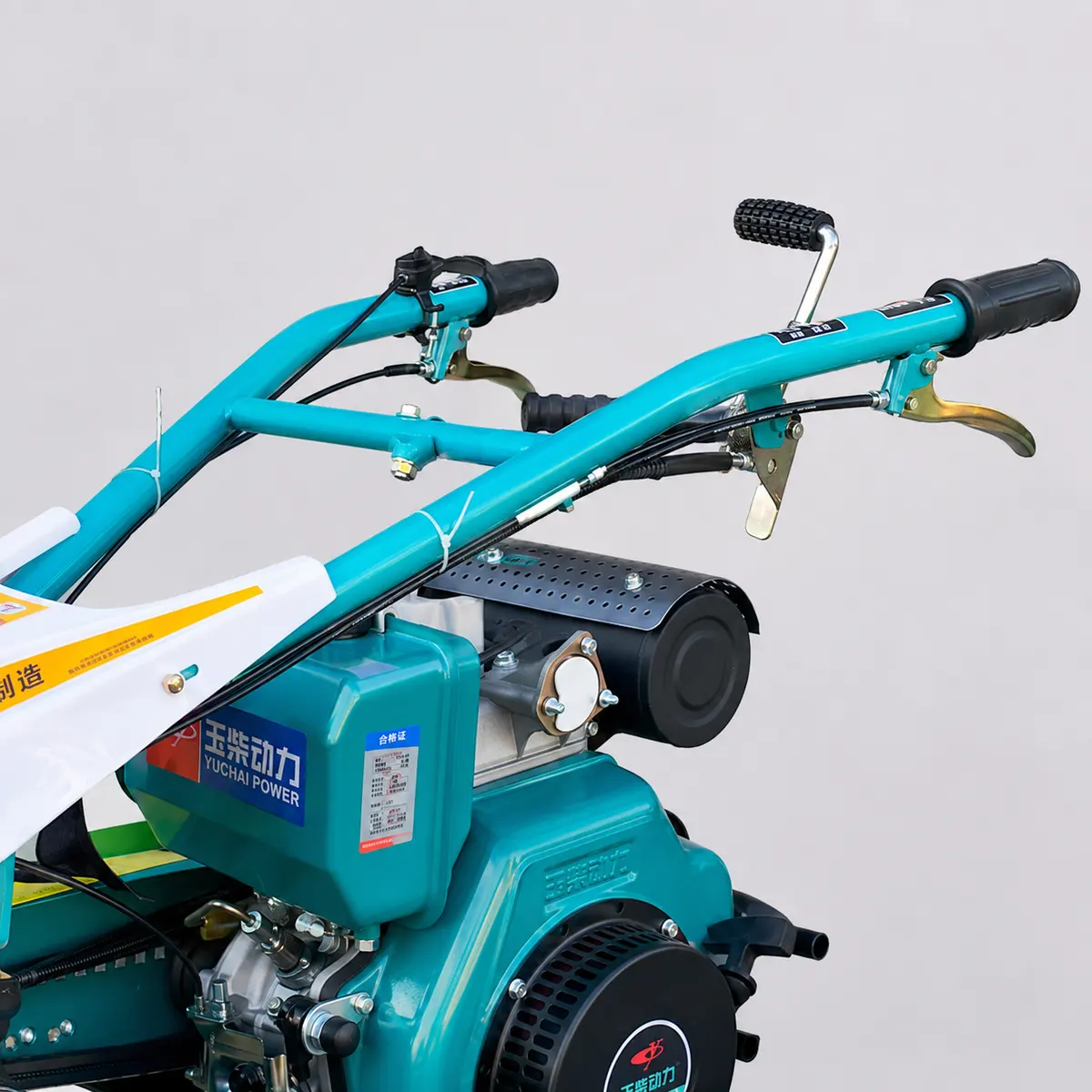

Paired handlebars, rubber grips, clutch handle and cables provide walking guidance and work-state control.
Clear Tall Grass Beside Access RoutesWide Vegetation Clearing for Orchard and Field Routes
Wide-Coverage Diesel Flail Mowing

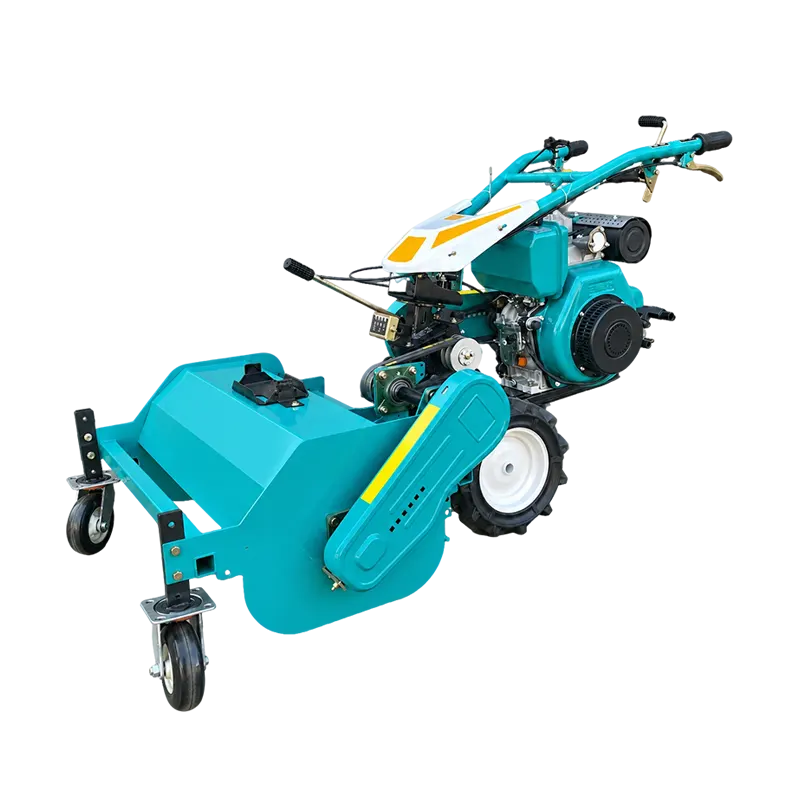

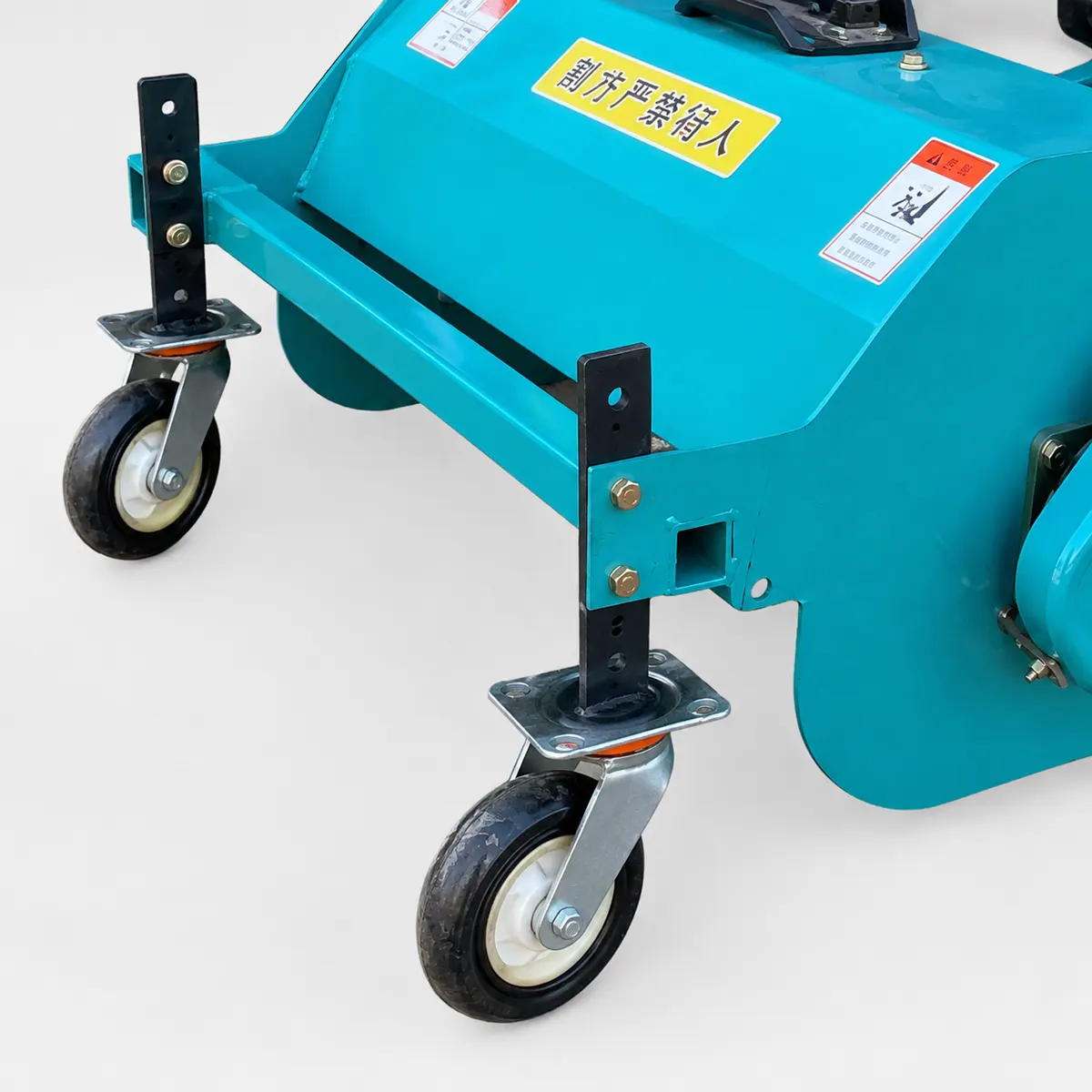

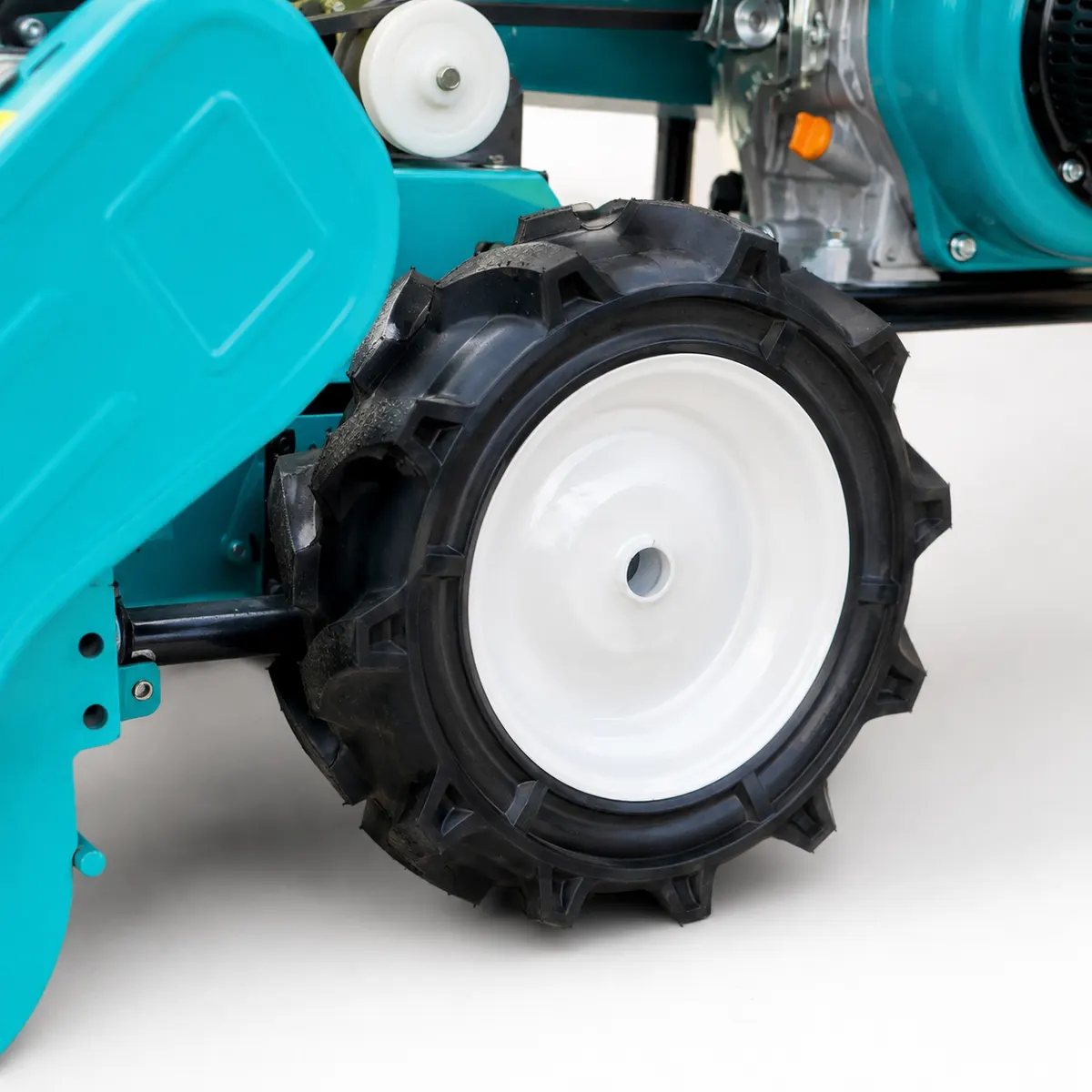

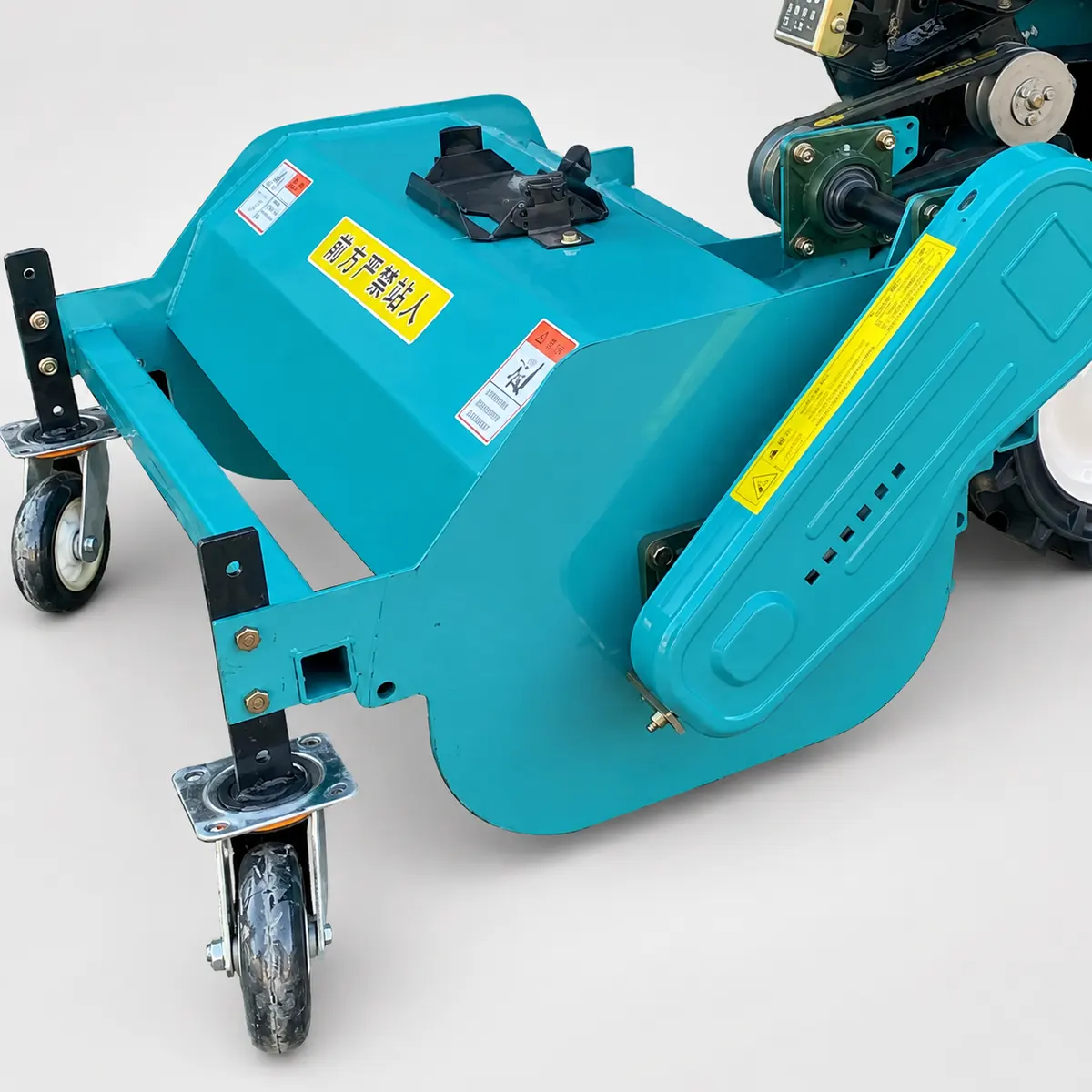

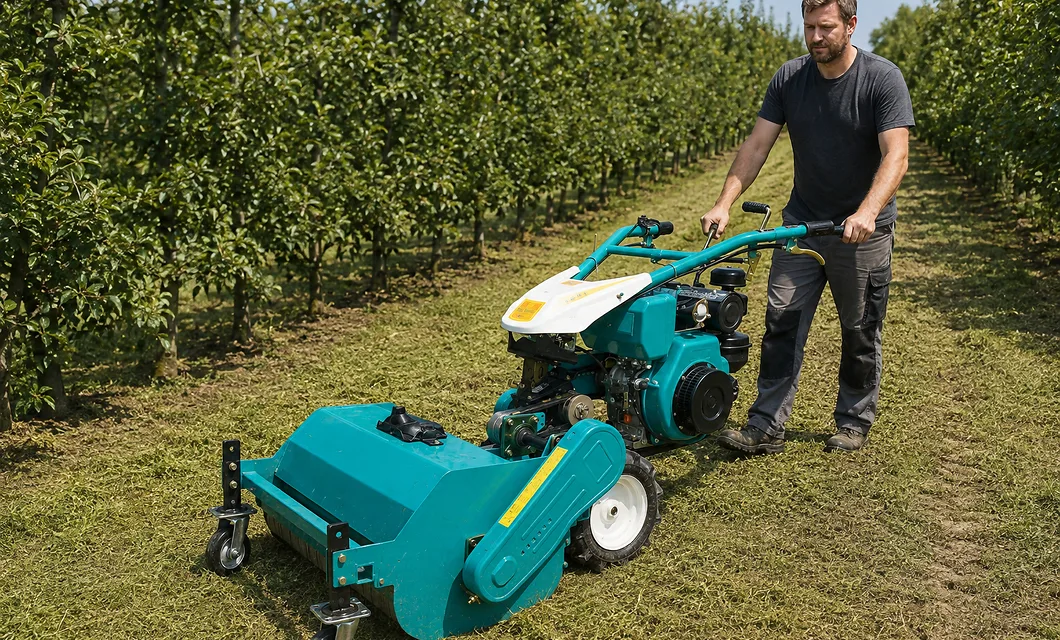

The machine is intended for orchard rows, nursery paths, field margins and drainage-side routes where wider vegetation coverage is useful. Its front enclosed flail housing works close to the soil while the operator guides the diesel walk-behind chassis from behind. The supplied specification records an 800 mm cutting width, 48 blades in 16 groups and a 30–80 mm stubble range. The drive wheels and front caster wheels remain grounded as the machine follows a prepared route through grass and light.
- Mow Growth Along Gravel Road Edges

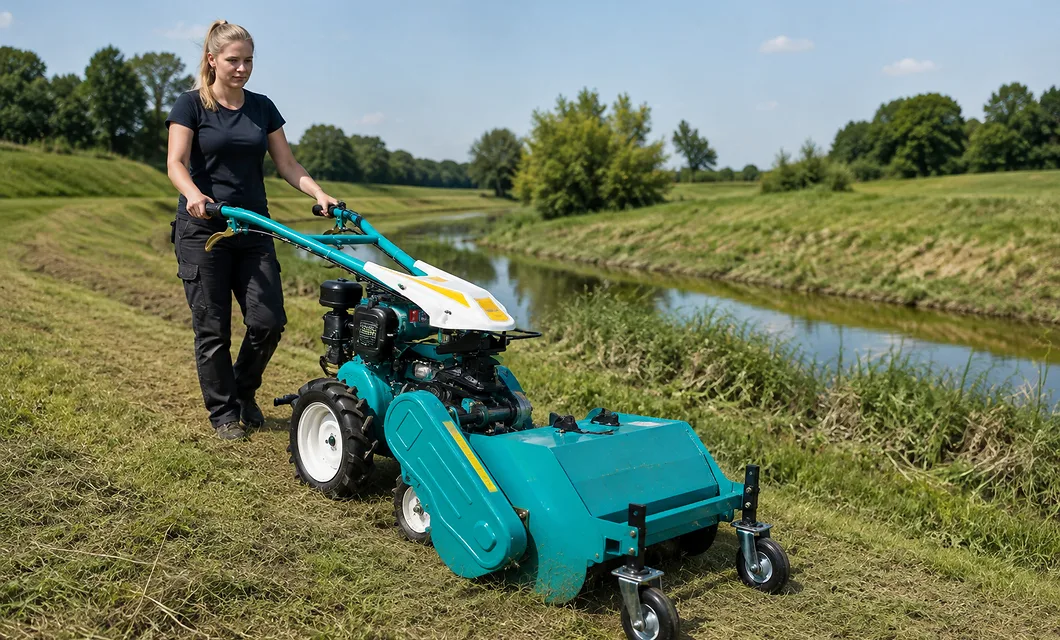

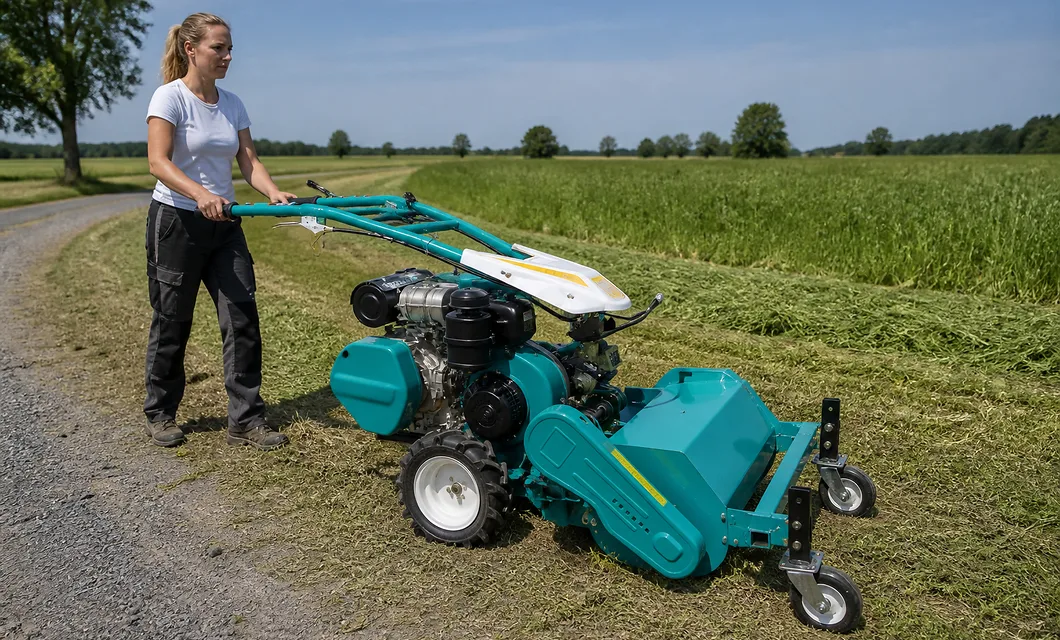

- Keep Canal Banks Clear for Inspection

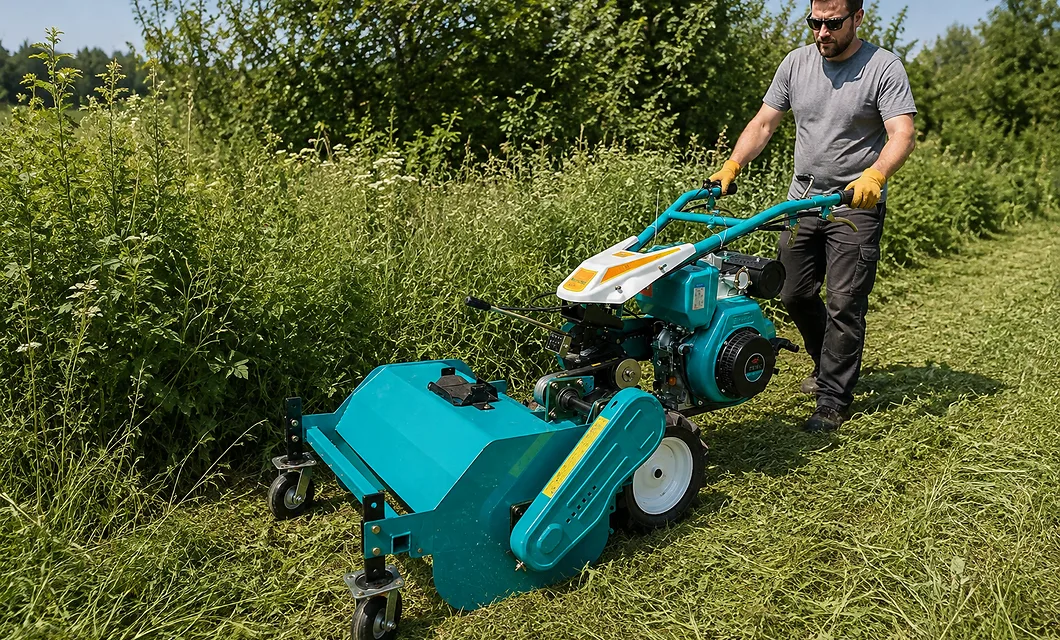

- Clear Tall Grass Beside Access Routes
- Cut Vegetation on Flood Channel Slopes
Mow Growth Along Gravel Road Edges
Keep Canal Banks Clear for InspectionClear Tall Grass Beside Access Routes
Cut Vegetation on Flood Channel SlopesMow Growth Along Gravel Road EdgesKeep Canal Banks Clear for InspectionProduct Advantages
Blue-and-white body with clear controls, easy walk-behind handling.
Specifications & Structural Decomposition

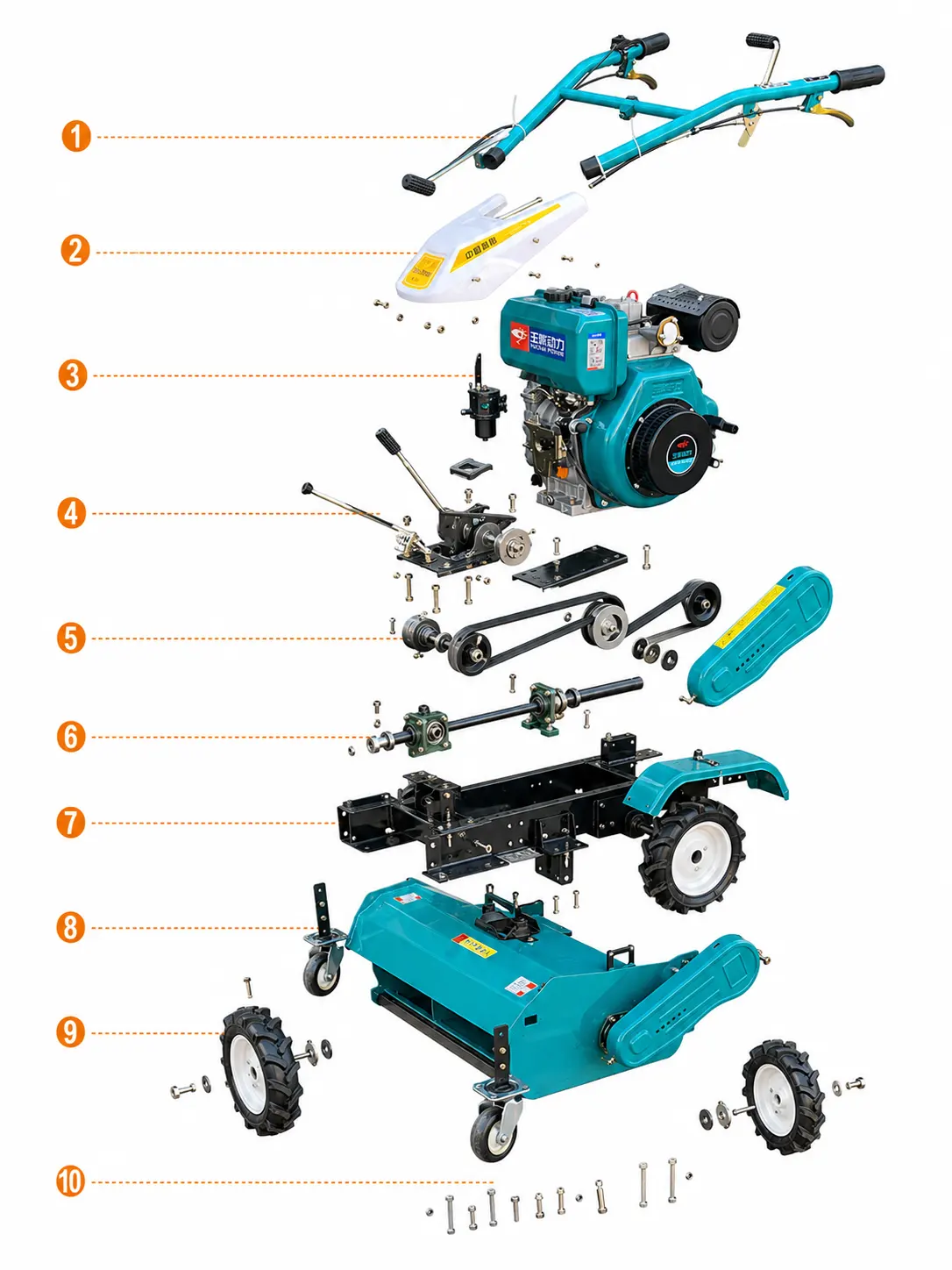

Product Structure
- Handlebar Control Assembly
- Upper Body Guard
The white upper cover shields the handlebar connection area and organizes the visible upper body assembly.

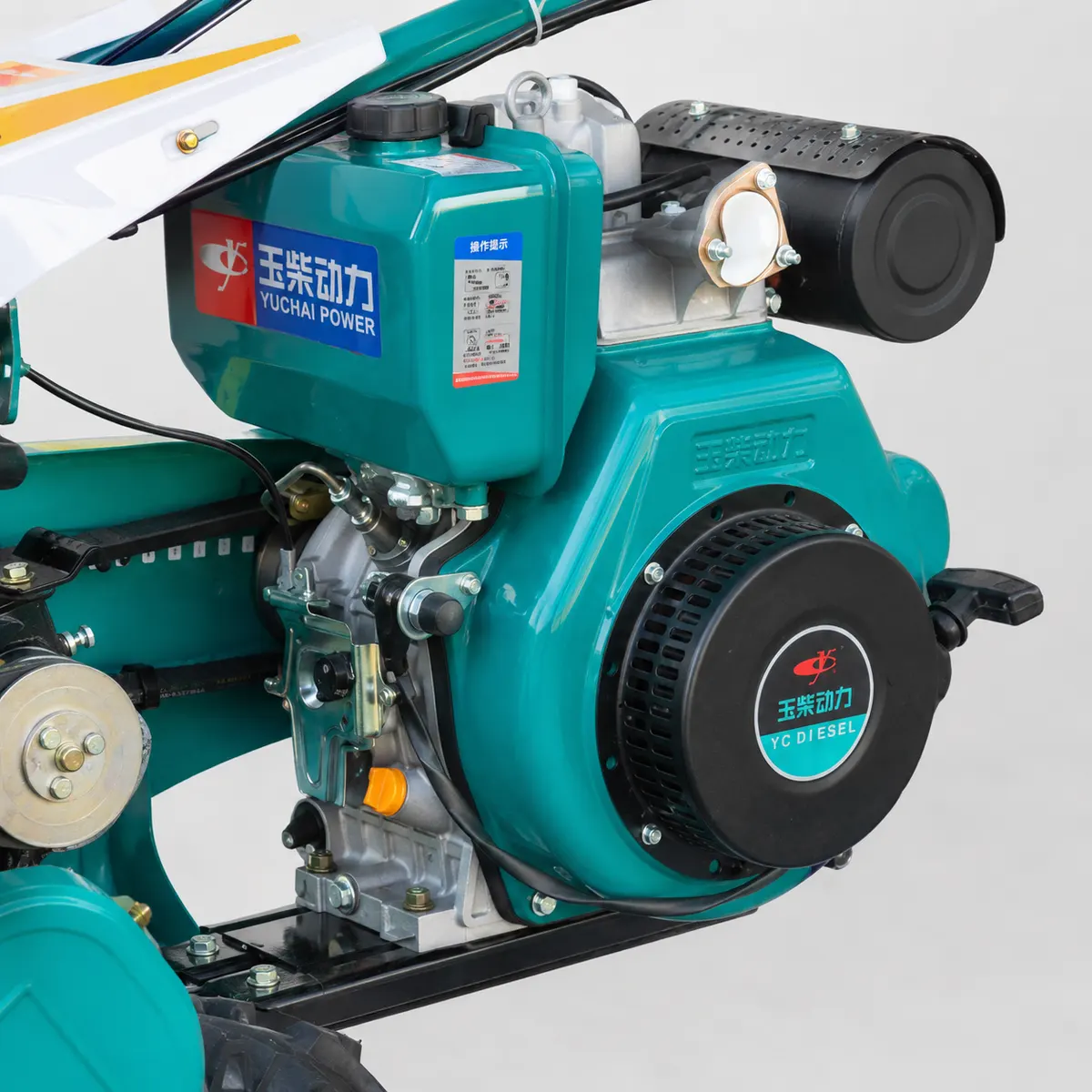

- Diesel Engine Assembly
The engine package combines the visible tank, air intake, starter and engine body to provide machine drive.
- Shift Control Assembly
The shift rod, control seat, linkage and mounting plate allow travel speed and work-state selection.

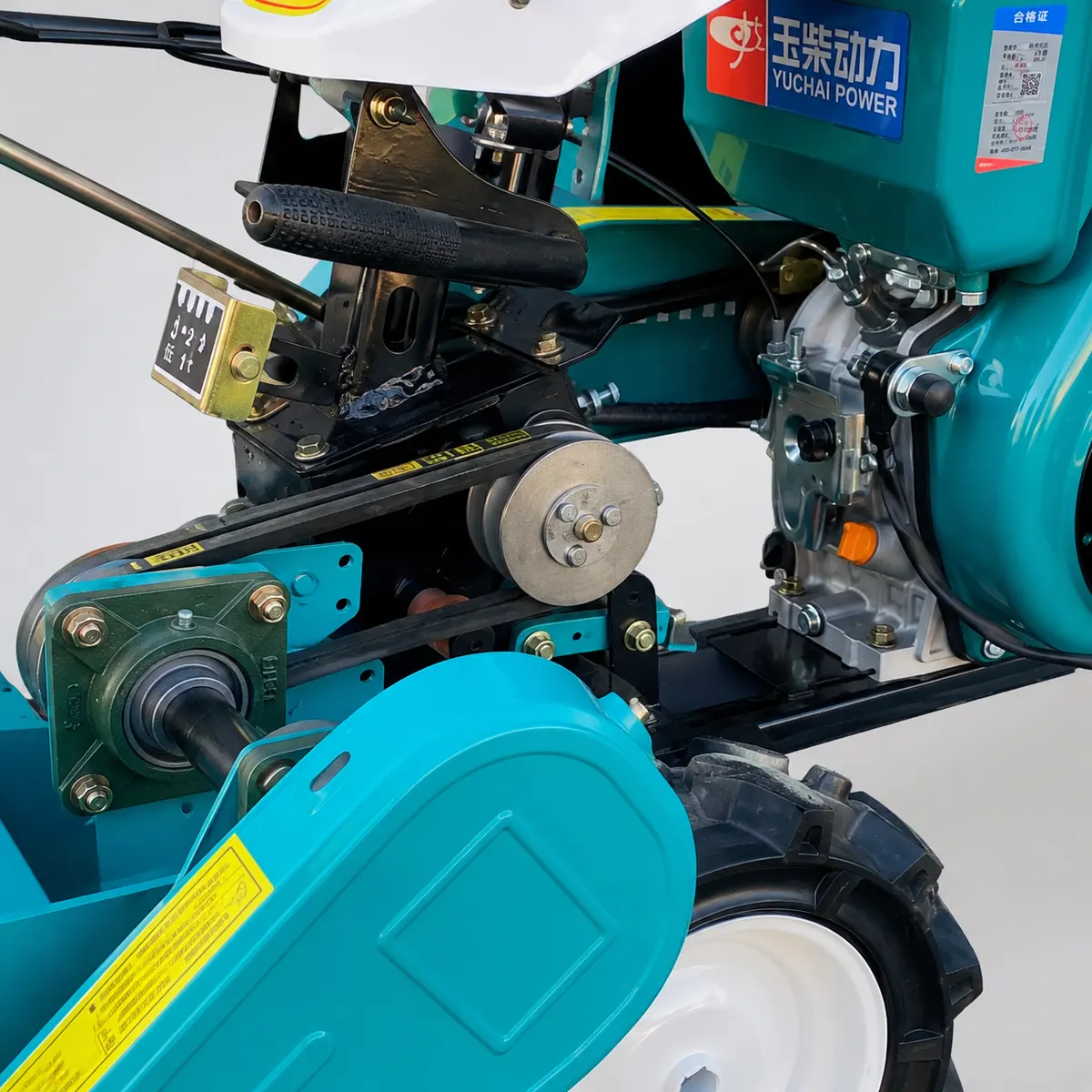

- Belt Pulley Drive Assembly
Drive pulleys, belt and side guard transfer engine power while protecting the rotating transmission area.
- Intermediate Drive Shaft
The shaft, bearing seat, coupling and fasteners carry rotation from the drive unit to the chassis and flail assembly.
- Main Frame and Running Assembly
The load-bearing frame, brackets, guards and drive hardware support the complete machine and its travel.
General information

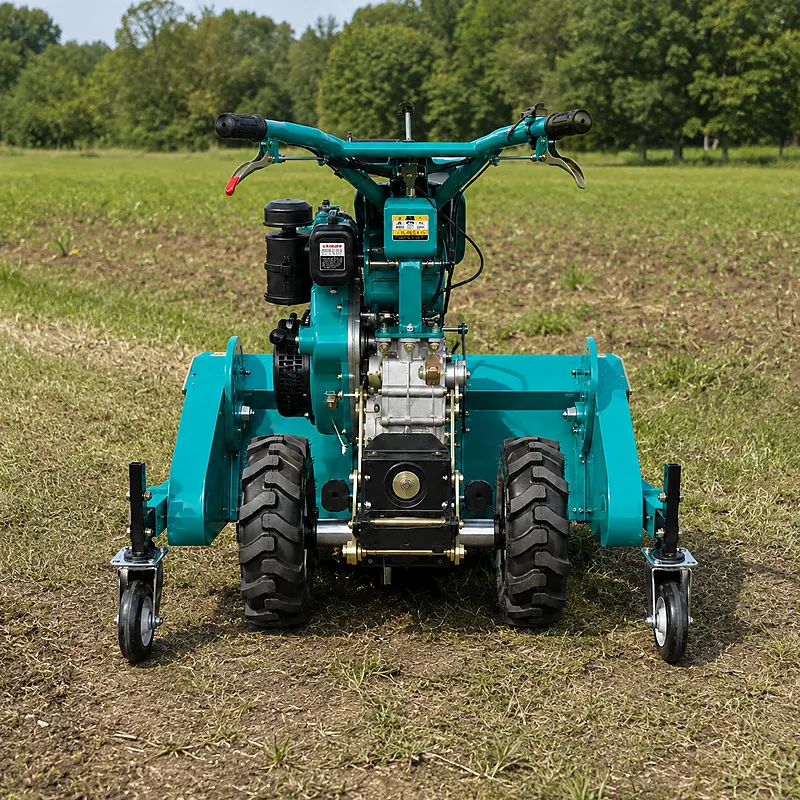

- Engine model
- 192F/P
- Engine rated speed
- 3600r/min
- Main drive method
- Belt
- Main clutch form
- Tightening type
- External dimensions (length)
- 1760mm
- External dimensions (width)
- 740mm
- External dimensions (height)
- 900mm
General instructions
Simplified explanationProduct Video
Display of Handheld 192 Diesel 80-width Grass Shredder
EASCO JTIA unit works nimbly in gardens, orchards and small plots.
Display of Handheld 192 Diesel 80-width Grass Shredder
00:31EASCO JTIA unit works nimbly in gardens, orchards and small plots.
Factory Real Scene 3
00:14Rigorous workshop management with a focus on precision quality.
Real Factory Footage
Real on-site records from our factory, offering a practical view of our production capability and delivery readiness.
0:00 / 0:00
Core Component Details
Certifications
Qualification Documents
We're here to help
Our team is ready to advise you on the best product configuration and procurement plan.
info@eascoutia.com400 158 5899Frequently Asked Questions
What type of machine is this?
It is a diesel walk-behind flail mower with a front enclosed housing, belt transmission, drive wheels and caster wheels.
Which engine model is listed?
The supplied product information confirms a diesel engine for this machine.
What cutting width is specified?
The confirmed cutting width is 800 mm for the front flail working housing.
How many blades are listed?
The specification lists 48 blades arranged in 16 groups. No unlisted blade details are added.
What should be checked before work?
Check the housing, belt guard, caster wheels, drive wheels, visible fasteners and route before beginning work.
