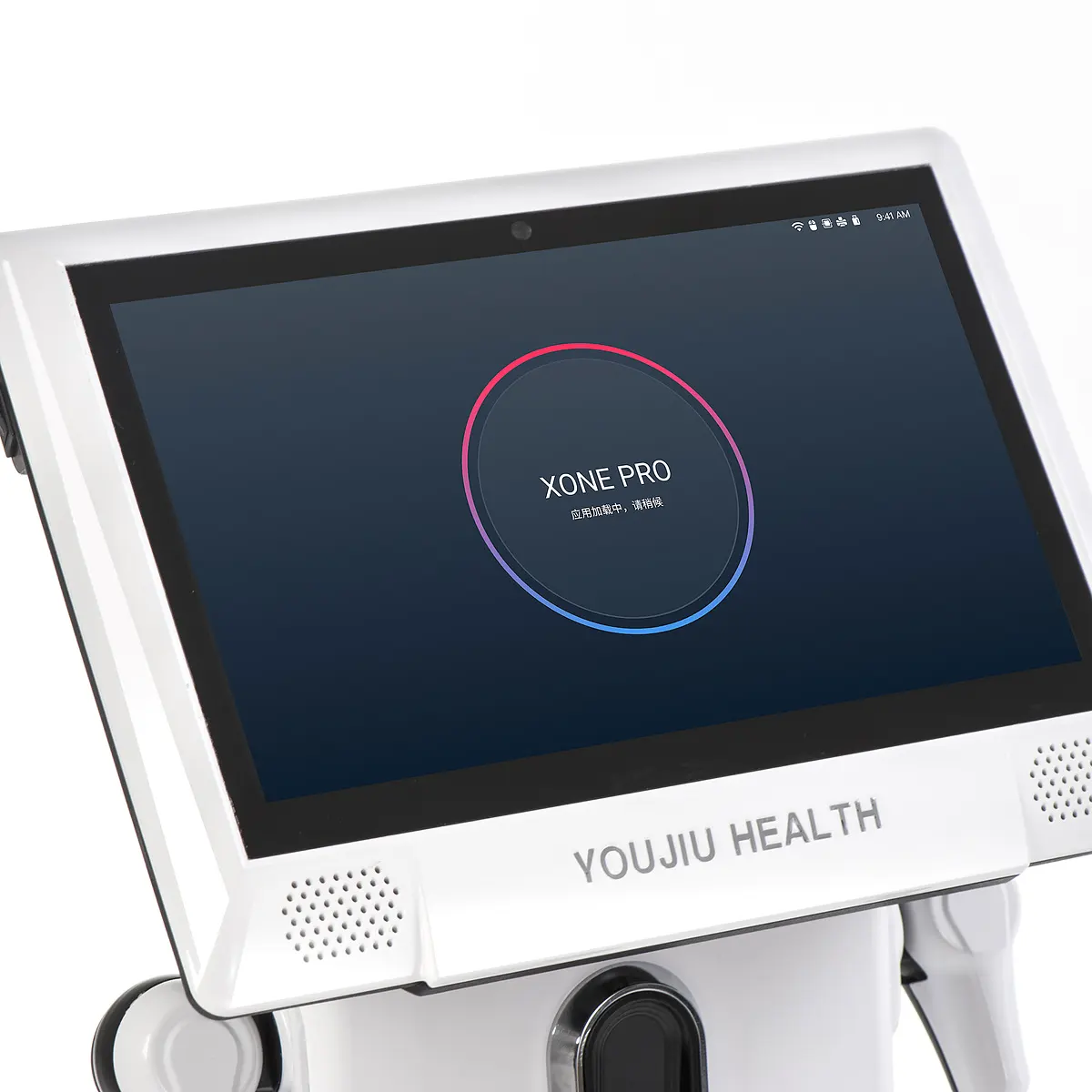

Located on the top of the main unit, it is used to display the operation interface and measurement process information.

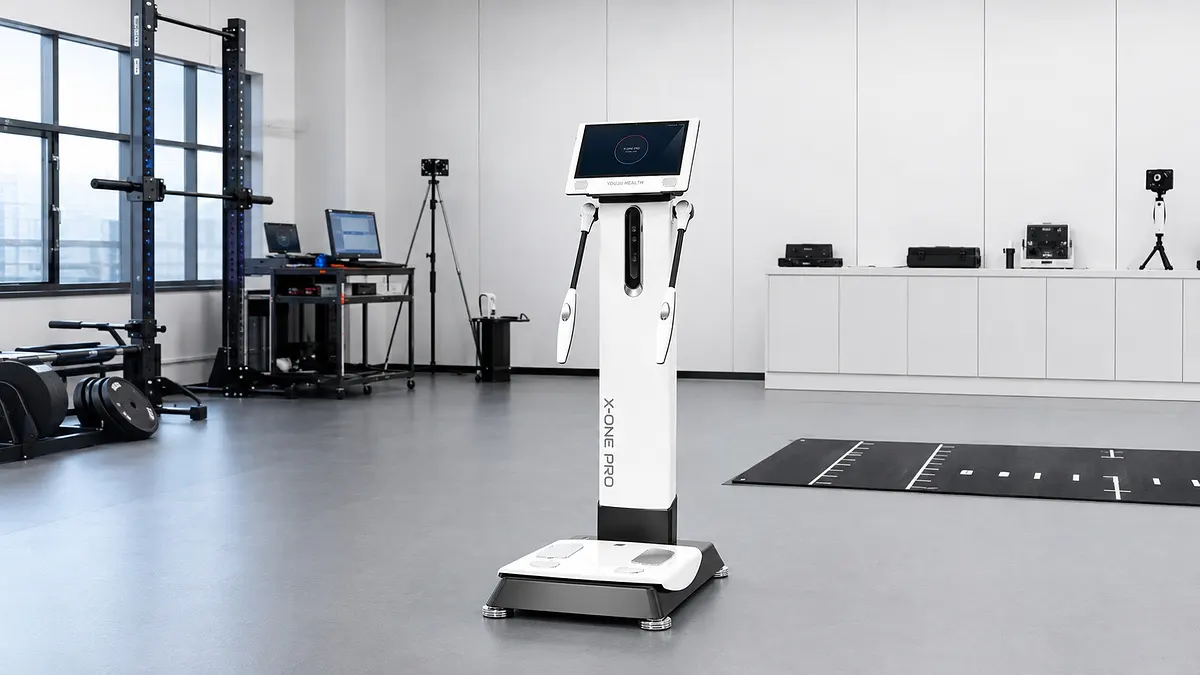

Sports Performance Testing Laboratory
Gym Training and Fitness Center Use with XONE PRO body detector
Professional application of XONE PRO body detector
XONE PRO body detector is suited to commercial gyms, training studios, rehabilitation rooms and fitness assessment areas. It supports repeatable exercise or measurement routines for users with different body sizes and training goals. Before deployment, confirm user range, resistance or measurement functions, footprint, load and adjustment options.
- Commercial Gyms
- Training Studios
- Rehabilitation Rooms
- Fitness Assessment

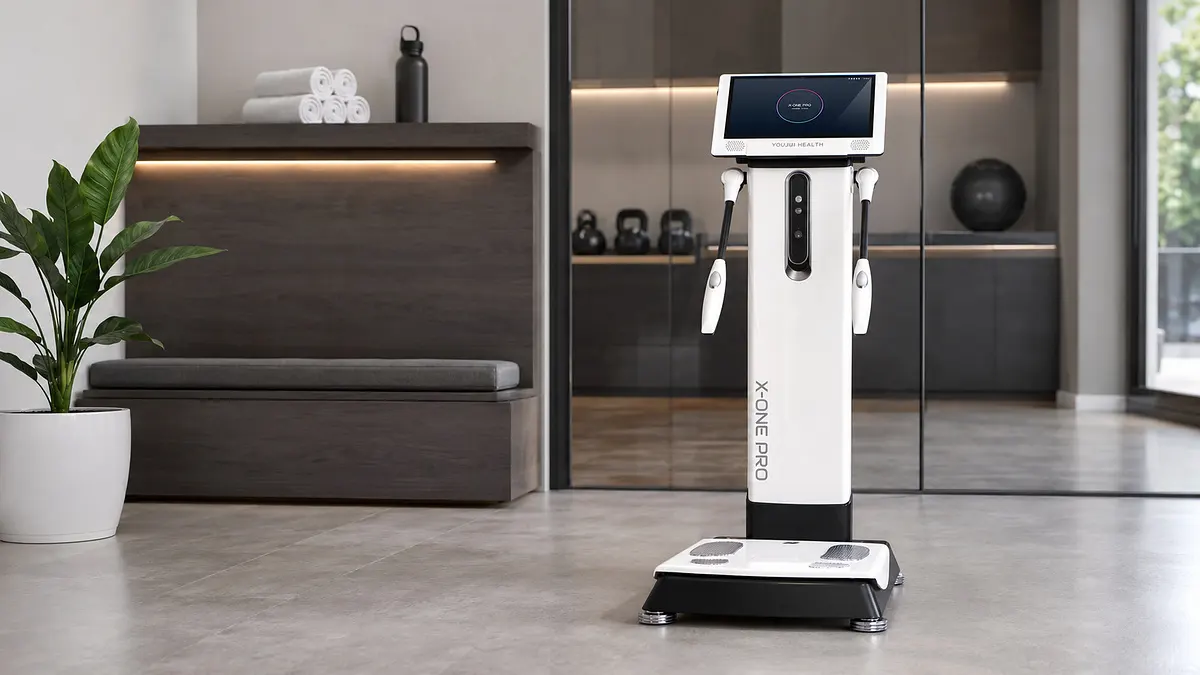

Fitness club body assessment area

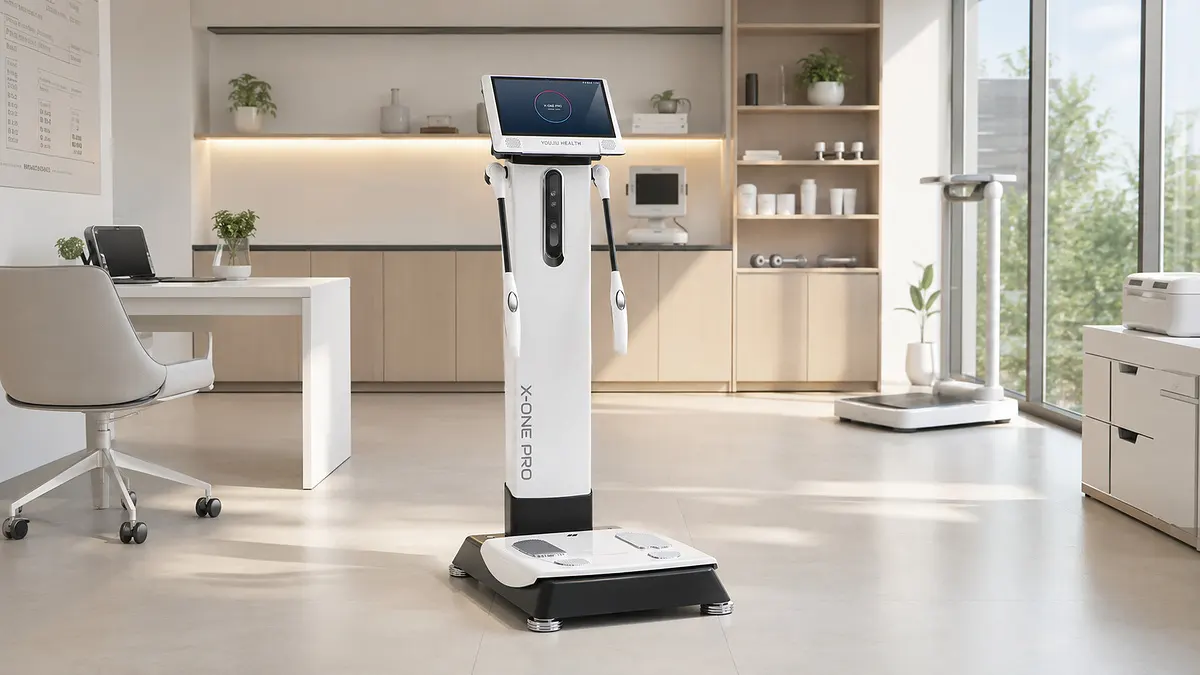

Health Management Assessment Room

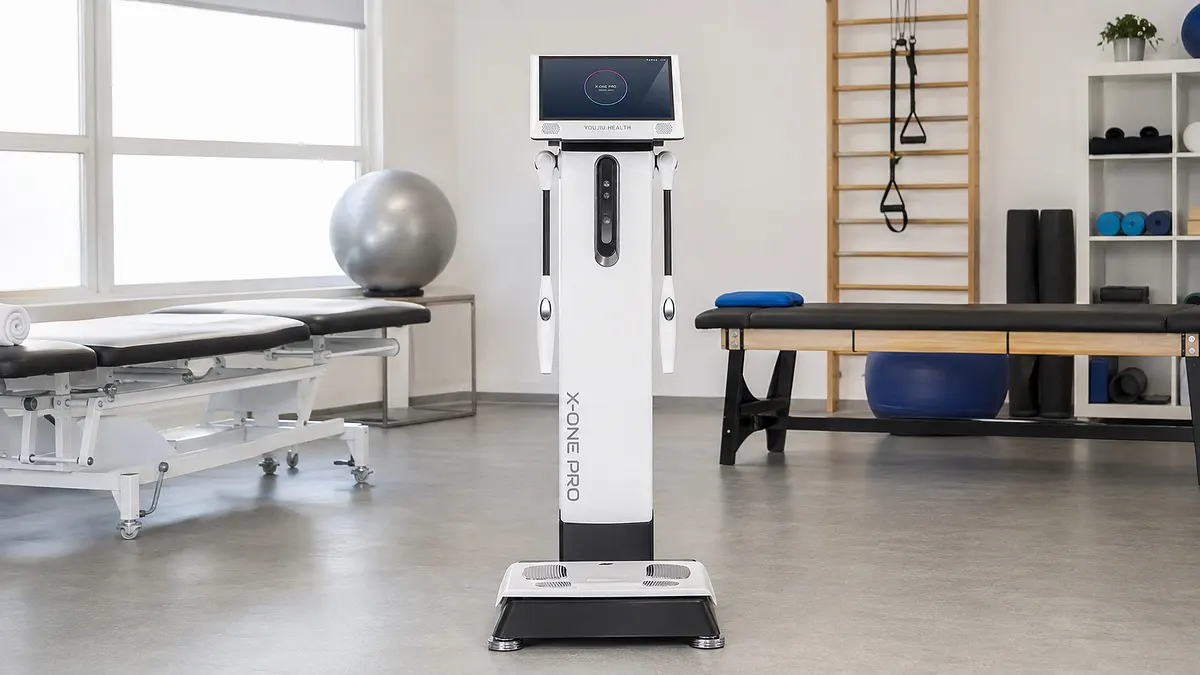

Rehabilitation and Physical Therapy Assessment RoomSports Performance Testing Laboratory

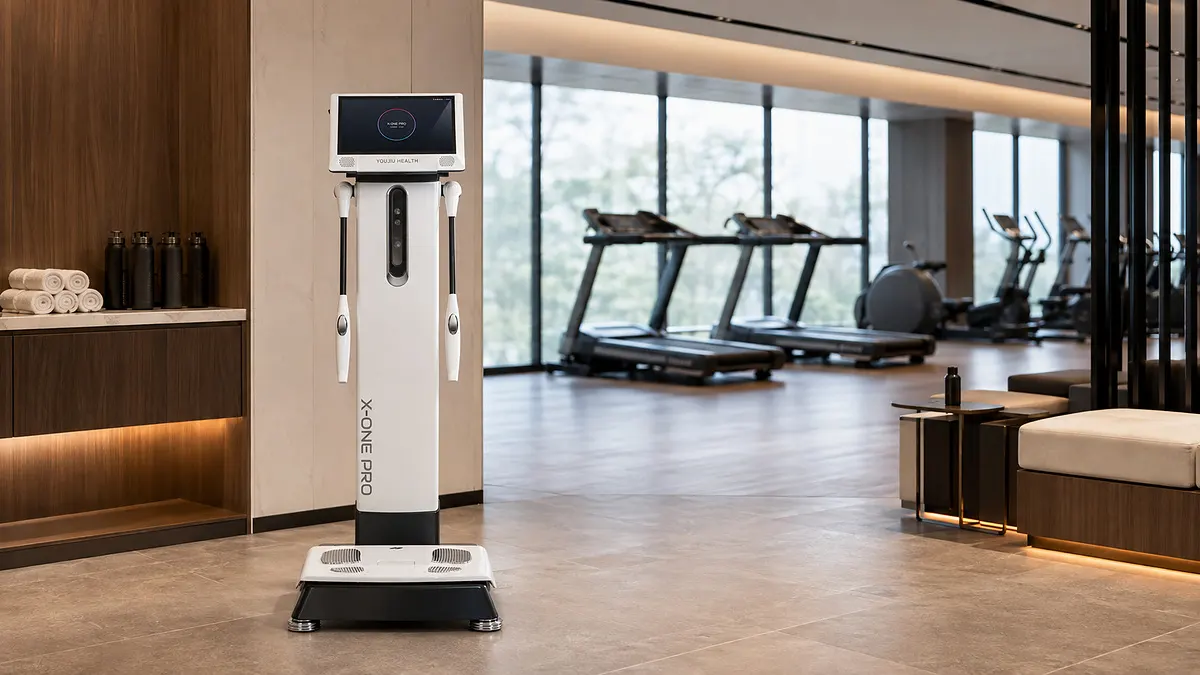

Hotel Gym Health Assessment AreaFitness club body assessment areaHealth Management Assessment RoomSpecifications & Structural Decomposition

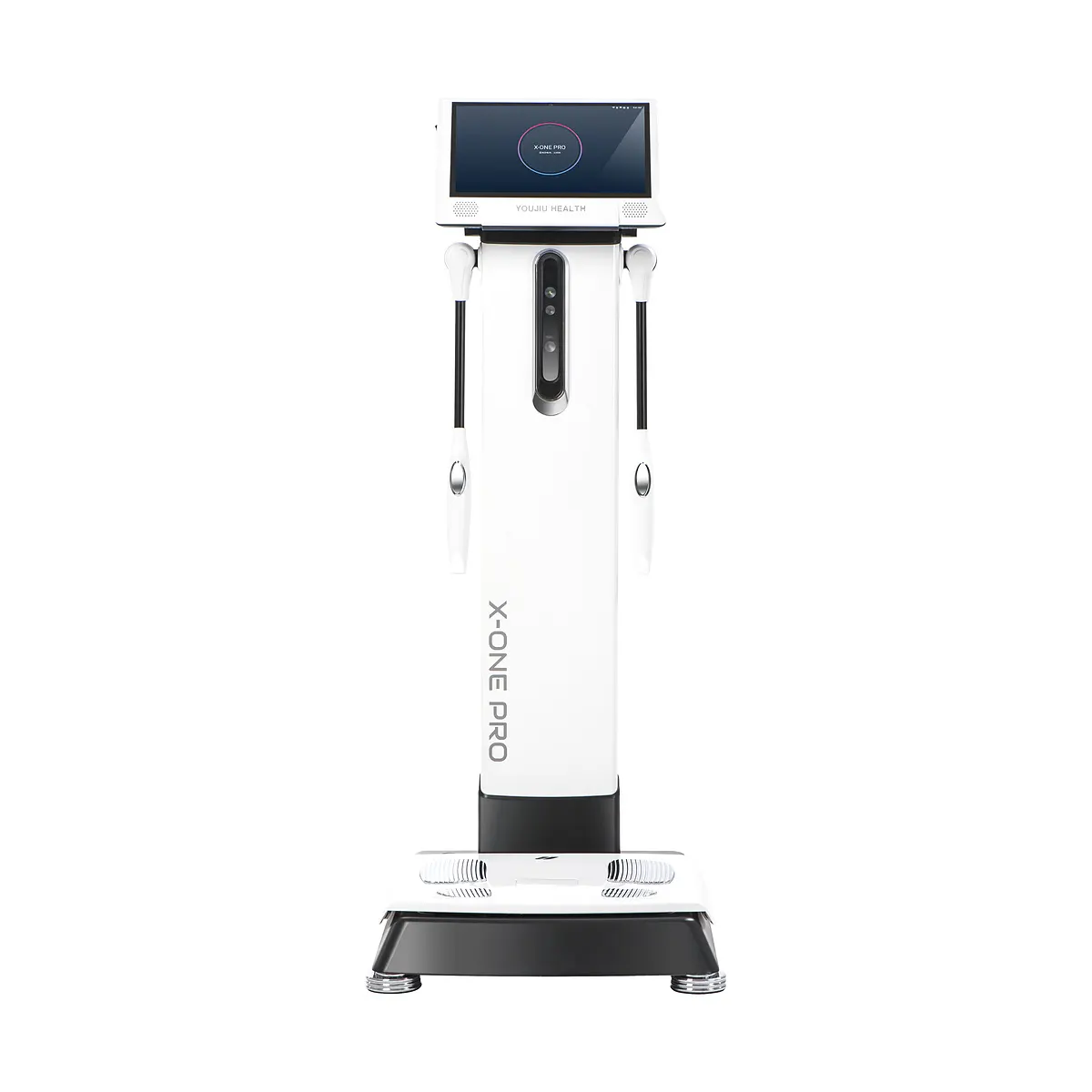

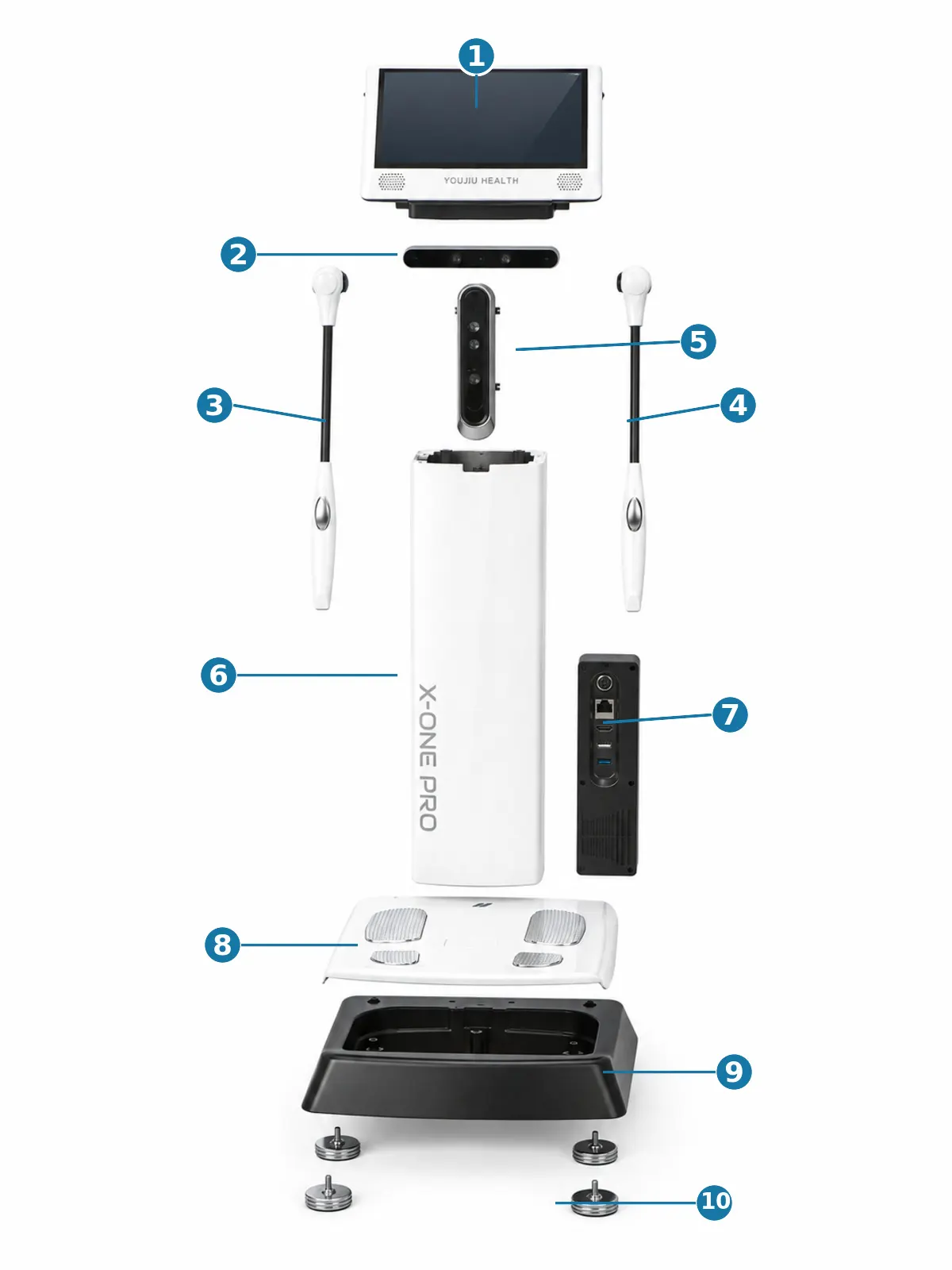

Product Structure Diagram
- Horizontal Display Assembly
- Display camera and sensor strip
Installed near the display area for device interaction and status sensing.

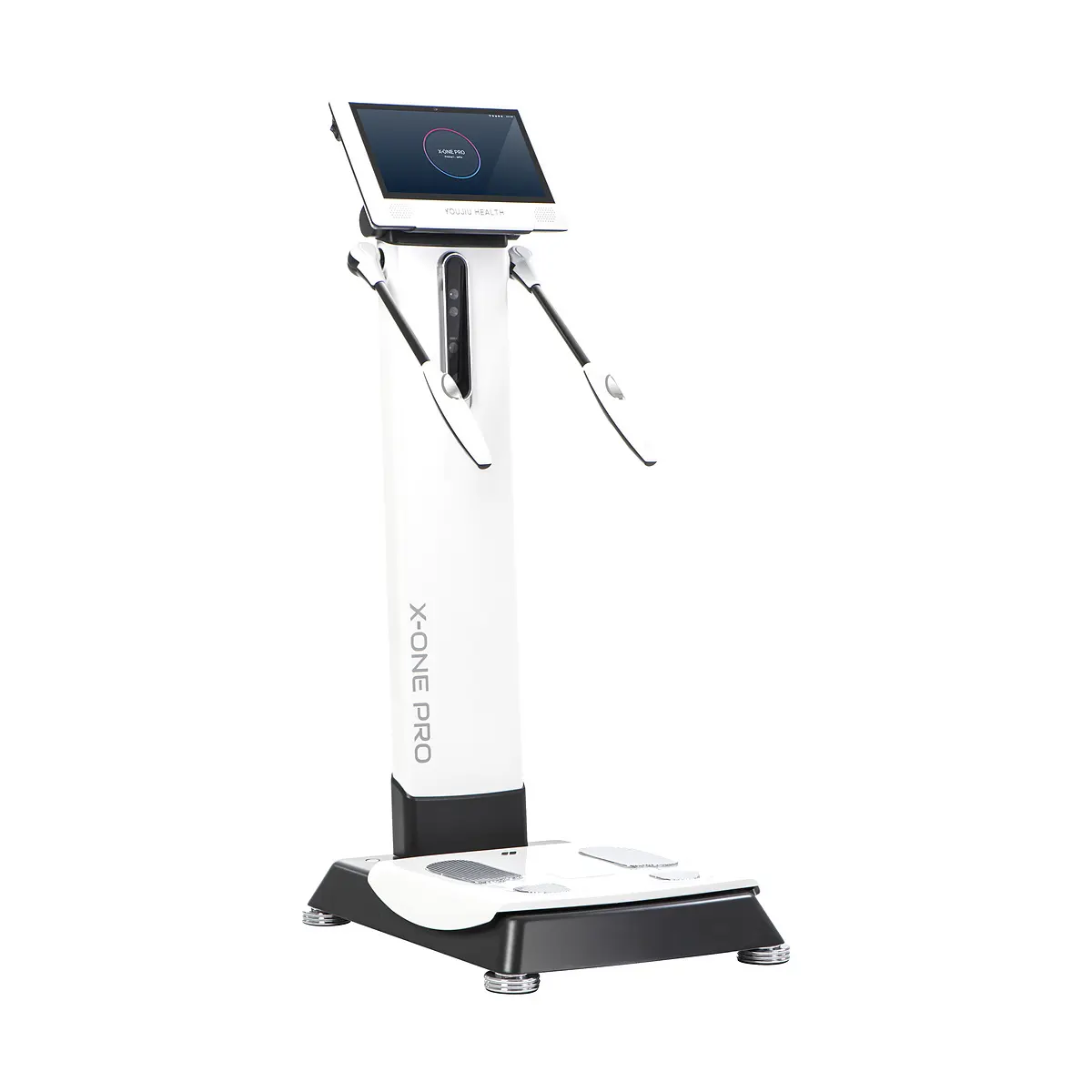

- Left-hand electrode
An electrode contact assembly for left-hand user grip.

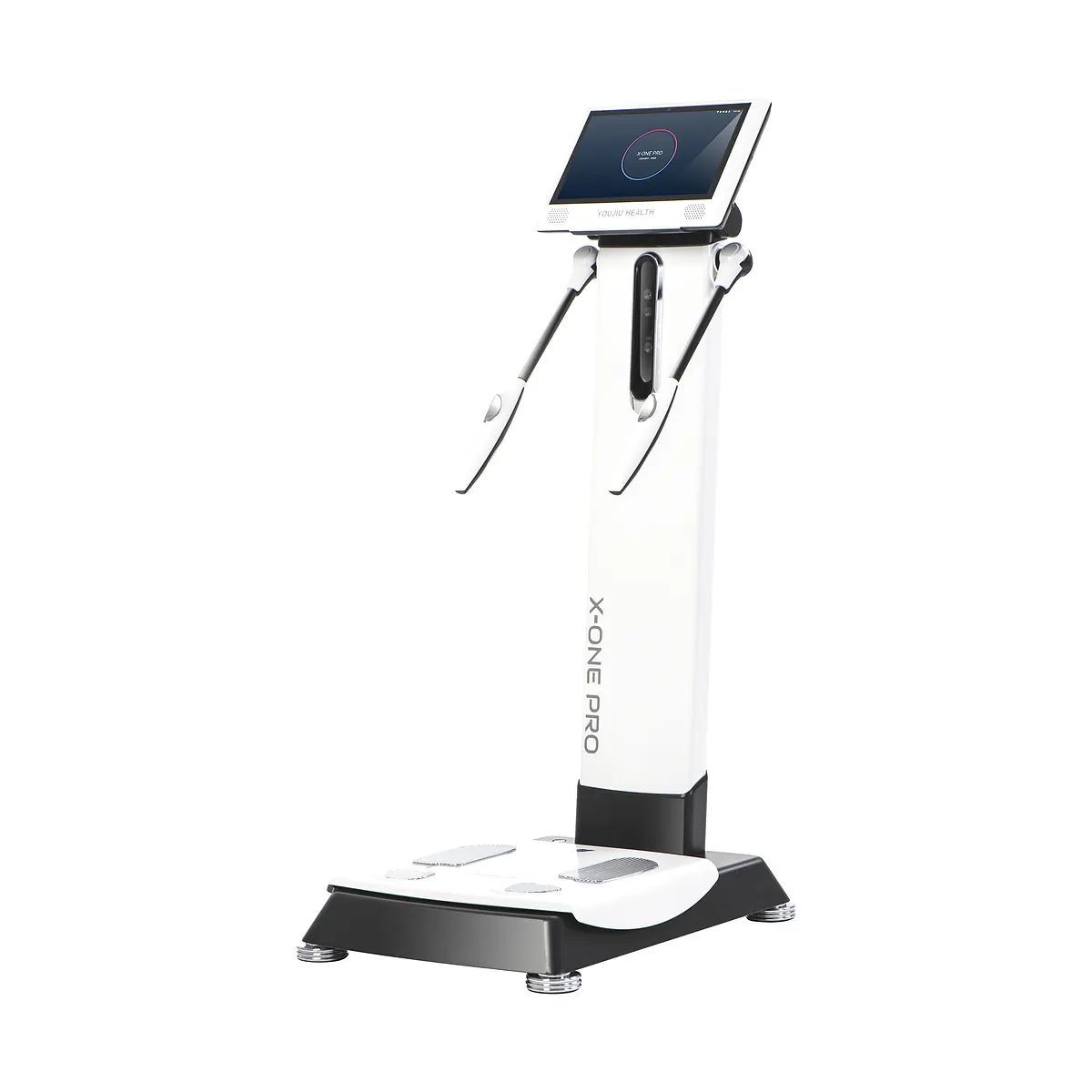

- Right-hand-held electrode
An electrode contact assembly designed for the user’s right hand.
- Front-body sensor module
Installed on the front panel of the host, it is used for interaction and sensing during the measurement process.

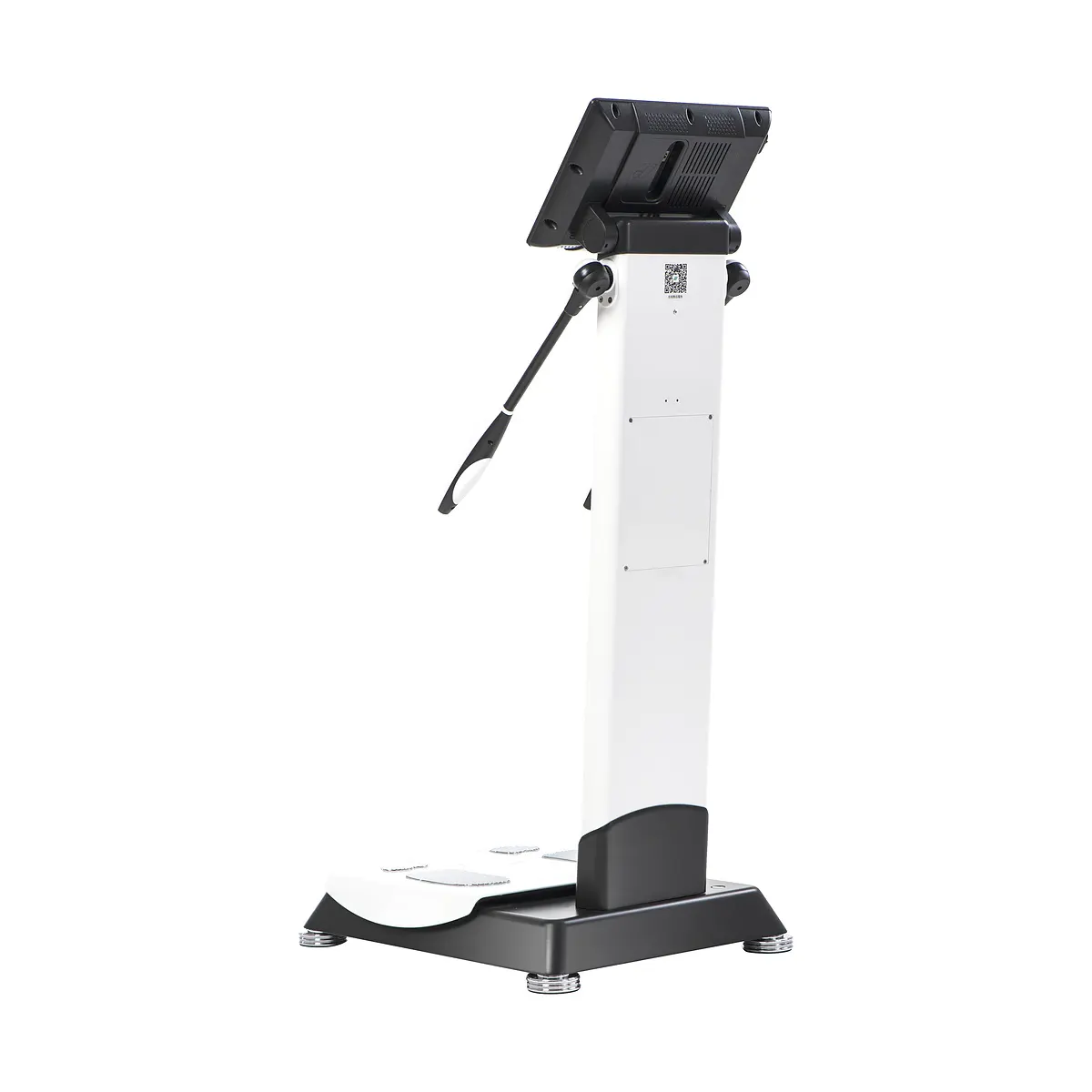

- Host column and housing
It connects the display assembly to the base and houses the main functional modules.

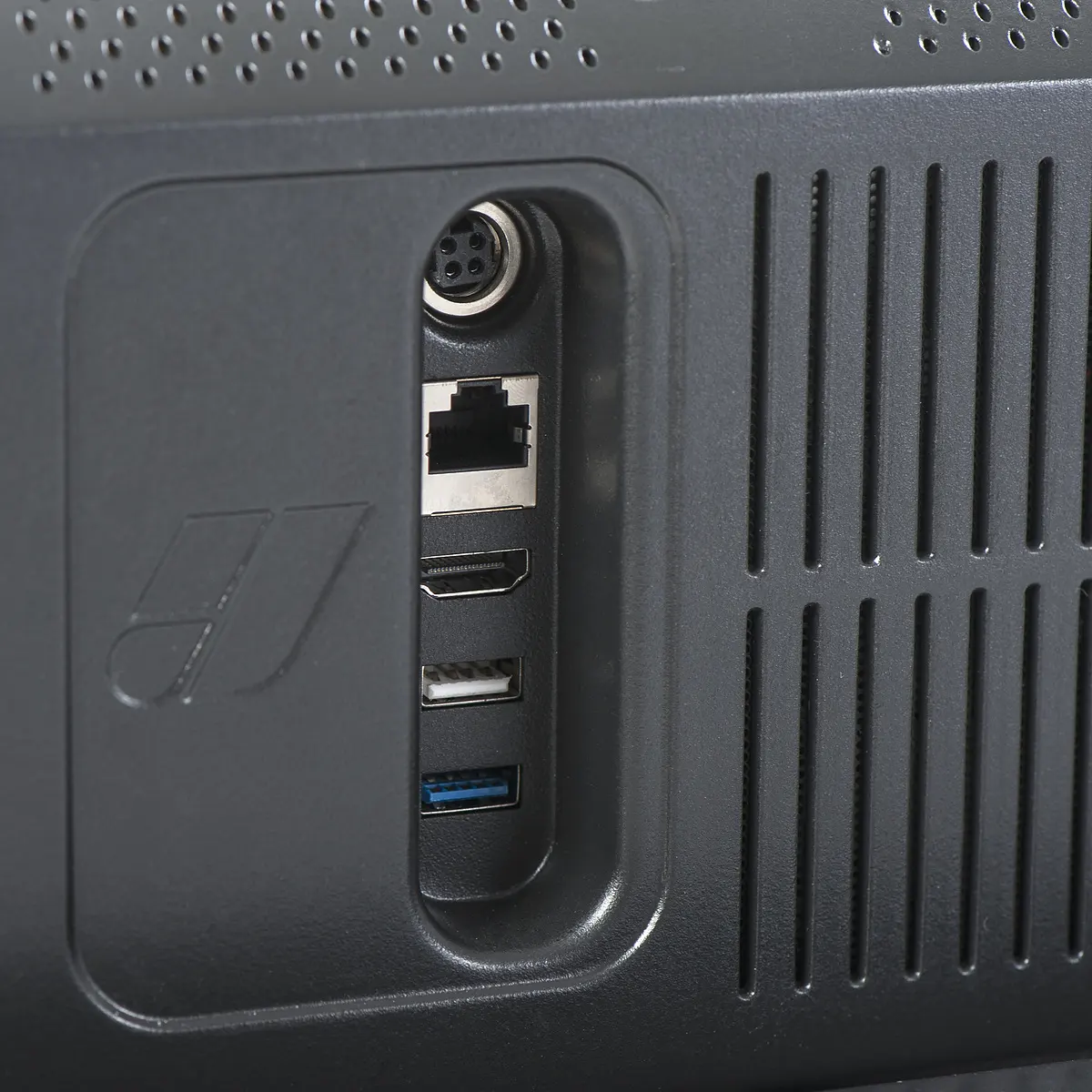

- Rear power and data interface module
Centralize the deployment of power, network, and data connectivity ports.
General information
- Supply voltage
- Input power: AC 100–240 V, 50/60 Hz, 0.5–1.0 A; Output power: DC 12 V, 3.34 A
- Transport Interface
- 1 × Ethernet port, 3 × USB 2.0 ports, 1 × power port
- Height entry range
- 90 to 240 centimeters
- Operating environment
- 10–40°C; relative humidity 20%–75%
- Measurement method
- Segmental Multi-Frequency Bioelectrical Impedance Analysis (DSM-BIA)
- Network support
- Supports dual-band 2.4GHz and 5GHz
- Equipment external dimensions
- 452 × 667 × 1,145 millimeters
General instructions
Simplified explanationCore Component Details
We're here to help
Our team is ready to advise you on the best product configuration and procurement plan.
info@eascoutia.com400 158 5899Frequently Asked Questions (FAQ)
1. Where is XONE PRO body detector typically used?
1. It is commonly used for commercial gyms, training studios, rehabilitation rooms and fitness assessment areas, subject to the selected model and site conditions.
2. How do I choose the right model?
2. Match user range, resistance or measurement functions, footprint, load and adjustment options to the actual workload and operating environment.
3. What should be confirmed before ordering?
3. Confirm model, upholstery or frame color, dimensions and accessory package, then verify the response time and any special requirements.
4. How should it be installed and maintained?
4. Prepare level flooring, adequate safety clearance and scheduled inspection of moving or sensing parts; follow the manual for operation, inspection and routine maintenance.
